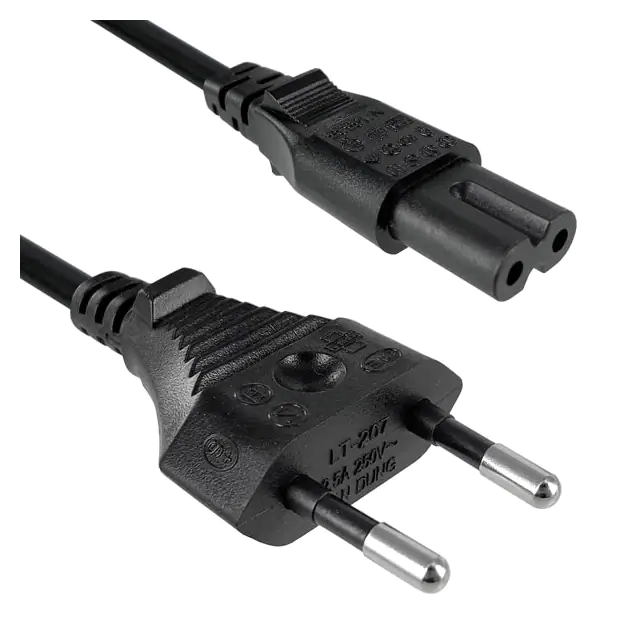

360006-E01

REVISION THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. DESCRIPTION DATE APPROVED 2007 mm 3 1 2 NOTES: 1. 2. 3. 4. 5. CORDAGE: H03VVH2-F, 2x0.75mm, UNSHIELDED, CEE COLOR CODE, TEMP. RATING 70°C, RATING: 250V 2.5A, JACKET COLOR: BLACK PLUG: IEC 884/EN 50 075 CONNECTOR: IEC 60320 C7 APPROVALS: GERMANY, SWITZERLAND, DENMARK, NORWAY, FINLAND, FRANCE, BELGIUM, ITALY, NETHERLANDS, SWEDEN, AUSTRIA ROHS COMPLIANT Dim range (mm) Tolerance +/(mm) 0-1 0.15 1-6 0.20 CONTROLLED Qualtek Electronics Corp. Part Number: Description: PPC DIVISION 360006-E01 POWER CORD 6-18 0.30 18-50 0.50 50-120 0.70 Drawn / Date Checked / Date Approved / Date 120-250 0.90 250-500 1.20 R.Nuti 10-30-07 10-30-07 JJH / 10-30-07 UNIT: mm
