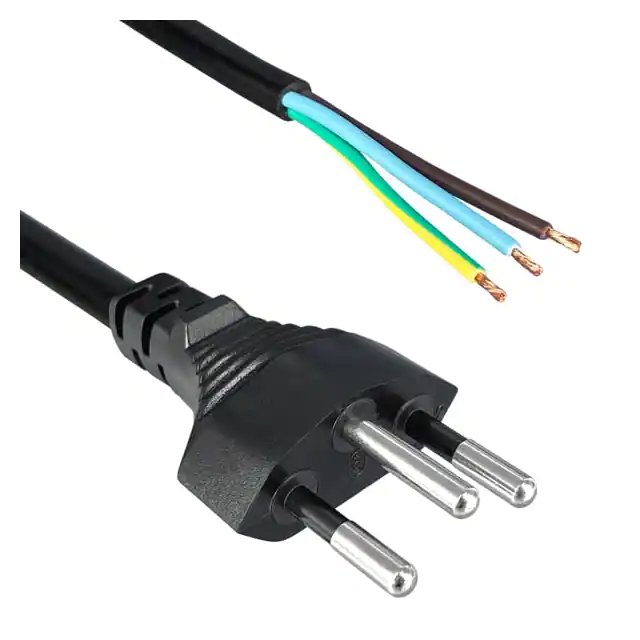

377002-E01

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. REVISION DESCRIPTION DATE APPROVED 2500 mm 5 mm 3 1 2 50 m m NOTES: 1. CORDAGE: H05VV-F, 3 X 0.75mm, UNSHIELDED, CEE COLOR CODE, TEMP. RATING 70°C, RATING: 250V 6A, JACKET COLOR: BLACK PLUG: SEV 1011 OTHER END: ROJ 50mm STRIP 5mm APPROVALS: SWITZERLAND ROHS COMPLIANT Dim range (mm) 0-1 1-6 6-18 18-50 50-120 120-250 250-500 Tolerance +/(mm) 0.15 0.20 0.30 0.50 0.70 0.90 1.20 CONTROLLED Qualtek Electronics Corp. Part Number: Description: PPC DIVISION 377002-E01 2. 3. 4. 5. POWER CORD UNIT: mm Drawn / Date R.Nuti 08-22-07 Checked / Date 08-22-07 Approved / Date JJH / 08-22-07
