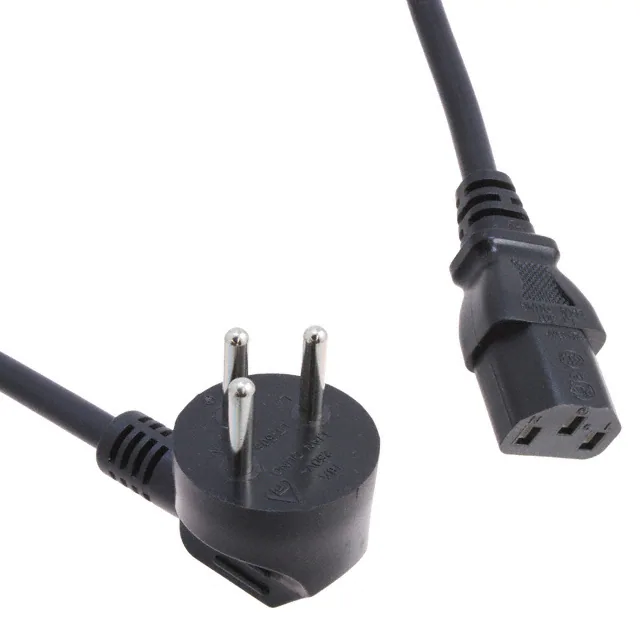

398001-01

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. 2500 mm ± 2 NOTES: 1. 2. 3. 4. 5. CORDAGE: H05VV-F, 3 x 1.0mm, UNSHIELDED, CEE COLOR CODE, TEMP. RATING 70°C, RATING: 250V 10A, JACKET COLOR: BLACK PLUG: SI 32/ISRAEL ANGLED CONNECTOR: IEC 60320 C-13 APPROVALS: ISRAEL ROHS COMPLIANT REVISION DESCRIPTION REV. DATE APPROVED 50mm 0mm 3 1 Dim range (mm) Tolerance +/(mm) 0-1 0.15 1-6 0.20 CONTROLLED Qualtek Electronics Corp. Part Number: Description: PPC DIVISION 398001-01 POWER CORD 6-18 0.30 18-50 0.50 50-120 0.70 Drawn / Date Checked / Date Approved / Date 120-250 0.90 250-500 1.20 R.Nuti 09-05-07 09-05-07 JJH / 09-05-07 UNIT: mm
