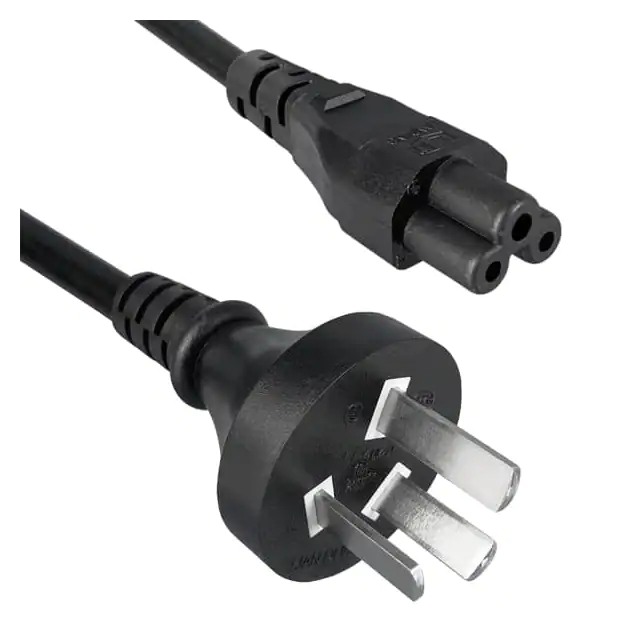

399014-01

REVISION THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. 1828.8mm ± DESCRIPTION DATE APPROVED 50mm 0mm 3 1 2 NOTES: 1. 2. 3. 4. 5. 2 CORDAGE: RVV, 3x0.75mm, UNSHIELDED CEE COLOR CODE, TEMP. RATING: 70°C, RATING: 250V 2.5A, JACKET COLOR: BLACK PLUG: GB 2099 GB 1002 CONNECTOR: IEC 60320 C5 APPROVALS: CCC ROHS COMPLIANT CONTROLLED Qualtek Electronics Corp. Dim range (mm) Tolerance +/(mm) Part Number: 0-1 0.15 Description: 1-6 0.20 PPC DIVISION 399014-01 POWER CORD 6-18 0.30 18-50 0.50 RFQ# 2677B 50-120 0.70 Drawn / Date Checked / Date 120-250 0.90 250-500 1.20 R. Nuti 07-29-13 07-29-13 UNIT: mm Approved / Date LY / 07-29-13
