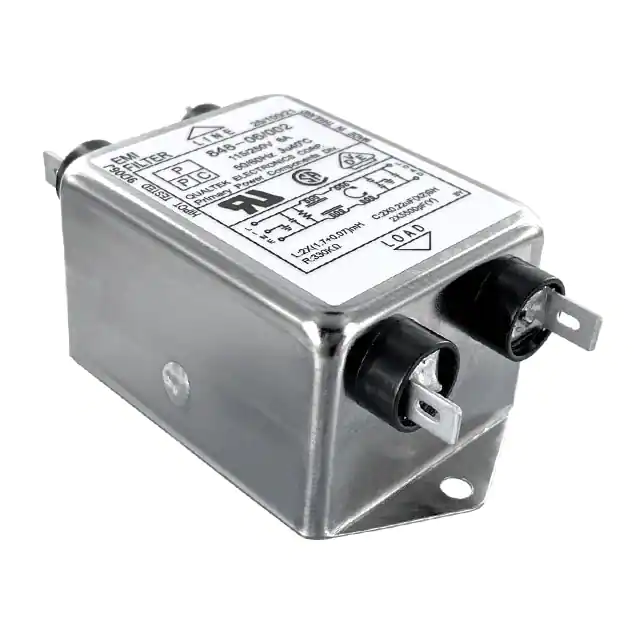

848-06/002

REVISION THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. B C DESCRIPTION DATE 06-01-06 05-27-09 RoHS Compliancy Updated Specifications APPROVED DP LY ELECTRICAL CHARACTERISTICS: 1-1. VOLTAGE RATING...................................115/250VAC PHYSICAL DIMENSIONS: 2.06MAX Ø0.188 2.94 ± 0.02 1-2. CURRENT RATING A. @ 115 VAC..........................................6 A RMS MAX B. @ 250 VAC.........................................6 A RMS MAX 1-3. OPERATING FREQUENCY......................50/60Hz 1-4. LEAKAGE CURRENT: EACH LINE TO GROUND A. @ 115 VAC 60Hz............................0.45 mA MAX B. @ 250 VAC 50Hz.............................0.90 mA MAX 1-5. HIPOT RATING (FOR ONE MINUTE) A. LINE TO GROUND...........................2250 VDC B. LINE TO LINE.....................................1450 VDC 1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM) FREQ. MHz 3.75MAX 1.54MAX 3.34MAX SCHEMATIC: L1: L2: C1: C2: R: 70.0uH 1.7mH 0.22uF 3300+2200pF 330KΩ .01 .05 .10 .15 .50 1.0 5.0 10 30 COM. MODE dB 5 18 25 25 30 30 35 50 45 DIF. MODE dB 0 10 25 30 25 40 40 40 40 1-7. OPERATING TEMPERATURE.................-25° TO +85° C 1-8. SAFETY: 1-9. RoHS COMPLIANT Dim range (mm) Tolerance +/(mm) 0-1 0.15 1-6 0.20 6-18 0.30 18-50 0.50 CONTROLLED Qualtek Electronics Corp. Part Number: Description: PPC DIVISION 848-06/002 EMI FILTER UNIT: in REV. C 50-120 0.70 Drawn / Date Checked / Date Approved / Date 120-250 0.90 250-500 1.20 B.ZHANG 02-07-03 02-07-03 JJH / 02-07-03
