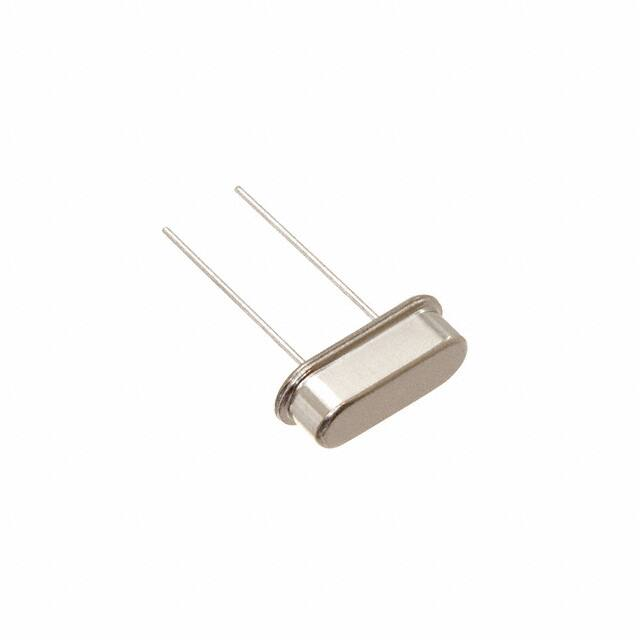

AS-12.000-20

REVISIONS LTR A INITIAL RELEASE DATE 5/2/03 APPROVED SPECIFICATIONS: NOMINAL FREQUENCY: MODE OF OSCILLATION: FREQUENCY TOLERANCE AT 25°C: FREQUENCY STABILITY OVER TEMPERATURE RANGE: OPERATING TEMPERATURE RANGE: STORAGE TEMPERATURE RANGE: AGING: LOAD CAPACITANCE: DRIVE LEVEL: SHUNT CAPACITANCE: EQUIVALENT SERIES RESISTANCE: HOLDER TYPE: 12.000 MHz FUNDAMENTAL ±30 PPM MAX ±50 PPM MAX -20°C TO +70°C -55°C TO +125°C ±5 PPM PER YEAR MAX 20 pF 100 µW TYP, 1000 µW MAX 7 pF MAX 60 OHMS MAX HC-49/S AS SHOWN RALTRON 10651 NW 19TH STREET MIAMI, FL 33172 ALL DIMENSIONS ARE IN mm/inch UNLESS OTHERWISE SPECIFIED DRAWN BY: Part Generator CHECKED BY: APPROVED BY: SCALE: SHEET 1 OF DATE: DRAWING TITLE: LOW PROFILE MICROPROCESSOR CRYSTAL DRAWING NUMBER: CAGE CODE: VUE AS-12.000-20
