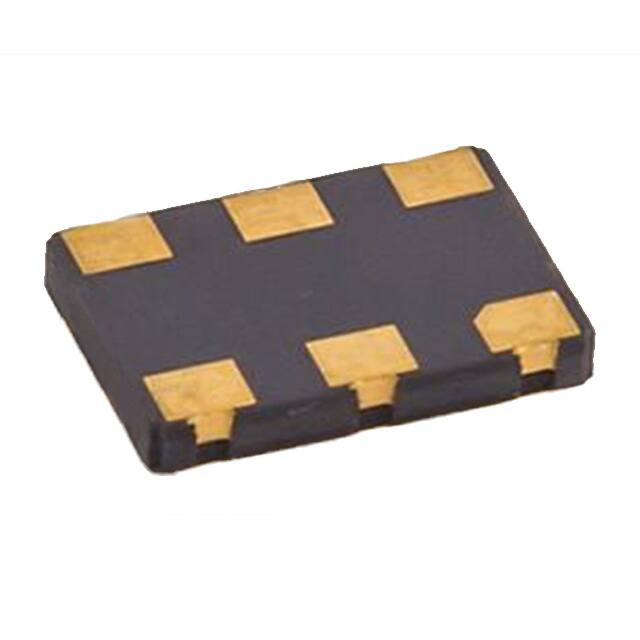

CL2520-156.250-3.3-20-X-T-TR-N3

LVDS CLOCK OSCILLATOR Page 1 of 4 CL2520-156.250-3.3-20-X-T-TR-N3 ◼ ELECTRICAL SPECIFICATION PARAMETERS Nominal Frequency Supply Voltage Supply Current, max Operating Temperature Range Storage Temperature Range Output Logic Type SYMBOL fo VCC IS Ta T(stg) --- Overall Freq. Stability, max. f/fo Output Voltage VOL VOH Output Load --- CONDITIONS Ta=25°C Vcc ±5% Vcc; Ta=+25C; --Absolute max Inclusive of 25°C Tolerance and Changes due to Operating Temperature, Supply Voltage, Load, Aging VOL, min VOH, max Connected between Out and Complementary Out Pin 1: N.C. (Open) or High (0.7 x Vcc) Enable / Disable Function E/D Pin 1: Low (0.3 x Vcc) Symmetry (Duty Cycle) Rise Time and Fall Time, max Jitter, RMS, max. DC tr / tf J @50% Wave form @12kHz ~ 20MHz VALUE 156.250 2.5 to 3.3 40 -40 to +85 -55 to +125 LVDS UNIT MHz VDC mA C C ±20 ppm 0.8 1.6 V V 100 Ω Pin 4 & 5 – Oscillation (Enabled) Pin 4 & 5 – High Impedance (Disabled) 45 to 55 % 400 ps 80 / 100 fs WAVEFORM DIAGRAM RALTRON ELECTRONICS ▪ 10400 N.W. 33rd Street ▪ Miami, Florida 33172 ▪ U.S.A. Telephone: +1-305-593-6033 ▪ Fax: +1-305-594-3973 ▪ e-mail: sales@raltron.com ▪ web: http://www.raltron.com LVDS CLOCK OSCILLATOR Page 2 of 4 CL2520-156.250-3.3-20-X-T-TR-N3 ◼ PHASE NOISE RALTRON ELECTRONICS ▪ 10400 N.W. 33rd Street ▪ Miami, Florida 33172 ▪ U.S.A. Telephone: +1-305-593-6033 ▪ Fax: +1-305-594-3973 ▪ e-mail: sales@raltron.com ▪ web: http://www.raltron.com LVDS CLOCK OSCILLATOR Page 3 of 4 CL2520-156.250-3.3-20-X-T-TR-N3 ◼ ◼ MECHANICAL SPECIFICATION CARRIER TAPE DIMENSIONS NOTE: REFER TO EIA-481 FOR DIMENSIONS NOT LISTED ◼ PACKAGING 178 mm REEL DIAMETER 12 mm TAPE WIDTH, 8 mm PITCH QUANTITY: 1000 PIECES PER REEL Pin Connections 1 – Enable / Disable 2 – NC 3 – Ground 4 – Output 5 – Complimentary Output 6 – Vcc ◼ REFLOW PROFILE tP TP Critical Zone TL to TP Ramp-up TL tL TSMAX Temp. [°C] TSMIN Ramp-down tS Preheat t[25°C] to Peak Time [sec] RALTRON ELECTRONICS ▪ 10400 N.W. 33rd Street ▪ Miami, Florida 33172 ▪ U.S.A. Telephone: +1-305-593-6033 ▪ Fax: +1-305-594-3973 ▪ e-mail: sales@raltron.com ▪ web: http://www.raltron.com LVDS CLOCK OSCILLATOR Page 4 of 4 CL2520-156.250-3.3-20-X-T-TR-N3 Reflow profile Temperature Min Preheat Temperature Max Preheat Time (TSMIN to TSMAX) Temperature Peak Temperature Ramp-up rate Ramp-down rate Time within 5°C of Peak Temperature Time t[25°C] to Peak Temperature Time ◼ TSMIN TSMAX tS TL TP RUP RDOWN tP t[25°C] to Peak tL ENVIRONMENTAL PARAMETER MOISTURE SENSITIVITY LEVEL RoHS REACH-SVHC HALOGEN-FREE TERMINATION FINISH ◼ 150°C 200°C 60-180 sec. 217°C 260°C 3°C/sec max. 6°C/sec max. 10 sec. 480 sec. 60-150 sec. VALUE 1 Compliant Compliant Compliant Au MARKING Rx156.2 •3BDEyw x – Internal Production ID code y – Year code w – Week code YEAR CODE Year Code 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 ◼ 5 6 7 8 9 0 1 2 3 4 5 Week 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 ALPHA WEEK CODE TABLE Code Week Code Week a b c d e f g h i j k l m n o p q r 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 s t u v w x y z A B C D E F G H I J 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 Code K L M N O P Q R S T U V W X Y Z APPROVAL RALTRON DRAWN BY: APPROVED BY: REVISION: CP, April 17, 2020 JI, April 17, 2020 A, Initial Release RALTRON ELECTRONICS ▪ 10400 N.W. 33rd Street ▪ Miami, Florida 33172 ▪ U.S.A. Telephone: +1-305-593-6033 ▪ Fax: +1-305-594-3973 ▪ e-mail: sales@raltron.com ▪ web: http://www.raltron.com
