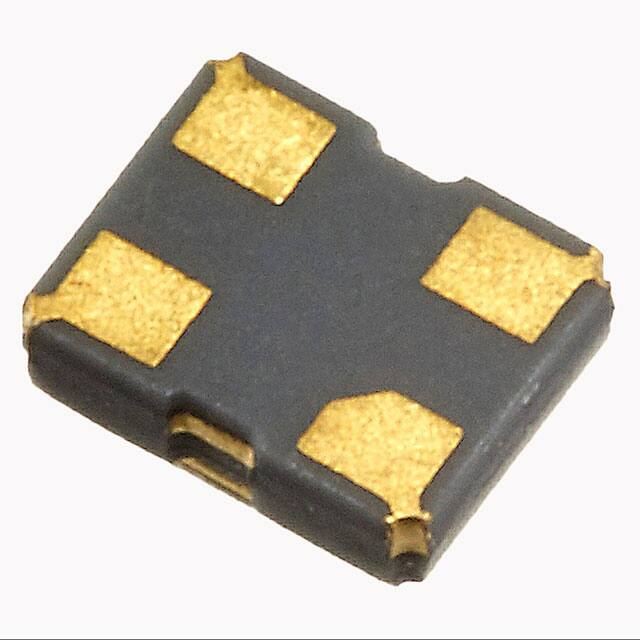

CO2016-50.000-3.3-50-T-TR

CO2016 Page 1 of 3 CO2016 SERIES: 2.0 x 1.6 mm CLOCK OSCILLATOR ◼ ◼ FEATURES • ULTRA MINATURE PACKAGE • ESSENTIAL IN HIGH DENSITY PCB • LOW SUPPLY VOLTAGE 1.8 AND 2.5 VDC AVAILABLE • STANDBY FUNCTION ◼ APPLICATIONS • • • • PRINTER SCANNER VGA CARD DVD DSC, DVC ELECTRICAL SPECIFICATION PARAMETER Frequency Range Operating Temperature Range Frequency Stability1 ** Storage Temperature Range Supply Voltage (Vcc) Supply Current Output CMOS Symmetry Rise / Fall Time Logic “0” Level Logic “1” Level Load Enable / Disable Function VALUE 1.5 ~ 50.000 MHz -10°C ~ +70°C Standard -40°C ~ +85°C Extended ±25 ppm, ±30 ppm, ±50 ppm, ±100 ppm -40°C to +85°C 1.8V ±5% 2.5V ±5% 3.3V ±5% 2.5 mA max ~24 MHz 3.5 mA max ~40 MHz 4.5 mA max ~50MHz 3.0 mA max ~24 MHz 4.5 mA max ~40 MHz 5.0 mA max ~50 MHz 2.5 mA max ~24 MHz 3.5 mA max ~40 MHz 4.5 mA max ~50 MHz 45% to 55% at 50% Vdd 10 nsec max at 10% to 90% Vdd Vcc x 0.1 V max Vcc x 0.9 V min 15 pF max Pin 1: High or Open >> Output enabled Pin 3 Pin 1: Low >> Output disabled (High impedance) ** Inclusive of 25°C tolerance, operating temperature range, voltage or load changes, aging, shock and vibration, consult factory for tighter stability options. NOTES 1 Not available at all frequencies, Contact Factory 2 Check part numbering table below. For others contact factory. RALTRON ELECTRONICS ▪ 10400 N.W. 33rd STREET ▪ Miami, Florida 33172 ▪ U.S.A. Telephone: 305-593-6033 ▪ Fax: 305-594-3973 ▪ e-mail: sales@raltron.com ▪ web site: www.raltron.com CO2016 Page 2 of 3 CO2016 SERIES: 2.0 x 1.6 mm CLOCK OSCILLATOR ◼ MECHANICAL SPECIFICATION (4 pin ceramic package) Unit: mm ◼ PART NUMBERING SYSTEM TYPE SERIES - FREQUENCY (MHz) - SUPPLY VOLTAGE (Vcc) - Clock Oscillator 2016 - 1.5 ~ 50.000 - 1.8: Vcc=1.8 2.5: Vcc=2.5 3.3: Vcc=3.3 CO 2016 - 12.800 - 2.5 - STABILITY (PPM) 25: ±25 ppm 30: ±30 ppm 50: ±50 ppm 100: ±100 ppm 50 TEMPERATURE RANGE blank: -10°C ~ +70°C X: -40°C ~ +85°C - TAPE & REEL - TR - TR EXAMPLE: CO2016-12.800-2.5-50-TR Surface Mount CO2016, 2.0 x 1.6 mm, 12.800 MHz, 2.5 VDC Supply Voltage, ±50 ppm Overall Stability, from -10°C to +70°C, Symmetry 45% to 55%, Tape and Reel packaging. RALTRON ELECTRONICS ▪ 10400 N.W. 33rd STREET ▪ Miami, Florida 33172 ▪ U.S.A. Telephone: 305-593-6033 ▪ Fax: 305-594-3973 ▪ e-mail: sales@raltron.com ▪ web site: www.raltron.com CO2016 Page 3 of 3 CO2016 SERIES: 2.0 x 1.6 mm CLOCK OSCILLATOR ◼ REFLOW PROFILE tP TP Critical Zone TL to TP Ramp-up TL tL TSMAX Temp. [°C] TSMIN Ramp-down tS Preheat Time [sec] t[25°C] to Peak Reflow profile Temperature Min Preheat Temperature Max Preheat Time (TSMIN to TSMAX) Temperature Peak Temperature Ramp-up rate Ramp-down rate Time within 5°C of Peak Temperature Time t[25°C] to Peak Temperature Time ◼ TSMIN TSMAX tS TL TP RUP RDOWN tP t[25°C] to Peak tL 150°C 200°C 60-180 sec. 217°C 260°C 3°C/sec max. 6°C/sec max. 10 sec. 480 sec. 60-150 sec. ENVIRONMENTAL PARAMETER MOISTURE SENSITIVITY LEVEL REACH SVHC RoHS TERMINATION FINISH VALUE 1 COMPLIANT COMPLIANT Au February 2021 RALTRON ELECTRONICS ▪ 10400 N.W. 33rd STREET ▪ Miami, Florida 33172 ▪ U.S.A. Telephone: 305-593-6033 ▪ Fax: 305-594-3973 ▪ e-mail: sales@raltron.com ▪ web site: www.raltron.com
