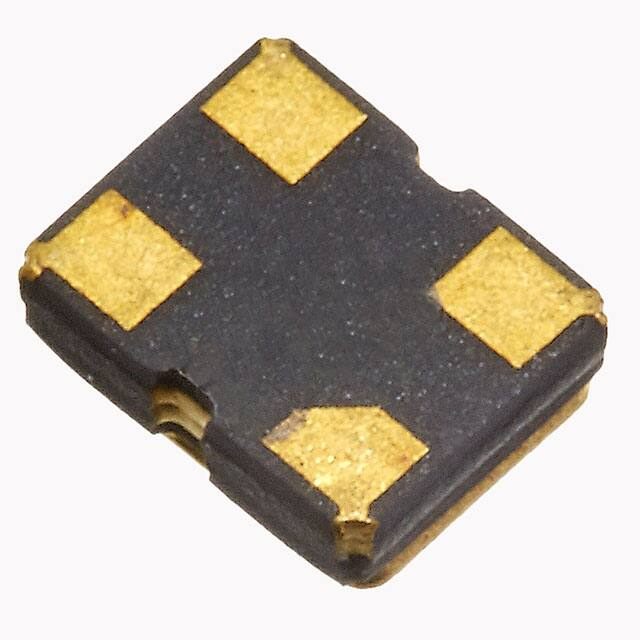

CO2520-25.000-3.3-50-X-T-TR

CO2520 Page 1 of 3 CO2520 SERIES: 2.5 x 2.0 mm CLOCK OSCILLATOR   FEATURES  ULTRA SMALL PACKAGE  LOW SUPPLY VOLTAGE 1.8 AND 2.5 VDC AVAILABLE  STANDBY FUNCTION  APPLICATIONS     PRINTER SCANNER VGA CARD DVD DSC, DVC ELECTRICAL SPECIFICATION PARAMETER Frequency Range Operating Temperature Range Frequency Stability1 ** Storage Temperature Range Supply Voltage (Vcc) Supply Current Symmetry Rise / Fall Time Output Logic “0” Level CMOS Logic “1” Level Load Enable / Disable Function Start-up Time VALUE 0.750 ~ 75.000 MHz -20°C to +70°C -40°C to +85°C ±25 ppm ±50 ppm ±30 ppm ±100 ppm -40°C to +85°C 3.3V ±5% 1.8V ±5% 2.5V ±5% 3.0V ±5% 2.5 mA max ~29 MHz 3.0 mA max ~39 MHz 3.5 mA max ~50 MHz 4.0 mA max ~75MHz 4.5 mA max ~29 MHz 5.5 mA max ~39 MHz 6.5 mA max ~50 MHz 7.5 mA max ~75MHz 5.5 mA max ~29 MHz 6.5 mA max ~39 MHz 7.5 mA max ~50 MHz 8.5 mA max ~75MHz 2.5 mA max ~29 MHz 3.5 mA max ~39 MHz 4.5 mA max ~50 MHz 5.5 mA max ~75MHz 40% to 60% at 50% Vdd (45% to 55% Available) 10 nsec max at 10% to 90% Vdd Vcc x 0.1 V max Vcc x 0.9 V min 15 pF max Pin 1: High or Open >> Output enabled Pin 3 Pin 1: Low >> Output disabled (High impedance) 10 ms Max ** Inclusive of 25°C tolerance, operating temperature range, voltage or load changes, aging, shock and vibration, consult factory for tighter stability options. NOTES 1 Not available at all frequencies, Contact Factory 2 Check part numbering table below. For others contact factory. R A L T R O N E L E C T R O N I C S  1 0 4 0 0 N .W . 3 3 rd STREET  Miami, Florida 33172  U.S.A. Telephone: 305-593-6033  Fax: 305-594-3973  e-mail: sales@raltron.com  web site: www.raltron.com CO2520 Page 2 of 3 CO2520 SERIES: 2.5 x 2.0 mm CLOCK OSCILLATOR  MECHANICAL SPECIFICATION (4 pin ceramic package) OUTLINE TOLERANCE IF NOT SPECIFIED: ±0.015” / 0.4mm PIN FUNCTIONS: [1] ENABLE / DISABLE [2] GND [3] OUTPUT [4] VCC  PART NUMBERING SYSTEM FREQUENCY (MHz) - - 0.750 ~ 75.000 - - 12.800 - TYPE SERIES - Clock Oscillator 2520 CO 2520 SUPPLY VOLTAG E (Vcc) 18: Vcc=1.8 25: Vcc=2.5 30: Vcc=3.0 33: Vcc=3.3 25 - - STABILITY (PPM) 25: ±25 ppm 30: ±30 ppm 50: ±50 ppm 100: ±100 ppm 50 - - TEMPERATURE RANGE blank: -20°C to +70°C X: -40°C to +85°C - - SYMMETRY (Duty Cycle) blank: 40 to 60% T: 45 to 55% - - TAPE & RE EL - TR - TR EXAMPLE: CO2520-12.800-25-50-TR Surface Mount CO2520, 2.5 x 2.0 mm, 12.800 MHz, 2.5 VDC Supply Voltage, ±50 ppm Overall Stability, from -20°C to +70°C, Symmetry 40% to 60%, Tape and reel packaging. R A L T R O N E L E C T R O N I C S  1 0 4 0 0 N .W . 3 3 rd STREET  Miami, Florida 33172  U.S.A. Telephone: 305-593-6033  Fax: 305-594-3973  e-mail: sales@raltron.com  web site: www.raltron.com CO2520 Page 3 of 3 CO2520 SERIES: 2.5 x 2.0 mm CLOCK OSCILLATOR  REFLOW PROFILE tP TP Critical Zone TL to TP Ramp-up TL tL TSMAX Temp. [°C] TSMIN Ramp-down tS Preheat Time [sec] t[25°C] to Peak Reflow profile Temperature Min Preheat Temperature Max Preheat Time (TSMIN to TSMAX) Temperature Peak Temperature Ramp-up rate Ramp-down rate Time within 5°C of Peak Temperature Time t[25°C] to Peak Temperature Time  TSMIN TSMAX tS TL TP RUP RDOWN tP t[25°C] to Peak tL 150°C 200°C 60-180 sec. 217°C 260°C 3°C/sec max. 6°C/sec max. 10 sec. 480 sec. 60-150 sec. ENVIRONMENTAL PARAMETER MOISTURE SENSITIVITY LEVEL REACH SVHC RoHS TERMINATION FINISH VALUE 1 COMPLIANT 6/6 LEAD FREE Au SEPTEMBER 2012 R A L T R O N E L E C T R O N I C S  1 0 4 0 0 N .W . 3 3 rd STREET  Miami, Florida 33172  U.S.A. Telephone: 305-593-6033  Fax: 305-594-3973  e-mail: sales@raltron.com  web site: www.raltron.com
