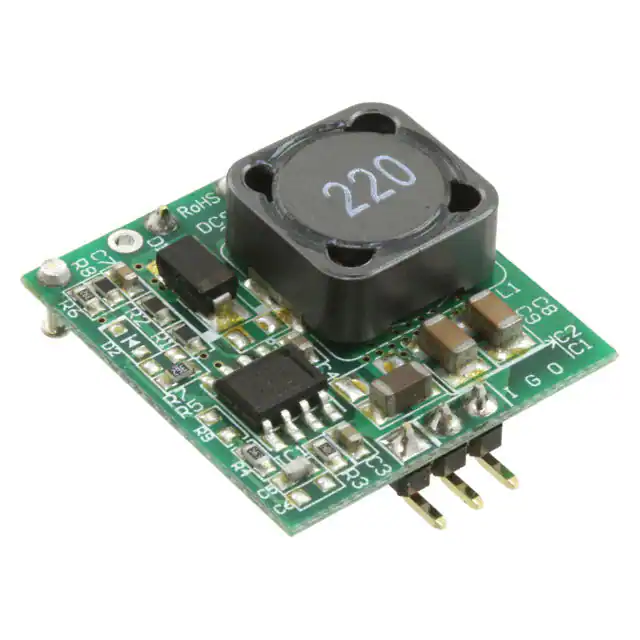

R-78T5.0-1.0/AL-R

• Efficiency up to 95%, no need for heatsinks • Industry standard pin-out • 1.5A start-up overload capacity • Non-isolated regulator, very low standby current • Wide input range (7V -42VDC) • Short circuit protection • Fixed swiching frequency (350kHz), shielded magnetics Features Switching Regulator Description DC/DC Converter R-78T-1.0 1.0 Amp 3 SMD Single Output YEA R y arrant w The R-78T is a switching regulator with a wide input voltage range and a low profile SMD package. Three output voltages are available as standard: 3.3V, 5V and 12V. Due to the 1.5A start-up overload capability, the R-78T can be used to replace 1A or 1.5A regulators in many applications. These modules come with three different styles to be pin-compatible with existing solutions, but at a lower cost. Selection Guide Part Number R-78T3.3-1.0 R-78T5.0-1.0 R-78T12-1.0 Input Voltage Range [VDC] 7 - 42 8 - 42 15 - 42 Output Voltage [VDC] 3.3 5.0 12 Output Efficiency Current @ min Vin @ max. Vin [mA] [%] [%] 1000 88 79 1000 92 85 1000 95 92 Model Numbering R-78T__-1.0/__-__ Output Voltage Packaging (1) Output Current Pinning (2) Notes: Note1: add suffix „-R“ for tape & reel packaging or „-Tray“ for tray packaging Note2: add suffix „/FC“, „/AC“ or „/AL“ for required pinning option, for more information refer to „DIMENSION AND PHYSICAL CHARACTERISTICS“ Ordering Examples: R-78T3.3-1.0/FC-R = 3.3VDC Output Volage, 1.0A, FC pinning, tape and reel packaging R-78T5.0-1.0/AC-Tray = 5.0VDC Output Voltage, 1.0A, AC pinning, tray packaging www.recom-power.com REV.: 3/2020 I-1 R-78T-1.0 DC/DC Converter Series Specifications (measured @ Ta= 25°C, 10% minimum load, unless otherwise stated) BASIC CHARACTERISTICS Parameter Condition Min. Typ. Max. Internal Input Filter Input Voltage Range nom. Vin= 3.3VDC nom. Vin= 5.0VDC nom. Vin= 12VDC Overload Capability (3) peak duty cycle 10% C filter 42VDC 42VDC 42VDC 150%, 10s 7VDC 8VDC 15VDC 1mA Quiescent Current Minimum Load Internal Operating Frequency 10% 350kHz Output Ripple and Noise 20MHz BW 50mVp-p 100mVp-p Notes: Note3: For more inforation, please refer to „Overload Capability Graph“ R-78T3.3-1.0 Ripple vs. Load 100 45 90 40 80 35 Ripple & Noise [mVp-p] Efficiency [%] Efficiency vs. Load 70 60 50 40 7Vin 12Vin 24Vin 36Vin 42Vin 30 20 10 0 10 20 30 30 25 20 15 24Vin 36Vin 42Vin 10 5 0 40 50 60 70 80 90 100 0 10 20 30 40 50 60 Output Load [%] Output Load [%] Efficiency vs. Load Ripple vs. Load 70 80 90 100 70 80 90 100 100 45 90 40 80 35 Ripple & Noise [mVp-p] Efficiency [%] R-78T5.0-1.0 70 60 50 40 8Vin 12Vin 24Vin 36Vin 42Vin 30 20 10 0 10 20 30 30 25 20 15 10 24Vin 36Vin 42Vin 5 0 40 50 60 70 80 90 100 0 10 20 30 40 50 60 Output Load [%] Output Load [%] continued on next page www.recom-power.com REV.: 3/2020 I-2 R-78T-1.0 DC/DC Converter Series Specifications (measured @ Ta= 25°C, 10% minimum load, unless otherwise stated) Efficiency vs. Load Ripple vs. Load 100 45 90 40 80 35 Ripple & Noise [mVp-p] Efficiency [%] R-78T12-1.0 70 60 50 40 30 15Vin 24Vin 36Vin 42Vin 20 10 0 10 20 30 30 25 20 15 10 24Vin 36Vin 42Vin 5 0 40 50 60 70 80 90 100 0 10 20 30 40 50 60 70 80 90 100 Output Load [%] Output Load [%] REGULATIONS Parameter Condition Output Accuracy full load Line Regulation low line to high line, full load Load Regulation Transient Response Value ±2.0% typ. / ±3.0% max. ±0.2% typ. 10% to 100% load 50mA/uS ±0.4% typ. 100% - 50% load ±250mV max. PROTECTIONS Parameter Condition Value Short Circuit Protection (SCP) current limited to 3.5A typ. ENVIRONMENTAL Parameter Operating Temperature Range Operating Humidity MTBF Condition Value with derating @ free air convection (refer to “Derating Graph”) non-condensing according to MIL-HDBK-217F, G.B. -40°C to +85°C 5% - 95% RH max. +25°C 6318 x 103 hours continued on next page www.recom-power.com REV.: 3/2020 I-3 R-78T-1.0 DC/DC Converter Series Specifications (measured @ Ta= 25°C, 10% minimum load, unless otherwise stated) Derating Graph Overload Capability Graph (@ Free air convection) 160 150 140 10s overload Peak Current Continuous Current 150 100 Output Current [%] Output Load [%] 120 80 60 40 20 100 90 100% load 150% overload 0 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 55 85 0 10 60 70 Time [s] Ambient Temperature [°C] SAFETY AND CERTIFICATIONS Certificate Type (Safety) EAC Report / File Number RU-AT.49.09571 RoHS2+ Standard TP TC 004/2011 RoHS-2011/65/EU + AM-2015/863 DIMENSION AND PHYSICAL CHARACTERISTICS Parameter Material Dimension (LxWxH) Type PCB “/AC” or “/AL” “/FC” Weight Value FR4, (UL94 V-0) 23.0 x 27.2 x 10.0mm 23.0 x 29.4 x 8.0mm 4.5g typ. continued on next page www.recom-power.com REV.: 3/2020 I-4 R-78T-1.0 DC/DC Converter Series Specifications (measured @ Ta= 25°C, 10% minimum load, unless otherwise stated) Dimension Drawing (mm) R-78Txx-1.0/AC 25.0 23.0 8.96
