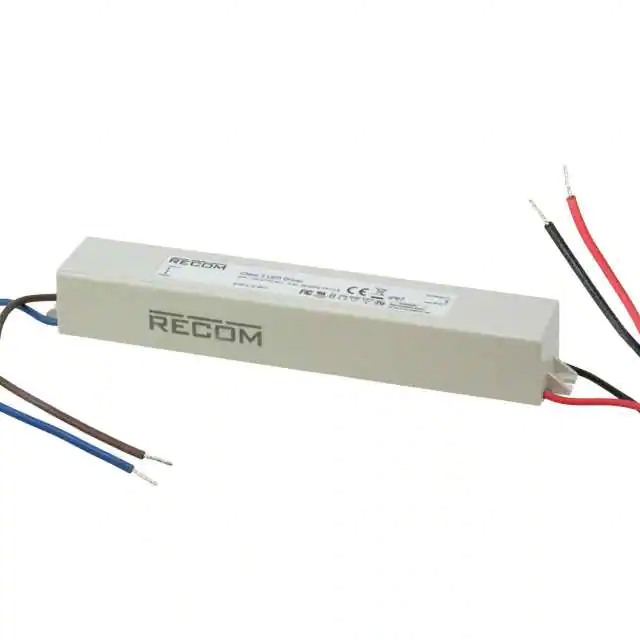

RACD25-700P

● ● ● ● ● Features LED DRIVER 25W Class II AC-DC LED Power Supply 350mA, 700mA, 1050mA Output Active Power Factor Correction >0.90 Efficiency to 85% EN and UL LIGHTLINE AC/DC-Converter with 5 year Warranty Selection Guide Part Number Rated Power (W) Output Current (mA) Output Voltage (VDC) Efficiency RACD25-500 25 500 42 - 52 82% RACD25-700 25 700 21 - 36 85% RACD25-1050 25 1050 16 - 24 84% RACD25-1400 25 1400 12-18 83% (typ.) 25 Watt PFC Single Output Specifications (measured at 230VAC and 25°C ambient temperature) Input Voltage Range 90-295 VAC or 127-417 VDC Input Frequency Range Power Factor Current Accuracy AC Input Current IInrush Current (0.90 Full Load, 115VAC >0.98 700mA Version ±7% others ±8% 120VAC 0.4A 240VAC 0.2A 264VAC Cold Start 20A RACD25 Isolation Voltage 3.75kVAC Short Circuit Protection Continuous Over Voltage Protection 110% - 150% Over Temperature Protection Rth Vibration 10-500Hz Type Storage Humidity Internal Thermistor RoHS 2002/95/EC 6/6 UL 8750 Certified EN 61347 Certified RACD25 Auto-Recovery Mode 2G for 60 min. each along X, Y, Z axes 10% - 95% RH Operating Humidity 20% - 95% RH Non-Condensing Weight 220g Dimension 174.5 x 30.5 x 25mm Operating Temperature -20°C to +50°C Storage Temperature -40°C to +80°C Ripple & Noise 3V max. IP Rating IP65 Isolation Resistance 100MΩ / 500VDC at 25°C Safety Standards EN61347-1 EN61347-2-13 UL8750 EN61000-3-2 Class C EN61000-4-2,3,4,5,6,11 Derating-Graph (Ambient Temperature) Load 100% 80% 60% 40% AC 100V - 295V Horizontal 20% EN61547 EN55015 FCC15 MTBF (+25°C) 1 using MIL-HDBK 217F 200 x 10³ hours min. REV: 0/2012 -20 0 20 40 50 Ambient Temperature (°C) www.recom-electronic.com RACD25 Series LIGHTLINE AC/DC-Converter Typical Charasteristics Load Ta=25°C 100% 80% 60% 40% 20% 90100 115 130 180 220 240 295 Input Voltage (VAC) 60Hz Package Style & Pinning 190.0 150 AC L (Brown) UL1015 20AWG 2-R1.8 150 UL1015 20AWG V- (Black) 78.0 Tc 30.5 3.0 10 25.0 174.5 www.recom-international.com REV:0/2012 2 RACD25 V+ (Red) AC N (Blue)
