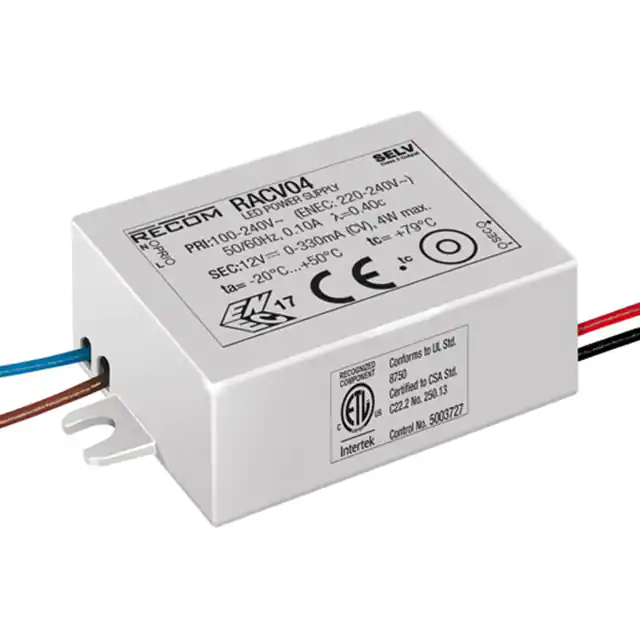

• 4W AC-DC class II LED power supply • 12V and 24V constant voltage output • Fully protected (OLP, SCP, OCP, OTP) • Low standby power, ErP conform • IP65 (suitable for dry and damp locations) • Low cost • CE, CB, ENEC, CSA and UL8750 certified • Wired connections for independent or built-in use Features LED Driver Description These constant voltage LED drivers have been designed for cost-sensitive applications. The SELV outputs are suitable for built-in power-supply LED luminaires. Their low profile design allows them to be invisibly built into furniture, discreetly mounted under shelves or integrated in space-restricted applications such as coving lighting, strip lighting or troffer lighting systems. The power supplies are short circuit and overload protected and come with a full 3-year warranty. AC/DC Converter RACV04 4 Watt Constant Voltage Single Output Selection Guide Part Number Input Input Output Output Efficiency Output Voltage Range Current Voltage Current Range typ. Power max. [VAC] [mA] [VDC] [mA] [%] [W] RACV04-12 90-264 100 12 0-330 75 4 RACV04-24 90-264 100 24 0-170 75 4 All LED Drivers may not be used without a load. They must be switched on the primary side only. Noncompliance may damage the LED or reduce its lifetime. ERP compliant Model Numbering RACV04- ___ Output Current nom. Output Power Specifications (measured @ ta= 25°C, 240VAC and rated load) BASIC CHARACTERISTICS Parameter Condition Input Voltage Range Min. Typ. Max. 90VAC 230VAC 264VAC Inrush Current 11A Start-up Time 500ms Input Frequency Range 47Hz 63Hz No Load Power Consumption Power Factor UL8750 Certified CSA C22.2 No. 250.13 Certified IEC/EN61347-1 Certified IEC/EN61347-2-13 Certified IEC62384 Certified EN55015 Compliant ENEC CB Report 0.5W full load, 230VAC Internal Operating Frequency full load Output Ripple Voltage (1) 12VDC 24VDC 0.40 64kHz 120mVp-p 240mVp-p Notes: Note1: Measured at 20MHz BW using 0.1µF & 47µF parallel capacitor. www.recom-power.com REV.: 2/2019 L-1 RACV04 AC/DC Converter Series Specifications (measured @ Ta= 25°C, 240VAC and rated Iout) REGULATIONS Parameter Condition Value Output Voltage Accuracy ±5% max. Line Regulation 5% max. Load Regulation 5% max. PROTECTION Parameter Condition Input Fuse Value external fuse is recommended 0.22W fusible resistor Open Circuit Protection (OCP) auto recovery after fault condition is removed Over Load Protection (OLP) auto recovery after fault condition is removed Over Voltage Protection (OVP) auto recovery after fault condition is removed Over Temperature Protection (OTP) 110°C Tcase Isolation Voltage (2) auto recovery after fault condition is removed I/P to O/P 3.75kVAC / 1 minute Isolation Resistance 100MW Notes: Note2: For repeat Hi-Pot testing, reduce the time and/or the test voltage Maximum loading of automatic circuit breakers @ 115VAC, 1Ohm, 90° phase angle and max. load @ 230VAC, 1Ohm, 90° phase angle and max. load Circuit Breaker Circuit Breaker Circuit Breaker Current Circuit Breaker Current Typ 10A 16A 20A 25A Typ 10A 16A 20A 25A C 54 118 148 184 B 17 28 35 44 C 27 59 74 92 ENVIRONMENTAL Parameter Condition Value Operating Temperature Range -20°C to +50°C Maximum Case Temperature +79°C Operating Altitude 2000m Operating Humidity 5% to 85% RH, non condensing IP Rating IP65 Pollution Degree PD2 Design Lifetime 30 x 10³ hours Derating Graph 100 90 Output Load [%] 80 70 60 50 40 30 20 10 0 -20 -10 0 10 20 30 40 50 60 Ambient Temperature [°C] www.recom-power.com REV.: 2/2019 L-2 RACV04 AC/DC Converter Series Specifications (measured @ Ta= 25°C, 240VAC and rated Iout) SAFETY AND CERTIFICATIONS Certificate Type Report Number ETL Standard for LED Equipment for use in Lighting Products 160428123GZU-001 LED Equipment for Lighting Applications Lamp Controlgear: General Requirments for Safety (LVD) Standard UL8750, 2nd Edition, 2015 CSA C22.2 No. 250.13, 2014-07-01 EN61347-1:2015 Lamp Controlgear: Particular Requirements for d.c. or a.c. (LVD) EN61347-2-13:2014 +A1 2017 Lamp Controlgear: General Requirments for Safety (CB Scheme) IEC61347-1:2015, 3rd Edition + A1:2017 366911 Lamp Controlgear: Particular Requirements for d.c. or a.c. (CB Scheme) Lamp Controlgear: General Requirments for Safety IEC61347-2-13:2014 2nd Edition +A1:2016 AS/NZS61347.1:2016 Lamp Controlgear: Particular Requirements for d.c. or a.c. AS/NZS61347.2.13:2013 Lamp Controlgear General Requirments for Safety (ENEC) IEC61347-1:2015 Lamp Controlgear Particular Requirements for d.c. or a.c. (ENEC) EN61347-2-13:2014 + A1:2017 366911-1 D.C. or A.C. Controlgears for LED Performance Requirements (ENEC) D.C. or A.C. Controlgears for LED Performance Requirements EN62384:2006 + A1:2009 IEC62384:2006, 1st Edition +A1:2009 EAC RU-AT.49.09571 RoHS2 LCS1606201548R EMI Compliance TP TC 004/2011 RoHS-2011/65/EU + AM-2015/863 Standard / Criterion Equipment for general Lighting Purpose EMC Immunity Requirements EN61547: 2009 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment 366910 Assessment of lighting equipment related to human exposure to electromagnetic fields EN62493: 2015 Air: ±8, 4, 2kV Contact: ±4, 2kV ESD Electrostatic discharge immunity test EN55015:2013 + A1:2015 Radiated, radio-frequency, electromagnetic field immunity test 3V/m EN61000-4-2: 2009, Criteria A EN61000-4-3: 2006 + A2:2010, Criteria A Fast Transient and Burst Immunity AC Port: ±1kV DC Port: ±0.5kV EN61000-4-4: 2012, Criteria A Surge Immunity AC Port: ±0.5kV EN61000-4-5: 2014, Criteria A 3V EN61000-4-6: 2014, Criteria A >95% reduction, 10ms 30% reduction, 200ms EN61000-4-11, 2004, Criteria B EN61000-4-11, 2004, Criteria B Immunity to conducted disturbances, induced by radio-frequency fields Voltage Dips and Interuptions Voltage Fluctuations and Flicker in Public Low-Voltage Systems
