RELV4-16

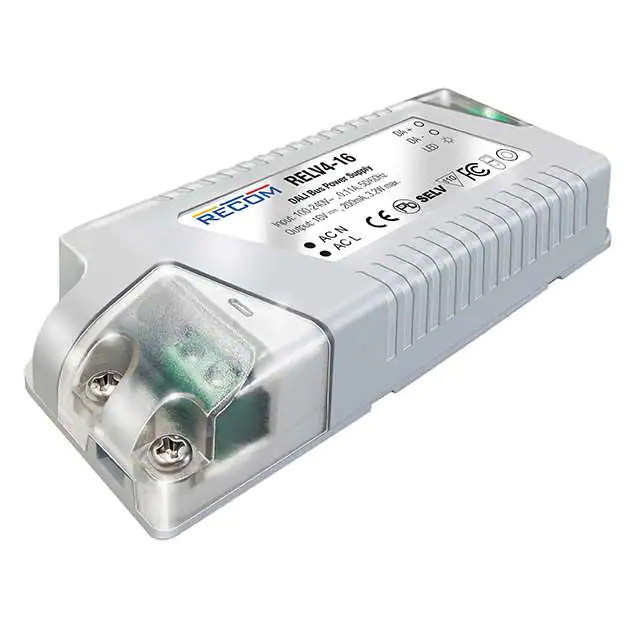

Features DALI Power Supply • Universal AC input range: 90-264VAC • Suitable for DALI installation • EN61347-1 certified • Cooling by free air convection • Over current and short circuit protected AC/DC Converter RELV4-16 Description The RELV4-16 is designed to power a DALI digital lighting control bus. The output is current limited to 200mA, sufficient to power a complete DALI zone with up to 64 addressable DALI devices. The universal input voltage range from 90V to 264VAC enables the RELV4-16 to be used anywhere in the world. Due to its compact design with mounting tabs, it can be easily and conveniently integrated into any DALI network. An indicator LED shows Power OK and DALI bus traffic to aid installation and commissioning. The RELV4-16 comes with a 5 year warranty. DALI Bus Power Supply Selection Guide Part Number Input Input Current Output Output Output Efficiency Voltage Range (@ 115VAC) Voltage Current Power typ. [VAC] [mA] [VDC] [mA] [W] [%] RELV4-16 90-264 110 16 200 3.2 68 Specifications (measured @ Ta= 25°C and 230VAC) BASIC CHARACTERISTICS Parameter Condition Input Voltage Range Output Voltage Range Min. Typ. Max. 90VAC 230VAC 264VAC full load DC Voltage Range 16VDC 13.6VDC Inrush Current 115VAC 230VAC DC Output Current Range 13.6VDC 18.4VDC Start-up Time 115VAC 230VAC 18.4VDC 21A 42A EN61347-1 certified EN61347-2-11 certified EN55015 certified EN61547 certified 240mA 180mA 1s 0.5s Rise and Fall Times 10µs Input Frequency Range 47Hz 100µs 63Hz Ripple and Noise (1) 150mVp-p Notes: Note1: Ripple and Noise is measured @20MHz BW by using a 12“ twisted pair-wire terminated with 0.1µF & 47µF parallel capacitor REGULATIONS Parameter Condition Value Output Accuracy (2) ±15% typ. Current Tolerance +20% / -10% typ. Notes: Note2: Voltage Tolerance includes line regulation, load regulation and set-up tolerance www.recom-power.com REV.: 1/2019 L-1 RELV4-16 AC/DC Converter Series Specifications (measured @ Ta= 25°C and 230VAC) PROTECTION Parameter Condition Value Short Circuit Protection (SCP) with terminal switch (80°C typ.) Limiting Current Mode Over Current Protection (OCP) Isolation Voltage 240mA max. Limiting Current Mode 3.75kVAC / 1 Minute Isolation Resistance 500VDC at 25°C 100MW Isolation Grade Double Isolated for SELV Output ENVIRONMENTAL Parameter Condition Value Operating Temperature Range -20°C to +45°C Max. Case Temperature +65°C Operating Humidity non-condensing 20% to 90% RH IP Rating IP20 Vibration 10-500Hz, 2G, 60Min. along X, Y and Z MTBF 200 x 10³ hours MIL-HDBK-217F, at 25°C Derating Graph Output Power [%] 100 80 60 40 20 0 -20 -10 0 10 20 30 40 45 50 60 Ambient Temperature [°C] SAFETY AND CERTIFICATIONS Certificate Type (Safety) File Number Lamp Controlgear - Part 1: General and safety requirements Standard EN61347-1:2015 Lamp Controlgear - Part 2-11: Particular requirements for miscellaneous electronic circuits used with luminaires IEC61347-2-11:2001, 1st Edition EN61347-2-11:2001 RoHS 2+ RoHS 2011/65/EU + AM2015/863 continued on next page www.recom-power.com REV.: 1/2019 L-2 RELV4-16 AC/DC Converter Series Specifications (measured @ Ta= 25°C and 230VAC) EMC Compliance Conditions Standard / Criterion Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment EN55015:2013 + A1:2015 Limitations on the amount of electromagnetic interference allowed from digital and electronic devices FCC 47 CFR Part 15 Equipment for general lighting purposes – EMC immunity requirements EN61547:2009 Air ±2, ±4, ±8kV Contact ±2, ±4kV IEC61000-4-2:2008, Criteria A 3V/m (80-1000MHz) IEC61000-4-3:2006, Criteria A AC Power Port: ±0.5kV IEC61000-4-4:2012, Criteria A AC Power Port: L-N ±0.5kV, ±1kV IEC61000-4-5:2005, Criteria A ESD Electrostatic discharge immunity test Radiated, radio-frequency, electromagnetic field immunity test Fast Transient and Burst Immunity Surge Immunity Immunity to conducted disturbances, induced by radio-frequency fields AC Power Port: 3V IEC61000-4-6:2008, Criteria A 50, 60Hz, 3A/m IEC61000-4-8:2009, Criteria A Voltage Dips and Interruptions Voltage Dips 30% IEC61000-4-11:2004, Criteria B Voltage Dips and Interruptions Voltage Interruptions >95% IEC61000-4-11:2004, Criteria B Power Magnetic Field Immunity Limits of Harmonic Current Emissions EN61000-3-2:2014 Limits of Voltage Fluctuations & Flicker EN61000-3-3:2013 DIMENSION and PHYSICAL CHARACTERISTICS Parameter Type Value Material PCB case plastic resin with fibreglass, (UL94 V-0) plastic, (UL94 V-2) Dimension (LxWxH) 112.0 x 42.0 x 24.0mm Weight 80g typ. Dimension Drawing (mm) 112.0 tc 17.0 AC N AC L FC 30.0 57.0 LED 42.0 DA+ DA - Screw Terminal Information FC 100.0 24.0 Function AC N AC L DA+ DA- Wire Diameter 0.5-1.5mm² 0.5-1.5mm² 0.5-1.5mm² 0.5-1.5mm² AWG 14~26 14~26 14~26 14~26 wire stripping length: 5~6mm tc= case temperature measuring point FC= fixing centers Tolerance: xx.x= ±0.5mm xx.xx= ±0.35mm 2 mounting screws are included www.recom-power.com REV.: 1/2019 L-3 RELV4-16 AC/DC Converter Series Specifications (measured @ Ta= 25°C and 230VAC) INSTALLATION and APPLICATION L N DA+ DA - RELV4-16 AC N AC L Device 001 Device 002 Device 00n LED 200mA limited Connection DA+ DA- DA+ DA- DA+ DA- PACKAGING INFORMATION Parameter Packaging Dimension (LxWxH) Type cardboard box 10 pcs Packaging Quantity Storage Temperature Range Storage Humidity Value 256.0 x 124.0 x 84.0mm -40°C to +80°C non-condensing 10% - 90% RH The product information and specifications may be subject to changes even without prior written notice.The product has been designed for various applications; its suitability lies in the responsibility of each customer. The products are not authorized for use in safety-critical applications without RECOM’s explicit written consent. A safety-critical application is an application where a failure may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The applicant shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorized use of RECOM products in such safety-critical applications. www.recom-power.com REV.: 1/2019 L-4
