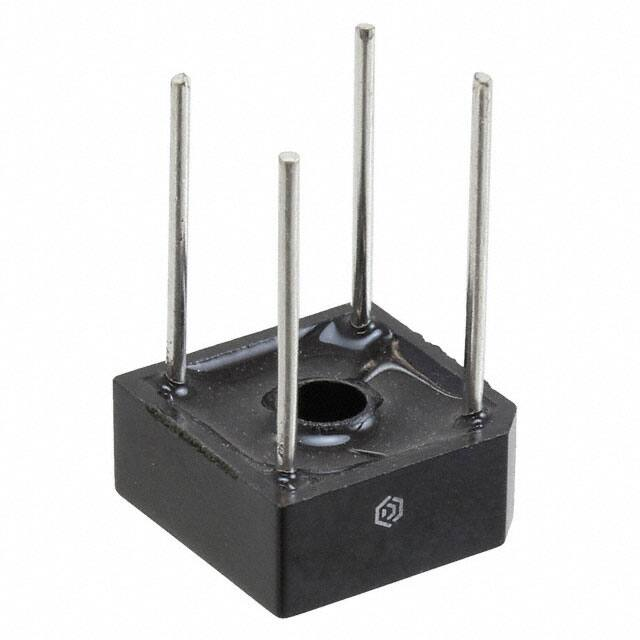

BR88

BR805 THRU BR810 SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 8.0 Amperes FEATURES *Surge overload rating: 175 amperes peak * Low forward voltage drop BR-8 MECHANICAL DATA * * * * * UL listed the recognized component directory, file #E94233 Epoxy: Device has UL flammability classification 94V-O Lead: Mil-STD-202E method 208C guaranteed Mounting position: Any Mounting: Hole thru for # 6 screw .295(7.63) .245(6.35) .886 MIN. (22.5) .750 MIN. .052 (1.3) (19.1) .048 (1.2) .158 (4.0) .154 (3.9) AC MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS o Ratings at 25 C ambient temperature unless otherwise specified. .520 (13.21) .480 (12.19) .770 (19.558) AC .730 (18.542) Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. .520 (13.21) .480 (12.19) Dimensions in inches and (millimeters) MAXIMUM RATINGS (At T A o 25 C unless otherwise noted) SYMBOL BR805 BR81 BR82 Maximum Recurrent Peak Reverse Voltage VRRM 50 100 Maximum RMS Voltage VRMS 35 50 70 RATINGS VDC Maximum DC Blocking Voltage Maximum Average Forward Tc = 50o C Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) 100 BR84 BR86 BR88 BR810 UNITS 200 400 140 200 280 400 600 800 1000 Volts 420 600 560 700 1000 Volts 800 Volts IO 8.0 Amps I FSM 175 Amps 127 Typical Thermal Resistance (Note 1) Operating Temperature Range Storage Temperature Range ELECTRICAL CHARACTERISTICS (At TA R θ JC 6.5 R θ JA 21 0 C/ W TJ -55 to + 150 0 C T STG -55 to + 150 0 C o 25 C unless otherwise noted) CHARACTERISTICS SYMBOL VF Maximum Forward Voltage Drop per element at 4.0A DC o Maximum Reverse Current at Rated @T A = 25 C DC Blocking Voltage per element o @T A = 150 C NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted. 2. " RoHS c ompliant" 3. Available in Halogen-free epoxy by adding suffix -HF after the part nbr. IR BR805 BR81 BR82 BR84 BR86 BR88 BR810 UNITS 1.1 Volts 5.0 uAmps 10 mAmps 2021-11 REV: D RATING AND CHARACTERISTIC CURVES ( BR805 THRU BR810 ) FIG. 2 - TYPICAL FORWARD CURRENT DERATING CURVE FIG. 1 - MAXIMUM NON-REPETITIVE FORWARD AVERAGE FORWARD CURRENT, (A) PEAK FORWARD SURGE CURRENT, (A) SURGE CURRENT 250 8.3ms Single Half Sine-Wave (JEDEC Method) 200 150 100 50 10 8 CAS E 6 4 60 Hz RESISTIVE OR INDUCTIVE LOAD 2 0 0 1 2 0 4 6 8 10 20 40 6080100 NUMBER OF CYCLES AT 60Hz 50 100 CASE TEMPERATURE, ( 150 ) FIG. 4- MAXIMUM REVERSE CHARACTERISTICS FIG. 3- MAXIMUM INSTANTANEOUS FORWARD 100 10 1.0 .1 TJ = 25 Pulse Width = 300us 1% Duty Cycle .01 0 .5 1.0 1.5 2.0 2.5 3.0 3.5 INSTANTANEOUS REVERSE ,CURRENT (uA) INSTANTANEOUS FORWARD CURRENT, (A) CHARACTERISTICS 100000 O TA =150 C 10000 1000 10 1 O TA = 25 C 0 20 40 60 80 100 120 PERCENT OF RATED PEAK REVERSE VOLTAGE, (%) INSTANTANEOUS FORWARD VOLTAGE, (V) RECTRON 140 RECTRON Attachment information about BR8X 1. Internal Circuit 2. Marking on the body Rectron Logo BR8 Part No. Plant - code UL Logo Year – code (Y: Last digit of year & A:2010, B:2011……) VXXX 3. Items marked on the inner box and carton 3.1 On the box (for –B) CUSTOMER TYPE LOT NO. QUANTITY Q.A. DATE 3.2 On the carton CUSTOMER TYPE QUANTITY LOT NO. REMARK Week – code (WW:01~52) PACKAGING OF DIODE AND BRIDGE RECTIFIERS BULK PACK PACKAGE PACKING CODE BR-8/-10 -B EA PER BOX 200 INNER BOX SIZE CARTON SIZE (mm) (mm) 236*236*50 497*251*282 EA PER CARTON 1,600 GROSS WEIGHT(Kg) 9.80 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
