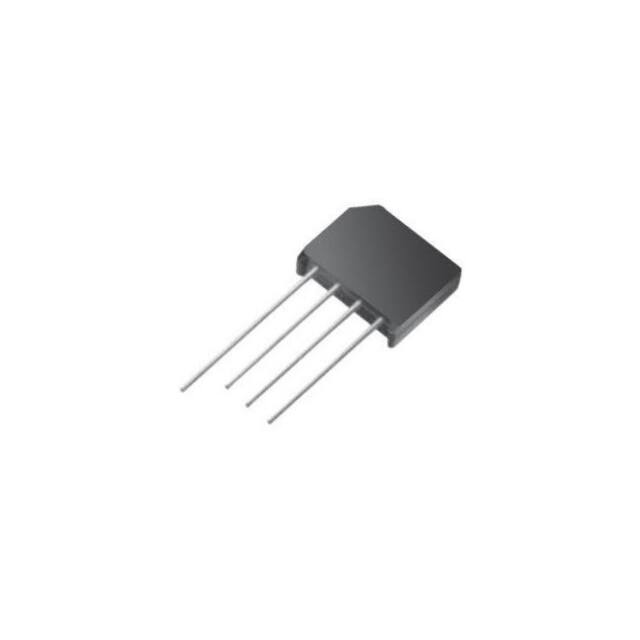

DB201LS THRU DB207LS SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes FEATURES * * * * * * * Good for automation insertion Surge overload rating - 60 amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded Glass passivated device Polarity symbols molded on body Mounting position: Any DB-LS MECHANICAL DATA .255 (6.5) .245 (6.2) * Epoxy: Device has UL flammability classification 94V-O .410 (10.4) .360 (9.4) .045 (1.14) .035 (0.89) .060 (1.524) .037 (0.95 ) .346 (8.8) .144(3.65 ) .307 (7.8) .089 (2.25) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. .205 (5.2) resistive or inductive load. .195 (5.0) Dimensions in inches and (millimeters) MAXIMUM RATINGS (At T A = 25oC unless otherwise noted) RATINGS SYMBOL Maximum Recurrent Peak Reverse Voltage VRRM Maximum RMS Bridge Input Voltage VRMS Maximum DC Blocking Voltage VDC Maximum Average Forward Output Current at T A = 40 oC Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Typical Current Squared Time Typical Thermal Resistance (Note 2) Operating and Storage Temperature Range DB201LS DB202LS DB203LS DB204LS DB205LS DB206LS DB207LS UNITS 50 100 200 400 35 70 140 280 420 50 100 200 400 600 600 800 1000 Volts 560 700 Volts 800 1000 Volts IO 2.0 Amps I FSM 60 Amps I2T 14.9 AS R θJA 40 R θJC 32 RθJL 22 T J, T STG -55 to + 150 2 0 C/ W 0 C o ELECTRICAL CHARACTERISTICS (At TA = 25 C unless otherwise noted) SYMBOL CHARACTERISTICS Maximum Forward Voltage Drop per Bridge VF Element at 2.0A DC o Maximum Reverse Current at Rated @T A = 25 C DC Blocking Voltage per element @T A = 125 o C Note: 1.” ROHS compliant”. 2. Thermal Resistance: Mounted on PCB. 3. Available in Halogen-free epoxy by adding suffix -HF after the part nbr. IR DB201LS DB202LS DB203LS DB204LS DB205LS DB206LS DB207LS UNITS 1.1 Volts 5.0 uAmps 0.5 mAmps 2020-04/97 REV:A 60 8.3mS Single Half Sine-Wave JEDEC Method 50 40 30 20 10 0 1 2 4 6 20 10 40 60 100 INSTANTANEOUS FORWARD CURRENT, (A) PEAK FORWARD SURGE CURRENT, (A) RATING AND CHARACTERISTICS CURVES ( DB201LS THRU DB207LS ) 10 1 0.1 0.01 T J = 25 OC Pulse Width = 300mS 1% Duty Cycle 0 100 FIG. 1 - MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 2.0 TA = 25 OC 10 1.0 0.1 0 20 40 60 80 100 0.5 1.0 1.5 2.0 2.5 INSTANTANEOUS FORWARD VOLTAGE, (V) AVERAGE FORWARD CURRENT, (A) INSTANTANEOUS REVERSE CURRENT, (uA) NUMBER OF CYCLES AT 60Hz 120 140 PERCENT RATED PEAK REVERSE VOLTAGE, (%) FIG.3 TYPICAL REVERSE CHARACTERISTICS FIG.2 TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 1.0 60 Hz RESISTIVE OR INDUCTIVE LOAD 0 20 40 60 80 100 120 140 150 AMBIENT TEMPERATURE, (OC) FIG.4 TYPICAL FORWARD CURRENT DERATING CURVE Mounting Pad Layout .410 Max. (10.4 Max.) .205 (5.2) .195 (5.0) .042 Min. (1.10 Min.) Dimensions in inches and (millimeters) .060 Min. (1.52 Min.) Marking Description Part No. + DB20XL ~ VYWW ~ Year – code: (Y:Last digit of year& A:2010,B:2011……) Week – code: (WW:01~52) Rectron Logo Voltage-code 1-------50V 2-------100V 3-------200V 4-------400V 5-------600V 6-------800V 7-----1000V PACKAGING OF DIODE AND BRIDGE RECTIFIERS BULK PACK PACKAGE PACKING CODE DB-LS -C EA PER BOX INNER BOX SIZE (mm) 4,000 450*140*84 CARTON SIZE EA PER CARTON (mm) 464*305*283 24,000 WEIGHT(Kg) 16.45 REEL PACK PACKAGE DB-LS PACKING EA PER EA PER COMPONENT TAPE SPACE REEL DIA CARTON SIZE EA PER GROSS SPACE INNER REEL CARTON WEIGHT(Kg) CODE (mm) (mm) (mm) (mm) BOX -T/W 1,000 1,000 9.5 52 330 360*355*360 8,000 9.5 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
