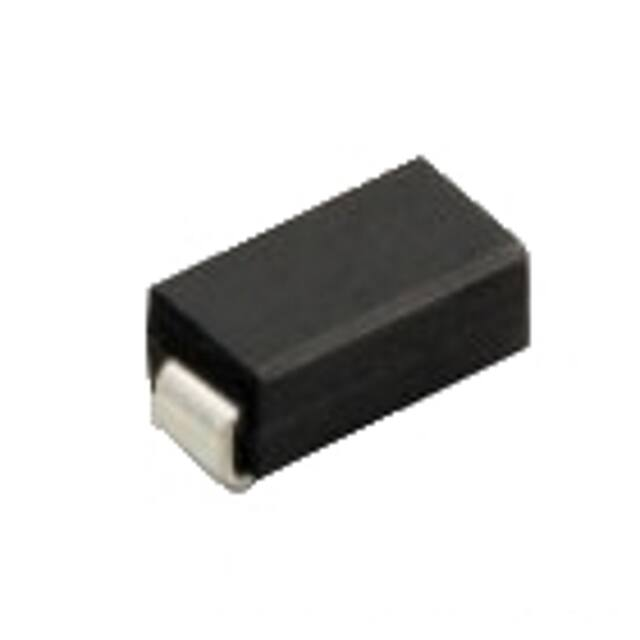

FM5822A-W

FM5820A THRU FM5822A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 to 40 Volts CURRENT 3.0 Ampere FEATURES * * * * * Ideal for surface mounted applications Low leakage current Metallurgically bonded construction Mounting position: Any Weight: 0.24 gram DO-214AC MECHANICAL DATA * Epoxy: Device has UL flammability classification 94V-O 0.067 (1.70 ) 0.051 (1.29 ) 0.110 ( 2.79 ) 0.086 ( 2.18 ) 0.180 ( 4.57 ) 0.160 ( 4.06 ) 0.012 ( 0.305 ) 0.006 ( 0.152 ) 0.091 ( 2.31 ) 0.067 ( 1.70 ) 0.059 ( 1.50 ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS 0.008 ( 0.203 ) 0.004 ( 0.102 ) 0.035 ( 0.89 ) Ratings at 25 o C ambient temperature unless otherwise specified. 0.209 ( 5.31 ) 0.185 ( 4.70 ) Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Dimensions in inches and (millimeters) MAXIMUM RATINGS (@ TA=25 OC unless otherwise noted) SYMBOL FM5820A FM5821A FM5822A UNITS Maximum Recurrent Peak Reverse Voltage VRRM 20 30 40 Volts Maximum RMS Voltage VRMS 14 21 28 Volts VDC 20 30 40 Volts RATINGS Maximum DC Blocking Voltage Maximum Average Forward Rectified Current at Derating Lead Temperature Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Typical Current Squared Time Non-repetitive avalanche energy IRRM=1A, PW=2us, f= 1 kHz, Ind. 12mH Typical Thermal Resistance (Note 3) IO 3.0 Amps I FSM 100 Amps 2 IT 41.5 AS EAS 6.0 mJ RQJA 50 RQJL 14 2 0 C/W Typical Junction Capacitance (Note 1) CJ 200 Operating Temperature Range TJ 150 0 C T STG -55 to + 150 0 C Storage Temperature Range pF ELECTRICAL CHARACTERISTICS (@TA=25 C unless otherwise noted) O CHARACTERISTICS SYMBOL Maximum Instantaneous Forward Voltage at 3.0A DC Maximum Average Reverse Current o @T A = 25 C at Rated DC Blocking Voltage @T A = 125o C NOTES : 1. Measured at 1 MHz and applied reverse voltage of 4.0 volts. 2. “Fully ROHS compliant”, “100% Sn plating (Pb-free)”. 3. Thermal Resistance : Mounted on PCB. 4. P/N suffix V means AEC-Q101 qualified VF IR FM5820A FM5821A FM5822A UNITS .46 Volts 80 uAmps 10 mAmps 2017-12 REV
B AVERAGE FORWARD CURRENT, (A) 3 2 1 P.C.B Mounted on 0.4X0.4"(10X10mm) copper pad areas Single Half Wave 60HZ Resistive or Inductive Load 0 0 25 50 75 100 125 150 175 INSTANTANEOUS FORWARD CURRENT, (A) RATING AND CHARACTERISTICS CURVES ( FM5820A THRU FM5822A ) 20 10 1.0 T J = 25 OC Pulse Width = 300mS 1% Duty Cycle 0.1 0.1 0.3 O TERMINAL TEMPERATURE, ( C) 0.7 0.9 1.1 1.3 1.5 1.7 1.9 2.1 FIG.2 MAXIMUM INSTANTANEOUS FORWARD CHARACTERISTICS 400 CT, TOTAL CAPACITANCE, (pF) 100 TA = 125 OC 10 O TA = 75 C 1.0 O TA = 25 C 0.1 0 20 40 60 80 100 120 TJ = 25 OC 200 100 80 60 40 20 10 140 0.1 0.4 1.0 4 PERCENT RATED PEAK REVERSE VOLTAGE, (%) 100 60 40 20 2 4 40 FIG.4 TYPICAL JUNCTION CAPACITANCE TL = 75 OC 8.3mS Single Half Sine-Wave JEDEC Method 80 0 1 10 REVERSE VOLTAGE, (V) FIG.3 MAXIMUM REVERSE CHARACTERISTICS PEAK FORWARD SURGE CURRENT, (A) INSTANTANEOUS REVERSE CURRENT, (mA) FIG.1 TYPICAL FORWARD CURRENT DERATING CURVE 0.01 0.5 INSTANTANEOUS FORWARD VOLTAGE, (V) 6 8 10 20 40 80 100 NUMBER OF CYCLES AT 60Hz FIG.5 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 80 Mounting Pad Layout 0.094 MAX. (2.38 MAX.) 0.060MIN. ( 1.52 MIN.) 0.052 MAX. (1.32 MAX.) 0.220 (5.58) REF Dimensions in inches and (millimeters) PACKAGING OF DIODE AND BRIDGE RECTIFIERS REEL PACK PACKAGE PACKING EA PER EA PER COMPONENT TAPE SPACE REEL DIA CARTON SIZE EA PER GROSS SPACE INNER REEL CARTON WEIGHT(Kg) CODE (mm) (mm) (mm) (mm) BOX SMA -T 1,500 6,000 --- --- 178 390*205*310 48,000 8.40 SMA -W 5,000 10,000 --- --- 330 360*355*360 80,000 14.20 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
