HDB108LS

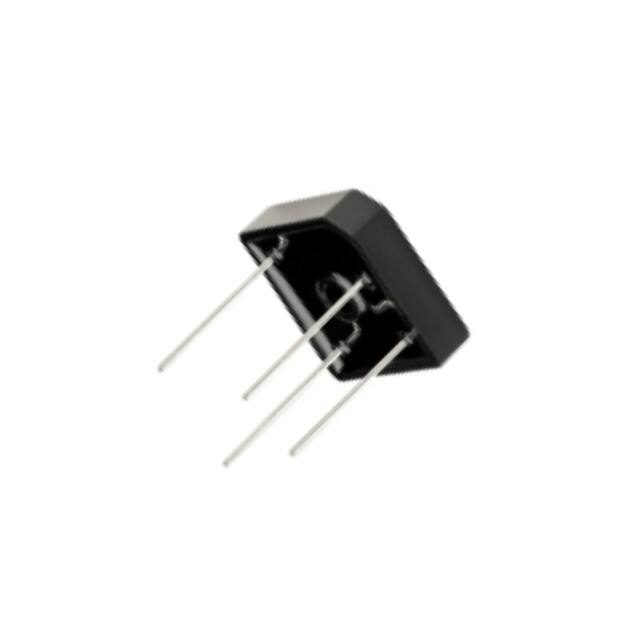

HDB108LS SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER VOLTAGE 1000 Volts CURRENT 1.0 Ampere FEATURES * Glass passivated device * G ood for automation insertion * Low leakage current * Ideal for printed circuit board * Polarity symbols molded on body * Mounting position: Any * Weight: 0.335 gram DB-LS .310 (7.9) .290 (7.4) .255 (6.5) MECHANICAL DATA .245 (6.2) .009 * Epoxy: Device has UL flammability classification 94V-O (0.229) .013 (.330) .042 (1.1) .038 (1.0) .003 (.076) .410 (10.4) .360 (9.4) .060 (1.524) .040 (1.016) .346 (8.8) .307 (7.8) 0.100 (2.55) 0.089 (2.25) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. resistive or inductive load. .205 (5.2) .195 (5.0) Dimensions in inches and (millimeters) MAXIMUM RATINGS (@ TA=25 OC unless otherwise noted) SYMBOL HDB108LS UNITS Maximum Recurrent Peak Reverse Voltage VRRM 1000 Volts Maximum RMS Voltage VRMS 700 Volts VDC 1000 Volts IO 1.0 Amps I FSM 30 Amps  "4FD RATINGS Maximum DC Blocking Voltage Maximum Average Forward Rectified Current at T A = 50 OC Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method)  $VSSFOU
4RVBSBE
5JNF *U Typical Thermal Resistance (Note 1) RθJL 27 0 C/W Typical Thermal Resistance (Note 1) RθJA 75 0 C/W Typical Junction Capacitance (Note 2) CJ 12 Operating Temperature Range TJ 150 0 C T STG -55 to + 150 0 C Storage Temperature Range pF ELECTRICAL CHARACTERISTICS (@TA=25 OC unless otherwise noted) CHARACTERISTICS Maximum Instantaneous Forward Voltage at 1.0A DC Maximum Full Load Reverse Current, Full cycle Average T A =55 OC Maximum Average Reverse Current @T A = 25 o C at Rated DC Blocking Voltage @T A = 125 o C Maximum Reverse Recovery Time (Note 4) SYMBOL HDB108LS UNITS VF 1.7 Volts 50 uA 5 uA IR trr NOTES : 1. Thermal Resistance : Mounted on PCB. 2. Measured at 1 MHz and applied reverse voltage of 4.0 volts. 3. “Fully ROHS compliant”, “100% Sn plating (Pb-free)”. 4. Test Conditions: I F= 0.5A, IR= -1.0A, IRR= -0.25A. 100 uA 75 nSec 2015-04 REV: O RATING AND CHARACTERISTICS CURVES ( HDB108LS ) trr 50 Ω NONINDUCTIVE (+) 25 Vdc (approx) (-) +0.5A 10 Ω NONINDUCTIVE (-) D.U.T 0 PULSE GENERATOR (NOTE 2) 1 NONINDUCTIVE OSCILLOSCOPE (NOTE 1) -0.25A (+) NOTES: 1 Rise Time = 7ns max. Input Impedance = 1 megohm. 22pF. -1.0A 2. Rise Time = 10ns max. Source Impedance = 50 ohms. 1cm SET TIME BASE FOR 30/1 ns/cm AVERAGE FORWARD CURRENT, (A) 1.0 0.8 0.6 0.4 Single Phase Half Wave 60Hz Resistive or Inductive Load 0.2 0 0 25 50 75 100 125 150 O AMBIENT TEMPERATURE, ( C) FIG.2 TYPICAL FORWARD CURRENT DERATING CURVE 175 INSTANTANEOUS REVERSE CURRENT, (uA) FIG.1 TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC 1000 TA = 125 OC 100 10 TA = 25 OC 1.0 0.1 0 20 40 60 80 100 120 PERCENT OF RATED PEAK REVERSE VOLTAGE, (%) FIG.3 TYPICAL REVERSE CHARACTERISTICS 140 Mounting Pad Layout .410 Max. (10.4 Max.) .205 (5.2) .195 (5.0) .042 Min. (1.10 Min.) Dimensions in inches and (millimeters) .060 Min. (1.52 Min.) Marking Description Part No. + HDB108L Rectron Logo VYWW Voltage-code ~ ~ Year – code: (Y:Last digit of year& A:2010,B:2011……) Week – code: (WW:01~52) 8-------1000V PACKAGING OF DIODE AND BRIDGE RECTIFIERS REEL PACK PACKAGE DB-LS PACKING EA PER EA PER COMPONENT TAPE SPACE REEL DIA CARTON SIZE EA PER GROSS SPACE INNER REEL CARTON WEIGHT(Kg) CODE (mm) (mm) (mm) (mm) BOX -T/W 1,000 1,000 9.5 52 330 360*355*360 8,000 9.5 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
