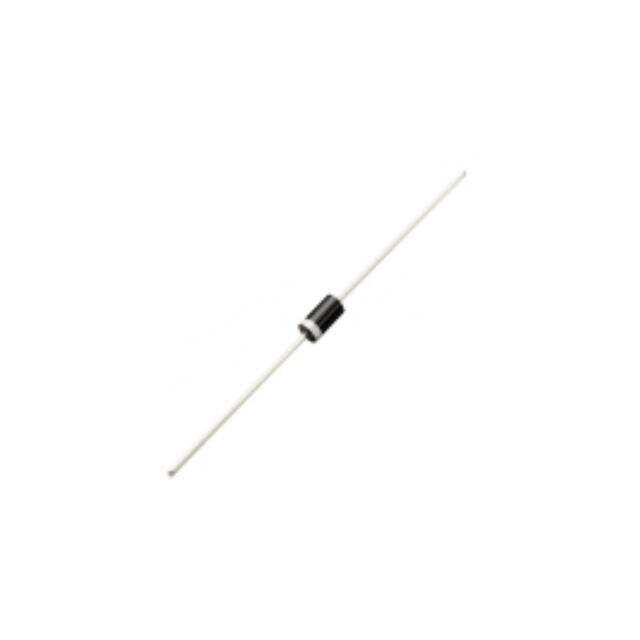

R5000

R2500 THRU R5000 HIGH VOLTAGE SILICON RECTIFIER VOLTAGE RANGE 2500 to 5000 Volts CURRENT 0.2 Ampere FEATURES * * * * Low cost Low leakage Low forward voltage drop High current capability DO-15 MECHANICAL DATA * * * * * Case: Molded plastic Epoxy: Device has UL flammability classification 94V-O Lead: MIL-STD-202E method 208C guaranteed Mounting position: Any Weight: 0.40 gram .035 (0.88) 1.0 (25.4) .027 (0.68) DIA. MIN. .300 (7.6) .230 (5.8) .140 (3.6) .104 (2.6) DIA. 1.0 (25.4) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS MIN. o Ratings at 25 C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Dimensions in inches and (millimeters) MAXIMUM RATINGS (At T A = 25oC unless otherwise noted) SYMBOL R2500 R3000 R4000 R5000 UNITS Maximum Recurrent Peak Reverse Voltage VRRM 2500 3000 4000 5000 Volts Maximum RMS Volts VRMS 1750 2100 2800 3500 Volts VDC 2500 3000 4000 5000 Volts RATINGS Maximum DC Blocking Voltage Maximum Average Forward Rectified Current o at T A = 50 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Typical Thermal Resistance Typical Junction Capacitance (Note) Operating and Storage Temperature Range IO 200 mAmps I FSM 30 Amps RθJA 65 R θJL 30 CJ 30 T J , T STG -55 to + 150 0 C/W pF 0 C ELECTRICAL CHARACTERISTICS (At TA = 25oC unless otherwise noted) CHARACTERISTICS Maximum Instantaneous Forward Voltage at 0.2A DC Maximum DC Reverse Current at Rated DC Blocking Voltage @T A = 25 o C o @T A =100 C SYMBOL R2500 R3000 VF 3.0 4.0 R4000 5.0 IR Maximum Full Load Reverse Current Average, Full Cycle o .375”, (9.5mm) lead length at TL = 75 C NOTES : 1.Measured at 1 MHZ and applied reverse voltage of 4.0 volts. 2. “ROHS compliant” 3. Available in Halogen-free epoxy by adding suffix -HF after the part nbr. R5000 5.0 UNITS Volts uAmps 50 30 uAmps 2021-06 REV:C RATING AND CHARACTERISTIC CURVES ( R2500 THRU R5000) PEAK FORWARD SURGE CURRENT, (A) FIG. 2 - MAXIMUM NON-REPETITIVE FORWARD 250 Single Phase Half Wave 60Hz Inductive or Resistive Load 200 150 100 50 0 0 50 100 150 AMBIENT TEMPERATURE, ( INSTANTANEOUS REVERSE CURRENT, (uA) AVERAGE FORWARD CURRENT, (mA) FIG. 1 - TYPICAL FORWARD CURRENT DERATING CURVE 175 SURGE CURRENT 60 50 8.3ms Single Half Sine-Wave (JEDEC Method) 40 30 20 10 0 1 ) 10 100 NUMBER OF CYCLES AT 60Hz FIG. 3 - TYPICAL REVERSE CHARACTERISTICS 30 26 24 22 20 16 14 12 10 6 4 2 1 0 TJ = 25 20 40 60 80 100 120 PERCENT OF RATED PEAK REVERSE VOLTAGE, (%) 140 Marking Description Plant - code Rectron Logo Part No. V Y M R X X X X Cathode Band Year – code (Y: Last digit of year & A:2010,B:2011……) Month – code (M:0~9,O,N,D) Voltage-code 2500-------2500V 3000-------3000V 4000-------4000V 5000-------5000V PACKAGING OF DIODE AND BRIDGE RECTIFIERS BULK PACK PACKAGE PACKING CODE DO-15 -B EA PER BOX INNER BOX SIZE (mm) 500 194*84*21 CARTON SIZE EA PER CARTON (mm) 415*220*255 25,000 GROSS WEIGHT(Kg) 12.74 REEL PACK PACKAGE DO-15 PACKING EA PER EA PER COMPONENT TAPE SPACE REEL DIA CARTON SIZE EA PER GROSS SPACE INNER REEL CARTON WEIGHT(Kg) CODE (mm) (mm) (mm) (mm) BOX -T 4,000 4,000 5.0 52 330 355*350*335 16,000 10.05 AMMO PACK PACKAGE PACKING CODE REEL ( EA ) DO-15 -F 1,500 COMPONENT TAPE SPACE SPACE(mm) (mm) 5.0 52 BOX SIZE (mm) CARTON SIZE(mm) 255*73*100 400*268*225 CARTON ( EA ) 15,000 GROSS WEIGHT (Kg) 8.8 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
