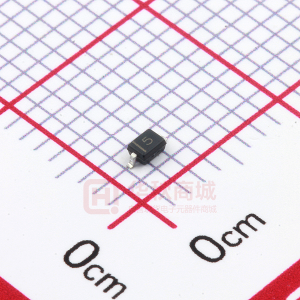

RB751V-40

RB751V-40 SCHOTTKY DIODES FEATURES * High current rectifier Schottky diode * Low voltage,low inductance * For power supply SOD-323 MECHANICAL DATA * * * * * .014(.35) .010(.25) Case: Molded plastic Epoxy: UL 94V-O rate flame retardant Lead: MIL-STD-202E method 208C guaranteed Mounting position: Any Weight: 0.004 grams .071(1.80) .063(1.60) .055(1.40) .047(1.20) .106(2.70) .098(2.50) .006(.15) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS R atings at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. .003(.08) MAX.039(1.00) REF .019(0.46) .004(.10) .000(.00) Dimensions in inches and (millimeters) MAXIMUM RATINGS (@T A =25 OC unless otherwise noted) RATINGS Maximum Peak reverse voltage Maximum DC reverse voltage Maximum Peak Forward Surge Current Mean rectifying current Operating and Storage Temperature Range o SYMBOL VRM VR IFSM IO TJ,TSTG RB751V-40 40 30 0.2 0.03 -40 ~ + 125 UNITS Volts Volts Amps Amps O C ELECTRICAL CHARACTERISTICS ( @ TA = 25 C unless otherwise noted ) CHARACTERISTICS Reverse voltage leakage current Forward voltage Diode Capacitance (VR=30V) (IF=1mA) (VR=1V,f=1MHz) SYMBOL IR VF CT MIN. TYP. 2 MAX. 0.5 0.37 UNITS uA V pF VC 2006-3 RATING AND CHARACTERISTICS CURVES ( RB751V-40 ) 1000m 100m IF.FORWARD CURRENT(A) Typ. pulse measurement 100u 10u 1u 100n 10n 1n Ta=125 C Ta=75 C O O 10m T a= 1m 100u 10u 1u 12 5 Ta=75 C Ta=25 C Ta=-25 C O O C O O IR.REVERSE CURRENT(A) Ta=25 C O Ta=-25 C O 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 0 5 10 15 20 25 30 35 Figure1 Forward characteristics CT.CAPACITANCE BETWEEN TERMINALS(pF) 100 50 20 10 5 2 1 0 2 4 6 8 10 VF.FORWARD VOLTAGE (V) Figure2 Reverse Characteristics Ta=25 C f=1MHz O VR.REVERSE VOLTAGE(V) 12 14 Figure3 Capacitance between terminals characteristics VR.REVERSE VOLTAGE (V) DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
