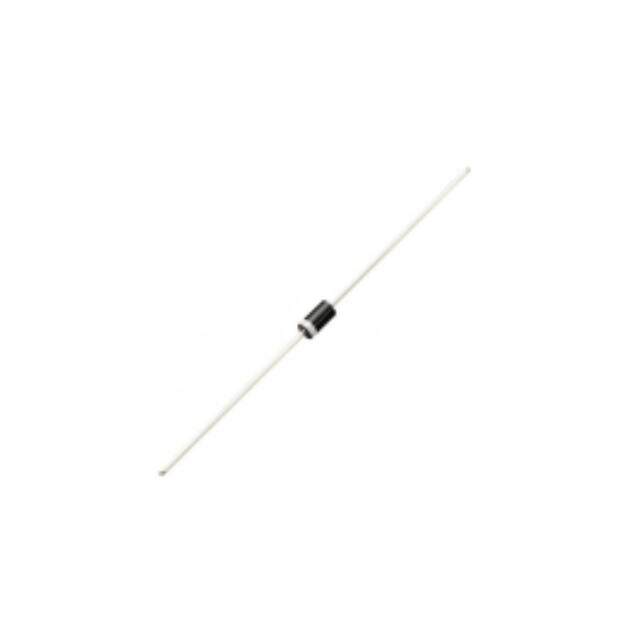

RL1N1200F

RL1N1000F THRU RL1N1800F SILICON RECTIFIER VOLTAGE RANGE 1000 to 1800 Volts CURRENT 1.0 Ampere FEATURES * * * * High reliability Low leakage current Low forward voltage drop High current capability A-405 MECHANICAL DATA * * * * * Case : Molded plastic Epoxy : Device has UL flammability classification 94V-0 Lead : MIL-STD-202E method 208C guaranteed Mounting position : Any Weight : 0.20 gram .025 (0.6) DIA. .021 (0.5) 1.0 (25.4) MIN. .205 (5.2) .166 (4.2) .107 (2.7) DIA. .080 (2.0) 1.0 (25.4) MIN. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Dimensions in inches and (millimeters) MAXIMUM RATINGS (@ TA=25 OC unless otherwise noted) SYMBOL RATINGS RL1N1000F 1000 RL1N1200F Maximum Recurrent Peak Reverse Voltage VRRM Maximum RMS Voltage VRMS 700 840 VDC 1000 1200 Maximum DC Blocking Voltage Maximum Average Forward Rectified Current o at TA=55 C Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Typical Thermal Resistance Typical Junction Capacitance (Note 1) Operating and StorageTemperature Range UNITS RL1N1600F 1600 RL1N1800F 1800 980 1120 1260 Volts 1400 1600 1800 Volts RL1N1400F 1400 Volts IO 1.0 Amps I FSM 30 Amps I t 3.74 A 2S R JA CJ 50 TJ,TSTG -55 to + 150 2 Typical Current Squarad Time ELECTRICAL CHARACTERISTICS 1200 0 C/W pF 15 0 C (@TA=25 OC unless otherwise noted) CHARACTERISTICS SYMBOL Maximum Instantaneous Forward Voltage at 0.5A DC Maximum DC Reverse Current at Rated DC Blocking Voltage Maximum Reverse Recovery Time (Note 4) @T A = 25 o C @T A = 100 o C RL1N1000F VF IR trr NOTES : 1. Measured at 1 MHz and applied reverse voltage of 4.0 volts. 2. "ROHS compliant". 3. Available in Halogen-free epoxy by adding suffix -HF after the part nbr. 4.Test Conditions: IF= 0.5A, IR= -1.0A, IRR= -0.25A. RL1N1200F RL1N1400F 1.8 5.0 RL1N1600F RL1N1800F UNITS Volts A 100 300 nS 2018-11 REV: A INSTANTANEOUS FORWARD CURRENT, ( A) AVERAGE FORWARD CURRENT, (A) RATING AND CHARACTERISTIC CURVES ( RL1N1000F THRU RL1N1800F ) 2.0 1.5 1.0 0.5 0 Single Phase Half Wave 60Hz Resistive or Inductive Load 0 25 50 75 100 125 150 175 1000 100 O TA = 100 C 10 1.0 0.1 TA = 25 OC 0.01 0 20 O 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE, (%) FIG.2 MAXIMUM REVERSE CHARACTERISTICS FIG.1 TYPICAL FORWARD CURRENT DERATING CURVE 20 10 JUNCTION CAPACITANCE, (pF) 40 4 2 1.0 .4 .2 .1 T J = 25 Pulse Width=300uS 1% Duty Cycle .04 .02 .01 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 TJ = 25 OC 20 10 8 6 4 2 1 1.2 3.0 0.4 0.1 INSTANTANEOUS FORWARD VOLTAGE, (V) 1.0 4 40 80 FIG.4 TYPICAL JUNCTION CAPACITANCE 30 8.3mS Single Half Sine-Wave JEDEC Method 25 20 15 10 0 1 10 REVERSE VOLTAGE, (V) FIG.3 MAXIMUM INSTANTANEOUS FORWARD CHARACTERISTICS PEAK FORWARD SURGE CURRENT, (A) INSTANTANEOUS REVERSE CURRENT, (A) AMBIENT TEMPERATURE, ( C) 2 4 6 8 10 20 40 80 100 NUMBER OF CYCLES AT 60Hz FIG.5 MAXIMUM NON-REPETITIIVE FORWARD SURGE CURRENT Mark Description Plant - code V Y M Rectron Logo Part No. 1N1400F Cathode Band Year – code (Y: Last digit of year & A:2010,B:2011…..) Month – code (M:0~9, O, N ,D) Voltage-code 1000----------1000V 1200----------1200V 1400----------1400V 1600----------1600V 1800----------1800V PACKAGING OF DIODE AND BRIDGE RECTIFIERS BULK PACK PACKAGE PACKING CODE A-405 -B EA PER BOX INNER BOX SIZE (mm) 1,000 194*84*21 CARTON SIZE EA PER CARTON (mm) 415*220*255 GROSS WEIGHT(Kg) 15.64 50,000 REEL PACK PACKAGE PACKING EA PER EA PER COMPONENT TAPE SPACE REEL DIA CARTON SIZE EA PER GROSS SPACE INNER REEL CARTON WEIGHT(Kg) CODE (mm) (mm) (mm) (mm) BOX DO-41 5,000 5.0 -T 5,000 PACKAGE PACKING CODE REEL ( EA ) DO-41 -F 3,000 5.0 52 DO-41 -E 3,000 5.0 A-405 -N 2,000 12.7 52 330 355*350*335 20,000 8.13 AMMO PACK COMPONENT TAPE SPACE SPACE(mm) (mm) BOX SIZE (mm) CARTON SIZE(mm) CARTON ( EA ) GROSS WEIGHT (Kg) 255*73*100 400*268*225 30,000 9.6 26 256*48*94 365*270*217 42,000 9.61 --- 325*170*40 355*350*335 28,000 11.41 Revise History Content Rev A Modify IO Data 2018-11-21 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
