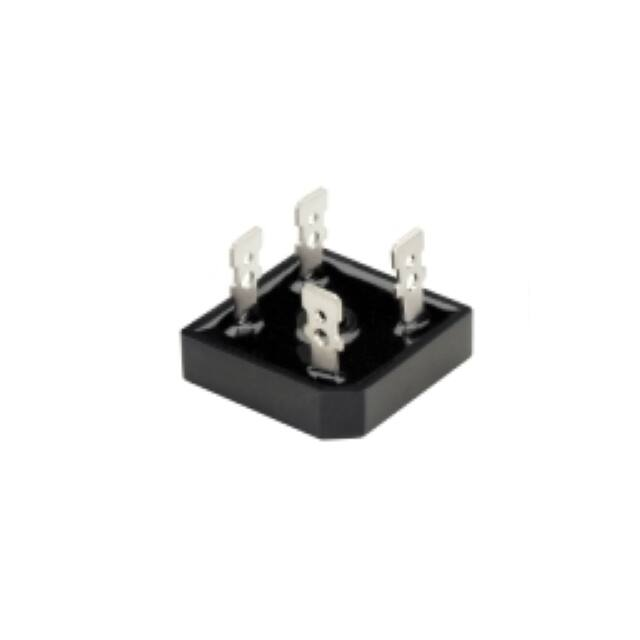

RS401M

RS401M THRU RS407M SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Amperes FEATURES * Ideal for printed circuit board * Surge overload rating: 130 amperes peak * Mounting position: Any .074 (1.9) .059 (1.5) .057 (1.45) .041 (1.05) .087 (2.2) .069 (1.7) .146 (3.7) .130 (3.3) .708 (18.0) .669 (17.0) .157 (4) * Epoxy: Device has UL flammability classification 94V-O * Epoxy: UL listed the recognized component,file #94233 .043 (1.1) .035 (0.9) .602 (15.3) .578 (14.7) .995 (25.3) .983 (24.7) .189 (4.8) .173 (4.4) .150 (3.8) .134 (3.4) f .134 (3.4) .122 (3.1) MECHANICAL DATA .382 (9.7) .366 (9.3) RS-4M .114 (2.9) .098 (2.5) .013 (0.8) .023 (0.6) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. .303 (7.7) .303 (7.7) .287 (7.3) .287 (7.3) resistive or inductive load. .303 (7.7) .287 (7.3) Dimensions in inches and (millimeters) MAXIMUM RATINGS (@ TA=25 OC unless otherwise noted) SYMBOL RS401M RS402M RS403M RS404M RS407M UNITS Maximum Recurrent Peak Reverse Voltage RATINGS VRRM 50 100 200 400 600 800 1000 Volts Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 Volts VDC 50 100 200 400 600 800 1000 Volts Maximum DC Blocking Voltage Maximum Average Forward Rectified Current o at T A = 50 C Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Current Squared Time Insulation voltage Typical Thermal Resistance (Note 1) Operating and Storage Temperature Range RS405M RS406M IO 4.0 Amps I FSM 130 Amps I2 t 70 AS Volts Viso 3000 R θJC 6.0 R θ JA 26 T J, T STG -55 to + 150 2 0 C/ W 0 C ELECTRICAL CHARACTERISTICS (@TA=25 C unless otherwise noted) O CHARACTERISTICS Maximum Instantaneous Forward Voltage at 4.0A DC Maximum DC Reverse Current at Rated DC Blocking Voltage @T A = 25o C @T A = 125o C @T A = 25o C @T A = 125 o C SYMBOL RS401M VF IR NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted. 2. "ROHS comp liant" RS402M RS403M RS404M 1.05 0.88 5.0 30 RS405M RS406M RS407M UNITS Volts uAmps 2019-08 REV: B AVERAGE FORWARD CURRENT, (A) 5.0 4.0 3.0 2.0 Single Phase Half Wave 60 Hz Inductive or Resistive Load 1.0 0 0 50 100 150 INSTANTANEOUS FORWARD CURRENT, (A) RATING AND CHARACTERISTICS CURVES ( RS401M THRU RS407M ) 40 10 4.0 0.4 Pulse Width = 300mS 1% Duty Cycle 0.1 0.6 FIG.1 TYPICAL FORWARD CURRENT DERATING CURVE 100 TA = 125 OC 10 0.1 TA = 25 OC 0 20 40 60 80 100 0.7 0.8 0.9 1.0 1.1 1.2 1.3 INSTANTANEOUS FORWARD VOLTAGE, (V) PEAK FORWARD SURGE CURRENT, (A) INSTANTANEOUS REVERSE CURRENT, (uA) AMBIENT TEMPERATURE, ( C) 1.0 TA = 25 OC 1.0 O 1000 TA = 125 OC 120 140 PERCENT RATED PEAK REVERSE VOLTAGE, (%) FIG.3 MAXIMUM REVERSE CHARACTERISTICS 150 FIG.2 TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 8.3mS Single Half Sine-Wave JEDEC Method 125 100 75 50 25 0 1 2 5 10 20 50 100 NUMBER OF CYCLES AT 60Hz FIG.4 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT Marking Description Rectron Logo Part No. RS40XM Voltage-code UL Logo VYWW Year – code: (Y: Last digit of year& A:2010,B:2011…) Week – code: (WW:01~52) 1----50V 2----100V 3----200V 4----400V 5----600V 6----800V 7----1000V PACKAGING OF DIODE AND BRIDGE RECTIFIERS TUBE PACK PACKAGE PACKING CODE EA PER BOX INNER BOX SIZE CARTON SIZE EA PER CARTON WEIGHT(Kg) RS-4M/-10M -C 900 540*118*118 560*259*144 1,800 12.82 (mm) (mm) DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
