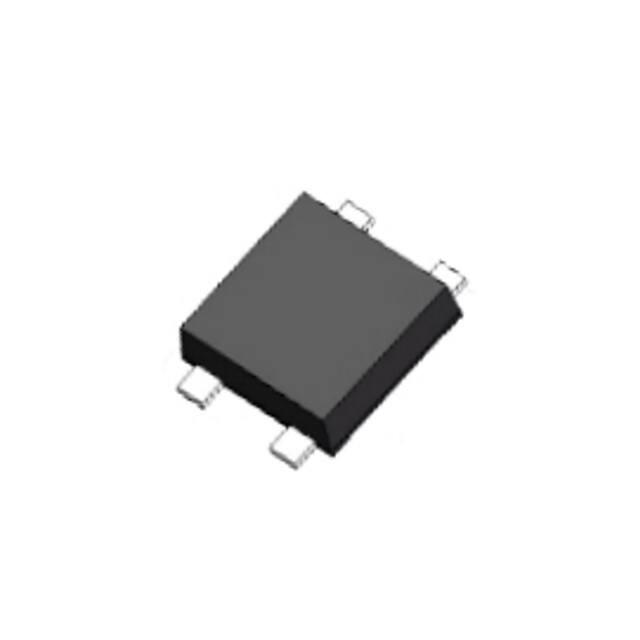

RS604M

RS601M THRU RS607M SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 6.0 Amperes FEATURES * * * * Low leakage Low forward voltage Low cost Mounting position: Any RS-6M .189 (4.8) .173 (4.4) .425 (10.8) .197 (5.0) .087 (2.2) .071 (1.8) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS .114 (2.9) .098 (2.5) .165 (4.2) .150 (3.8) .708 (18.0) .669 (17.0) .106 (2.7) .096 (2.3) .800 (20.3) .775 (19.7) 1.193 (30.3) 1.169 (29.7) * Epoxy: Device has UL flammability classification 94V-O * UL list the recognized component directory,file #E94233 f. .138 (3.5) .126 (3.2) .150 (3.8) .134 (3.4) .441 (11.2) MECHANICAL DATA .031 (0.8) .023 (0.6) .043 (1.1) .035 (0.9) Ratings at 25 o C ambient temperature unless otherwise specified. resistive or inductive load. .402 (10.2) .303 (7.7) .303 (7.7) .386 (9.8) .287 (7.3) .287 (7.3) Dimensions in inches and (millimeters) MAXIMUM RATINGS (@ TA=25 OC unless otherwise noted) SYMBOL RS601M RS602M RS603M RS606M RS607M UNITS Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 Volts Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 Volts VDC 50 100 200 400 600 800 1000 Volts RATINGS Maximum DC Blocking Voltage Maximum Average Forward Rectified Current o at T C = 100 C (with heat sink) Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Current Squarad Time Insulation voltage Typical Thermal Resistance (Note 1) Operating and Storage Temperature Range RS604M RS605M IO 6.0 Amps I FSM 150 Amps 2 I2T 93.3 A /Sec Viso 3000 Volts R ΘJC 3.5 R ΘJA 26 T J, T STG -55 to + 150 0 C/ W 0 C ELECTRICAL CHARACTERISTICS (@TA=25 C unless otherwise noted) O CHARACTERISTICS Maximum Instantaneous Forward Voltage at 6.0A DC Maximum DC Reverse Current at Rated DC Blocking Voltage @T A = 25 o C @T A = 125 o C SYMBOL VF IR NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted. 2. "Fully ROHS compliant", "100% Sn plating (Pb-free)". RS601M RS602M RS603M RS604M RS605M 1.1 5.0 200 RS606M RS607M UNITS Volts uAmps 2016-12 REV:A AVERAGE FORWARD CURRENT, (A) 6.0 4.8 3.6 2.4 Single Phase Half Wave 60 Hz Inductive or Resistive Load 1.2 0 0 50 100 150 INSTANTANEOUS FORWARD CURRENT, (A) RATING AND CHARACTERISTICS CURVES ( RS601M THRU RS607M ) 40 10 4 1 0.4 0.1 T A = 25 OC Pulse Width = 300mS 1% Duty Cycle 0 1000 2.0 2.5 3.0 FIG.2 TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS O TA = 125 C O TA = 25 C 0 1.5 FIG.1 TYPICAL FORWARD CURRENT DERATING CURVE 10 0.1 1.0 INSTANTANEOUS FORWARD VOLTAGE, (V) 100 1.0 0.5 CASE TEMPERATURE, ( C) PEAK FORWARD SURGE CURRENT, (A) INSTANTANEOUS REVERSE CURRENT, (uA) O 20 40 60 80 100 120 140 PERCENT RATED PEAK REVERSE VOLTAGE, (%) FIG.3 TYPICAL REVERSE CHARACTERISTICS 180 3.5 8.3mS Single Half Sine-Wave JEDEC Method 150 120 90 60 30 0 1 2 5 10 20 50 100 NUMBER OF CYCLES AT 60Hz FIG.4 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT Marking Description Rectron Logo R S 6 0 XM Part No. Voltage-code UL Logo Year – code (Y:Last digit of year& A: 2010,B:2011…) V YWW Week – code (WW:01~52) 1----50V 2----100V 3----200V 4----400V 5----600 6----800 7----1000V PACKAGING OF DIODE AND BRIDGE RECTIFIERS BULK PACK EA PER BOX INNER BOX SIZE CARTON SIZE PACKING CODE RS-6M -B 300 230*190*46 410*243*157 1,800 13.37 PACKAGE PACKING CODE EA PER BOX INNER BOX SIZE CARTON SIZE EA PER CARTON WEIGHT(Kg) RS-6M -C 600 490*135*110 510*293*131 1,200 13.12 (mm) (mm) EA PER CARTON GROSS WEIGHT(Kg) PACKAGE TUBE PACK (mm) (mm) DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
