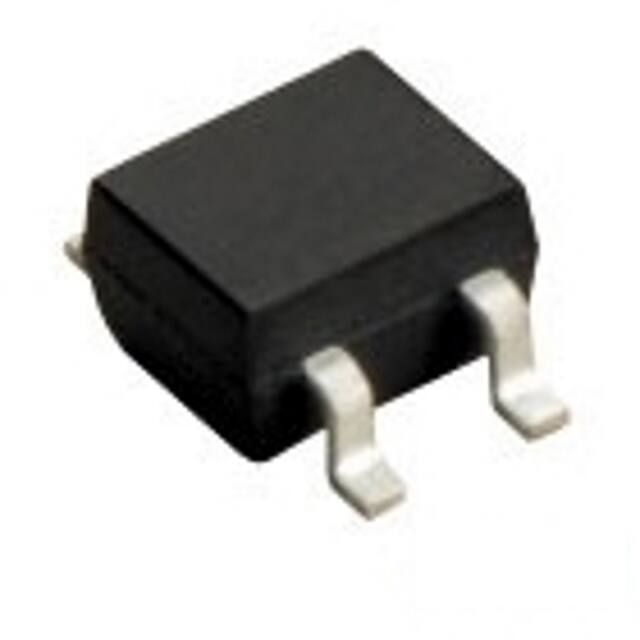

W06L

W005L THRU W10L SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Amperes FEATURES * * * * * High reverse voltage to 1000V Surge overload ratings to 50 amperes peak Good for printed circuit board assembly Mounting position: Any Silver-plated copper leads MECHANICAL DATA .360 (9.1) * UL listed the recognized component directory, file #E94233 * Epoxy: Device has UL flammability classification 94V-O .340 (8.6) .217 (5.5) .130 (3.3) 1.2 (30.5) MIN. 1.0 (25.4) MIN. ~~- .032 (0.8) POS. LEAD + .028 (0.7) + ~ MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS ~ Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. .220 (5.6) - .180 (4.6) .220 (5.6) .180 (4.6) Dimensions in inches and (millimeters) o MAXIMUM RATINGS (At T A = 25 C unless otherwise noted) SYMBOL W005L W01L W02L W04L W06L W08L W10L UNITS Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 Volts Maximum RMS Bridge Input Voltage VRMS 35 70 140 280 420 560 700 Volts VDC 50 100 200 400 600 800 1000 RATINGS Maximum DC Blocking Voltage Maximum Average Forward Rectified Output Current at T A = 50oC Peak Forward Surge Current 8.3 ms single half sine-wave Volts IO 1.5 Amps I FSM 50 Amps 10.3 A2/Sec superimposed on rated load (JEDEC method) 2 Typical Current Squarad Time I t Operating Temperature Range Storage Temperature Range TJ -55 to + 125 0 C T STG -55 to + 150 0 C o ELECTRICAL CHARACTERISTICS (At TA = 25 C unless otherwise noted) CHARACTERISTICS SYMBOL VF Maximum Forward Voltage Drop per element at 1.5A DC Maximum Reverse Current at Rated @T A = 25 oC DC Blocking Voltage per element @T A = 150 C o W005L W01L W02L W04L W06L W08L W10L UNITS 1.0 Volts 1.0 uAmps IR 1.0 mAmps 2020-12 REV:E RATING AND CHARACTERISTIC CURVES ( W005L THRU W10L ) FIG. 2 - TYPICAL FORWARD CURRENT DERATING CURVE FIG. 1 - MAXIMUM NON-REPETITIVE FORWARD 50 AVERAGE FORWARD CURRENT, (A) PEAK FORWARD SURGE CURRENT, (A) SURGE CURRENT 8.3ms Single Half Sine-Wave (JEDED Method) 40 30 20 10 1.6 1.4 1.2 1.0 .8 .6 Single Phase Half Wave 60Hz Inductive or Resistive Load .4 .2 0 0 1 2 4 6 8 10 20 40 60 100 20 40 NUMBER OF CYCLES AT 60Hz 60 80 100 120 AMBIENT TEMPERATURE, ( FIG. 3 - MAXIMUM INSTANTANEOUS FORWARD 140 ) FIG. 4 - MAXIMUM REVERSE CHARACTERISTICS 20 INSTANTANEOUS REVERSE CURRENT, (uA) INSTANTANEOUS FORWARD CURRENT, (A) CHARACTERISTICS 10 TJ = 25 Pulse Width = 300us 1% Duty Cycle 1.0 .1 .01 0 .2 .4 .6 .8 1.0 1.2 1.4 INSTANTANEOUS FORWARD VOLTAGE, (V) 100 10 TJ = 25 1.0 0.1 0 20 40 60 80 100 120 PERCENT OF RATED PEAK REVERSE VOLTAGE, (%) RECTRON 140 RECTRON Attachment information about W0XXL 1. Internal Circuit 2. Marking on the body + Rectron Logo Plant - code Part No. Voltage-code 05-------50V 1-------100V 2-------200V 4-------400V VXXX Week - code (W:01~52) Year -code W 0 X L (Last digit of year& A:2010, B:2011...) 6-------600V 8-------800V 1 0 -------1000V 3. Items marked on the innerbox and carton 3.1 On the box (for–B) CUSTOMER TYPE LOT NO. QUANTITY Q.A. DATE 3.2 On the carton CUSTOMER TYPE QUANTITY LOT NO. REMARK PACKAGING OF DIODE AND BRIDGE RECTIFIERS BULK PACK PACKAGE PACKING CODE RC-2 -B EA PER BOX 1,000 INNER BOX SIZE CARTON SIZE (mm) (mm) 165*252*59 347*320*271 EA PER CARTON 10,000 GROSS WEIGHT(Kg) 11.6 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies. Data sheet specifications and its information contained are intended to provide a product description only. "Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining or other related applications where a failure or malfunction of component or circuitry may directly or indirectly cause injury or threaten a life without expressed written approval of Rectron Inc. Customers using or selling Rectron components for use in such applications do so at their own risk and shall agree to fully indemnify Rectron Inc and its subsidiaries harmless against all claims, damages and expenditures.
