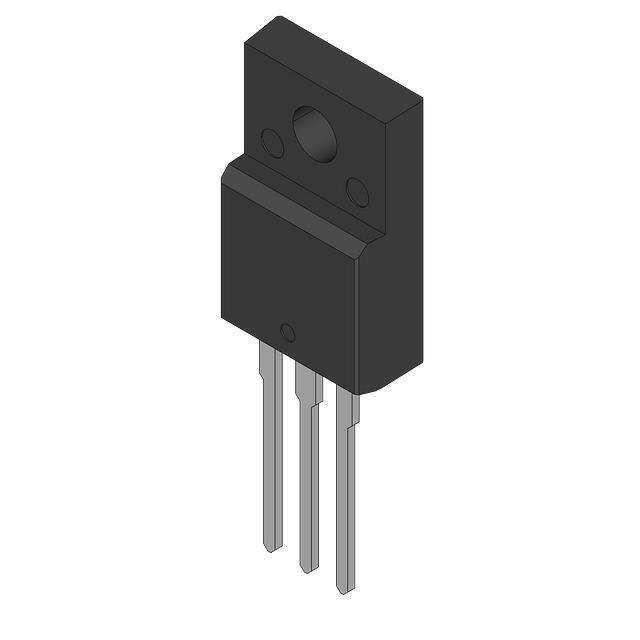

2SK3659-AZ

To our customers, Old Company Name in Catalogs and Other Documents On April 1st, 2010, NEC Electronics Corporation merged with Renesas Technology Corporation, and Renesas Electronics Corporation took over all the business of both companies. Therefore, although the old company name remains in this document, it is a valid Renesas Electronics document. We appreciate your understanding. Renesas Electronics website: http://www.renesas.com April 1st, 2010 Renesas Electronics Corporation Issued by: Renesas Electronics Corporation (http://www.renesas.com) Send any inquiries to http://www.renesas.com/inquiry. Notice 1. 2. 3. 4. 5. 6. 7. All information included in this document is current as of the date this document is issued. Such information, however, is subject to change without any prior notice. Before purchasing or using any Renesas Electronics products listed herein, please confirm the latest product information with a Renesas Electronics sales office. Also, please pay regular and careful attention to additional and different information to be disclosed by Renesas Electronics such as that disclosed through our website. Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights of third parties by or arising from the use of Renesas Electronics products or technical information described in this document. No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or others. You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by you or third parties arising from the use of these circuits, software, or information. When exporting the products or technology described in this document, you should comply with the applicable export control laws and regulations and follow the procedures required by such laws and regulations. You should not use Renesas Electronics products or the technology described in this document for any purpose relating to military applications or use by the military, including but not limited to the development of weapons of mass destruction. Renesas Electronics products and technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable domestic or foreign laws or regulations. Renesas Electronics has used reasonable care in preparing the information included in this document, but Renesas Electronics does not warrant that such information is error free. Renesas Electronics assumes no liability whatsoever for any damages incurred by you resulting from errors in or omissions from the information included herein. Renesas Electronics products are classified according to the following three quality grades: “Standard”, “High Quality”, and “Specific”. The recommended applications for each Renesas Electronics product depends on the product’s quality grade, as indicated below. You must check the quality grade of each Renesas Electronics product before using it in a particular application. You may not use any Renesas Electronics product for any application categorized as “Specific” without the prior written consent of Renesas Electronics. Further, you may not use any Renesas Electronics product for any application for which it is not intended without the prior written consent of Renesas Electronics. Renesas Electronics shall not be in any way liable for any damages or losses incurred by you or third parties arising from the use of any Renesas Electronics product for an application categorized as “Specific” or for which the product is not intended where you have failed to obtain the prior written consent of Renesas Electronics. The quality grade of each Renesas Electronics product is “Standard” unless otherwise expressly specified in a Renesas Electronics data sheets or data books, etc. Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; and industrial robots. “High Quality”: Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anticrime systems; safety equipment; and medical equipment not specifically designed for life support. “Specific”: Aircraft; aerospace equipment; submersible repeaters; nuclear reactor control systems; medical equipment or systems for life support (e.g. artificial life support devices or systems), surgical implantations, or healthcare intervention (e.g. excision, etc.), and any other applications or purposes that pose a direct threat to human life. You should use the Renesas Electronics products described in this document within the range specified by Renesas Electronics, especially with respect to the maximum rating, operating supply voltage range, movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas Electronics shall have no liability for malfunctions or damages arising out of the use of Renesas Electronics products beyond such specified ranges. Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further, Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to guard them against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a Renesas Electronics product, such as safety design for hardware and software including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or system manufactured by you. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. Please use Renesas Electronics products in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. Renesas Electronics assumes no liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written consent of Renesas Electronics. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products, or if you have any other inquiries. “Standard”: 8. 9. 10. 11. 12. (Note 1) “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its majorityowned subsidiaries. (Note 2) “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics. DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3659 SWITCHING N-CHANNEL POWER MOS FET ORDERING INFORMATION DESCRIPTION The 2SK3659 is N-channel MOS FET device that features a PART NUMBER PACKAGE low on-state resistance and excellent switching characteristics, 2SK3659 Isolated TO-220 designed for low voltage high current applications such as DC/DC converter with synchronous rectifier. FEATURES •4.5V drive available. •Low on-state resistance, RDS(on)1 = 5.7 mΩ MAX. (VGS = 10 V, ID = 40 A) •Low gate charge, QG = 32 nC TYP. (VDD = 16 V, VGS = 10 V, ID = 65 A) •Built-in gate protection diode. •Avalanche capability ratings. •Isolated TO-220 package. ABSOLUTE MAXIMUM RATING (TA = 25°C) Drain to source voltage (VGS = 0 V) VDSS 20 V Gate to source voltage (VDS = 0 V) VGSS ±20 V Drain current (DC) (TC = 25°C) ID(DC) ±65 A ID(pulse) ±260 A Total power dissipation (TA = 25°C) PT1 2.0 W Total power dissipation (TC = 25°C) PT2 25 W Channel temperature Tch 150 °C Storage temperature Tstg −55 to +150 °C Drain current (pulse) Note1 Single Avalanche Current Note2 IAS 35 A Single Avalanche Energy Note2 EAS 122 mJ Note 1. PW ≤ 10 µs, Duty Cycle ≤ 1% 2. Starting Tch = 25°C, VDD = 10 V, RG = 25 Ω, VGS = 20 → 0 V The information in this document is subject to change without notice. Before using this document, please confirm that this is the latest version. Not all devices/types available in every country. Please check with local NEC representative for availability and additional information. Document No. D16251EJ2V0DS00 (2nd edition) Date Published June 2002 NS CP (K) Printed in Japan © 2002 2SK3659 ELECTRICAL CHARACTERISTICS (TA = 25°C) Characteristics Symbol Test Conditions MIN. TYP. MAX. Unit Zero Gate Voltage Drain Current IDSS VDS = 20 V, VGS = 0 V 10 µA Gate Leakage Current IGSS VGS = ±20 V, VDS = 0 V ±10 µA VGS(off) VDS = 10 V, ID = 1 mA 1.5 2.5 V | yfs | VDS = 10 V, ID = 40 A 15 RDS(on)1 VGS = 10 V, ID = 40 A 4.6 5.7 mΩ RDS(on)2 VGS = 4.5 V, ID = 40 A 7.1 9.9 mΩ Gate Cut-off Voltage Forward Transfer Admittance Drain to Source On-state Resistance S Input Capacitance Ciss VDS = 10 V 1700 pF Output Capacitance Coss VGS = 0 V 700 pF Reverse Transfer Capacitance Crss f = 1 MHz 250 pF Turn-on Delay Time td(on) VDD = 10 V, ID = 40 A 16 ns tr VGS = 10 V 14 ns td(off) RG = 10 Ω 50 ns 12 ns Rise Time Turn-off Delay Time Fall Time tf Total Gate Charge QG VDD = 16 V 32 nC Gate to Source Charge QGS VGS = 10 V 6.0 nC Gate to Drain Charge QGD ID = 65 A 8.3 nC VF(S-D) IF = 65 A, VGS = 0 V 1.0 V Reverse Recovery Time trr IF = 65 A, VGS = 0 V 45 ns Reverse Recovery Charge Qrr di/dt = 100 A/µs 34 nC Body Diode Forward Voltage TEST CIRCUIT 1 AVALANCHE CAPABILITY D.U.T. RG = 25 Ω PG. VGS = 20 → 0 V TEST CIRCUIT 2 SWITCHING TIME D.U.T. L 50 Ω VGS RL Wave Form RG PG. VDD VGS 0 VGS 10% 90% VDD VDS 90% BVDSS IAS VDS VDS ID Starting Tch τ τ = 1 µs Duty Cycle ≤ 1% TEST CIRCUIT 3 GATE CHARGE PG. 2 50 Ω 10% 0 10% Wave Form VDD D.U.T. IG = 2 mA 90% VDS VGS 0 RL VDD Data Sheet D16251EJ2V0DS td(on) tr ton td(off) tf toff 2SK3659 TYPICAL CHARACTERISTICS (TA = 25°C) DERATING FACTOR OF FORWARD BIAS SAFE OPERATING AREA TOTAL POWER DISSIPATION vs. CASE TEMPERATURE 100 PT - Total Power Dissipation - W dT - Percentage of Rated Power - % 30 80 60 40 20 25 20 15 10 5 0 0 0 25 50 75 100 125 150 175 0 25 TC - Case Temperature - °C 50 75 100 125 150 175 TC - Case Temperature - °C FORWARD BIAS SAFE OPERATING AREA 1000 PW = 100 µs 1 ms 10 ms 100 ms ID(pulse) R DS (on) Limited 10 ID(DC) DC Power Dissipation Limited 1 T C = 25°C Single Pulse 0.1 0.1 1 10 100 VDS - Drain to Source Voltage - V TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH 1000 rth(t) - Transient Thermal Resistance - °C/W ID - Drain Current - A 100 Rth(ch-A) = 62.5°C/W 100 10 Rth(ch-C) = 5°C/W 1 0.1 Single Pulse 0.01 10 µ 100 µ 1m 10 m 100 m 1 10 100 1000 PW - Pulse Width - s Data Sheet D16251EJ2V0DS 3 2SK3659 DRAIN CURRENT vs. DRAIN TO SOURCE VOLTAGE FORWARD TRANSFER CHARACTERISTICS 1000 300 Pulsed VDS = 10 V Pulsed 100 VGS = 10 V 200 ID - Drain Current - A ID - Drain Current - A 250 150 4.5 V 100 50 10 Tch = 150°C 75°C 25°C −55°C 1 0.1 0.01 0 0 0.5 1 1.5 1 2 2 GATE CUT-OFF VOLTAGE vs. CHANNEL TEMPERATURE 6 100 VDS = 10 V ID = 1 mA 2.5 2.0 1.5 1.0 0.5 0.0 -50 0 50 100 150 | yfs | - Forward Transfer Admittance - S VGS(off) – Gate Cut-off Voltage - V 5 FORWARD TRANSFER ADMITTANCE vs. DRAIN CURRENT 3.0 Pulsed VDS = 10 V 10 Tch = 150°C 75°C 25°C −55°C 1 0.1 0.01 0.1 Tch - Channel Temperature - °C 20 15 VGS = 4.5 V 5 10 V 0 1 10 100 1000 RDS(on) - Drain to Source On-state Resistance - mΩ Pulsed 0.1 10 100 DRAIN TO SOURCE ON-STATE RESISTANCE vs. GATE TO SOURCE VOLTAGE 25 10 1 ID - Drain Current - A DRAIN TO SOURCE ON-STATE RESISTANCE vs. DRAIN CURRENT RDS(on) - Drain to Source On-state Resistance - mΩ 4 VGS - Gate to Source Voltage - V VDS - Drain to Source Voltage - V ID - Drain Current - A 4 3 20 Pulsed 15 10 ID = 40 A 5 0 0 5 10 15 VGS - Gate to Source Voltage - V Data Sheet D16251EJ2V0DS 20 2SK3659 CAPACITANCE vs. DRAIN TO SOURCE VOLTAGE 14 10000 ID = 40 A Pulsed VGS = 10 V f = 1 MHz 10 VGS = 4.5 V 8 10 V 6 4 2 0 -50 0 50 100 Ciss 1000 Coss Crss 100 10 0.01 150 Tch - Channel Temperature - °C 10 100 DYNAMIC INPUT/OUTPUT CHARACTERISTICS 10 20 1000 VDD = 10 V VGS = 10 V RG = 10 Ω 100 VDS - Drain to Source Voltage - V td(on), tr, td(off), tf - Switching Time - ns 1 VDS - Drain to Source Voltage - V SWITCHING CHARACTERISTICS td(off) tf td(on) 10 tr 16 8 VDD = 16 V 10 V 6 12 VGS 8 4 2 4 VDS ID = 65 A 0 0 1 0 0.1 1 10 5 10 15 20 25 30 35 100 QG - Gate Charge - nC ID - Drain Current - A SOURCE TO DRAIN DIODE FORWARD VOLTAGE REVERSE RECOVERY TIME vs. DRAIN CURRENT 1000 1000 trr - Reverse Recovery Time - ns ISD - Diode Forward Current - A 0.1 VGS - Gate to Source Voltage - V 12 Ciss, Coss, Crss - Capacitance - pF RDS(on) - Drain to Source On-state Resistance - mΩ DRAIN TO SOURCE ON-STATE RESISTANCE vs. CHANNEL TEMPERATURE 100 VGS = 10 V 0V 10 1 0.1 100 10 VGS = 0 V di/dt = 100 A/µs Pulsed 0.01 1 0 0.5 1 1.5 VSD - Source to Drain Voltage - V 0.1 1 10 100 ID - Drain Current - A Data Sheet D16251EJ2V0DS 5 2SK3659 SINGLE AVALANCHE CURRENT vs. INDUCTIVE LOAD SINGLE AVALANCHE ENERGY DERATING FACTOR 100 100 V DD = 10 V R G = 25 Ω V GS = 20 → 0 V IAS ≤ 35 A Energy Derating Factor - % IAS - Single Avalanche Current - A IAS = 35 A 10 E AS = 122 mJ 1 V DD = 10 V R G = 25 Ω V GS = 20 → 0 V Starting T ch = 25°C 0.1 0.01 80 60 40 20 0 0.1 1 10 50 75 100 125 150 Starting Tch - Starting Channel Temperature - °C L - Inductive Load - mH 6 25 Data Sheet D16251EJ2V0DS 2SK3659 PACKAGE DRAWING (Unit: mm) Isolated TO-220 (MP-45F) 10.0± 0.3 φ 3.2± 0.2 4.5± 0.2 2.7± 0.2 12.0± 0.2 1.3± 0.2 1.5± 0.2 2.54 TYP. 0.7± 0.1 2.54 TYP. Drain 13.5 MIN. 4± 0.2 3± 0.1 15.0± 0.3 EQUIVALENT CIRCUIT Body Diode Gate 2.5± 0.1 Gate Protection Diode Source 0.65± 0.1 1.Gate 2.Drain 3.Source 1 2 3 Remark The diode connected between the gate and source of the transistor serves as a protector against ESD. When this device actually used, an additional protection circuit is externally required if a voltage exceeding the rated voltage may be applied to this device. Data Sheet D16251EJ2V0DS 7 2SK3659 • The information in this document is current as of June, 2002. The information is subject to change without notice. For actual design-in, refer to the latest publications of NEC's data sheets or data books, etc., for the most up-to-date specifications of NEC semiconductor products. Not all products and/or types are available in every country. Please check with an NEC sales representative for availability and additional information. • No part of this document may be copied or reproduced in any form or by any means without prior written consent of NEC. NEC assumes no responsibility for any errors that may appear in this document. • NEC does not assume any liability for infringement of patents, copyrights or other intellectual property rights of third parties by or arising from the use of NEC semiconductor products listed in this document or any other liability arising from the use of such products. No license, express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of NEC or others. • Descriptions of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of customer's equipment shall be done under the full responsibility of customer. NEC assumes no responsibility for any losses incurred by customers or third parties arising from the use of these circuits, software and information. • While NEC endeavours to enhance the quality, reliability and safety of NEC semiconductor products, customers agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize risks of damage to property or injury (including death) to persons arising from defects in NEC semiconductor products, customers must incorporate sufficient safety measures in their design, such as redundancy, fire-containment, and anti-failure features. • NEC semiconductor products are classified into the following three quality grades: "Standard", "Special" and "Specific". The "Specific" quality grade applies only to semiconductor products developed based on a customer-designated "quality assurance program" for a specific application. The recommended applications of a semiconductor product depend on its quality grade, as indicated below. Customers must check the quality grade of each semiconductor product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic appliances, machine tools, personal electronic equipment and industrial robots "Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster systems, anti-crime systems, safety equipment and medical equipment (not specifically designed for life support) "Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life support systems and medical equipment for life support, etc. The quality grade of NEC semiconductor products is "Standard" unless otherwise expressly specified in NEC's data sheets or data books, etc. If customers wish to use NEC semiconductor products in applications not intended by NEC, they must contact an NEC sales representative in advance to determine NEC's willingness to support a given application. (Note) (1) "NEC" as used in this statement means NEC Corporation and also includes its majority-owned subsidiaries. (2) "NEC semiconductor products" means any semiconductor product developed or manufactured by or for NEC (as defined above). M8E 00. 4
