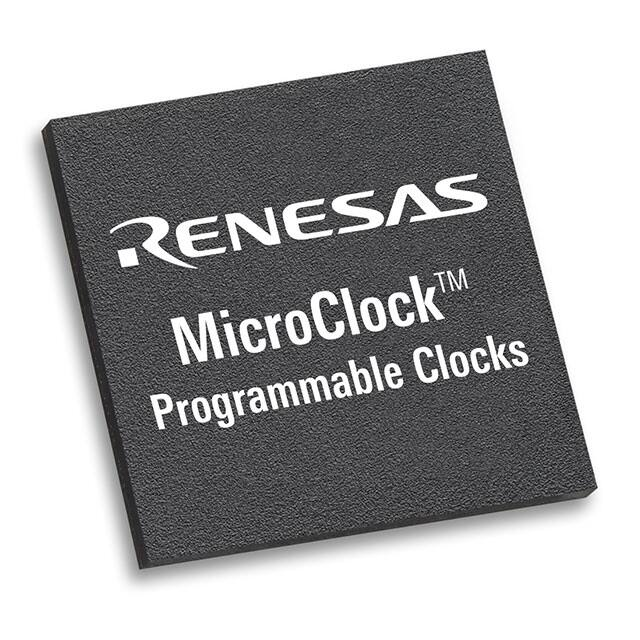

MicroClock Programmable Clock
Generator
5L2503
Datasheet
Description
Features
The 5L2503 MicroClock programmable clock generator is
intended for low-power, consumer, wearable and smart devices.
▪ Configurable OE1 pin function as OE, PPS or DFC control
function
▪ Proactive Power Saving (PPS) features save power during the
end device power down mode
▪ Dynamic Frequency Control (DFC) feature allows programming
up to 4 difference frequencies switch dynamically
▪ Spread spectrum clock support to lower system EMI
▪ I2C Interface
The 5L2503 device is a 3 PLL architecture design. Each PLL is
individually programmable, allowing up to 3 unique frequency
outputs. The 5L2503 has built-in unique features such as
Proactive Power Saving (PPS) to deliver better system level
power management.
An internal OTP memory allows the user to store the configuration
in the device without programming after power-up, and then can
be reprogrammed again through the I2C interface.
Output Features
The device has programmable VCO and PLL source selection
allowing the user to do power-performance optimization based on
the application requirements. A low-power 32.768kHz clock is
supported with only less than 2μA current consumption for system
RTC reference clock needs.
▪ 3 LVCMOS outputs: 1MHz–125MHz
▪ Low Power 32.768kHz clock supported
▪ Wireless clock crystal integration and fan out directly
Key Specifications
Typical Applications
▪
▪
▪
▪
▪ 2μA operation for RTC clock 32.768kHz output
▪ 2.5 × 2.5 mm 12-DFN small form factor package
SmartDevice
Handheld
Wearable applications
Consumer application crystal replacements
Block Diagram
VDD1_8
VSS
Power
Monitor
OE1
POR
PLL1
XOUT
OUT1
OSC
CLKIN/ XIN
Mux
&
Divider
PLL2
Calibration
OUT2
VDDO
VSS
PLL3
OUT3
32.768K
DCO
SEL_DFC/ SCL_DFC1/OE3
SDA_DFC0/OE2
I2C Engine
Overshoot Reduction
(ORT)
OTP memory (1 configuration )
©2017 Integrated Device Technology, Inc.
Dynamic Frequency Control Logic (DFC)
Proactive Power Saving Logic (PPS)
1
October 24, 2017
5L2503 Datasheet
Pin Assignments
Figure 1. Pin Assignments for 2.5 × 2.5 mm 12-DFN – Top View
SDA_DFC0/OE2
1
12
VSS
SEL_DFC/SCL_DFC1/OE3
2
11
OUT3
VSS
3
10
VDDO
XOUT
4
9
OUT2
XIN
5
8
OE1
VDD1_8
6
7
OUT1
2.5 × 2.5 mm 12-DFN
Pin Descriptions
Table 1. Pin Descriptions
Number
Name
Type
1
SDA_DFC0/OE2
I/O
2
SEL_DFC/SCL_DFC1/
OE3
Input
I2C clock pin; can be DFC1 function by OTP programming selected by
SEL_DFC at power-on default. Output enable pin for OUT3.
3
VSS
Power
Ground pin.
4
XOUT
I/O
5
XIN
Input
Crystal oscillator interface input or clock input pin (CLKIN).
6
VDD1_8
Power
1.8V power rail.
7
OUT1
Output
1.8V LVCMOS clock output.
8
OE1
Input
9
OUT2
Output
1.8V LVCMOS clock output.
10
VDDO
Power
1.8V output clock power supply pin; supports OUT2/3.
11
OUT3
Output
1.8V LVCMOS clock output.
12
VSS
Power
Ground pin.
EPAD
Power
Connect to ground pad.
©2017 Integrated Device Technology, Inc.
Description
I2C data pin; can be DFC0 function by OTP programming or selected by
SEL_DFC at power-on default. Output enable pin for OUT2.
Crystal oscillator interface output.
Output enable control 1.
2
October 24, 2017
5L2503 Datasheet
Power Group
Table 2. Power Group
Power Supply
SE
DIV
MUX
OUT2/OUT3
VDDO
VDD1_8
OUT1
PLL
DCO
XTAL
V
V
V
V
V
Output Source Selection Register Settings
Table 3. OUT3 Source
OUT3 Source
B35b7
B35b6
Divider 3 (DIV3)
0
0
Divider 5 (DIV5)
0
1
Divider 1 (DIV1)
1
0
32.768kHz DCO
1
1
B35b5
B35b4
Divider 3 (DIV3)
0
0
Divider 5 (DIV5)
0
1
Divider 1 (DIV1)
1
0
32.768kHz DCO
1
1
B35b3
B35b2
Divider 3 (DIV3)
0
0
Divider 5 (DIV5)
0
1
Divider 1 (DIV1)
1
0
32.768kHz DCO
1
1
B35b1
B35b0
PLL1
0
0
DIV4 seed
1
X
©2017 Integrated Device Technology, Inc.
3
Table 4. OUT2 Source
OUT2 Source
Table 5. OUT1 Source
OUT1 source
Table 6. DIV1 Source
DIV1 source
October 24, 2017
5L2503 Datasheet
Device Features and Functions
DFC – Dynamic Frequency Control
▪ OTP programmable–4 different feedback fractional dividers (4 VCO frequencies) that apply to PLL2.
▪ ORT (overshoot reduction) function will be applied automatically during the VCO frequency change.
▪ Smooth frequency incremental or decremental from current VCO to targeted VCO base on DFC hardware pins selection.
Figure 2. DFC Function Block Diagram
M divider
PLL2
OUT DIV
Selector
00
N divider
01
N divider
10
N divider
11
N divider
DFC1:0
OTP/I2C
Table 7. DFC Function Priority
DFC Mode
OE Pin
DFC_EN bit
(W32[4])
OE1_fun_sel
I2C Pins
SCL_DFC1
SDA_DFC0
DFC[1:0]
Notes
Off
OE In *
0
00 or 01 or 10 *
Active (SCL =
1 at POR)
SCL input
SDA I/O
Not
applicable
DFC disable
On
DFC0 In
1
11
Active
SCL input
SDA I/O
DFC0 = OE
One pin DFC
via OE1
On
OE In *
1
00 or 01 or 10 *
Inactive (SCL=
0 at POR)
DFC1
DFC0
DFC1 =
SCL_DFC1
I2C pin as DFC
control pins
On
OE In *
1
00 or 01 or 10 *
Active (SCL =
1 at POR)
SCL input
SDA I/O
W30[1:0]
I2C control
DFC mode
* See OE Pin Function table.
DFC Function Programming
▪ Register B63b3:2 select DFC00–DFC11 configuration.
▪ Byte16–19 are the register for PLL2 VCO setting. Based on B63b3:2 configuration selection, the data write to B16–19 will be stored in
selected configuration OTP memory.
▪ Refer to DFC Function Priority table; select proper control pin(s) to activate DFC function.
▪ Note the DFC function can also be controlled by I2C access.
©2017 Integrated Device Technology, Inc.
4
October 24, 2017
5L2503 Datasheet
PPS – Proactive Power Saving Function
PPS Proactive Power Saving is an IDT patented unique design for the clock generator that proactively detects end device power-down
state and then switches output clocks between normal operation clock frequency and low power mode 32kHz clock that only consumes
< 5μA current. The system could save power when the device goes into power-down or sleep mode. The PPS function diagram is shown
below.
Figure 3. PPS Function Block Diagram
PPS
Control
Logic
I2C
&
Logic
Power
Down
Control
Low
Power
DCO
Xtal
Oscillator
XOUT
XIN
PLL
Xtal
Oscillator
Logic
MHz / kHz
Switching
Figure 4. PPS Assertion/Deassertion Timing Chart
3rd cycle
2nd cycle
1st cycle
PPS assertion
MHz clock
32kHz clocks
2nd cycle
1st cycle
PPS deassertion
32kHz clocks
MHz clock
PPS Function Programming
▪ Refer to OE_pin_function_table to have proper PPS function selected for OE pin(s); note that register default is set to Output Enable
(OE) function for OE pins.
©2017 Integrated Device Technology, Inc.
5
October 24, 2017
5L2503 Datasheet
Input Pin Function
The input pins in 5L2503 have multiple functions. The OE1 pin can be configured as output enable control (OE) or chip power-down
control (PD#) or Proactive Power Saving function (PPS). Furthermore, the OE1 pin can be configured as a single or two-pin Dynamic
Frequency Control (DFC).
SCL/SDA are also multiple function pins. The two pins can be configured as output enable control (OE), or I2C interface or Dynamic
Frequency Control (DFC) functions by programming and hardware pin latch.
Table 8. OE1 Pin Function
Byte30
Function
bit6
bit5
OUT1 output enable/disable
0
0
Global Power Down (PD#)
0
1
OUT1 Proactive Power Saving Input (OUT1 PPS)
1
0
DFC0
1
1
Table 9. SDA/SCL Function
SEL_DFC (latched)
Enable OE2/3 B36
DFC_EN B32
OE1 Funsel B30
Function of SCL/SDA
0
0
0
00, 01, 10
N/A
0
0
1
00, 01, 10
SCL = DFC1, SDA = DFC0
0
1
X
00, 01, 10
SCL = OE3, SDA = OE2
1
X
X
00, 01, 10
SCL, SDA
Spread Spectrum
The 5L2503 supports spread spectrum clocks from PLL1. PLL1 has built-in analog spread spectrum; PLL2 and PLL3 use seed clock from
PLL1.
ORT – VCO Overshoot Reduction Technology
The 5L2503 supports innovate the VCO overshoot reduction technology to prevent the output clock frequency spike when the device is
change frequency on the fly or doing DFC (Dynamic Frequency Control) function. The VCO frequency change are under control instead
of freerun to targeted frequency.
PLL Features and Descriptions
Table 10. Output Divider 1
Output Divider Bits
Output Divider Bits
00
01
10
11
00
1
2
4
8
01
4
8
16
32
10
5
10
20
40
11
6
12
24
48
©2017 Integrated Device Technology, Inc.
6
October 24, 2017
5L2503 Datasheet
Table 11. Output Dividers 2, 3, and 5
Output Divider Bits
Output Divider Bits
00
01
10
11
00
1
2
4
5
01
3
6
12
15
10
5
10
20
25
11
10
20
40
50
Table 12. Output Divider 4
Output Divider Bits
Output Divider Bits
00
01
10
11
00
1
2
4
8
01
4
8
16
32
10
5
10
20
40
11
6
12
24
48
Output Clock Test Conditions
LVCMOS Output Test Conditions
33ohm
50ohm
2 inches
2pF
LVCMOS
©2017 Integrated Device Technology, Inc.
7
October 24, 2017
5L2503 Datasheet
Absolute Maximum Ratings
The absolute maximum ratings are stress ratings only. Stresses greater than those listed below can cause permanent damage to the
device. Functional operation of the 5L2503 at absolute maximum ratings is not implied. Exposure to absolute maximum rating conditions
may affect device reliability.
Table 13: Absolute Maximum Ratings
Item
Rating
Supply Voltage, VDD1_8, VDDOUTx
1.89V
Inputs
Other Inputs
-0.5V to VDD1_8/VDDOUTx
Outputs, VDDOUTx (LVCMOS)
-0.5V to VDDOUTx + 0.5V
Outputs, IO (SDA)
10mA
Package Thermal Impedance, ΘJA
42°C/W (0 mps)
Package Thermal Impedance, ΘJC
41.8°C/W (0 mps)
Storage Temperature, TSTG
-65°C to 150°C
ESD Human Body Model
2000V
Junction Temperature
125°C
Recommended Operating Conditions
Table 14: Recommended Operating Conditions
Symbol
Parameter
Minimum
Typical
Maximum
Units
VDDOUTx
Power supply voltage for supporting 1.8V output and all other
outputs.
1.71
1.8
1.89
V
Power supply voltage for core logic functions.
1.71
1.8
1.89
V
Operating temperature, ambient.
-40
85
°C
VDD1_8
TA
CLOAD_OUT
tPU
Maximum load capacitance (1.8V LVCMOS only).
Power up time for all VDDs to reach minimum specified voltage
(power ramps must be monotonic).
©2017 Integrated Device Technology, Inc.
8
5
0.05
pF
3
ms
October 24, 2017
5L2503 Datasheet
Input Capacitance, LVCMOS Output Impedance, and Internal Pull-down
Resistance (TA = +25 °C)
Table 15: Input Capacitance, LVCMOS Output Impedance, and Internal Pull-down Resistance
Symbol
Parameter
Minimum
Input Capacitance (OE, SDA, SCL)
CIN
Pull-down Resistor
ROUT
Typical
Maximum
Units
3
7
pF
OE
150
LVCMOS Output Driver Impedance (VDDOUTx = 1.8V)
17
kΩ
Recommended Crystal Characteristics
Table 16: Crystal Characteristics
Parameter
Minimum
Maximum
Units
8
48
MHz
-20
20
ppm
Mode of Oscillation
Typical
Fundamental
Frequency
Frequency Tolerance
Equivalent Series Resistance (ESR)
10
100
Ω
Shunt Capacitance
2
7
pF
8
10
pF
100
μW
Load Capacitance (CL)
6
Maximum Crystal Drive Level
DC Electrical Characteristics
Table 17: DC Electrical Characteristics
Symbol
IDD
Parameter
Operation Supply
Current
Conditions
Minimum
Typical
Maximum
Units
VDD = VDDO = VDD1_8 = 1.8V; OUT1 = 12MHz,
OUT3 = 26MHz, OUT2 off, no load.
2.0
mA
VDD = VDDO = VDD1_8 = 1.8V; OUT1 = 12MHz,
OUT3 = 26MHz, OUT2 off, with load.
3.5
mA
VDD = VDDO = VDD1_8 = 1.8V; OUT1 = 26MHz,
OUT3 = 26MHz, OUT2 = 32kHz, no load.
1.8
mA
VDD = VDDO = VDD1_8 = 1.8V; OUT1 = 26MHz,
OUT3 = 26MHz, OUT2 = 32kHz, with load.
3.8
mA
μA
IDDPD
Power Down
Current
PD asserted with VDD1_8 and VDDO ON, I2C
programming, 32k running.
390
IDDSUSPEND
Power Suspend
Current
VDDOUT2 OFF and only VDDOUT1 and VDD1_8
ON, I2C programming, 32k running.
1.6
1
Single CMOS driver active.
2
OUT1–3 current measured with 0.5 inches transmission line and no load.
©2017 Integrated Device Technology, Inc.
9
2.0
μA
October 24, 2017
5L2503 Datasheet
DC Electrical Characteristics for 1.8V LVCMOS
VDD = 1.8V ±5%, VDDOUTx = 1.8V ±5%, TA = -40°C to 85°C.
Table 18: DC Electrical Characteristics for 1.8V LVCMOS
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Units
VDDOUTx
V
0.25 × VDDOUTx
V
3
μA
VOH
Output High Voltage
IOH = -8mA.
VOL
Output Low Voltage
IOL = 8mA.
Output Leakage Current
Tri-state outputs,
VDDOUTx = 1.89V.
VIH
Input High Voltage
Single-ended inputs – OE1,
SDA, SCL.
0.65 × VDDOUTx
VDDOUTx + 0.3
V
VIL
Input Low Voltage
Single-ended inputs – OE1,
SDA, SCL.
GND - 0.3
0.35 × VDDOUTx
V
IIN
Input Leakage Current
OE1
-1
5
μA
IOZDD
0.7 × VDDOUTx
AC Electrical Characteristics
VDD1_8 = 1.8V ±5%, VDDO = 1.8V ±5%, TA = -40°C to 85°C; spread spectrum = off.
Table 19. AC Electrical Characteristics
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Units
Input frequency limit when using a crystal.
8
48
MHz
Input Frequency
Input frequency limit when using LVCMOS
connected to XIN.
1
125
MHz
fOUT
Output Frequency
Single-ended clock output limit (LVCMOS).
1
125
MHz
t1
Output Duty Cycle
LVCMOS clock < 120MHz.
45
55
%
t2
Rise/Fall Time
fIN
1
©2017 Integrated Device Technology, Inc.
Single-ended LVCMOS output clock rise and fall
time, 20% to 80% of VDDO 1.8V.
10
1.0
ns
October 24, 2017
5L2503 Datasheet
Table 19. AC Electrical Characteristics (Cont.)
Symbol
Parameter
Conditions
Clock Jitter
Cycle-to-cycle jitter (peak-to-peak), multiple
output frequencies switching, differential outputs
(1.8V nominal output voltage).
OUT1 = 25MHz.
Minimum
Typical
Maximum
Units
50
200
ps
50
200
ps
50
200
ps
20
ms
OUT2 = 100MHz.
OUT3 = 125MHz.
t3
Clock Jitter
Cycle-to-cycle jitter (peak-to-peak), multiple
output frequencies switching, differential outputs
(1.8V nominal output voltage).
OUT1 = 24MHz.
OUT2 = 32.768kHz.
OUT3 = 26MHz.
Clock Jitter
Cycle-to-cycle jitter (peak-to-peak), multiple
output frequencies switching, differential outputs
(1.8V nominal output voltage).
OUT1 = 32.768kHz.
OUT2 = 26MHz.
OUT3 = 26MHz.
t5 2
Lock Time
PLL lock time from power-up.
t6
Lock Time
32.768kHz clock low-power, power-up time.
10
100
ms
t6 3
Lock Time
PLL lock time from shutdown mode.
0.1
2
ms
1
Practical lower frequency is determined by loop filter settings.
2
Includes loading the configuration bits from OTP to PLL registers. It does not include OTP programming/write time.
3
Actual PLL lock time depends on the loop configuration.
©2017 Integrated Device Technology, Inc.
11
October 24, 2017
5L2503 Datasheet
I2C Bus Characteristics
Table 20. I2C Bus DC Characteristics
Symbol
Parameter
VIH
Input High Level
VIL
Input Low Level
VHYS
Conditions
Input Leakage Current
VOL
Output Low Voltage
Typical
Maximum
Units
0.7 × VDD1_8
V
0.3 × VDD1_8
Hysteresis of Inputs
IIN
Minimum
V
0.05 × VDD1_8
V
IOL = 3mA.
±1
μA
0.4
V
Table 21. I2C Bus AC Characteristics
Symbol
FSCLK
Parameter
Conditions
Minimum
Serial Clock Frequency (SCL)
Typical
Maximum
Units
100
400
kHz
Bus Free-time between STOP and START
1.3
μs
tSU:START
Setup Time, START
0.6
μs
tHD:START
Hold Time, START
0.6
μs
tSU:DATA
Setup Time, Data Input (SDA)
100
μs
tHD:DATA
Hold Time, Data Input (SDA) 1
0
μs
tOVD
Output Data Valid from Clock
0.9
μs
CB
Capacitive Load for each Bus Line
400
pF
tR
Rise Time, Data and Clock (SDA, SCL)
20 + 0.1 × CB
300
ns
tF
Fall Time, Data and Clock (SDA, SCL)
20 + 0.1 × CB
300
ns
tBUF
tHIGH
High Time, Clock (SCL)
0.6
μs
tLOW
Low Time, Clock (SCL)
1.3
μs
Setup Time, STOP
0.6
μs
tSU:STOP
1
A device must internally provide a hold time of at least 300ns for the SDA signal (referred to the VIH(MIN) of the SCL signal) to bridge the undefined
region of the falling edge of SCL.
Spread Spectrum Generation Specifications
Table 22: Spread Spectrum Generation Specifications
Symbol
Parameter
Description
fOUT
Output Frequency
Output frequency range.
fMOD
Modulation Frequency
Modulation frequency.
Spread Value
Amount of spread value
(programmable) – down spread.
Spread% Value
Variation of spread range.
fSPREAD
% tolerance
©2017 Integrated Device Technology, Inc.
12
Minimum
Typical
1
Maximum
Units
125
MHz
30 to 63
kHz
-0.5% to -2%
%fOUT
15
%
October 24, 2017
5L2503 Datasheet
General I2C Serial Interface Information
How to Write
How to Read
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
Controller (host) sends a start bit
Controller (host) sends the write address
IDT clock will acknowledge
Controller (host) sends the beginning byte location = N
IDT clock will acknowledge
Controller (host) sends the byte count = X
IDT clock will acknowledge
Controller (host) starts sending Byte N through Byte N+X-1
IDT clock will acknowledge each byte one at a time
Controller (host) sends a stop bit
Controller (host) will send a start bit
Controller (host) sends the write address
IDT clock will acknowledge
Controller (host) sends the beginning byte location = N
IDT clock will acknowledge
Controller (host) will send a separate start bit
Controller (host) sends the read address
IDT clock will acknowledge
IDT clock will send the data byte count = X
IDT clock sends Byte N+X-1
IDT clock sends Byte 0 through Byte X (if X(H) was written to
Byte 8)
▪ Controller (host) will need to acknowledge each byte
▪ Controller (host) will send a not acknowledge bit
▪ Controller (host) will send a stop bit
Index Block Write Operation
Controller (Host)
T
IDT (Slave/Receiver)
starT bit
Slave Address
WR
WRite
Index Block Read Operation
ACK
Controller (Host)
T
starT bit
Slave Address
WR
WRite
Beginning Byte = N
ACK
Data Byte Count = X
ACK
IDT (Slave/Receiver)
ACK
Beginning Byte N
Beginning Byte = N
ACK
X Byte
O
O
O
ACK
RT
O
O
O
RD
Repeat starT
Slave Address
ReaD
Byte N + X - 1
ACK
ACK
P
stoP bit
Data Byte Count=X
ACK
Beginning Byte N
O
O
O
X Byte
ACK
O
O
O
Byte N + X - 1
N
P
©2017 Integrated Device Technology, Inc.
13
Not acknowledge
stoP bit
October 24, 2017
5L2503 Datasheet
Byte 0: General Control
Byte 00h
Name
Control Function
Type
0
1
PWD
Bit 7
OTP_Burned
OTP memory programming
indication
R/W
OTP memory
non-programmed
OTP memory
programmed
0
Bit 6
I2C_addr[1]
I2C address select bit 1
R/W
Bit 5
I2C_addr[0]
I2
R/W
Bit 4
PLL1_SSEN
Bit 3
Bit 2
PLL1 Spread Spectrum enable
R/W
disable
0
enable
Reserved
PLL3_refin_sel
Bit 1
Bit 0
C address select bit 0
0
00: D0 / 01: D2
10: D4 / 11: D6
PLL3 source selection
0
R/W
Xtal
Seed (DIV2)
Reserved
OTP_protect
0
0
0
OTP memory protection
R/W
read/write
write locked
0
Byte 1: Dash Code ID (optional)
Byte 01h
Name
Control Function
Type
0
1
PWD
Bit 7
DashCode ID[7]
Dash code ID
R/W
—
—
0
Bit 6
DashCode ID[6]
Dash code ID
R/W
—
—
0
Bit 5
DashCode ID[5]
Dash code ID
R/W
—
—
0
Bit 4
DashCode ID[4]
Dash code ID
R/W
—
—
0
Bit 3
DashCode ID[3]
Dash code ID
R/W
—
—
0
Bit 2
DashCode ID[2]
Dash code ID
R/W
—
—
0
Bit 1
DashCode ID[1]
Dash code ID
R/W
—
—
0
Bit 0
DashCode ID[0]
Dash code ID
R/W
—
—
0
Control Function
Type
0
1
PWD
Byte 2: Crystal Cap Setting
Byte 02h
Name
Bit 7
Reserved
0
Bit 6
Reserved
0
Bit 5
Reserved
0
Bit 4
Reserved
1
Bit 3
Reserved
0
Bit 2
Reserved
0
Bit 1
Reserved
0
Bit 0
Reserved
0
©2017 Integrated Device Technology, Inc.
14
October 24, 2017
5L2503 Datasheet
Byte 3: PLL3 M Divider
Byte 03h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL3_MDIV1
PLL3 source clock divider
R/W
disable M DIV1
bypadd divider (/1)
0
Bit 6
PLL3_MDIV2
PLL3 source clock divider
R/W
disable M DIV2
bypadd divider (/2)
0
Bit 5
PLL3 M_DIV[5]
PLL3 reference integer divider
R/W
0
Bit 4
PLL3 M_DIV[4]
PLL3 reference integer divider
R/W
1
Bit 3
PLL3 M_DIV[3]
PLL3 reference integer divider
R/W
Bit 2
PLL3 M_DIV[2]
PLL3 reference integer divider
R/W
Bit 1
PLL3 M_DIV[1]
PLL3 reference integer divider
R/W
1
Bit 0
PLL3 M_DIV[0]
PLL3 reference integer divider
R/W
0
1
3–64, default 26
0
Byte 4: PLL3 N Divider
Byte 04h
Name
Control Function
Type
0
1
Bit 7
PLL3 N_DIV[7]
PLL3 VCO feedback integer divider bit7
R/W
1
Bit 6
PLL3 N_DIV[6]
PLL3 VCO feedback integer divider bit6
R/W
1
Bit 5
PLL3 N_DIV[5]
PLL3 VCO feedback integer divider bit5
R/W
1
Bit 4
PLL3 N_DIV[4]
PLL3 VCO feedback integer divider bit4
R/W
Bit 3
PLL3 N_DIV[3]
PLL3 VCO feedback integer divider bit3
R/W
Bit 2
PLL3 N_DIV[2]
PLL3 VCO feedback integer divider bit2
R/W
0
Bit 1
PLL3 N_DIV[1]
PLL3 VCO feedback integer divider bit1
R/W
0
Bit 0
PLL3 N_DIV[0]
PLL3 VCO feedback integer divider bit0
R/W
0
12–2048, default VCO setting is
480MHz
PWD
0
0
Byte 5: PLL3 Loop Filter Setting and N Divider 10:8
Byte 05h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL3_R100K
PLL3 Loop filter resister 100kohm
R/W
bypass
plus 100kohm
0
Bit 6
PLL3_R50K
PLL3 Loop filter resister 50kohm
R/W
bypass
plus 50kohm
0
Bit 5
PLL3_R25K
PLL3 Loop filter resister 25kohm
R/W
bypass
plus 25kohm
0
Bit 4
PLL3_R12.5K
PLL3 Loop filter resister 12.5kohm
R/W
bypass
plus 12.5kohm
1
Bit 3
PLL3_R6K
PLL3 Loop filter resister 6kohm
R/W
bypass
only 6kohm
applied
0
Bit 2
PLL3 N_DIV[10]
PLL3 VCO feedback integer divider bit10
R/W
Bit 1
PLL3 N_DIV[9]
PLL3 VCO feedback integer divider bit9
R/W
Bit 0
PLL3 N_DIV[8]
PLL3 VCO feedback integer divider bit8
R/W
©2017 Integrated Device Technology, Inc.
15
0
12–2048, default VCO setting is
480MHz
0
1
October 24, 2017
5L2503 Datasheet
Byte 6: PLL3 Charge Pump Control
Byte 06h
Name
Control Function
Type
0
1
PWD
Bit 7
OUTDIV 3 Source
Output divider 3 source clock selection
R/W
PLL2
PLL3
0
Bit 6
PLL3_CP_8X
PLL3 charge pump control
R/W
—
x8
1
Bit 5
PLL3_CP_4X
PLL3 charge pump control
R/W
—
x4
1
Bit 4
PLL3_CP_2X
PLL3 charge pump control
R/W
—
x2
0
Bit 3
PLL3_CP_1X
PLL3 charge pump control
R/W
—
x1
1
Bit 2
PLL3_CP_/24
PLL3 charge pump control
R/W
—
/24
1
Bit 1
PLL3_CP_/3
PLL3 charge pump control
R/W
—
/3
0
Bit 0
PLL3_SIREF
PLL3 SiRef current selection
R/W
10μA
20μA
0
Formula: (iRef (10μA) × (1 + SIREF) × (1 × 1X + 2 × 2X + 4 × 4X + 8 × 8X + 16 × 16X))/((24 × /24) + (3 × /3))
Byte 7: PLL1 Control and OUTDIV5 Divider
Byte 07h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL1_MDIV_Doubler
PLL1 reference clock doubler
R/W
disable
enable
0
Bit 6
PLL1_SIREF
PLL1 SiRef current selection
R/W
10.8μA
21.6μA
0
Bit 5
PLL1_EN_CH2
PLL1 output Channel 2 control
R/W
disable
enable
1
Bit 4
PLL1_EN_3rdpole
PLL1 3rd Pole control
R/W
disable
enable
0
Bit 3
OUTDIV5[3]
Output divider 5 control bit 3
R/W
Bit 2
OUTDIV5[2]
Output divider 5 control bit 2
R/W
Bit 1
OUTDIV5[1]
Output divider 5 control bit 1
R/W
Bit 0
OUTDIV5[0]
Output divider 5 control bit 0
R/W
0
DIV5[3:2] = 1,2,4,5; DIV5[1:0] =
1,3,5,10; Default Divider = 1 x 10 =
10
0
1
1
Byte 8: PLL1 M Divider
Byte 08h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL1_MDIV1
PLL3 VCO reference clock divider 1
R/W
disable M DIV1
bypass divider (/1)
0
Bit 6
PLL1_MDIV2
PLL3 VCO reference clock divider 2
R/W
disable M DIV2
bypass divider (/2)
0
Bit 5
PLL1 M_DIV[5]
PLL1 reference clock divider control bit 5
R/W
0
Bit 4
PLL1 M_DIV[4]
PLL1 reference clock divider control bit 4
R/W
1
Bit 3
PLL1 M_DIV[3]
PLL1 reference clock divider control bit 3
R/W
Bit 2
PLL1 M_DIV[2]
PLL1 reference clock divider control bit 2
R/W
Bit 1
PLL1 M_DIV[1]
PLL1 reference clock divider control bit 1
R/W
1
Bit 0
PLL1 M_DIV[0]
PLL1 reference clock divider control bit 0
R/W
0
©2017 Integrated Device Technology, Inc.
16
3–64, default is 26
1
0
October 24, 2017
5L2503 Datasheet
Byte 9: PLL1 VCO N Divider
Byte 09h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL1 N_DIV[7]
PLL1 VCO feedback divider control bit 7
R/W
0
Bit 6
PLL1 N_DIV[6]
PLL1 VCO feedback divider control bit 6
R/W
1
Bit 5
PLL1 N_DIV[5]
PLL1 VCO feedback divider control bit 5
R/W
0
Bit 4
PLL1 N_DIV[4]
PLL1 VCO feedback divider control bit 4
R/W
Bit 3
PLL1 N_DIV[3]
PLL1 VCO feedback divider control bit 3
R/W
Bit 2
PLL1 N_DIV[2]
PLL1 VCO feedback divider control bit 2
R/W
0
Bit 1
PLL1 N_DIV[1]
PLL1 VCO feedback divider control bit 1
R/W
0
Bit 0
PLL1 N_DIV[0]
PLL1 VCO feedback divider control bit 0
R/W
0
1
12–2048, default is 600
1
Byte 10: PLL Loop Filter and N Divider
Byte 0Ah
Name
Control Function
Type
0
1
PWD
Bit 7
PLL1_R100K
PLL1 Loop filter resister 100kohm
R/W
bypass
plus 100kohm
1
Bit 6
PLL1_R50K
PLL1 Loop filter resister 50kohm
R/W
bypass
plus 50kohm
0
Bit 5
PLL1_R25K
PLL1 Loop filter resister 25kohm
R/W
bypass
plus 25kohm
1
Bit 4
PLL1_R12.5K
PLL1 Loop filter resister 12.5kohm
R/W
bypass
plus 12.5kohm
1
Bit 3
PLL1_R1.0K
PLL1 Loop filter resister 1kohm
R/W
bypass
only 1.0kohm applied
0
Bit 2
PLL1 N_DIV[10]
PLL1 VCO feedback integer divider bit10
R/W
Bit 1
PLL1 N_DIV[9]
PLL1 VCO feedback integer divider bit9
R/W
Bit 0
PLL1 N_DIV[8]
PLL1 VCO feedback integer divider bit8
R/W
0
12–2048, default is 600
1
0
Byte 11: PLL1 Charge Pump
Byte 0Bh
Name
Control Function
Type
0
1
PWD
Bit 7
PLL1_CP_32X
PLL1 charge pump control
R/W
—
x32
0
Bit 6
PLL1_CP_16X
PLL1 charge pump control
R/W
—
x16
0
Bit 5
PLL1_CP_8X
PLL1 charge pump control
R/W
—
x8
0
Bit 4
PLL1_CP_4X
PLL1 charge pump control
R/W
—
x4
0
Bit 3
PLL1_CP_2X
PLL1 charge pump control
R/W
—
x2
0
Bit 2
PLL1_CP_1X
PLL1 charge pump control
R/W
—
x1
1
Bit 1
PLL1_CP_/24
PLL1 charge pump control
R/W
—
/24
1
Bit 0
PLL1_CP_/3
PLL1 charge pump control
R/W
—
/3
0
©2017 Integrated Device Technology, Inc.
17
October 24, 2017
5L2503 Datasheet
Byte 12: PLL1 Spread Spectrum Control
Byte 0Ch
Name
Control Function
Type
0
1
PWD
Bit 7
PLL1_SS_REFDIV23
PLL1 spread spectrum control - Ref divider 23
R/W
—
—
0
Bit 6
PLL1_SS_REFDIV[6]
PLL1 spread spectrum control - Ref divider 6
R/W
—
—
0
Bit 5
PLL1_SS_REFDIV[5]
PLL1 spread spectrum control - Ref divider 5
R/W
—
—
0
Bit 4
PLL1_SS_REFDIV[4]
PLL1 spread spectrum control - Ref divider 4
R/W
—
—
0
Bit 3
PLL1_SS_REFDIV[3]
PLL1 spread spectrum control - Ref divider 3
R/W
—
—
0
Bit 2
PLL1_SS_REFDIV[2]
PLL1 spread spectrum control - Ref divider 2
R/W
—
—
0
Bit 1
PLL1_SS_REFDIV[1]
PLL1 spread spectrum control - Ref divider 1
R/W
—
—
0
Bit 0
PLL1_SS_REFDIV[0]
PLL1 spread spectrum control - Ref divider 0
R/W
—
—
0
Byte 13: PLL1 Spread Spectrum Control
Byte 0Dh
Name
Control Function
Type
0
1
PWD
Bit 7
PLL1_SS_FBDIV[7]
PLL1 spread spectrum - feedback divider 7
R/W
—
—
0
Bit 6
PLL1_SS_FBDIV[6]
PLL1 spread spectrum - feedback divider 6
R/W
—
—
0
Bit 5
PLL1_SS_FBDIV[5]
PLL1 spread spectrum - feedback divider 5
R/W
—
—
0
Bit 4
PLL1_SS_FBDIV[4]
PLL1 spread spectrum - feedback divider 4
R/W
—
—
0
Bit 3
PLL1_SS_FBDIV[3]
PLL1 spread spectrum - feedback divider 3
R/W
—
—
0
Bit 2
PLL1_SS_FBDIV[2]
PLL1 spread spectrum - feedback divider 2
R/W
—
—
0
Bit 1
PLL1_SS_FBDIV[1]
PLL1 spread spectrum - feedback divider 1
R/W
—
—
0
Bit 0
PLL1_SS_FBDIV[0]
PLL1 spread spectrum - feedback divider 0
R/W
—
—
0
Byte 14: PLL1 Spread Spectrum Control
Byte 0Eh
Name
Control Function
Type
0
1
PWD
Bit 7
PLL1_SS_FBDIV[15]
PLL1 spread spectrum - feedback divider 15
R/W
—
—
0
Bit 6
PLL1_SS_FBDIV[14]
PLL1 spread spectrum - feedback divider 14
R/W
—
—
0
Bit 5
PLL1_SS_FBDIV[13]
PLL1 spread spectrum - feedback divider 13
R/W
—
—
0
Bit 4
PLL1_SS_FBDIV[12]
PLL1 spread spectrum - feedback divider 12
R/W
—
—
0
Bit 3
PLL1_SS_FBDIV[11]
PLL1 spread spectrum - feedback divider 11
R/W
—
—
0
Bit 2
PLL1_SS_FBDIV[10]
PLL1 spread spectrum - feedback divider 10
R/W
—
—
0
Bit 1
PLL1_SS_FBDIV[09]
PLL1 spread spectrum - feedback divider 9
R/W
—
—
0
Bit 0
PLL1_SS_FBDIV[08]
PLL1 spread spectrum - feedback divider 8
R/W
—
—
0
©2017 Integrated Device Technology, Inc.
18
October 24, 2017
5L2503 Datasheet
Byte 15: Output Divider1 Control
Byte 0Fh
Name
Control Function
Type
0
1
PWD
Bit 7
OUTDIV1[3]
Output divider1 control bit 3
R/W
Bit 6
OUTDIV1[2]
Output divider1 control bit 2
R/W
Bit 5
OUTDIV1[1]
Output divider1 control bit 1
R/W
Bit 4
OUTDIV1[0]
Output divider1 control bit 0
R/W
0
Bit 3
OUTDIV2[3]
Output divider2 control bit 3
R/W
0
Bit 2
OUTDIV2[2]
Output divider2 control bit 2
R/W
Bit 1
OUTDIV2[1]
Output divider2 control bit 1
R/W
Bit 0
OUTDIV2[0]
Output divider2 control bit 0
R/W
Control Function
Type
0
DIV1[3:2] = 1,2,4,8; DIV1[1:0] =
1,4,5,6; Default Divider = 1 x 1 = 1
DIV2[3:2] = 1,2,4,5; DIV2[1:0] =
1,3,5,10; Default Divider = 1 x 10 =
10
0
0
0
1
1
Byte 16: PLL2 Integer Feedback Divide
Byte 10h
Name
0
1
PWD
Bit 7
Reserved
0
Bit 6
Reserved
0
Bit 5
Reserved
0
Bit 4
Reserved
0
Bit 3
Reserved
0
Bit 2
PLL2_FB_INT[10]
PLL2 feedback integer divider 10
R/W
—
—
0
Bit 1
PLL2_FB_INT[9]
PLL2 feedback integer divider 9
R/W
—
—
0
Bit 0
PLL2_FB_INT[8]
PLL2 feedback integer divider 8
R/W
—
—
0
Byte 17: PLL2 Integer Feedback Divider
Byte 11h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_FB_INT_DIV[7]
PLL2 feedback integer divider 7
R/W
—
—
0
Bit 6
PLL2_FB_INT_DIV[6]
PLL2 feedback integer divider 6
R/W
—
—
0
Bit 5
PLL2_FB_INT_DIV[5]
PLL2 feedback integer divider 5
R/W
—
—
1
Bit 4
PLL2_FB_INT_DIV[4]
PLL2 feedback integer divider 4
R/W
—
—
1
Bit 3
PLL2_FB_INT_DIV[3]
PLL2 feedback integer divider 3
R/W
—
—
1
Bit 2
PLL2_FB_INT_DIV[2]
PLL2 feedback integer divider 2
R/W
—
—
1
Bit 1
PLL2_FB_INT_DIV[1]
PLL2 feedback integer divider 1
R/W
—
—
0
Bit 0
PLL2_FB_INT_DIV[0]
PLL2 feedback integer divider 0
R/W
—
—
0
©2017 Integrated Device Technology, Inc.
19
October 24, 2017
5L2503 Datasheet
Byte 18: PLL2 Fractional Feedback Divider
Byte 12h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_FB_FRC_DIV[7]
PLL2 feedback fractional divider 7
R/W
—
—
0
Bit 6
PLL2_FB_FRC_DIV[6]
PLL2 feedback fractional divider 6
R/W
—
—
0
Bit 5
PLL2_FB_FRC_DIV[5]
PLL2 feedback fractional divider 5
R/W
—
—
0
Bit 4
PLL2_FB_FRC_DIV[4]
PLL2 feedback fractional divider 4
R/W
—
—
0
Bit 3
PLL2_FB_FRC_DIV[3]
PLL2 feedback fractional divider 3
R/W
—
—
0
Bit 2
PLL2_FB_FRC_DIV[2]
PLL2 feedback fractional divider 2
R/W
—
—
0
Bit 1
PLL2_FB_FRC_DIV[1]
PLL2 feedback fractional divider 1
R/W
—
—
0
Bit 0
PLL2_FB_FRC_DIV[0]
PLL2 feedback fractional divider 0
R/W
—
—
0
Byte 19: PLL2 Fractional Feedback Divider
Byte 13h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_FB_FRC_DIV[15]
PLL2 feedback fractional divider 15
R/W
—
—
0
Bit 6
PLL2_FB_FRC_DIV[14]
PLL2 feedback fractional divider 14
R/W
—
—
0
Bit 5
PLL2_FB_FRC_DIV[13]
PLL2 feedback fractional divider 13
R/W
—
—
0
Bit 4
PLL2_FB_FRC_DIV[12]
PLL2 feedback fractional divider 12
R/W
—
—
0
Bit 3
PLL2_FB_FRC_DIV[11]
PLL2 feedback fractional divider 11
R/W
—
—
0
Bit 2
PLL2_FB_FRC_DIV[10]
PLL2 feedback fractional divider 10
R/W
—
—
0
Bit 1
PLL2_FB_FRC_DIV[9]
PLL2 feedback fractional divider 9
R/W
—
—
0
Bit 0
PLL2_FB_FRC_DIV[8]
PLL2 feedback fractional divider 8
R/W
—
—
0
Byte 20: PLL2 Spread Spectrum Control
Byte 14h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_STEP[7]
PLL2 spread step size control bit 7
R/W
—
—
0
Bit 6
PLL2_STEP[6]
PLL2 spread step size control bit 6
R/W
—
—
0
Bit 5
PLL2_STEP[5]
PLL2 spread step size control bit 5
R/W
—
—
0
Bit 4
PLL2_STEP[4]
PLL2 spread step size control bit 4
R/W
—
—
0
Bit 3
PLL2_STEP[3]
PLL2 spread step size control bit 3
R/W
—
—
0
Bit 2
PLL2_STEP[2]
PLL2 spread step size control bit 2
R/W
—
—
0
Bit 1
PLL2_STEP[1]
PLL2 spread step size control bit 1
R/W
—
—
0
Bit 0
PLL2_STEP[0]
PLL2 spread step size control bit 0
R/W
—
—
0
©2017 Integrated Device Technology, Inc.
20
October 24, 2017
5L2503 Datasheet
Byte 21: PLL2 Spread Spectrum Control
Byte 15h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_STEP[15]
PLL2 spread step size control bit 15
R/W
—
—
0
Bit 6
PLL2_STEP[14]
PLL2 spread step size control bit 14
R/W
—
—
0
Bit 5
PLL2_STEP[13]
PLL2 spread step size control bit 13
R/W
—
—
0
Bit 4
PLL2_STEP[12]
PLL2 spread step size control bit 12
R/W
—
—
0
Bit 3
PLL2_STEP[11]
PLL2 spread step size control bit 11
R/W
—
—
0
Bit 2
PLL2_STEP[10]
PLL2 spread step size control bit 10
R/W
—
—
0
Bit 1
PLL2_STEP[9]
PLL2 spread step size control bit 9
R/W
—
—
0
Bit 0
PLL2_STEP[8]
PLL2 spread step size control bit 8
R/W
—
—
0
Type
0
1
PWD
Byte 22: PLL2 Spread Spectrum Control
Byte 16h
Name
Control Function
Bit 7
PLL2_STEP_DELTA[7] PLL2 spread step size control delta bit 7
R/W
—
—
0
Bit 6
PLL2_STEP_DELTA[6] PLL2 spread step size control delta bit 6
R/W
—
—
0
Bit 5
PLL2_STEP_DELTA[5] PLL2 spread step size control delta bit 5
R/W
—
—
0
Bit 4
PLL2_STEP_DELTA[4] PLL2 spread step size control delta bit 4
R/W
—
—
0
Bit 3
PLL2_STEP_DELTA[3] PLL2 spread step size control delta bit 3
R/W
—
—
0
Bit 2
PLL2_STEP_DELTA[2] PLL2 spread step size control delta bit 2
R/W
—
—
0
Bit 1
PLL2_STEP_DELTA[1] PLL2 spread step size control delta bit 1
R/W
—
—
0
Bit 0
PLL2_STEP_DELTA[0] PLL2 spared step size control delta bit 0
R/W
—
—
0
Byte 23: PLL2 Period Control
Byte 17h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_PERIOD[7]
PLL2 period control bit 7
R/W
—
—
0
Bit 6
PLL2_PERIOD[6]
PLL2 period control bit 6
R/W
—
—
0
Bit 5
PLL2_PERIOD[5]
PLL2 period control bit 5
R/W
—
—
0
Bit 4
PLL2_PERIOD[4]
PLL2 period control bit 4
R/W
—
—
0
Bit 3
PLL2_PERIOD[3]
PLL2 period control bit 3
R/W
—
—
0
Bit 2
PLL2_PERIOD[2]
PLL2 period control bit 2
R/W
—
—
0
Bit 1
PLL2_PERIOD[1]
PLL2 period control bit 1
R/W
—
—
0
Bit 0
PLL2_PERIOD[0]
PLL2 period control bit 0
R/W
—
—
0
©2017 Integrated Device Technology, Inc.
21
October 24, 2017
5L2503 Datasheet
Byte 24: PLL2 Control Register
Byte 18h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_PERIOD[9]
PLL2 period control bit 9
R/W
—
—
0
Bit 6
PLL2_PERIOD[8]
PLL2 period control bit 8
R/W
—
—
0
Bit 5
PLL2_SSEN
PLL2 spread spectrum enable
R/W
disable
enable
0
Bit 4
PLL2_R100K
PLL2 loop filter resister 100kohm
—
bypass
plus 100kohm
0
Bit 3
PLL2_R50K
PLL2 loop filter resister 50kohm
—
bypass
plus 50kohm
1
Bit 2
PLL2_R25K
PLL2 loop filter resister 25kohm
—
bypass
plus 25kohm
1
Bit 1
PLL2_R12.5K
PLL2 loop filter resister 12.5kohm
—
bypass
plus 12.5kohm
1
Bit 0
PLL2_R6K
PLL2 loop filter resister 6kohm
—
bypass
only 6kohm applied
0
Byte 25: PLL2 Charge Pump Control
Byte 19h
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_CP_16X
PLL2 charge pump control
R/W
—
x16
0
Bit 6
PLL2_CP_8X
PLL2 charge pump control
R/W
—
x8
0
Bit 5
PLL2_CP_4X
PLL2 charge pump control
R/W
—
x4
0
Bit 4
PLL2_CP_2X
PLL2 charge pump control
R/W
—
x2
1
Bit 3
PLL2_CP_1X
PLL2 charge pump control
R/W
—
x1
0
Bit 2
PLL2_CP_/24
PLL2 charge pump control
R/W
—
/24
1
Bit 1
PLL2_CP_/3
PLL2 charge pump control
R/W
—
/3
0
Bit 0
PLL2_SIREF
PLL2 SiRef current selection
R/W
10μA
20μA
0
Byte 26: PLL2 M Divider Setting
Byte 1Ah
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_MDIV_Doubler
PLL2 reference divider - doubler
R/W
disable
enable
0
Bit 6
PLL2_MDIV1
PLL2 reference divider 1
R/W
disable M DIV1
bypadd divider (/1)
0
Bit 5
PLL2_MDIV2
PLL2 reference divider 2
R/W
disable M DIV2
bypadd divider (/2)
0
Bit 4
PLL2_MDIV[4]
PLL2 reference divider control bit 4
R/W
1
Bit 3
PLL2_MDIV[3]
PLL2 reference divider control bit 3
R/W
1
Bit 2
PLL2_MDIV[2]
PLL2 reference divider control bit 2
R/W
Bit 1
PLL2_MDIV[1]
PLL2 reference divider control bit 1
R/W
1
Bit 0
PLL2_MDIV[0]
PLL2 reference divider control bit 0
R/W
0
©2017 Integrated Device Technology, Inc.
22
3–64, default is 26
0
October 24, 2017
5L2503 Datasheet
Byte 27: Output Divider 4
Byte 1Bh
Name
Control Function
Type
0
1
PWD
Bit 7
OUTDIV3[3]
Out divider 4 control bit 7
R/W
Bit 6
OUTDIV3[2]
Out divider 4 control bit 6
R/W
Bit 5
OUTDIV3[1]
Out divider 4 control bit 5
R/W
Bit 4
OUTDIV3[0]
Out divider 4 control bit 4
R/W
0
Bit 3
OUTDIV4[3]
Out divider 4 control bit 3
R/W
0
Bit 2
OUTDIV4[2]
Out divider 4 control bit 2
R/W
Bit 1
OUTDIV4[1]
Out divider 4 control bit 1
R/W
Bit 0
OUTDIV4[0]
Out divider 4 control bit 0
R/W
0
DIV3[3:2] = 1,2,4,5; DIV3[1:0] =
1,3,5,10; Default Divider = 1 x 5 = 5
DIV4[3:2] = 1,2,4,8; DIV4[1:0] =
1,3,5,10; Default Divider = 1 x 10 =
10
0
1
0
1
1
Byte 28: PLL Operation Control Register
Byte 1Ch
Name
Control Function
Type
0
1
PWD
Bit 7
PLL2_HRS_EN
PLL2 spread high resolution selection enable
R/W
normal
enable (shift 4 bits)
0
Bit 6
PLL2_refin_sel
PLL2 reference clock source select
R/W
Xtal
DIV2
0
Bit 5
PLL3_PDB
PLL3 power down
R/W
power down
running
0
Bit 4
PLL3_LCKBYPSSB
PLL3 lock bypass
R/W
bypass lock
lock
0
Bit 3
PLL2_PDB
PLL2 power down
R/W
power down
running
1
Bit 2
PLL2_LCKBYPSSB
PLL2 lock bypass
R/W
bypass lock
lock
1
Bit 1
PLL1_PDB
PLL1 power down
R/W
power down
running
0
Bit 0
PLL1_LCKBYPSSB
PLL1 lock bypass
R/W
bypass lock
lock
0
0
1
PWD
Byte 29: Output Control
Byte 1Dh
Name
Control Function
Type
Bit 7
Reserved
0
Bit 6
Reserved
0
Bit 5
Reserved
1
Bit 4
Reserved
1
Bit 3
Reserved
0
Bit 2
VDD1_SEL
VDD1_SEL
R/W
1.8V
1.2V
0
Bit 1
Reserved
0
Bit 0
Reserved
0
©2017 Integrated Device Technology, Inc.
23
October 24, 2017
5L2503 Datasheet
Byte 30: OE and DFC Control
Byte 1Eh
Name
Control Function
Type
0
1
PWD
Bit 7
OUT1_EN
OUT1 output enable control
R/W
disable
enable
1
Bit 6
OE1_fun_sel[1]
OE1 pin function selection bit 1
R/W
OE1_fun_sel[0]
OE1 pin function selection bit 0
R/W
10: OUT_PPS
00: OUT1 OE
0
Bit 5
11:DFC0
01: PD#
0
Bit 4
Reserved
1
Bit 3
Reserved
1
Bit 2
Reserved
0
Bit 1
DFC_SW_Sel[1]
DFC frequency select bit 1
R/W
Bit 0
DFC_SW_Sel[0]
DFC frequency select bit 0
R/W
00: N0 01: N1 10:N2 11:N3
0
0
Byte 31: Control Register
Byte 1Fh
Name
Control Function
Type
0
1
PWD
Bit 7
OUT2 free run_b
OUT2 free run_b
R/W
freerun
stoppable
1
Bit 6
Reserved
0
Bit 5
Reserved
0
Bit 4
Reserved
0
Bit 3
Reserved
0
Bit 2
PLL2_3rd_EN_CFG
PLL2 3rd order control
R/W
1st order
3rd order
1
Bit 1
OUTDIV5 source
OUTDIV5 source
R/W
PLL3
DIV4seed
0
Bit 0
PLL2_EN_3rdpole
PLL2 3rd pole control
R/W
disable
enable
0
Control Function
Type
0
1
PWD
Byte 32: Control Register
Byte 20h
Name
Bit 7
Reserved
Bit 6
OUT2_fun_sel
Bit 5
Reserved
Bit 4
DFC_EN
OUT2 pin function selection
1
R/W
OE1pin
controlled
OE1pin not
controlled
1
0
DFC function control
R/W
disable
enable
0
Bit 3
Reserved
0
Bit 2
Reserved
0
Bit 1
Reserved
0
Bit 0
Reserved
0
©2017 Integrated Device Technology, Inc.
24
October 24, 2017
5L2503 Datasheet
Byte 33: OUT3 Control Register
Byte 21h
Name
Control Function
Type
0
1
PWD
Bit 7
OUT3 free run_b
OUT3 free run_b
R/W
freerun
stoppable
1
Bit 6
Reserved
0
Bit 5
Reserved
0
Bit 4
Reserved
0
Bit 3
Reserved
0
Bit 2
Reserved
0
Bit 1
Reserved
0
Bit 0
Reserved
0
Byte 34: Control Register
Byte 22h
Name
Control Function
Type
0
1
PWD
Bit 7
Reserved
1
Bit 6
Reserved
1
Bit 5
Reserved
1
Bit 4
Reserved
1
Bit 3
Reserved
0
Bit 2
Reserved
1
Bit 1
Reserved
0
Bit 0
Reserved
0
Byte 35: Control Register
Byte 23h
Name
Control Function
Type
Bit 7
OUT3 muxsel1
OUT3 muxsel1
R/W
Bit 6
OUT3 muxsel0
OUT3 muxsel0
R/W
Bit 5
OUT2 muxsel1
OUT2 muxsel1
R/W
Bit 4
OUT2 muxsel0
OUT2 muxsel0
R/W
Bit 3
OUT1 muxsel1
OUT1 muxsel1
R/W
Bit 2
OUT1 muxsel0
OUT1 muxsel0
R/W
Bit 1
DIV1 muxsel1
DIV1 muxsel1
R/W
Bit 0
DIV1 muxsel0
DIV1 muxsel0
R/W
©2017 Integrated Device Technology, Inc.
25
0
1
00: DIV3 01: DIV5
10: DIV1 11: CLK_32K
00: DIV3 01: DIV5
10: DIV1 11: CLK_32K
00: DIV3 01: DIV5
10: DIV1 11: CLK_32K
00: PLL1 01: REF
1x: DIV4outseed
PWD
1
0
0
0
1
1
0
1
October 24, 2017
5L2503 Datasheet
Byte 36: OUT1 and DIV4 control
Byte 24h
Name
Control Function
Type
0
1
PWD
Bit 7
I2C_PDB
Chip power down control bit
R/W
power down
normal
1
Bit 6
Ref_free_run
Reference clock output
(OUT2/OUT3)
R/W
stop
freerun
0
Bit 5
free_run_output_config
clocks free run control
R/W
OUT2 free run
OUT2/3 free run
0
Bit 4
Reserved
1
Bit 3
OUT1_Freerun_b
OUT1 free run_b
R/W
freerun
stoppable
1
Bit 2
Enable OE2/3
Enable OE2/OE3 function
R/W
disable
enable
0
Bit 1
DIV4 muxsel1
DIV4 muxsel1
R/W
Bit 0
DIV4 muxsel0
DIV4 muxsel0
R/W
©2017 Integrated Device Technology, Inc.
26
00: PLL2_CH2 01: PLL3_CH2
10: DIV3seed 11: DIV5seed
1
1
October 24, 2017
5L2503 Datasheet
Package Drawings
Figure 5. NVG12, 2.5 × 2.5 mm 12-DFN Package Drawing – Page 1
©2017 Integrated Device Technology, Inc.
27
October 24, 2017
5L2503 Datasheet
Figure 6. NVG12, 2.5 × 2.5 mm 12-DFN Package Drawing – Page 2
©2017 Integrated Device Technology, Inc.
28
October 24, 2017
5L2503 Datasheet
Marking Diagram
1. Line 1 is the truncated part number.
2. “000” denotes dash code.
3000
Y**
3. “Y” is the last digit of the year that the part was assembled.
4. “**” denotes sequential lot number.
Ordering Information
Orderable Part Number
Package
Shipping Packaging
Temperature
5L2503-000NVGI
2.5 × 2.5 mm, 0.40mm pitch 12-DFN
Tray
-40° to +85°C
5L2503-000NVGI8
2.5 × 2.5 mm, 0.40mm pitch 12-DFN
Reel
-40° to +85°C
Revision History
Revision Date
October 24, 2017
Description of Change
Initial release.
Corporate Headquarters
Sales
Tech Support
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
www.IDT.com/go/support
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its affiliated companies (herein referred to as “IDT”) reserve the right to modify the products and/or specifications described herein at any time,
without notice, at IDT’s sole discretion. Performance specifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same
way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability
of IDT's products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not
convey any license under intellectual property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property
of IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc.. All rights reserved.
©2017 Integrated Device Technology, Inc.
29
October 24, 2017
IMPORTANT NOTICE AND DISCLAIMER
RENESAS ELECTRONICS CORPORATION AND ITS SUBSIDIARIES (“RENESAS”) PROVIDES TECHNICAL
SPECIFICATIONS AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING
REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND
OTHER RESOURCES “AS IS” AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for developers skilled in the art designing with Renesas products. You are solely responsible
for (1) selecting the appropriate products for your application, (2) designing, validating, and testing your application, and (3)
ensuring your application meets applicable standards, and any other safety, security, or other requirements. These
resources are subject to change without notice. Renesas grants you permission to use these resources only for
development of an application that uses Renesas products. Other reproduction or use of these resources is strictly
prohibited. No license is granted to any other Renesas intellectual property or to any third party intellectual property.
Renesas disclaims responsibility for, and you will fully indemnify Renesas and its representatives against, any claims,
damages, costs, losses, or liabilities arising out of your use of these resources. Renesas' products are provided only subject
to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources
expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
(Rev.1.0 Mar 2020)
Corporate Headquarters
Contact Information
TOYOSU FORESIA, 3-2-24 Toyosu,
Koto-ku, Tokyo 135-0061, Japan
www.renesas.com
For further information on a product, technology, the most
up-to-date version of a document, or your nearest sales
office, please visit:
www.renesas.com/contact/
Trademarks
Renesas and the Renesas logo are trademarks of Renesas
Electronics Corporation. All trademarks and registered
trademarks are the property of their respective owners.
© 2020 Renesas Electronics Corporation. All rights reserved.
