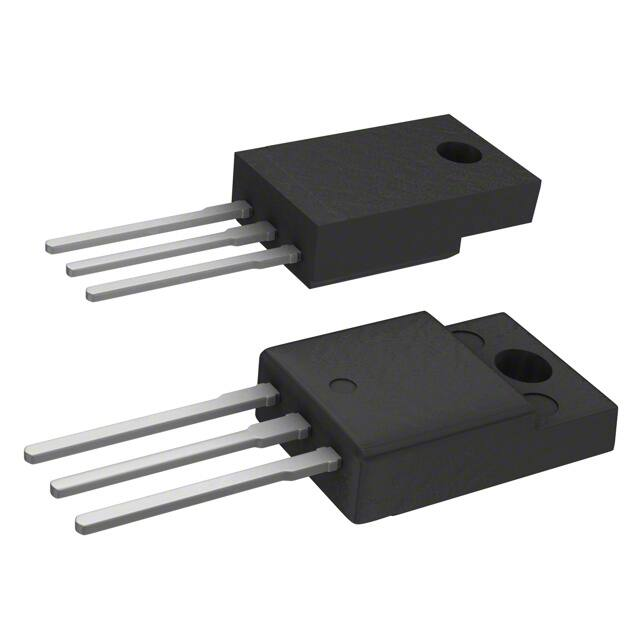

CR8FM-12B#BB0

Data Sheet CR8FM-12B 600V - 8A - Thyristor R07DS1099EJ0200 Rev.2.00 Sep. 11, 2018 Medium Power Use Features • IT (AV) : 8 A • VDRM : 600 V • IGT: 15 mA • Tj: 150°C • Insulated Type (Viso : 2000 V) • Planar Passivation Type Outline RENESAS Package code: PRSS0003AG-A (Package name: TO-220FP) RENESAS Package code: PRSS0003AP-A (Package name: TO-220FPA) 2 3 1. Cathode 2. Anode 3. Gate 1 1 1 2 3 2 3 Application Power supply, motor control, heater control and other general purpose applications. Maximum Ratings Parameter Symbol Voltage class 12 Unit Repetitive peak reverse voltage Non-repetitive peak reverse voltage VRRM VRSM 600 720 V V DC reverse voltage Repetitive peak off-state voltage VR (DC) VDRM 480 600 V V DC off-state voltage VD (DC) 480 V Parameter RMS on-state current Symbol IT (RMS) Ratings 12.6 Unit A Conditions Average on-state current IT (AV) 8 A Surge on-state current ITSM 120 A I2 t 60 A2s Commercial frequency, sine half wave 180conduction, Tc = 106C 60 Hz sinewave 1 full cycle, peak value, non-repetitive Value corresponding to 1 cycle of half wave 60 Hz, surge on-state current I2t for fusing Peak gate power dissipation PGM 5 W Average gate power dissipation Peak gate forward voltage PG (AV) VFGM 0.5 6 W V Peak gate reverse voltage Peak gate forward current VRGM IFGM 10 2 V A Junction temperature Storage temperature Tj Tstg –40 to +150 –40 to +150 C C Isolation voltage Note2 Viso 2000 V R07DS1099EJ0200 Rev.2.00 Sep. 11, 2018 Ta=25C, AC 1 minute, each terminal to case Page 1 of 8 CR8FM-12B Data Sheet Electrical Characteristics Parameter Repetitive peak reverse current Symbol IRRM Min. — — Typ. — — Max. 2.0 5.0 Unit mA mA Test conditions Tj = 125C, VRRM applied Tj = 150C, VRRM applied Repetitive peak off-state current IDRM — — — — 2.0 5.0 mA mA Tj = 125C, VDRM applied Tj = 150C, VDRM applied On-state voltage VTM — — 1.4 V Gate trigger voltage VGT — — 1.0 V Tc = 25C, ITM = 25 A, instantaneous value Tj = 25C, VD = 6 V, IT = 1A Gate non-trigger voltage VGD 0.2 0.1 — — — — V V Tj = 125C, VD = 1/2 VDRM Tj = 150C, VD = 1/2 VDRM Gate trigger current Holding current IGT IH — — — 15 15 — mA mA Thermal resistance Rth (j-c) — — 3.7 C/W Tj = 25C, VD = 6 V, IT = 1A Tj = 25C, VD = 12 V Junction to caseNote1 Notes: 1. The contact thermal resistance Rth(c-f) in case of greasing is 0.5C /W. 2. Make sure that your finished product containing this device meets your safe isolation requirements. For safety, it's advisable that heatsink is electrically floating. R07DS1099EJ0200 Rev.2.00 Sep. 11, 2018 Page 2 of 8 CR8FM-12B Data Sheet Performance Curves Maximum On-State Characteristics Surge On-State Current (A) 101 1 2 3 4 80 40 101 102 Conduction Time (Cycles at 50Hz) Gate Characteristics Gate Trigger Current vs. Junction Temperature PG(AV) = 0.5W PGM = 5W IFGM = 2A VGT = 1V 100 I GT = 15 mA -1 10 VGD = 0.1V 101 Gate Trigger Voltage (Tj = t°C) × 100 (%) Gate Trigger Voltage (Tj = 25°C) 120 On-State Voltage (V) VFGM = 6V 102 103 103 Typical Example 102 101 - 40 0 40 80 120 160 Gate Current (mA) Junction Temperature (°C) Gate Trigger Voltage vs. Junction Temperature Maximum Transient Thermal Impedance Characteristics (Junction to case) 103 Typical Example 102 101 - 40 160 0 100 5 Gate Trigger Current (Tj = t°C) × 100 (%) Gate Trigger Current (Tj = 25°C) 100 0 Gate Voltage (V) 200 Tj = 125°C 102 101 Rated Surge On-State Current 0 40 80 120 Junction Temperature (°C) R07DS1099EJ0200 Rev.2.00 Sep. 11, 2018 160 Transient Thermal Impedance (ºC/W) On-State Current (A) 103 101 100 -1 10 -2 10 10-3 10-2 10-1 100 101 Time (s) Page 3 of 8 CR8FM-12B Data Sheet Allowable Case Temperature vs. Average On-State Current (Single-Phase Half Wave) Maximum Average Power Dissipation (Single-Phase Half Wave) 160 140 16 180º 120º 12 90º q = 30º 60º 8 q 4 0 360º Resistive, inductive loads 0 2 4 6 8 10 12 14 Case Temperature (ºC) Average Power Dissipation (W) 20 180º 60 120º 90º 40 60º q = 30º 2 4 6 8 10 14 12 16 Average On-State Current (A) Average On-State Current (A) Maximum Average Power Dissipation (Single-Phase Full Wave) Allowable Case Temperature vs. Average On-State Current (Single-Phase Full Wave) 160 140 16 180º 120º q = 30º 12 90º 60º 8 q 4 0 q 360º Case Temperature (ºC) Average Power Dissipation (W) Resistive, inductive loads 80 0 0 20 Resistive loads 0 2 4 6 8 10 12 q 14 360º 100 Resistive loads 80 60 180º 120º 40 0 0 16 q 120 90º 20 q = 30º 2 4 60º 6 8 10 12 14 Average On-State Current (A) Average On-State Current (A) Maximum Average Power Dissipation (Rectangular Wave) Allowable Case Temperature vs. Average On-State Current (Rectangular Wave) 20 160 180º 16 90º 120º DC 60º 12 270º q = 30º 8 q 4 0 0 2 4 6 8 360º Resistive, inductive loads 10 12 14 16 Average On-State Current (A) R07DS1099EJ0200 Rev.2.00 Sep. 11, 2018 Resistive, inductive loads 140 Case Temperature (ºC) Average Power Dissipation (W) 360º 100 20 16 q 120 120 16 q 360º 100 80 60 40 20 0 0 60º 180º 270º q = 30º 90º 120º 2 6 8 4 10 DC 12 14 16 Average On-State Current (A) Page 4 of 8 Data Sheet Typical Example 140 120 100 80 60 40 20 0 - 40 0 40 80 120 160 Breakover Voltage vs. Rate of Rise of Off-State Voltage 160 Typical Example Tj = 125ºC 140 120 100 80 60 40 20 0 1 10 102 103 104 Repetitive Peak Reverse Voltage vs. Junction Temperature 160 Typical Example 140 120 100 80 60 40 20 0 - 40 0 40 80 120 160 Junction Temperature (ºC) Breakover Voltage vs. Rate of Rise of Off-State Voltage 160 Typical Example Tj = 150ºC 140 120 100 80 60 40 20 0 1 10 102 103 104 Rate of Rise of Off-State Voltage (V/ms) Rate of Rise of Off-State Voltage (V/ms) Holding Current vs. Junction Temperature Turn-Off Time vs. Junction Temperature 103 100 Typical Example Turn-Off Time (ms) Breakover Voltage (dv/dt = vV/ms) Holding Current (Tj = tºC) Holding Current (Tj = 25ºC) × 100 (%) Breakover Voltage (dv/dt = 1V/ms) × 100 (%) Junction Temperature (ºC) × 100 (%) Breakover Voltage (dv/dt = 1V/ms) 160 Breakover Voltage (dv/dt = vV/ms) Breakover Voltage (Tj = tºC) Breakover Voltage (Tj = 25ºC) × 100 (%) Breakover Voltage vs. Junction Temperature Repetitive Peak Reverse Voltage (Tj = tºC) 100 (%) Repetitive Peak Reverse Voltage (Tj = 25ºC)× CR8FM-12B 102 80 IT = 8A, - di/dt = 5A/ms, VD = 300V, dv/dt = 20V/ms, VR = 50V 60 40 Typical Example 20 Distribution 101 - 40 0 40 80 120 Junction Temperature (ºC) R07DS1099EJ0200 Rev.2.00 Sep. 11, 2018 160 0 0 20 40 60 80 100 120 140 160 Junction Temperature (ºC) Page 5 of 8 CR8FM-12B Data Sheet Gate Trigger Current (tw) × 100 (%) Gate Trigger Current (DC) Gate Trigger Current vs. Gate Current Pulse Width 103 Typical Example 102 101 -1 10 100 101 102 Gate Current Pulse Width (ms) R07DS1099EJ0200 Rev.2.00 Sep. 11, 2018 Page 6 of 8 CR8FM-12B Data Sheet Package Dimensions Ordering code: #BG0, #BH0 JEITA Package Code - RENESAS Code Previous Code MASS (Typ) [g] PRSS0003AP-A TO-220FPA 1.65 Unit: mm 2.7±0.2 f 3.2±0.2 1.95±0.3 15.0±0.3 6.9±0.3 10.0±0.3 0.745±0.2 13.0±0.5 0.395±0.2 1.14±0.2 0.69±0.15 0.60 +0.19 - 0.11 2.54±0.25 3.2±0.2 4.5±0.2 2.54±0.25 R07DS1099EJ0200 Rev.2.00 Sep. 11, 2018 Page 7 of 8 CR8FM-12B Data Sheet Package Dimensions Ordering code: #BB0 Package Name TO-220FP JEITA Package Code RENESAS Code PRSS0003AG-A MASS[Typ.] 1.9g Previous Code 10.16±0.20 2.54±0.20 6.68 ±0.20 3.3±0.2 1.28 ±0.30 3.18 ±0.20 15.87±0.20 f 3.18±0.10 12.98 ±0.30 Unit: mm Max 1.47 2.76 ±0.20 0.80±0.20 0.50 4.7±0.2 5.08 ±0.20 Ordering Information Orderable Part Number CR8FM-12B#BG0 Package TO-220FPA Quantity Note3 Remark 50 pcs./ tube Straight type Status Mass Production CR8FM-12B-#BG0 CR8FM-12B#BH0 TO-220FPA TO-220FPA 50 pcs./ tube 50 pcs./ tube :Lead form type Straight type Mass Production CR8FM-12B-#BH0 CR8FM-12B#BB0 TO-220FPA TO-220FP 50 pcs./ tube 50 pcs./ tube :Lead form type Straight type EOL Candidate Notes: 3. Please confirm the specification about the shipping in detail. R07DS1099EJ0200 Rev.2.00 Sep. 11, 2018 Page 8 of 8 Notice 1. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation or any other use of the circuits, software, and information in the design of your product or system. Renesas Electronics disclaims any and all liability for any losses and damages incurred by you or third parties arising from the use of these circuits, software, or information. 2. Renesas Electronics hereby expressly disclaims any warranties against and liability for infringement or any other disputes involving patents, copyrights, or other intellectual property rights of third parties, by or arising from the use of Renesas Electronics products or technical information described in this document, including but not limited to, the product data, drawing, chart, program, algorithm, application examples. 3. No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or others. 4. You shall not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part. Renesas Electronics disclaims any and all liability for any losses or damages 5. Renesas Electronics products are classified according to the following two quality grades: "Standard" and "High Quality". The intended applications for each Renesas Electronics product depends on the incurred by you or third parties arising from such alteration, modification, copy or otherwise misappropriation of Renesas Electronics products. product’s quality grade, as indicated below. "Standard": Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; and industrial robots etc. "High Quality": Transportation equipment (automobiles, trains, ships, etc.); traffic control (traffic lights); large-scale communication equipment; key financial terminal systems; safety control equipment; etc. Renesas Electronics products are neither intended nor authorized for use in products or systems that may pose a direct threat to human life or bodily injury (artificial life support devices or systems, surgical implantations etc.), or may cause serious property damages (space and undersea repeaters; nuclear power control systems; aircraft control systems; key plant systems; military equipment; etc.). Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or third parties arising from the use of any Renesas Electronics product for which the product is not intended by Renesas Electronics. 6. When using the Renesas Electronics products, refer to the latest product information (data sheets, user’s manuals, application notes, "General Notes for Handling and Using Semiconductor Devices" in the reliability handbook, etc.), and ensure that usage conditions are within the ranges specified by Renesas Electronics with respect to maximum ratings, operating power supply voltage range, heat radiation characteristics, installation, etc. Renesas Electronics disclaims any and all liability for any malfunctions or failure or accident arising out of the use of Renesas Electronics products beyond such specified ranges. 7. Although Renesas Electronics endeavors to improve the quality and reliability of Renesas Electronics products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further, Renesas Electronics products are not subject to radiation resistance design. Please ensure to implement safety measures to guard them against the possibility of bodily injury, injury or damage caused by fire, and social damage in the event of failure or malfunction of Renesas Electronics products, such as safety design for hardware and software including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures by your own responsibility as warranty for your products/system. Because the evaluation of microcomputer software alone is very difficult and not practical, please evaluate the safety of the final products or systems manufactured by you. 8. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. Please investigate applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive carefully and sufficiently and use Renesas Electronics products in compliance with all these applicable laws and regulations. Renesas Electronics disclaims any and all liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations. 9. Renesas Electronics products and technologies shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable domestic or foreign laws or regulations. You shall not use Renesas Electronics products or technologies for (1) any purpose relating to the development, design, manufacture, use, stockpiling, etc., of weapons of mass destruction, such as nuclear weapons, chemical weapons, or biological weapons, or missiles (including unmanned aerial vehicles (UAVs)) for delivering such weapons, (2) any purpose relating to the development, design, manufacture, or use of conventional weapons, or (3) any other purpose of disturbing international peace and security, and you shall not sell, export, lease, transfer, or release Renesas Electronics products or technologies to any third party whether directly or indirectly with knowledge or reason to know that the third party or any other party will engage in the activities described above. When exporting, selling, transferring, etc., Renesas Electronics products or technologies, you shall comply with any applicable export control laws and regulations promulgated and administered by the governments of the countries asserting jurisdiction over the parties or transactions. 10. Please acknowledge and agree that you shall bear all the losses and damages which are incurred from the misuse or violation of the terms and conditions described in this document, including this notice, and hold Renesas Electronics harmless, if such misuse or violation results from your resale or making Renesas Electronics products available any third party. 11. This document shall not be reprinted, reproduced or duplicated in any form, in whole or in part, without prior written consent of Renesas Electronics. 12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products. (Note 1) "Renesas Electronics" as used in this document means Renesas Electronics Corporation and also includes its majority-owned subsidiaries. (Note 2) "Renesas Electronics product(s)" means any product developed or manufactured by or for Renesas Electronics. (Rev.3.0-1 November 2016) http://www.renesas.com SALES OFFICES Refer to "http://www.renesas.com/" for the latest and detailed information. Renesas Electronics America Inc. 2801 Scott Boulevard Santa Clara, CA 95050-2549, U.S.A. Tel: +1-408-588-6000, Fax: +1-408-588-6130 Renesas Electronics Canada Limited 9251 Yonge Street, Suite 8309 Richmond Hill, Ontario Canada L4C 9T3 Tel: +1-905-237-2004 Renesas Electronics Europe Limited Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K Tel: +44-1628-585-100, Fax: +44-1628-585-900 Renesas Electronics Europe GmbH Arcadiastrasse 10, 40472 Düsseldorf, Germany Tel: +49-211-6503-0, Fax: +49-211-6503-1327 Renesas Electronics (China) Co., Ltd. Room 1709, Quantum Plaza, No.27 ZhiChunLu Haidian District, Beijing 100191, P.R.China Tel: +86-10-8235-1155, Fax: +86-10-8235-7679 Renesas Electronics (Shanghai) Co., Ltd. Unit 301, Tower A, Central Towers, 555 Langao Road, Putuo District, Shanghai, P. R. China 200333 Tel: +86-21-2226-0888, Fax: +86-21-2226-0999 Renesas Electronics Hong Kong Limited Unit 1601-1611, 16/F., Tower 2, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hong Kong Tel: +852-2265-6688, Fax: +852 2886-9022 Renesas Electronics Taiwan Co., Ltd. 13F, No. 363, Fu Shing North Road, Taipei 10543, Taiwan Tel: +886-2-8175-9600, Fax: +886 2-8175-9670 Renesas Electronics Singapore Pte. Ltd. 80 Bendemeer Road, Unit #06-02 Hyflux Innovation Centre, Singapore 339949 Tel: +65-6213-0200, Fax: +65-6213-0300 Renesas Electronics Malaysia Sdn.Bhd. Unit 1207, Block B, Menara Amcorp, Amcorp Trade Centre, No. 18, Jln Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia Tel: +60-3-7955-9390, Fax: +60-3-7955-9510 Renesas Electronics India Pvt. Ltd. No.777C, 100 Feet Road, HAL II Stage, Indiranagar, Bangalore, India Tel: +91-80-67208700, Fax: +91-80-67208777 Renesas Electronics Korea Co., Ltd. 12F., 234 Teheran-ro, Gangnam-Gu, Seoul, 135-080, Korea Tel: +82-2-558-3737, Fax: +82-2-558-5141 © 2017 Renesas Electronics Corporation. All rights reserved. Colophon 6.0
