DATASHEET
ISL80102, ISL80103
FN6660
Rev 9.00
Mar 19, 2018
High Performance 2A and 3A Linear Regulators
Features
The ISL80102 and ISL80103 are low voltage, high-current,
single output LDOs specified for 2A and 3A output current,
respectively. These LDOs operate from the input voltages of
2.2V to 6V and are capable of providing the output voltages of
0.8V to 5.5V on the adjustable VOUT versions. Other custom
voltage options are available upon request.
• Stable with ceramic capacitors (Note 11)
• 2A and 3A output current ratings
• 2.2V to 6V input voltage range
• ±1.8% VOUT accuracy guaranteed over line, load, and
TJ = -40°C to +125°C
An external capacitor on the soft-start pin provides adjustment
for applications that demand inrush current less than the
current limit. The ENABLE feature allows the part to be placed
into a low quiescent current shutdown mode. A submicron
BiCMOS process is used for this product family to deliver
best-in-class analog performance and overall value.
• Very low 120mV dropout voltage at 3A (ISL80103)
• Very fast transient response
• Excellent 62dB PSRR
• 49µVRMS output noise
These CMOS (LDOs) consume significantly lower quiescent
current as a function of load over bipolar LDOs, so they are
more efficient and allow packages with smaller footprints. The
quiescent current has been modestly compromised to enable
a leading class fast load transient response, and hence a lower
total AC regulation band for an LDO in this category.
• Power-good output
• Adjustable inrush current limiting
• Short-circuit and over-temperature protection

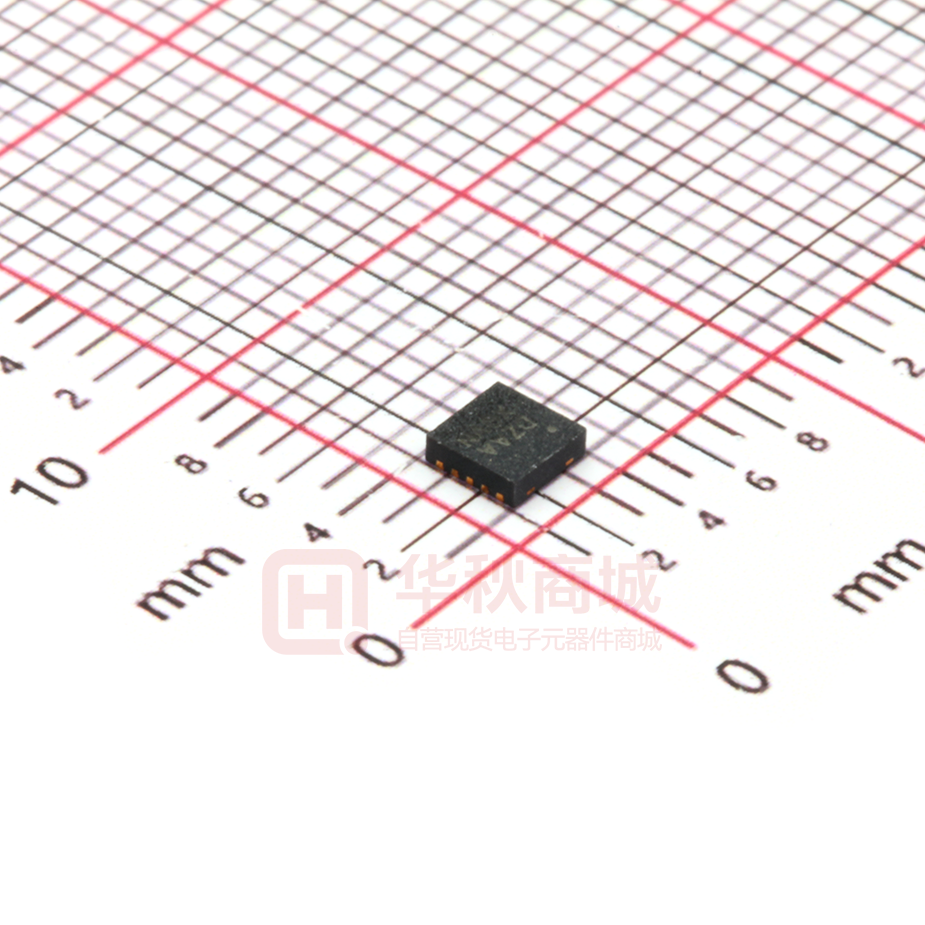

• Available in a 10 Ld DFN
Related Literature
Applications
For a full list of related documents, visit our website
• Servers
• Telecommunications and networking
• ISL80102, ISL80103 product pages
• Medical equipment
• Instrumentation systems
• Routers and switchers
ISL80102, ISL80103
2.5V ±10%
9
VIN
10
CIN
10µF
1.8V ±1.8%
1
VIN
VOUT
VIN
VOUT
2
VOUT
COUT
10µF
RPG
ON
7
OFF
6
*CSS
SENSE
ENABLE
3
4
SS
PG
100kΩ
PGOOD
GND
5
*CSS is optional (see Note 12 on page 5).
FIGURE 1. TYPICAL APPLICATION FOR FIXED OUTPUT VOLTAGE VERSION
FN6660 Rev 9.00
Mar 19, 2018
Page 1 of 17
ISL80102, ISL80103
ISL80102, ISL80103
2.5V ±10%
VIN
9
CIN
10
10µF
1.8V
VIN
VOUT
VIN
VOUT
1
2
VOUT
COUT
10µF
RPG
100kΩ
R1
10kΩ
7
EN
OPEN DRAIN COMPATIBLE
6
PG
4
PGOOD
ENABLE
**CPB
SS
*CSS
ADJ
GND
3
R3
2.61kΩ
47pF
R4
5
1.0kΩ
*CSS is optional (see Note 12 on page 5).
**CPB is optional (see “Functional Description” on page 12 for more information).
FIGURE 2. TYPICAL APPLICATION DIAGRAM FOR ADJUSTABLE OUTPUT VOLTAGE VERSION
Pin Descriptions
TABLE 1. COMPONENTS VALUE SELECTION
VOUT
(V)
RTOP
(kΩ)
RBOTTOM
(Ω)
CPB
(pF)
COUT
(µF)
PIN
NUMBER
PIN
NAME
5.0
2.61
287
47
10
1, 2
VOUT
3.3
2.61
464
47
10
3
2.5
2.61
649
47
10
1.8 (Note 1)
2.61
1.0k
47
10
1.8 (Note 1)
2.61
1.0k
82
22
1.5
2.61
1.3k
82
1.2
2.61
1.87k
1.0
2.61
0.8
2.61
PG
22
5
GND
150
47
6
SS
2.61k
150
47
4.32k
150
47
NOTE:
1. Either option can be used depending on cost/performance
requirements
Pin Configuration
VOUT
1
10 VIN
VOUT
2
9 VIN
SENSE/ADJ
3
PG
4
7 ENABLE
GND
5
6 SS
FN6660 Rev 9.00
Mar 19, 2018
EPAD
VOUT in regulation signal. Logic low defines when
VOUT is not in regulation. Must be grounded if not
used.
GND pin
External cap adjusts inrush current. Leave this pin
open if not used.
ENABLE VIN independent chip enable. TTL and CMOS
compatible.
8
DNC
Do not connect this pin to ground or supply. Leave
floating.
9, 10
VIN
Input supply pin
EPAD
ISL80102, ISL80103
(10 LD 3x3 DFN)
TOP VIEW
Output voltage pin
SENSE/ Remote voltage sense for internally fixed VOUT
ADJ
options. ADJ pin for externally set VOUT.
4
7
DESCRIPTION
EPAD must be connected to a copper plane with as
many vias as possible for proper electrical and
optimal thermal performance.
8 DNC
Page 2 of 17
ISL80102, ISL80103
Block Diagram
VIN
R5
10µA
10µA
IL/10000
M4
M5
M3
M1
POWER PMOS
IL
VOUT
+
R8
R7
M6
-
R9
EN
+
EN
EN
ENABLE
R1
500mV
ADJ
+
-
M7
V TO I
SS
M8
R2
R4
EN
SENSE
500mV
M2
+
485mV
EN
PG
-
+
+
-
*R3
GND
*R3 is open for ADJ versions.
FIGURE 3. BLOCK DIAGRAM
Ordering Information
PART NUMBER
(Notes 4, 5)
PART
VOUT
MARKING VOLTAGE
TEMP. RANGE
PACKAGE
PKG
(°C)
(RoHS COMPLIANT) DWG. #
ISL80102IRAJZ (Note 2)
DZJA
ADJ
-40 to +125
10 Ld 3x3 DFN
L10.3x3
ISL80102IR18Z (Note 3)
(No longer available, recommended replacement: ISL80102IRAJZ)
DZNA
1.8V
-40 to +125
10 Ld 3x3 DFN
L10.3x3
ISL80102IR25Z (Note 3)
(No longer available, recommended replacement: ISL80102IRAJZ)
DZPA
2.5V
-40 to +125
10 Ld 3x3 DFN
L10.3x3
ISL80103IRAJZ (Note 2)
DZAA
ADJ
-40 to +125
10 Ld 3x3 DFN
L10.3x3
ISL80103IR18Z (Note 3)
(No longer available, recommended replacement: ISL80103IRAJZ)
DZEA
1.8V
-40 to +125
10 Ld 3x3 DFN
L10.3x3
ISL80103IR25Z (Note 3)
(No longer available, recommended replacement: ISL80103IRAJZ)
DZFA
2.5V
-40 to +125
10 Ld 3x3 DFN
L10.3x3
ISL80102EVAL2Z
Evaluation Board
ISL80103EVAL2Z
Evaluation Board
NOTES:
2. Add “-T” suffix for 6k unit, “-TK” suffix for 1k unit, or “-T7A” suffix for 250 unit tape and reel options. Refer to TB347 for details about reel specifications.
3. Add “-T” suffix for 6k unit or “-TK” suffix for 1k unit tape and reel options. Refer to TB347 for details about reel specifications.
4. These Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate
plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Pb-free products are
MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
5. For Moisture Sensitivity Level (MSL), refer to the ISL80102 and ISL80103 product information pages. For more information about MSL, refer to TB363.
FN6660 Rev 9.00
Mar 19, 2018
Page 3 of 17
ISL80102, ISL80103
Absolute Maximum Ratings (Note 8)
Thermal Information
VIN Relative to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +6.5V
VOUT Relative to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +6.5V
PG, ENABLE, SENSE/ADJ, SS, Relative to GND. . . . . . . . . . . -0.3V to +6.5V
ESD Rating
Human Body Model (Tested per JESD22 A114F) . . . . . . . . . . . . . . .2.2kV
Charge Device Model (Tested per JESD22-C101C). . . . . . . . . . . . . . . 1kV
Latch-up (Tested per JESD78C, Class 2, Level A) . . . . . ±100mA at +85°C
Thermal Resistance (Typical)
JA (°C/W) JC (°C/W)
10 Ld 3x3 DFN Package (Notes 6, 7). . . . .
45
4
Maximum Junction Temperature (Plastic Package) . . . . . . . . . . . .+150°C
Storage Temperature Range. . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Pb-Free Reflow Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see TB493
Recommended Operating Conditions
Junction Temperature Range (TJ) . . . . . . . . . . . . . . . . . . .-40°C to +125°C
VIN Relative to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.2V to 6V
VOUT Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .800mV to 5.5V
PG, ENABLE, SENSE/ADJ, SS Relative to GND . . . . . . . . . . . . . . . . 0V to 6V
PG Sink Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA
CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product
reliability and result in failures not covered by warranty.
NOTES:
6. JA is measured in free air with the component mounted on a high-effective thermal conductivity test board with “direct attach” features. Refer to
TB379.
7. For JC, the “case temp” location is the center of the exposed metal pad on the package underside.
8. ABS max voltage rating is defined as the voltage applied for a lifetime average duty cycle above 6V of 1%.
Electrical Specifications Unless otherwise noted, all parameters are established over the following specified conditions:
2.2V < VIN < 6V, VOUT = 0.5V, TJ = +25°C, ILOAD = 0A. Applications must follow thermal guidelines of the package to determine worst case junction
temperature. Refer to “Functional Description” on page 12 and TB379. Boldface limits apply across the operating temperature range, -40°C to +125°C.
Pulse load techniques used by ATE to ensure TJ = TA defines established limits.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
(Note 9)
TYP
MAX
(Note 9)
UNIT
DC CHARACTERISTICS
DC Output Voltage Accuracy
VOUT
VOUT options: 1.8V
2.2V < VIN < 6V; ILOAD = 0A
VOUT options: 1.8V
2.2V < VIN < 6V; 0A < ILOAD < 3A
0.5
-1.8
VOUT options: 2.5V
6V < VIN < 6V; ILOAD = 0A
Feedback Pin (ADJ Version)
DC Input Line Regulation
DC Output Load Regulation
FN6660 Rev 9.00
Mar 19, 2018
1.8
%
0.5
VOUT options: 2.5V
6V < VIN < 6V; 0A < ILOAD < full load
-1.8
%
-1.8
%
0A < ILOAD < full load
491
500
509
mV
(VOUT Low Line - VOUT
High Line)/
VOUT Low Line
2.2V < VIN < 3.6V, VOUT = 1.8V
-0.4
0.1
0.4
%
2.9V < VIN < 6V, VOUT = 2.5V
-0.8
0.1
0.8
%
(VOUT No Load - VOUT
High Load)/
VOUT No Load
ISL80103, 0A < ILOAD < 3A,
2.9V < VIN < 6V; VOUT = 2.5V for adjustable version.
VOUT = 1.8V and 2.5V for fixed version.
-0.8
-0.2
0.8
%
ISL80102, 0A < ILOAD < 2A
2.9V < VIN < 6V; VOUT = 2.5V for adjustable version.
VOUT = 1.8V and 2.5V for fixed version.
-0.6
-0.2
0.6
%
VADJ
VADJ = 0.5V
Feedback Input Current
Ground Pin Current
%
IQ
0.01
1
µA
ILOAD = 0A, VOUT + 0.4V < VIN < 6V for all options.
VOUT = 2.5V for adjustable option.
7.5
9
mA
ILOAD = 3A, VOUT + 0.4V < VIN < 6V for all options.
VOUT = 2.5V for adjustable option.
8.5
12
mA
Page 4 of 17
ISL80102, ISL80103
Electrical Specifications Unless otherwise noted, all parameters are established over the following specified conditions:
2.2V < VIN < 6V, VOUT = 0.5V, TJ = +25°C, ILOAD = 0A. Applications must follow thermal guidelines of the package to determine worst case junction
temperature. Refer to “Functional Description” on page 12 and TB379. Boldface limits apply across the operating temperature range, -40°C to +125°C.
Pulse load techniques used by ATE to ensure TJ = TA defines established limits. (Continued)
PARAMETER
Ground Pin Current in Shutdown
Dropout Voltage (Note 10)
Output Short-Circuit Current
(3A Version)
SYMBOL
ISHDN
VDO
ISC
Output Short-Circuit Current
(2A Version)
TEST CONDITIONS
MIN
(Note 9)
TYP
MAX
(Note 9)
UNIT
EN = 0V, VIN = 5V
0.4
µA
EN = 0V, VIN = 6V
3.3
16.0
µA
ISL80103, ILOAD = 3A, VOUT = 2.5V
120
185
mV
ISL80102, ILOAD = 2A, VOUT = 2.5V
81
125
mV
ISL80103, ILOAD = 3A, VOUT = 5.5V
120
244
mV
ISL80102, ILOAD = 2A, VOUT = 5.5V
60
121
mV
ISL80103, VOUT = 0V
5.0
A
ISL80102, VOUT = 0V
2.8
A
Thermal Shutdown Temperature
TSD
160
°C
Thermal Shutdown Hysteresis
TSDn
15
°C
f = 1kHz, ILOAD = 1A; VIN = 2.2V
55
dB
f = 120Hz, ILOAD = 1A; VIN = 2.2V
62
dB
VIN = 2.2V, VOUT = 1.8V, ILOAD = 3A,
BW = 100Hz < f < 100kHz
49
µVRMS
AC CHARACTERISTICS
Input Supply Ripple Rejection
PSRR
Output Noise Voltage
ENABLE PIN CHARACTERISTICS
Turn-On Threshold
VEN(HIGH)
2.9V < VIN < 6V for 2.5V for fixed output option.
2.2V < VIN < 6V for adjustable and 1.8V
0.616
0.800
Turn-Off Threshold
VEN(LOW)
2.9V < VIN < 6V for 2.5V fixed output option.
2.2V < VIN < 6V for adjustable and 1.8V
0.463
0.600
V
Hysteresis
VEN(HYS)
2.9V < VIN < 6V for 2.5V fixed output option.
2.2V < VIN < 6V for adjustable and 1.8V
135
mV
COUT = 10µF, ILOAD = 1A
150
Enable Pin Turn-On Delay
tEN
VIN = 6V, EN = 3V
Enable Pin Leakage Current
0.950
V
µs
1
µA
SOFT-START CHARACTERISTICS
Reset Pull-Down Resistance
RPD
Soft-Start Charge Current
ICHG
323
Ω
-7.0
-4.5
-2.0
µA
75
84
92
%VOUT
PG PIN CHARACTERISTICS
VOUT PG Flag Threshold
VOUT PG Flag Hysteresis
4
PG Flag Low Voltage
ISINK = 500µA
PG Flag Leakage Current
VIN = 6V, PG = 6V
%
47
100
mV
0.05
1
µA
NOTES:
9. Compliance to datasheet limits is assured by one or more methods: production test, characterization, and/or design.
10. Dropout is defined by the difference in supply VIN and VOUT when the supply produces a 2% drop in VOUT from its nominal value.
11. Minimum cap of 10µF X5R/X7R on VIN and VOUT required for stability.
12. If the current limit for inrush current is acceptable in the application, do not use this feature (leave the SS pin open). Use only when large bulk capacitance
is required on VOUT for the application.
FN6660 Rev 9.00
Mar 19, 2018
Page 5 of 17
ISL80102, ISL80103
Typical Operating Performance
Unless otherwise noted, VIN = 2.2V, VOUT = 1.8V, CIN = COUT = 10µF, TJ = +25°C,
IL = 0A.
2.0
1.8
1.8
OUTPUT VOLTAGE (V)
VOUT (%)
1.2
0.6
0
-0.6
-1.2
1.6
+125°C
1.4
1.2
-40°C
+25°C
1.0
0.8
0.6
0.4
0.2
-1.8
-50
-25
0
25
50
75
100
JUNCTION TEMPERATURE (°C)
125
0
150
FIGURE 4. VOUT vs TEMPERATURE
GROUND CURRENT (mA)
+25°C
0.0
-0.6
-40°C
-1.2
6
+125°C
0
0.5
1.0
7
6
5
4
3
2
1
1.5
2.0
2.5
0
3.0
2
3
OUTPUT CURRENT (A)
FIGURE 6. VOUT vs OUTPUT CURRENT
4
INPUT VOLTAGE (V)
9.1
12.0
8.9
11.5
11.0
8.7
-40°C
8.5
8.3
+25°C
8.1
+125°C
7.9
-40°C
10.5
10.0
9.5
+125°C
9.0
+25°C
8.0
0.5
1.0
1.5
2.0
OUTPUT CURRENT (A)
2.5
FIGURE 8. GROUND CURRENT vs OUTPUT CURRENT
FN6660 Rev 9.00
Mar 19, 2018
6
8.5
7.7
0
5
FIGURE 7. GROUND CURRENT vs SUPPLY VOLTAGE
CURRENT (mA)
GROUND CURRENT (mA)
5
8
0.6
7.5
3
2
4
SUPPLY VOLTAGE (V)
9
1.2
VOUT (%)
1
FIGURE 5. OUTPUT VOLTAGE vs SUPPLY VOLTAGE
1.8
-1.8
0
3.0
7.5
0.8
1.4
2.0
2.6
3.2
3.8
OUTPUT VOLTAGE (V)
4.4
5.0
FIGURE 9. GROUND CURRENT vs OUTPUT VOLTAGE (VIN = VOUT + VDO)
Page 6 of 17
ISL80102, ISL80103
Typical Operating Performance
Unless otherwise noted, VIN = 2.2V, VOUT = 1.8V, CIN = COUT = 10µF, TJ = +25°C,
IL = 0A. (Continued)
5.0
12
11
10
9
8
7
6
5
4.0
GROUND CURRENT (µA)
GROUND CURRENT (µA)
4.5
3.5
3.0
2.5
2.0
1.5
1.0
VIN = 5V
0.5
0.0
-40 -25 -10
5
20 35 50 65 80
TEMPERATURE (°C)
95 110 125
95
5
20 35 50 65 80
TEMPERATURE (°C)
95 110 125
FIGURE 11. GROUND CURRENT IN SHUTDOWN vs TEMPERATURE
DROPOUT VOLTAGE (mV)
150
140
130
120
110
2A
100
3A
90
80
70
60
50
40
30
20
1A
10
0
-40 -25 -10
5 20 35 50 65 80
TEMPERATURE (°C)
VIN = 6V
0
-40 -25 -10
FIGURE 10. GROUND CURRENT IN SHUTDOWN vs TEMPERATURE
DROPOUT VOLTAGE (mV)
4
3
2
1
110 125
FIGURE 12. DROPOUT VOLTAGE vs TEMPERATURE
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
0
0.5
1.0
1.5
2.0
OUTPUT CURRENT (A)
2.5
3.0
FIGURE 13. DROPOUT VOLTAGE vs OUTPUT CURRENT
0.90
0.85
0.80
VOLTAGE (V)
0.75
0.70
0.65
0.60
0.55
0.50
0.45
0.40
0.35
0.30
-40 -25 -10
5
20
35
50
65
80
95 110 125
JUNCTION TEMPERATURE (°C)
FIGURE 14. ENABLE THRESHOLD VOLTAGE vs TEMPERATURE
FN6660 Rev 9.00
Mar 19, 2018
Page 7 of 17
ISL80102, ISL80103
Typical Operating Performance
Unless otherwise noted, VIN = 2.2V, VOUT = 1.8V, CIN = COUT = 10µF, TJ = +25°C,
IL = 0A. (Continued)
EN (1V/DIV)
SS (500mV/DIV)
EN (1V/DIV)
VOUT (500mV/DIV)
SS (500mV/DIV)
VOUT (500mV/DIV)
PG (1V/DIV)
PG (1V/DIV)
TIME (100µs/DIV)
TIME (6.4ms/DIV)
FIGURE 15. ENABLE START-UP SS CAP 1nF
FIGURE 16. ENABLE SHUTDOWN SS CAP 1nF
EN (1V/DIV)
EN (1V/DIV)
SS (500mV/DIV)
VOUT (500mV/DIV)
SS (1V/DIV)
VOUT (1V/DIV)
PG (1V/DIV)
PG (1V/DIV)
TIME (50µs/DIV)
TIME (100µs/DIV)
FIGURE 17. ENABLE START-UP SS CAP 100nF
FIGURE 18. ENABLE START-UP (NO SS CAP)
300
EN (1V/DIV)
SS (1V/DIV)
VOUT (1V/DIV)
START-UP TIME (µs)
250
200
150
100
50
PG (1V/DIV)
TIME (5ms/DIV)
FIGURE 19. ENABLE SHUTDOWN (NO SS CAP)
FN6660 Rev 9.00
Mar 19, 2018
0
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
INPUT VOLTAGE (V)
FIGURE 20. START-UP TIME vs SUPPLY VOLTAGE
Page 8 of 17
ISL80102, ISL80103
Typical Operating Performance
Unless otherwise noted, VIN = 2.2V, VOUT = 1.8V, CIN = COUT = 10µF, TJ = +25°C,
IL = 0A. (Continued)
300
OUTPUT CURRENT (A)
START-UP TIME (µs)
250
200
150
100
50
0
-40 -25 -10
5
20
35
50
65
80
95 110 125
FIGURE 21. START-UP TIME vs TEMPERATURE
OUTPUT CURRENT (A)
ISL80103
ISL80102
-40 -25 -10
5
20
35
50
65
80
95 110 125
TEMPERATURE (°C)
JUNCTION TEMPERATURE (°C)
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
FIGURE 22. CURRENT LIMIT vs TEMPERATURE
IOUT (1A/DIV)
ISL80103
ISL80102
VOUT (1V/DIV)
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
INPUT VOLTAGE(V)
FIGURE 23. CURRENT LIMIT vs SUPPLY VOLTAGE
TIME (10ms/DIV)
FIGURE 24. CURRENT LIMIT RESPONSE (ISL80102)
EN (1V/DIV)
IOUT (2A/DIV)
IINRUSH (2A/DIV)
VOUT (1V/DIV)
VOUT (1V/DIV)
TIME (5ms/DIV)
FIGURE 25. CURRENT LIMIT RESPONSE (ISL80103)
FN6660 Rev 9.00
Mar 19, 2018
PG (1V/DIV)
TIME (200µs/DIV)
FIGURE 26. INRUSH CURRENT WITH NO SOFT-START CAPACITOR,
COUT = 1000µF
Page 9 of 17
ISL80102, ISL80103
Typical Operating Performance
Unless otherwise noted, VIN = 2.2V, VOUT = 1.8V, CIN = COUT = 10µF, TJ = +25°C,
IL = 0A. (Continued)
EN (1V/DIV)
VOUT (50mV/DIV)
IINRUSH (1A/DIV)
VOUT (1V/DIV)
PG (1V/DIV)
TIME (1ms/DIV)
FIGURE 27. INRUSH WITH 22nF SOFT-START CAPACITOR,
COUT = 1000µF
VOUT (50mV/DIV)
IOUT (2A/DIV)
di/dt = 30A/µs
TIME (200µs/DIV)
FIGURE 29. LOAD TRANSIENT 0A TO 3A, COUT = 10µF
CERAMIC + 100µF OSCON
IOUT (2A/DIV)
di/dt = 30A/µs
TIME (200µs/DIV)
FIGURE 28. LOAD TRANSIENT 0A TO 3A, COUT = 10µF CERAMIC
VOUT (50mV/DIV)
IOUT (2A/DIV)
di/dt = 30A/µs
TIME (200µs/DIV)
FIGURE 30. LOAD TRANSIENT 1A TO 3A, COUT = 10µF CERAMIC
VOUT (20mV/DIV)
VOUT (50mV/DIV)
IOUT (2A/DIV)
IOUT (2A/DIV)
di/dt = 30A/µs
di/dt = 3A/µs
TIME (200µs/DIV)
FIGURE 31. LOAD TRANSIENT 1A TO 3A, COUT = 10µF
CERAMIC + 100µF OSCON
FN6660 Rev 9.00
Mar 19, 2018
TIME (50µs/DIV)
FIGURE 32. LOAD TRANSIENT 0A TO 3A, COUT = 10µF CERAMIC,
NO CPB (ADJ VERSION)
Page 10 of 17
ISL80102, ISL80103
Typical Operating Performance
Unless otherwise noted, VIN = 2.2V, VOUT = 1.8V, CIN = COUT = 10µF, TJ = +25°C,
IL = 0A. (Continued)
3.2V
2.2V
VOUT (20mV/DIV)
VIN (1V/DIV)
di/dt = 3A/sec
IOUT (2A/DIV)
VOUT (10mV/DIV)
di/dt = 3A/µs
TIME (200µs/DIV)
TIME (50µs/DIV)
FIGURE 33. LOAD TRANSIENT 0A TO 3A, COUT = 10µF CERAMIC,
CPB = 1500pF (ADJ VERSION)
FIGURE 34. LINE TRANSIENT
90
90
80
80
100mA
70
PSRR (dB)
PSRR (dB)
60
NO LOAD
60
50
40
30
1000mA
300mA
20
50
100mA
40
30
1000mA
20
10
100
1k
10k
100k
0
10
1M
100
1k
FIGURE 35. PSRR vs FREQUENCY FOR VOUT = 1.0V, VIN = 2.5V;
COUT = 47µF, CPB = 150pF
90
300mA
80
100k
1M
FIGURE 36. PSRR vs FREQUENCY FOR VOUT = 1.2V; VIN = 2.5V;
COUT = 47µF, CPB = 150pF
90
100mA
1000mA
80
100mA
70
70
NO LOAD
60
60
PSRR (dB)
NO LOAD
50 2000mA
1000mA
40
30
50
40
20
10
10
10
100
1k
10k
100k
FREQUENCY (Hz)
FIGURE 37. PSRR vs FREQUENCY FOR VOUT = 1.5V, VIN = 2.5V;
COUT = 22µF, CPB = 82pF
FN6660 Rev 9.00
Mar 19, 2018
1M
2000mA
3000mA
30
20
0
10k
FREQUENCY (Hz)
FREQUENCY (Hz)
PSRR (dB)
300mA
10
10
0
NO LOAD
70
0
10
300mA
100
1k
10k
100k
FREQUENCY (Hz)
FIGURE 38. PSRR vs FREQUENCY FOR VOUT = 1.8V, VIN = 2.5V;
COUT = 22µF, CPB = 82pF
Page 11 of 17
1M
ISL80102, ISL80103
Typical Operating Performance
Unless otherwise noted, VIN = 2.2V, VOUT = 1.8V, CIN = COUT = 10µF, TJ = +25°C,
IL = 0A. (Continued)
90
10
100mA
80
300mA
70
50
2000mA
1000mA
NOISE µV/√Hz
PSRR (dB)
60
NO LOAD
40
30
3000mA
1
0.1
20
10
0
10
IL = 3A
100
1k
10k
100k
0.01
10
1M
100
FREQUENCY (Hz)
FIGURE 39. PSRR vs FREQUENCY FOR VOUT = 2.5V, VIN = 3.3V;
COUT = 10µF, CPB = 47pF
Functional Description
Input Voltage Requirements
Despite other output voltages offered, this family of LDOs is
optimized for a true 2.5V to 1.8V conversion in which the input
supply can have a tolerance of as much as ±10% for conditions
noted in the “Electrical Specifications” table on page 4. The
minimum guaranteed input voltage is 2.2V; however, due to the
nature of an LDO, VIN must be some margin higher than the
output voltage plus dropout at the maximum rated current of the
application if active filtering (PSRR) is expected from VIN to VOUT.
The dropout of this family of LDOs has been generously specified
to allow applications to design for a level of efficiency that can
accommodate the smaller outline package.
Enable Operation
The Enable turn-on threshold is typically 800mV with a hysteresis of
135mV. An internal pull-up or pull-down resistor is available upon
request. As a result, this pin must not be left floating. This pin must
be tied to VIN if it is not used. A 1kΩ to 10kΩ pull-up resistor is
required for applications that use open collector or open drain
outputs to control the Enable pin. The Enable pin can be connected
directly to VIN for applications that are always on.
10k
100k
1M
FIGURE 40. SPECTRAL NOISE DENSITY vs FREQUENCY
Soft-Start Operation (Optional)
If the current limit for inrush current is acceptable in the
application, do not use the soft-start (SS) feature (leave the SS
pin open). The soft-start circuit controls the rate at which the
output voltage comes up to regulation at power-up or LDO
enable. The external soft-start capacitor always gets discharged
to ground pin potential at the beginning of start-up or enabling.
After the capacitor discharges, it will immediately begin charging
by a constant current source. The discharge rate is the RC time
constant of RPD and CSS. Refer to Figures 15 through 19 in the
“Typical Operating Performance Curves” beginning on page 8.
RPD is the ON-resistance of the pull-down MOSFET, M8. RPD is
typically 323Ω.
The soft-start feature effectively reduces the inrush current at
power-up or LDO enable until VOUT reaches regulation. The
in-rush current can be an issue for applications that require large,
external bulk capacitances on VOUT where high levels of charging
current can be seen for a significant period of time. The inrush
currents can cause VIN to drop below minimum which could
cause VOUT to shutdown. Figure 27 on page 10 shows the
relationship between inrush current and CSS with a COUT of
1000µF.
5.0
Power-Good Operation
4.5
INRUSH CURRENT LIMIT (A)
Applications not using the power-good (PGOOD) feature must
connect this pin to ground. The PGOOD flag is an open-drain
NMOS that can sink up to 10mA during a fault condition. The
PGOOD pin requires an external pull-up resistor, which is typically
connected to the VOUT pin. The PGOOD pin should not be pulled
up to a voltage source greater than VIN. PGOOD faults can be
caused by the output voltage going below 84% of the nominal
output voltage, or the current limit fault, or low input voltage.
PGOOD does not function during thermal shutdown.
1k
FREQUENCY (Hz)
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
20
40
60
CSS (nF)
80
100
FIGURE 41. INRUSH CURRENT vs SOFT-START CAPACITANCE
FN6660 Rev 9.00
Mar 19, 2018
Page 12 of 17
ISL80102, ISL80103
Output Voltage Selection
Current Limit Protection
An external resistor divider scales the output voltage relative to
the internal reference voltage. This voltage is then fed back to
the error amplifier. The output voltage can be programmed to
any level between 0.8V and 5.5V. An external resistor divider, R3
and R4, sets the output voltage as shown in Equation 1. The
recommended value for R4 is 200Ω to 5kΩR3is then chosen
according to Equation 2:
The ISL80102 and ISL80103 family of LDOs incorporates
protection against overcurrent due to a short overload condition
applied to the output and the inrush current that occurs at
start-up. The LDO performs as a constant current source when
the output current exceeds the current limit threshold noted in
the “Electrical Specifications” table on page 4. If the short or
overload condition is removed from VOUT, then the output returns
to normal voltage mode regulation. In the event of an overload
condition, the LDO may begin to cycle on and off due to the die
temperature exceeding the thermal fault condition.
(EQ. 1)
V OUT
R 3 = R 4 ---------------- – 1
0.5V
(EQ. 2)
External Capacitor Requirements
External capacitors are required for proper operation. To ensure
optimal performance, pay careful attention to the layout
guidelines and selection of capacitor type and value.
OUTPUT CAPACITOR
The ISL80102 and ISL80103 apply state-of-the-art internal
compensation to keep selection of the output capacitor simple
for the customer. Stable operation over full temperature, VIN
range, VOUT range, and load extremes are guaranteed for all
ceramic capacitors and values assuming a 10µF X5R/X7R is
used for local bypass on VOUT. This minimum capacitor (see
Table 1 on page 2 for component value selections) must be
connected to the VOUT and ground pins of the LDO with PCB
traces no longer than 0.5cm.
Lower cost Y5V and Z5U type ceramic capacitors are acceptable
if the size of the capacitor is large enough to compensate for the
significantly lower tolerance over X5R/X7R types. Additional
capacitors of any value in Ceramic, POSCAP, or Alum/Tantalum
Electrolytic types can be placed in parallel to improve PSRR at
higher frequencies and/or load transient AC output voltage
tolerances.
INPUT CAPACITOR
The minimum input capacitor required for proper operation is a
10µF with a ceramic dielectric. This minimum capacitor must be
connected to VIN and ground pins of the LDO with PCB traces no
longer than 0.5cm.
Phase Boost Capacitor (Optional)
The ISL80102 and ISL80103 are designed to be stable with
10µF or larger ceramic capacitors.
Applications using the ADJ versions may see improved
performance with the addition of a small ceramic capacitor CPB
as shown in Figure 2 on page 2. The conditions in which CPB may
be beneficial are:
• VOUT > 1.5V
• COUT = 10µF
• Tight AC voltage regulation band
CPB introduces phase lead with the product of R3 and CPB that
results in increasing the bandwidth of the LDO. Typical R3 x CPB
should be less than 0.4μs (400ns).
FN6660 Rev 9.00
Mar 19, 2018
Power Dissipation and Thermals
The junction temperature must not exceed the range specified in
the “Recommended Operating Conditions” on page 4. The power
dissipation can be calculated by using Equation 3:
P D = V IN – V OUT I OUT + V IN I GND
(EQ. 3)
The maximum allowable junction temperature, TJ(MAX) and the
maximum expected ambient temperature, TA(MAX) will
determine the maximum allowable power dissipation as shown
in Equation 4:
(EQ. 4)
P D MAX = T J MAX – T A JA
where JA is the junction-to-ambient thermal resistance.
For safe operation, ensure that the power dissipation calculated
in Equation 3, PD , is less than the maximum allowable power
dissipation PD(MAX).
The DFN package uses the copper area on the PCB as a heatsink.
The EPAD of this package must be soldered to the copper plane
(GND plane) for heat sinking. Figure 42 shows a curve for the JA
of the DFN package for different copper area sizes.
46
44
JA (°C/W)
R3
V OUT = 0.5V ------- + 1
R4
42
40
38
36
34
2
4
6
8
10
12
14
16
18
20
22
24
EPAD-MOUNT COPPER LAND AREA ON PCB, mm2
FIGURE 42. 3mmx3mm-10 PIN DFN ON 4-LAYER PCB WITH
THERMAL VIAS JA vs EPAD-MOUNT COPPER LAND
AREA ON PCB
Thermal Fault Protection
If the die temperature exceeds typically +160°C, then the output
of the LDO will shut down until the die temperature can cool
down to typically +145°C. The level of power combined with the
thermal impedance of the package (+48°C/W for DFN) will
determine if the junction temperature exceeds the thermal
shutdown temperature.
Page 13 of 17
ISL80102, ISL80103
Revision History
The revision history provided is for informational purposes only and is believed to be accurate, but not warranted.
Please go to web to make sure you have the latest Rev.
DATE
REVISION
Mar 19, 2018
FN6680.9
Added Related Literature section to page 1.
Changed values in Output Voltage Selection section on page 13 from “500Ω to 1kΩ” to “200Ω to 5kΩ”.
Removed About Intersil section and added Renesas disclaimer.
CHANGE
Sep 2, 2016
FN6660.8
Removed Note 8 “Electromigration specification defined as lifetime average junction temperature of +110°C
where max rated DC current = lifetime average current” from Recommended Operating Conditions.
Apr 8, 2016
FN6660.7
Updated Ordering Information table (on page 3), Note 1 to include quantities for tape and reel options.
Changed VOUT range upper limit from “5V to 5.5V” on page 1, in the “Recommended Operating Conditions
(Note 7)” on page 4 and in the “Output Voltage Selection” on page 12
Electrical Spec table test conditions changed from: VIN = VOUT + 0.4V, VOUT = 1.8V, CIN = COUT = 10µF, TJ = +25°C,
ILOAD = 0A, to: 2.2V < VIN < 6V, VOUT = 0,5V, TJ = +25°C, ILOAD = 0A
Changed Test conditions in “Output Noise Voltage” on page 5 from: ILOAD = 10mA, BW = 300Hz
