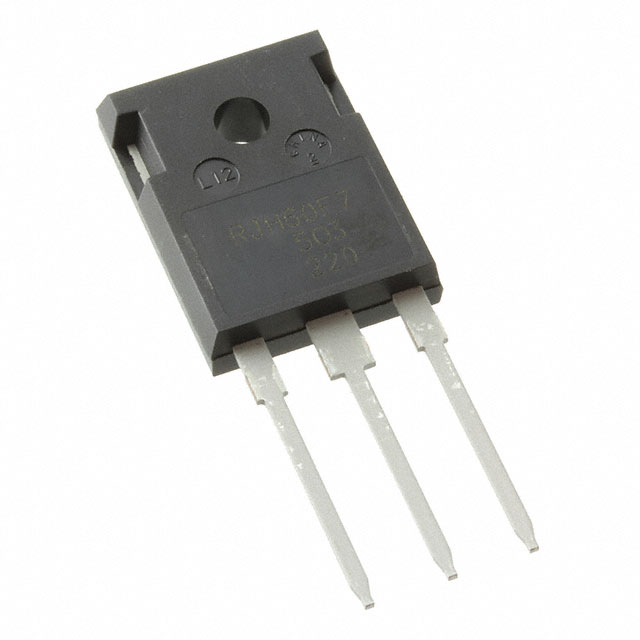

Preliminary Datasheet RJH65T46DPQ-A0 R07DS1259EJ0100 Rev.1.00 May 18, 2015 650V - 40A - IGBT Application: Power Factor Correction circuit Features  Low collector to emitter saturation voltage VCE(sat) = 1.8 V typ. (at IC = 40 A, VGE = 15 V, Ta = 25°C)  Built in fast recovery diode in one package  Trench gate and thin wafer technology (G7H series)  High speed switching tf = 45 ns typ. (at VCC = 400 V, VGE = 15 V , IC = 40 A, Rg = 10 , Ta = 25°CInductive load)  Operation frequency (20kHz ≤ f ˂ 100kHz)  Not guarantee short circuit withstand time Outline RENESAS Package code: PRSS0003ZH-A (Package name: TO-247A) C 4 1. Gate 2. Collector 3. Emitter 4. Collector G 1 2 E 3 Absolute Maximum Ratings (Tc = 25°C) Item Collector to emitter voltage / diode reverse voltage Gate to emitter voltage Collector current Tc = 25 °C Tc = 100 °C Collector peak current Symbol VCES / VR VGES IC IC iC(peak) Note1 Ratings 650 30 80 40 300 Unit V V A A A Collector to emitter diode Forward current IDF IDF iDF(peak) Note1 PC j-c j-cd Tj Note2 Tstg 30 15 100 340.9 0.44 1.33 175 –55 to +150 A A A W °C/W °C/ W °C °C Tc = 25 °C Tc = 100 °C Collector to emitter diode forward peak current Collector dissipation Junction to case thermal impedance (IGBT) Junction to case thermal resistance (Diode) Junction temperature Storage temperature Notes: 1. PW  10 s, duty cycle  1% 2. Please use this device in the thermal conditions which the junction temperature does not exceed 175°C. Renesas IGBT Application Note is disclosed about reliability test and application condition up to 175°C. R07DS1259EJ0100 Rev.1.00 May 18, 2015 Page 1 of 9 RJH65T46DPQ-A0 Preliminary Electrical Characteristics (Ta = 25°C) Item Zero gate voltage collector current / Diode reverse current Gate to emitter leak current Gate to emitter cutoff voltage Collector to emitter saturation voltage Input capacitance Output capacitance Reveres transfer capacitance Total gate charge Gate to emitter charge Gate to collector charge Turn-on delay time Rise time Turn-off delay time Fall time Turn-on loss energy Turn-off loss energy Total switching energy Turn-on delay time Rise time Turn-off delay time Fall time Turn-on loss energy Turn-off loss energy Total switching energy FRD forward voltage FRD reverse recovery time Symbol ICES / IR Min  Typ  Max 100 Unit A Test Conditions VCE = 650 V, VGE = 0 IGES VGE(off) VCE(sat) Cies Coes Cres Qg Qge Qgc td(on) tr td(off) tf Eon Eoff  4.0  — — — — — —  — — — — —   1.8 3000 92 55 138 22 57 45 30 170 45 0.45 0.55 ±1 7.0 2.4 — — — — — —  — — — — — A V V pF pF pF nC nC nC ns ns ns ns mJ mJ VGE = 15 V VCE = 400 V IC = 40 A Etotal td(on) tr td(off) tf Eon Eoff Etotal — — — — — — — — 1.00 45 30 185 50 0.57 0.63 1.20 — — — — — — — — mJ ns ns ns ns mJ mJ mJ VCC = 400 V VGE = 15 V IC = 40 A Rg = 10  TC = 150 °C Inductive load VF trr — — 1.7 100 2.2 — V ns IF = 15 A Note3 IF = 15 A, diF/dt = 300 A/s VGE = ±30 V, VCE = 0 VCE = 10V, IC = 1.33 mA IC = 40 A, VGE = 15V Note3 VCE = 25 V VGE = 0 f = 1 MHz VCC = 400 V VGE = 15 V IC = 40 A Rg = 10  TC = 25 °C Inductive load Note4 Note4 Notes: 3. Pulse test 4. Switching time test circuit and waveform are shown below. R07DS1259EJ0100 Rev.1.00 May 18, 2015 Page 2 of 9 RJH65T46DPQ-A0 Preliminary Main Characteristics Collector Dissipation vs. Case Temperature Maximum DC Collector Current vs. Case Temperature 120 Collector Current IC (A) Collector Dissipation Pc (W) 400 300 200 100 80 60 40 20 0 0 0 25 50 75 0 100 125 150 175 50 75 100 125 150 175 Case Temperature Tc (°C) Maximum Safe Operation Area Typical Transfer Characteristics 160 10 0 = 10 Collector Current IC (A) PW 100 μs μs 10 1 0.1 1 Tc = 25°C Single pulse VCE = 10 V Pulse Test 120 80 0 10 100 1000 Tc = 25°C 40 150°C 0 Collector to Emitter Voltage VCE (V) 160 Pulse Test 2 Tc = 25°C 120 8.5V 80 8.0V 40 VGE = 7.5 V 0 0 2 4 6 8 10 Collector to Emitter Voltage VCE (V) R07DS1259EJ0100 Rev.1.00 May 18, 2015 12 Pulse Test 2 Tc = 150°C 9.0V 10 V 15 V 8 16 Typical Output Characteristics Collector Current IC (A) 160 4 Gate to Emitter Voltage VGE (V) Typical Output Characteristics Collector Current IC (A) 25 Case Temperature Tc (°C) 1000 Collector Current IC (A) 100 9.0V 8.5V 10 V 15 V 120 8.0V 80 7.5V 40 VGE = 7.0 V 0 0 2 4 6 8 10 Collector to Emitter Voltage VCE (V) Page 3 of 9 RJH65T46DPQ-A0 Preliminary Collector to Emitter Saturation Voltage vs. Gate to Emitter Voltage (Typical) Tc = 25°C Pulse Test 4 IC = 80 A 40 A 20 A 3 2 1 0 4 8 12 16 20 Collector to Emitter Saturation Voltage VCE(sat) (V) 5 5 IC = 80 A 40 A 20 A 4 Tc = 150°C Pulse Test 3 2 1 0 4 8 12 16 20 Gate to Emitter Voltage VGE (V) Gate to Emitter Voltage VGE (V) Gate to Emitter Cutoff Voltage vs. Case Temparature (Typical) Collector to Emitter Saturation Voltage vs. Case Temparature (Typical) 10 8 IC = 10 mA 6 4 1.33 mA 2 VCE = 10 V Pulse Test 0 −25 0 25 50 75 100 125 150 Case Temparature Tc (°C) Collector to Emitter Saturation Voltage VCE(sat) (V) Gate to Emitter Cutoff Voltage VGE(off) (V) Collector to Emitter Saturation Voltage VCE(sat) (V) Collector to Emitter Saturation Voltage vs. Gate to Emitter Voltage (Typical) 4.0 3.5 VGE = 15 V Pulse Test 3.0 IC = 80 A 2.5 40 A 2.0 1.5 20 A 1.0 0.5 −25 0 25 50 75 100 125 150 Case Temparature Tc (°C) Frequency Characteristics (Typical) Collector Current Ic(max) (A) 120 100 80 Ic(max) 60 0 Collector current wave (Square wave) 40 20 0 Tj = 175°C, Tc = 90°C, VCE = 400 V VGE = 15 V, Rg = 10Ω , duty = 50% 1 10 100 Frequency f (kHz) R07DS1259EJ0100 Rev.1.00 May 18, 2015 Page 4 of 9 RJH65T46DPQ-A0 Preliminary Switching Characteristics (Typical) (1) Swithing Energy Losses E (mJ) Switching Times t (ns) 1000 VCC = 400 V, VGE = 15 V Rg = 10 Ω, Tc = 150°C td(off) 100 tf td(on) 10 10 tr 20 30 Switching Characteristics (Typical) (2) 50 70 10 VCC = 400 V, VGE = 15 V Rg = 10 Ω, Tc = 150°C 1 Eoff Eon 0.1 10 100 50 70 100 Switching Characteristics (Typical) (4) Switching Characteristics (Typical) (3) 10 Swithing Energy Losses E (mJ) 10000 Switching Times t (ns) 30 Collector Current IC (A) (Inductive load) Collector Current IC (A) (Inductive load) VCC = 400 V, VGE = 15 V IC = 40 A, Tc = 150°C 1000 td(off) 100 td(on) tf tr VCC = 400 V, VGE = 15 V IC = 40 A, Tc = 150°C 1 Eoff Eon 0.1 10 1 10 100 1 VCC = 400 V, VGE = 15 V IC = 40 A, Rg = 10 Ω td(off) 100 tf td(on) tr 75 100 125 Case Temperature Tc (°C) (Inductive load) R07DS1259EJ0100 Rev.1.00 May 18, 2015 150 Swithing Energy Losses E (mJ) 1000 50 100 Switching Characteristics (Typical) (6) Switching Characteristics (Typical) (5) 10 25 10 Gate Registance Rg (Ω) (Inductive load) Gate Registance Rg (Ω) (Inductive load) Switching Times t (ns) 20 10 VCC = 400 V, VGE = 15 V IC = 40 A, Rg = 10 Ω 1 Eoff Eon 0.1 25 50 75 100 125 150 Case Temperature Tc (°C) (Inductive load) Page 5 of 9 RJH65T46DPQ-A0 Preliminary Typical Capacitance vs. Collector to Emitter Voltage Cies 1000 100 Coes Cres 10 0 50 100 150 200 250 300 800 600 VGE 12 400 8 200 4 VCE 0 0 40 80 120 160 0 200 Gate Charge Qg (nC) Collector to Emitter Voltage VCE (V) Reverse Recovery Time vs. Forward Current (Typical) Forward Current vs. Forward Voltage (Typical) 1000 100 VCC = 300 V diF/dt = 300 A/us Forward Current IF (A) Reverse Recovery Time trr (ns) 16 VCC = 400 V IC = 40 A Tc = 25°C Gate to Emitter Voltage VGE (V) VGE = 0 V Tc = 25°C f = 1 MHz Collector to Emitter Voltage VCE (V) Capacitance C (pF) 10000 Dynamic Input Characteristics (Typical) Tc = 150°C 100 25°C 10 1 10 Forward Current IF (A) R07DS1259EJ0100 Rev.1.00 May 18, 2015 100 80 Tc = 25°C 60 150°C 40 20 VCE = 0 V Pulse Test 0 0 1 2 3 4 5 C-E Diode Forward Voltage VCEF (V) Page 6 of 9 Normalized Transient Thermal Impedance γs (t) RJH65T46DPQ-A0 Preliminary Normalized Transient Thermal Impedance vs. Pulse Width (IGBT) 10 1 D=1 0.5 0.2 θj – c(t) = γs (t) • θj – c θj – c = 0.44°C/W, Tc = 25°C 0.1 0.1 0.05 0.0 PDM 2 D= PW T 0.01 0.01 10 μ 1 shot pulse 100 μ PW T 1m 10 m Pulse Width 100 m 1 10 PW (s) Normalized Transient Thermal Impedance γs (t) Normalized Transient Thermal Impedance vs. Pulse Width (Diode) 10 1 D=1 0.5 0.2 θj – c(t) = γs (t) • θj – c θj – c = 1.33°C/W, Tc = 25°C 0.1 0.05 .02 0.1 0 PDM 0.01 1 shot pulse 0.01 10 μ R07DS1259EJ0100 Rev.1.00 May 18, 2015 100 μ D= PW T PW T 1m 10 m Pulse Width 100 m 1 10 PW (s) Page 7 of 9 RJH65T46DPQ-A0 Preliminary Waveform Switching Time Test Circuit VGE 90% 10% Diode clamp RJU6054TDPP L IC 90% D.U.T 90% VCC Rg 10% td(off) Diode Reverse Recovery Time Test Circuit 10% tf td(on) tr Waveform VCC IF D.U.T IF diF/dt L trr 0 Irr Rg R07DS1259EJ0100 Rev.1.00 May 18, 2015 0.5 Irr 0.9 Irr Page 8 of 9 RJH65T46DPQ-A0 Preliminary Package Dimensions JEITA Package Code  RENESAS Code PRSS0003ZH-A Previous Code  MASS[Typ.] 6.14g Unit: mm 3.60 ± 0.1 5.02 ± 0.19 15.94 ± 0.19 17.63 4.5 max 20.19 ± 0.38 21.13 ± 0.33 6.15 Package Name TO-247A 5.45 0.1 2.10 +– 0.2 13.26 1.27 ± 0.13 5.45 0.71 ± 0.1 2.41 Ordering Information Orderable Part Number RJH65T46DPQ-A0#T0 R07DS1259EJ0100 Rev.1.00 May 18, 2015 Quantity 240 pcs Shipping Container Box (Tube) Page 9 of 9 Notice 1. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by you or third parties arising from the use of these circuits, software, or information. 2. Renesas Electronics has used reasonable care in preparing the information included in this document, but Renesas Electronics does not warrant that such information is error free. Renesas Electronics 3. Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights of third parties by or arising from the use of Renesas Electronics products or assumes no liability whatsoever for any damages incurred by you resulting from errors in or omissions from the information included herein. technical information described in this document. No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or others. 4. You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part. Renesas Electronics assumes no responsibility for any losses incurred by you or 5. Renesas Electronics products are classified according to the following two quality grades: "Standard" and "High Quality". The recommended applications for each Renesas Electronics product depends on third parties arising from such alteration, modification, copy or otherwise misappropriation of Renesas Electronics product. the product's quality grade, as indicated below. "Standard": Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; and industrial robots etc. "High Quality": Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anti-crime systems; and safety equipment etc. Renesas Electronics products are neither intended nor authorized for use in products or systems that may pose a direct threat to human life or bodily injury (artificial life support devices or systems, surgical implantations etc.), or may cause serious property damages (nuclear reactor control systems, military equipment etc.). You must check the quality grade of each Renesas Electronics product before using it in a particular application. You may not use any Renesas Electronics product for any application for which it is not intended. Renesas Electronics shall not be in any way liable for any damages or losses incurred by you or third parties arising from the use of any Renesas Electronics product for which the product is not intended by Renesas Electronics. 6. You should use the Renesas Electronics products described in this document within the range specified by Renesas Electronics, especially with respect to the maximum rating, operating supply voltage range, movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas Electronics shall have no liability for malfunctions or damages arising out of the use of Renesas Electronics products beyond such specified ranges. 7. Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further, Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to guard them against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a Renesas Electronics product, such as safety design for hardware and software including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or systems manufactured by you. 8. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. Please use Renesas Electronics products in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. Renesas Electronics assumes no liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations. 9. Renesas Electronics products and technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable domestic or foreign laws or regulations. You should not use Renesas Electronics products or technology described in this document for any purpose relating to military applications or use by the military, including but not limited to the development of weapons of mass destruction. When exporting the Renesas Electronics products or technology described in this document, you should comply with the applicable export control laws and regulations and follow the procedures required by such laws and regulations. 10. It is the responsibility of the buyer or distributor of Renesas Electronics products, who distributes, disposes of, or otherwise places the product with a third party, to notify such third party in advance of the contents and conditions set forth in this document, Renesas Electronics assumes no responsibility for any losses incurred by you or third parties as a result of unauthorized use of Renesas Electronics products. 11. This document may not be reproduced or duplicated in any form, in whole or in part, without prior written consent of Renesas Electronics. 12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products, or if you have any other inquiries. (Note 1) "Renesas Electronics" as used in this document means Renesas Electronics Corporation and also includes its majority-owned subsidiaries. (Note 2) "Renesas Electronics product(s)" means any product developed or manufactured by or for Renesas Electronics. http://www.renesas.com SALES OFFICES Refer to "http://www.renesas.com/" for the latest and detailed information. Renesas Electronics America Inc. 2801 Scott Boulevard Santa Clara, CA 95050-2549, U.S.A. Tel: +1-408-588-6000, Fax: +1-408-588-6130 Renesas Electronics Canada Limited 9251 Yonge Street, Suite 8309 Richmond Hill, Ontario Canada L4C 9T3 Tel: +1-905-237-2004 Renesas Electronics Europe Limited Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K Tel: +44-1628-585-100, Fax: +44-1628-585-900 Renesas Electronics Europe GmbH Arcadiastrasse 10, 40472 Düsseldorf, Germany Tel: +49-211-6503-0, Fax: +49-211-6503-1327 Renesas Electronics (China) Co., Ltd. Room 1709, Quantum Plaza, No.27 ZhiChunLu Haidian District, Beijing 100191, P.R.China Tel: +86-10-8235-1155, Fax: +86-10-8235-7679 Renesas Electronics (Shanghai) Co., Ltd. Unit 301, Tower A, Central Towers, 555 Langao Road, Putuo District, Shanghai, P. R. China 200333 Tel: +86-21-2226-0888, Fax: +86-21-2226-0999 Renesas Electronics Hong Kong Limited Unit 1601-1611, 16/F., Tower 2, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hong Kong Tel: +852-2265-6688, Fax: +852 2886-9022 Renesas Electronics Taiwan Co., Ltd. 13F, No. 363, Fu Shing North Road, Taipei 10543, Taiwan Tel: +886-2-8175-9600, Fax: +886 2-8175-9670 Renesas Electronics Singapore Pte. Ltd. 80 Bendemeer Road, Unit #06-02 Hyflux Innovation Centre, Singapore 339949 Tel: +65-6213-0200, Fax: +65-6213-0300 Renesas Electronics Malaysia Sdn.Bhd. Unit 1207, Block B, Menara Amcorp, Amcorp Trade Centre, No. 18, Jln Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia Tel: +60-3-7955-9390, Fax: +60-3-7955-9510 Renesas Electronics India Pvt. Ltd. No.777C, 100 Feet Road, HALII Stage, Indiranagar, Bangalore, India Tel: +91-80-67208700, Fax: +91-80-67208777 Renesas Electronics Korea Co., Ltd. 12F., 234 Teheran-ro, Gangnam-Gu, Seoul, 135-080, Korea Tel: +82-2-558-3737, Fax: +82-2-558-5141 © 2015 Renesas Electronics Corporation. All rights reserved. Colophon 5.0
