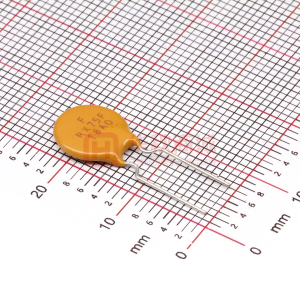

FRX075-60F

Radial Leaded PPTC FRX Series FEATURES • • • • • • Low hold current, Solid state Radial-leaded Product ideal for up to 60 or 90 volts Application: Wide variety of electronic equipment Operation Current: 50mA ~ 3.75A Maximum Voltage: 60 or 90 volts (72 volts) Temperature Range: -40°C to 85°C Hold Current IH, A FRX005-60F FRX010-60F or 90F FRX015-90F FRX017-60F or 90F FRX020-60F or 90F FRX025-60F or 90F FRX030-60F or 90F FRX035-90F FRX040-60F or 90F FRX050-60F or 90F FRX055-90F FRX065-60F or 90F FRX075-60F or 90F FRX090-60F or 90F FRX110-60F or 90F FRX135-60F or 90F FRX160-60F or 90F FRX185-60F or 90F FRX250-60F or 90F FRX300-60F or 90F FRX375-60F or 90F 0.05 0.10 0.15 0.17 0.20 0.25 0.30 0.35 0.40 0.50 0.55 0.65 0.75 0.90 1.10 1.35 1.60 1.85 2.50 3.00 3.75 Trip Current IT, A 0.10 0.20 0.35 0.34 0.40 0.50 0.60 0.75 0.80 1.00 1.20 1.30 1.50 1.80 2.20 2.70 3.20 3.70 5.00 6.00 7.50 Max. Time to Trip at 5XIH 5.0 4.0 10.0 3.0 2.2 2.5 3.0 10.0 3.8 4.0 10.0 5.3 6.3 7.2 8.2 9.6 11.4 12.6 15.6 19.8 24.0 Maximum Current IMAX, A 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 RoHS ü AGENCY RECOGNITION •UL (E211981) •C-UL (E211981) •TÜV (R3-5004084) ELECTRICAL CHARACTERISTICS (23°C) Part Number Rated Voltage VMAX, VDC 60 60 or 90 90 60 or 90 60 or 90 60 or 90 60 or 90 90 60 or 90 60 or 90 90 60 or 90 60 or 90 60 or 90 60 or 90 60 or 90 60 or 90 60 or 90 60 or 90 60 or 90 60 or 90 Typical Power Pd, W 0.26 0.38 0.70 0.48 0.41 0.45 0.49 1.30 0.56 0.77 1.50 0.88 0.92 0.99 1.50 1.70 1.90 2.10 2.50 2.80 3.20 Resistance Tolerance RMIN R1MAX OHMS 7.30 2.50 2.40 2.00 1.83 1.25 0.88 0.70 0.55 0.50 0.40 0.31 0.25 0.20 0.15 0.12 0.09 0.08 0.05 0.04 0.03 OHMS 20.00 7.50 7.00 8.00 4.40 3.00 2.10 2.50 1.29 1.17 1.50 0.72 0.60 0.47 0.38 0.30 0.22 0.19 0.13 0.10 0.08 IH=Hold current-maximum current at which the device will not trip at 23°C still air. IT=Trip current-maximum current at which the device will always trip at 23°C still air. V MAX=Maximum voltage device can withstand without damage at its rated current. I MAX=Maximum fault current device can withstand without damage at rated voltage (V MAX). Pd=Typical power dissipated from device when in the tripped state in 23°C still air environment. R MIN=Minimum device resistance at 23°C. R1MAX=Maximum device resistance at 23°C, 1 hour after tripping. Physical specifications: Lead material: FRX005~FRX090 Tin plated copper, 24 AWG. FRX110~FRX375 Tin plated copper, 20 AWG. Soldering characteristics: MIL-STD-202, Method 208E. Insulating coating: Flame retardant epoxy, meet UL-94V-0 requirement. •Use 90V devices for 72V applications. THERMAL DERATING CURVE T herm Derating Curve - FRX Series al Percent o f Ra ted Ho ld a nd Trip Current 200% 150% 100% 50% 0% -40 -20 0 20 40 60 80 Amb ient Temperature (C) RFE International • Tel:(949) 833-1988 • Fax:(949) 833-1788 • E-Mail Sales@rfeinc.com C5EB01 REV 2007.03.1 Radial Leaded PPTC FRX Series TYPICAL TIME-TO-TRIP AT 23°C RoHS ü A B C D E F GH I J K L M NO PQ R S T 1000 100 Tim e- to - tr ip ( S) 10 1 0.1 0.01 0.001 0.1 1 Fault current (A) 10 100 A = FRX005-60F B = FRX010-60F or 90F C = FRX015-90F D = FRX017-60F or 90F E = FRX020-60F or 90F F = FRX025-60F or 90F G = FRX030-60F or 90F H = FRX035-90F I = FRX040-60F or 90F J = FRX050-60F or 90F K = FRX055-90F L = FRX065-60F or 90F M = FRX075-60F or 90F N = FRX090-60F or 90F O = FRX110-60F or 90F P = FRX135-60F or 90F Q = FRX160-60F or 90F R = FRX185-60F or 90F S = FRX250-60F or 90F T = FRX300-60F or 90F U = FRX375-60F or 90F PRODUCTION DIMENSIONS (MILLIMETER) FRX010 ~ FRX090 Lead Size: 24AWG (0.5mm) FRX110 ~ FRX375 Lead Size: 20AWG (0.81mm) Part Number FRX005-60F FRX010-60F or 90F FRX015-90F FRX017-60F or 90F FRX020-60F or 90F FRX025-60F or 90F FRX030-60F or 90F FRX035-90F FRX040-60F or 90F FRX050-60F or 90F FRX055-90F FRX065-60F or 90F FRX075-60F or 90F FRX090-60F or 90F FRX110-60F or 90F FRX135-60F or 90F FRX160-60F or 90F FRX185-60F or 90F FRX250-60F or 90F FRX300-60F or 90F FRX375-60F or 90F A 7.4 7.4 7.4 7.4 7.4 7.4 7.4 7.4 7.6 7.9 9.7 9.7 10.4 11.7 13 14.5 16.3 17.8 21.3 24.9 28.5 B 12.7 12.7 12.7 12.7 12.7 12.7 13.0 12.7 13.5 13.7 14.0 14.5 15.2 15.8 18.0 19.6 21.3 22.9 26.4 30.0 33.5 C 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 10.2 10.2 10.2 D 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 E 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 E 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.4 1.4 1.4 1.4 1.4 1.4 1.4 Maximum Maximum Typical Minimum Maximum Maximum NOTE: All Specifications subject to change without notice. RFE International • Tel:(949) 833-1988 • Fax:(949) 833-1788 • E-Mail Sales@rfeinc.com C5EB01 REV 2007.03.1
