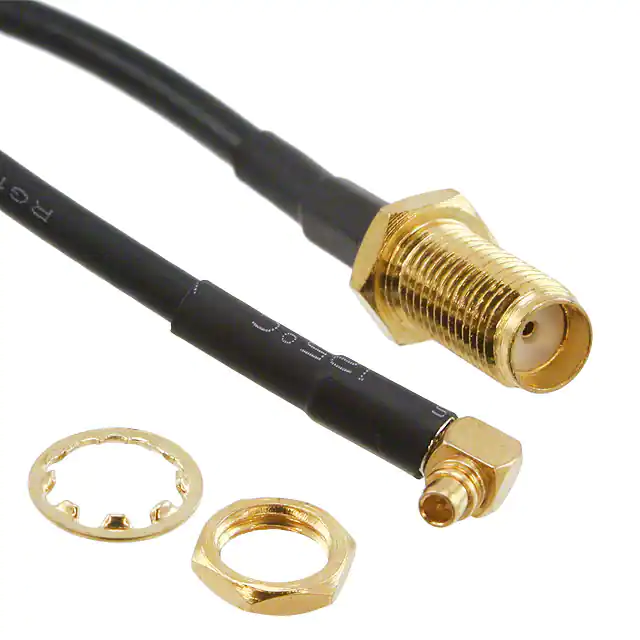

CBA-SMA-MMCXRA

8 7 6 5 4 3 2 1 H H G G F F E E Added Freq Range D D Notes 1. SMA (F) Straight bulk Jack C C NOT TO SCALE 2. Heatshrink 3. RG-174 MIT Coxial cable black 4. MMCX Right angle plug B DESCRIPTION Cable Assy SMA(F) straight plug to MMCX(RA) plug cable Assy 100mm Impedance 50ohm Frequency Rqnge: DC 0 – 6GHz FILENAME A All Dimensions in mm 29/05/08 DATE REVISED PAGE Creation Update John FairallFont and Tel No 04/06/08 13/10/2012 1 of 1 REVISIONS DESCRIPTION DATE APPROVED First Issue 1.8.09 12/02/09 Added Freq Range 24/8/12 jf DRAWN BY CBA-SMA-MMCXRA.VSD Rohs Compliant B ZONE REV N/A N/A N/A 1 12 3 2 A 4 5 6 8 7 6 5 4 3 2 1
