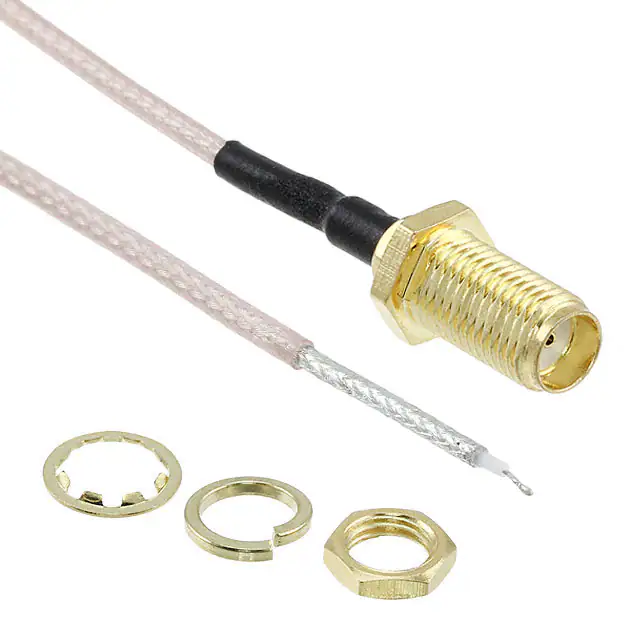

CBA-SMAF-OP

8 7 6 5 4 3 2 1 H H G G F 15 mm +/- 0.4 200mm F 2Mm +/-0.4 2mm +0.4 -0.1 E E D D Outer sheath removed to expose the Earth Braid. Earth Braid is solder tinned Earth Braid removed to expose signal wire Insulation. Signal wire Insulation removed to expose signal wire. Signal wire solder tinned C C Notes NOT TO SCALE 1. SMA Female Bulkhead Straight 2. open ended coax 3. Heatshrink B DESCRIPTION Cable Assy SMA(F) Bulkhead to Open Ended cable Assy 200mm 4 Overall length 200mm Attenuation (Max) : -1.5dB FILENAME Nominal Impedance: 50ohm RoHS compliant A All Dimensions in mm 29/05/08 DATE REVISED PAGE Creation Update John FairallFont and Tel No 04/06/08 30/05/2012 1 of 1 REVISIONS DESCRIPTION DATE APPROVED First Issue 1.8.09 12/02/09 DRAWN BY CBA-SMAF-OP-1.VSD VSWR (Max) : 1.5 ZONE REV N/A N/A 1 12 3 2 A 4 5 6 8 7 6 5 4 3 B 2 1
