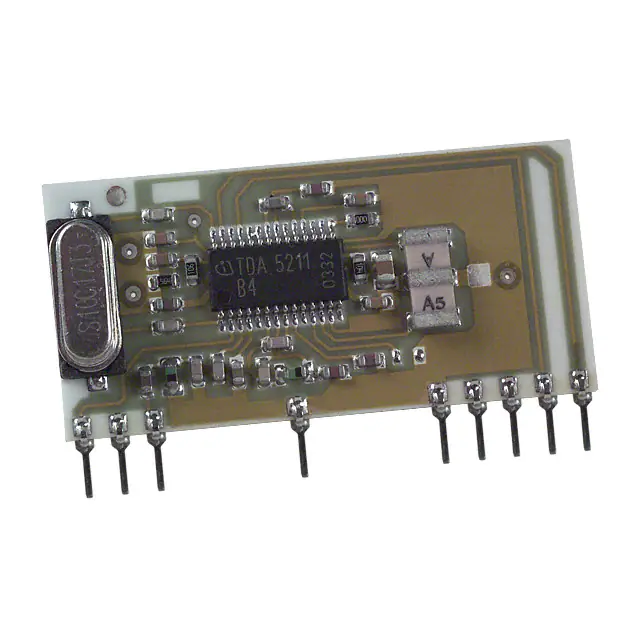

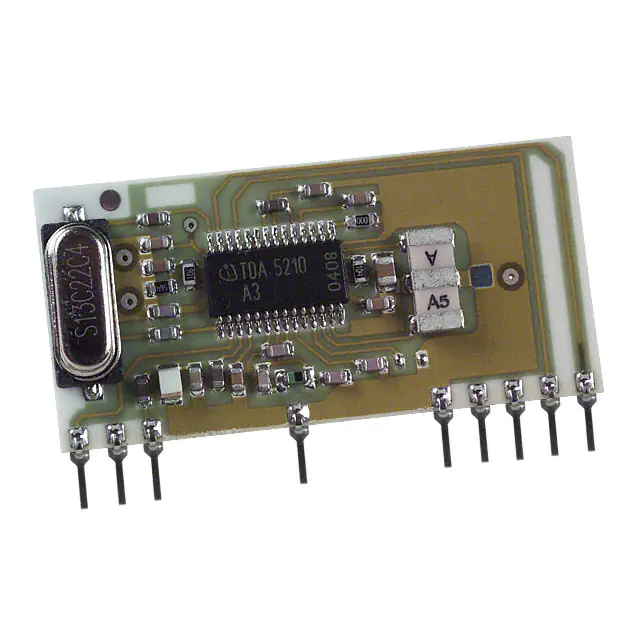

FM-RRFQ1-433P

FM TRANSMITTER & RECEIVER HYBRID MODULES. • • • • • • • • FM-RTFQ SERIES FM-RRFQ SERIES FM Radio Transmitter & Receivers Available As 315 or 433 or 868MHz Transmit Range Up To 250m Miniature Packages Data Rate upto 9.6Kbps RTFQ1 No Adjustable Components Very Stable Operating Frequency Operates from –20 to +850C Transmitter • • 3-12 Supply Voltage SIL or DIL Package RRFQ1 Receiver • • • • • PLL XTAL Design CMOS/TTL Output RSSI Output Standby Mode (max 100nA) 5V Supply Voltage RTFQ2 Applications • • • • • • Wireless Security Systems Car Alarms Remote Gate Controls Remote Sensing RRFQ2 Data Capture Sensor Reporting Description These miniature RF modules provide a cost effective high performance FM Radio data link, at either 315, 433.92 or 868MHz. Manufactured using laser trimmed Thick Film ceramic Hybrid the modules exhibits extremely stable electronic characteristics over an Industrial Temperature range. The hybrid technology uses no adjustable components and ensures very reliable operation. This transmitter and receiver pair enables the simple implementation of a data link at distances upto 75 metres in-building and 250 metres open ground. These modules will suit one-to-one and multi-node wireless links in applications including car and building security, EPOS and inventory tracking, remote industrial process monitoring and computer networking. Because of their small size and low power requirements, both modules are ideal for use in portable, batterypowered applications such as hand-held terminals. DS069-8 May 04 ©2004 Reg. No. 227 4001, England Page 1 FM TRANSMITTER & RECEIVER HYBRID MODULES. FM-RTFQ SERIES FM-RRFQ SERIES Transmitters There are two versions of transmitter: RTFQ1; A Dual in Line Package operating at 3.3V. This provides the most rugged mechanical fixing to the host PCB. Power Down mode is also available. RTFQ2; A Single in Line Package incorporating a voltage regulator for 3-12V operation. (Compatible with many other RF transmitter modules available) Transmitter Block Diagram In XTAL Oscillator XTAL PLL Synthesizer Power Amp Out En Part Numbering Part Number FM-RTFQ1-315 FM-RTFQ1-433 Description DIL FM Transmitter Module 315 MHz DIL FM Transmitter Module 433.92 MHz FM-RTFQ1-868 DIL FM Transmitter Module 868.35 MHz FM-RTFQ2-433R SIL FM Transmitter Module 433.92 MHz 3-12V I/P FM-RTFQ2-868R SIL FM Transmitter Module 868.35 MHz 3-12V I/P Receivers There are two versions of receiver: RRFQ1: A Single in Line Package with sleep / Power down mode. RRFQ2: A Single in Line Package, pin compatible with many other receivers Receiver Block Diagram Vcc Vcc In Pre Amp Filter Mixer 10.7MHz IF Filter FM Demodulator Comparator Out GND PLL Synthesizer GND GND Part Numbering DS069-8 May 04 Part Number FM-RRFQ1-315 FM-RRFQ1-433 Description SIL FM Receiver Module 315 MHz SIL FM Receiver Module 433.92 MHz FM-RRFQ1-868 SIL FM Receiver Module 868.35 MHz FM-RRFQ2-433 SIL FM Receiver Module 433.92 MHz FM-RRFQ2-868 SIL FM Receiver Module 868.35 MHz ©2004 Reg. No. 227 4001, England Page 2 FM TRANSMITTER & RECEIVER HYBRID MODULES. FM-RTFQ SERIES FM-RRFQ SERIES RTFQ1 Mechanical Dimensions 20.32mm PCB Layout Requirements 1 Top View (Components Underneath) 5.08mm 2 3 2.54mm Module Thickness 2mm 6 11.43mm 5 4 Pins on "0.1 pitch Pin Dimensions : 0.25mm x 0.50mm 20mm RTFQ2 Mechanical Dimensions PCB Layout Requirements 30.48mm 10.67mm 2.54 1mm 20.32mm 2.54 spacing Module Thickness 2mm Pins on "0.1 pitch RTFQ2 1 2 Pin Dimensions : 0.25mm x 0.50mm 3 4 5 Pin Description RTFQ1 1 2 3 4 5 6 RTFQ2 N/A 5 1 3 4 2 Name En IN GND Vcc GND EA Description Enable (active high) Data input Ground, Connect to RF earth return path Supply Voltage Ground, Connect to RF earth return path External Antenna Technical Specifications Electrical Characteristics Supply Voltage RTFQ1 Supply Voltage RTFQ2 Supply Current Standby Current (IN = EN = Low) MIN 2.1 2.5 7 Frequency RF Output into 50Ω (Vcc=3.3V) Initial Frequency Accuracy FM Deviation Harmonic Spurious Emissions Input High Voltage RTFQ1 Input High Voltage RTFQ2 Power up Time (En to full RF) Power up Time (Power on to full RF) Max Data Rate Operating Temperature DS069-8 May 04 TYPICAL 3.3 -35 25 315.0 433.92 868.35 +5 / +5 / +1 0 30 -50 1.5 1.5 -25 ©2004 Reg. No. 227 4001, England MAX 4.00 12.00 8 100 DIMENSION V V mA nA MHz +35 35 Vcc 5.5 1 5 9.6 +80 Page 3 dBm KHz KHz dBc V V mS mS KHz °C FM TRANSMITTER & RECEIVER HYBRID MODULES. FM-RTFQ SERIES FM-RRFQ SERIES RRFQ1 Mechanical Details 38.1mm 4mm Component Side 1 3 7 18.3mm 11 15 Pin Dimensions : 0.25mm x 0.50mm 2.54mm RRFQ2 Mechanical Details 45.72mm 3mm Component Side 1 2 16.5mm 14 18 1mm Pin Dimensions : 0.25mm x 0.50mm 2.54mm Pin Description RRFQ1 1 2, 7,11 3 12 13 N/A 14 15 RRFQ2 16 2,15 1 14 17 18 N/A RSSI Output Pin Description +Vcc GND Data In (Antenna) NC Received Signal Strength Output AF Output Data Out Power Down 0V = Standby 5V = Operating RF In (dBm) -120 -110 -100 -90 -80 -70 -60 -50 -40 RSSI (V) 1.20 1.32 1.50 1.78 2.06 2.35 2.62 2.72 2.75 Technical Specifications Electrical Characteristics Supply Voltage (Vcc) Supply Current (Operating) Supply Current (Standby) Min 4.5 Max 5.5 6.8 100 315.00 433.92 868.35 Receiver Frequency R.F Sensitivity (100% AM) 315 ,433MHZ versions 868MHz versions 3dB Bandwidth Data Rate Turn on Time Turn on Time Level of Emitted Spectrum Low Level Output Voltage High Level Output Voltage Operating Temperature Range Typical 5 5.7 dBm 9,600 5 8 -70 0.8 Vcc-1 -25 +80 KHz Hz mSecs mSecs dBm V V o C Notes 1. Time from PD pin going high to stable data. (RRFQ1 only) 2. Time from Poer ON to stable data. DS069-8 May 04 ©2004 Reg. No. 227 4001, England Notes MHz -103 -100 +/-150 300 Dimension V mA nA Page 4 1 2 I = 200uA I = 200uA FM TRANSMITTER & RECEIVER HYBRID MODULES. FM-RTFQ SERIES FM-RRFQ SERIES Typical Application The following circuits show a remote control system with ‘self learning feature’ for more information please see Datasheet DS600 Transmitter Circuit 3.3V Antenna 3.3V SW1-4 1 2 3 4 A0 Vcc A1 LED A2 DATA A3 GND 2K2 8 1 7 6 5 BC848 10K EN ANT 2 IN 3 GND 6 5 GND 4 Vcc RTFQ1-XXX RF600E Receiver Circuit Vcc 15KΩ 1KΩ 13 L Status LED FM -RRFQ1 12 3 7 11 Option Link 15 12 14 4 17 Sleep Vcc Vcc OP1 O/P 1 18 LKIN O/P 2 OP2 M 1 O/P 3 OP3 OP4 10 LRN RF600D LB 1KΩ SD1 Learn Switch 2 O/P 4 3 Transmitter Low Battery Serial Data Output 11 Vcc 9 ECLK IN GND 7 22KΩ 5 Prototyping Hints: It is essential when building any Low Power Radio System that you have a ‘clean’ DC power source. Typically the ripple voltage should be less than 10mV Peak to Peak. Normally a 470uF decoupling capacitor is sufficient de-coupling for an AC derived DC power source. Never place a Transmitter or Receiver directly into Vero-Board or any similar prototyping board. This will severely restrict the range. Rather, use small lengths of wire from the prototyping board to the pins of the Transmitter or Receiver. A useful antenna, for testing purposes, for both the Transmitter and Receiver on 433MHz is to use a piece of wire 17.3cm long (23.8cm at 315MHz) soldered directly to the antenna pin. For more information or general enquiries, please contact; RF Solutions Ltd., Unit 21, Cliffe Industrial Estate, South Street, Lewes, E Sussex, BN8 6JL. England Tel +44 (0)1273 898 000 Fax +44 (0)1273 480 661 Email sales@rfsolutions.co.uk http://www.rfsolutions.co.uk RF Solutions is a member of the Low Power Radio Association All Trademarks acknowledged and remain the property of the respected owners Information contained in this document is believed to be accurate, however no representation or warranty is given and R.F. Solutions Ltd. assumes no liability with respect to the accuracy of such information. Use of R.F.Solutions as critical components in life support systems is not authorised except with express written approval from R.F.Solutions Ltd. DS069-8 May 04 ©2004 Reg. No. 227 4001, England Page 5
