ZULU-M-ARDUINO

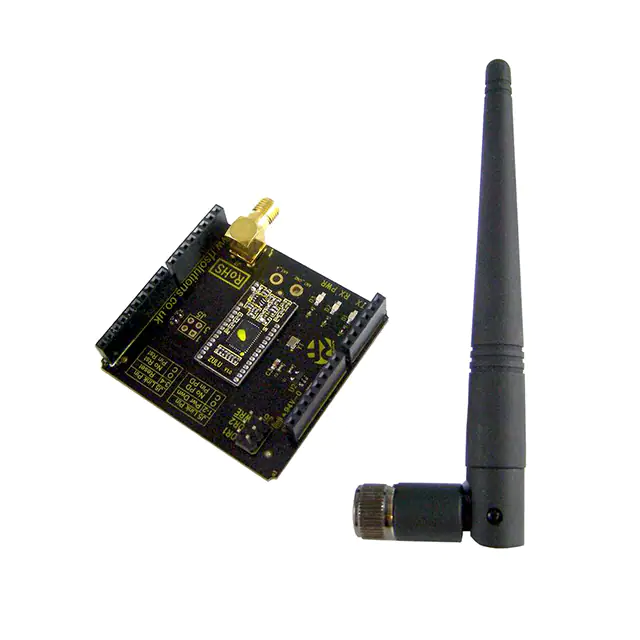

Arduino RF Shield Zulu 2km Radio Link Features • RF serial Data upto 2KM Range • Serial Data Interface with Handshake • Host Data Rates up to 38,400 Baud • RF Data Rates to 56Kbps • 5 User Selectable Channels • Secure Data Protocol • CE Compliant for Licence Free Use • 868MHz or 915MHz Versions Description The ZULU Arduino provides a radio (Modem) link with easy interface to for upto 2KM range. Range may be further extended with suitable antenna. All RF operation is auto controlled (with error checking etc) so the ZULU Arduino can be treated as a simple Communications device. This shield is also compatible with the RF Solutions Blizzard Modem. The shield is ready to plug and play with default setting serial port set to 4800, 8 Bits, No Parity, 1 Stop Bit (Hardware CTS / RTS). Ordering Information Part Number Description ZULU-M-ARDUINO ZULU Modem Arduino Shield Board Shield Connections DS-ZULU-M-ARDUINO-2 ZULU Arduino Shield Description: Serial Data Format Baud Rate: Defined by DR1 and DR2 Pins Data Bits: 8, No Parity, 1 Stop Bit Flow Control: Hardware CTS / RTS CTS, RTS Clear to Send and Request to Send are standard data flow control used in RS232 systems, these are standard but operate at the Zulu Vcc low level voltage. If no handshaking required RTS (Arduino D3) may be pulled low, however beware of data overrun errors of transmitting streams of data longer than the data buffer! RESET If J5 (1-2, 3-4) are unconnected Reset and PD are disabled. If J5 (1-2, 3-4) are connected Reset and PD are enabled and controlled by Arduino. DR1 - DR2 These inputs define the host interface Baud Rate. They are read when RESET pin goes high. Tip: It is good practice to operate the host interface at half the speed of the RF data rate (set by Register R5. DR1 DR2 Host Baud Rate Vcc / Unconnected Vcc / Unconnected GND GND Vcc / Unconnected GND Vcc / Unconnected GND 4,800 9,600 19,200 38,400 PD This input enables ‘Sleep’ Mode. For normal operation connect to Vcc. No RF packets will be received by the module when it is in sleep mode. WRE Controls where the User configuration parameters are saved in internal EEPROM (Non Volatile) or RAM (Volatile) Un-used. This may be ignored unless the application requires specific address timing on powerup. DS-ZULU-M-ARDUINO-2 ZULU Arduino Operation Overview The ZULU MODEM Module provides a simple Modem interface to the host controller. It handles all RF data communications automatically and without any requirement from the user (RF packetizing, Preamble, Encoding, CRC Check etc). With this powerful high-speed Radio link. The following networks can be realised; One-to-One operation; for point to point data communication. One-to-Many; A network consisting a master and many slaves (the receivers all have the same address). Many-to-One; Where the transmitters all send to a single receiver address. Because each ZULU MODEM can contain a unique address, multiple ZULU networks can co-exist in the same area. Broadcast operation; Where a single master Zulu MODEM addresses many ZULU MODEMS concurrently. (using many ZULU MODEM modules set to the same address). Operating Modes: Configuration Mode: In Configuration mode the Zulu MODEM can receive a number of commands and the internal registers can be pre-set to control its operation. In this mode the Zulu MODEM is ‘Offline’ and cannot send or receive RF data. Normal Operation: ZULU MODEM is ’Online’ automatically transmitting and receiving data from its host and across the RF network. Each ZULU MODEM has its own pre-set address. This is user set during configuration. Any data received is examined and the address header embedded within the data packet is compared with its address. Only data received with matching address will be processed and output to the host, all other data will be discarded. All ZULU MODEM modules are shipped with a default address of 7F7F7F. The ZULU MODEM contains an on-board data buffer equal to two data packets. Therefore if RTS is asserted (then the host is unable to receive data) the module will store a max of two data packets, all further data packets received will be discarded. DS-ZULU-M-ARDUINO-2 ZULU Arduino Configuration Mode (offline) Commands can be set using a standard Terminal program or by sending the relevant ASCII characters. Each Command must be followed by the Carriage Return or ‘Enter’ Note: All commands are entered in upper case. Command Description Response from Zulu Enter Configuration Mode +++ ? F H P Note: these must be sent as a string with no char in front or behind this is to ensure that the +++ is not mistakenly received in mid data. retrieve the current register values Zulu responds with Status info Zulu responds with all Register Values set factory defaults; R1=7F7F7F R2=7F7F7F R3 = Ch2 (869.450MHz) R4 = 7 (+20dBm) R5 = 1 (19K2) ‘OK’ Help Brief description of commands available Ping Mode This sends a ping request . The originating Zulu Modem will respond with the Recipient Zulu Modems’ response, eg. Received from 7F7F7F (D5) On receiving, the recipient Zulu Modem will respond with its address and the level of RSSI (Received Signal Strength) The Ping command is continuously repeated every 1 second until any command or character is entered. Where 7F7F7F = the recipient Address D5= RSSI RSSI Is a Hex value corresponding to the received signal strength Min = 20hex Max =E0hex S S Save Configuration ‘SAVED’ Q Exit configuration mode and return to online mode No response DS-ZULU-M-ARDUINO-2 ZULU Arduino Register Setting (Configuration Mode) The internal registers enable various parameters to be controlled. To set a register type ‘R#=x’ where # is the register number (1-6) and x is the value to set For example, to set the channel to channel 3 type the following. R3=3 (Where is carriage return or enter on the keyboard) The modem will then return ‘OK’ or ‘Error’ if an incorrect command is entered. Save the changes by typing S The modem will return with ‘SAVED’ Default values are shown in BOLD Register Value Range Description Example R1 0000 - FFFFFF (24 bit address) Sets the recipient Zulu MODEM Address R1=0001 (Data sent is addressed to Set own Zulu Modem address R2=F001 (Data sent is from Zulu MODEM with address F001) 0000 - FFFFFF (24 bit address) R2 R3 CH0 CH1 CH2 CH3 CH4 = = = = = 868.400 868.900 869.450 869.600 869.800 MHz MHz MHz MHz MHz 0 = +1dBm 1 = +2dBm 2 = +5dBm 3 = +8dBm 4 = +11dBm 5 = +14dBm 6 = +17dBm R4 0 1 2 3 R5 = = = = 9,600 19,200 28,800 56,000 Set RF channel R3=2 (Transmit on Channel 2) Set the RF Transmit Power output* R4=7 (sets Transmit Power to max)* Set the RF baud rate* R5=3 (sets the RF data rate to 56Kbps) Channel Number Frequency Centre (MHz) EU Power Allowance mW / dBm 0 1 2 3 4 868.400 868.900 869.450 869.600 869.800 25 / 14 25 / 14 100 / 20 100 / 20 25 / 14 Notes Applicable standard - EN300-220 Notes on power and frequency The EU standard sets maximum power transmission limits dependent on the frequency, the bandwidth and the application. Please check the relevant standards are being met when implementing your RF Application. A rough guidance applicable to the ZULU channel numbers is given below: *Note: Reducing Tx power reduces battery consumption! Reducing the baud rate will increase the range! DS-ZULU-M-ARDUINO-2 ZULU Arduino Simplified Declaration of Conformity (RED) BG - С настоящото RF Solutions Limited декларира, че този тип радиосъоръжение дефинирани в този документ е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: www.rfsolutions.co.uk CS - Tímto RF Solutions Limited prohlašuje, že typ rádiového zařízení definované v tomto dokumentu je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: www.rfsolutions.co.uk DA - Hermed erklærer RF Solutions Limited , at radioudstyrstypen defineret i dette dokument er i overensstemmelse med direktiv 2014/53/EU. EUoverensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: www.rfsolutions.co.uk DE - Hiermit erklärt RF Solutions Limited , dass der Funkanlagentyp in diesem Dokument definiert der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: www.rfsolutions.co.uk EL - Με την παρούσα ο/η RF Solutions Limited , δηλώνει ότι ο ραδιοεξοπλισμός ορίζεται σε αυτό το έγγραφο πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: www.rfsolutions.co.uk EN - Hereby, RF Solutions Limited declares that the radio equipment type defined within this document is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.rfsolutions.co.uk ES - Por la presente, RF Solutions Limited declara que el tipo de equipo radioeléctrico definido dentro de este documento es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: www. rfsolutions.co.uk ET - Käesolevaga deklareerib RF Solutions Limited , et käesolev raadioseadme tüüp määratletud selles dokumendis vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: www.rfsolutions.co.uk FI - RF Solutions Limited vakuuttaa, että radiolaitetyyppi määratletud selles dokumendis on direktiivin 2014/53/EU mukainen. EU vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: www.rfsolutions.co.uk FR - Le soussigné, RF Solutions Limited , déclare que l'équipement radioélectrique du type défini dans ce document est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: www.rfsolutions.co.uk HR - RF Solutions Limited ovime izjavljuje da je radijska oprema tipa definirani u ovom dokumentu u skladu s Direktivom 2014/53/EU . Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: www.rfsolutions.co.uk HU - RF Solutions Limited igazolja, hogy a dokumentumban meghatározottak szerint típusú rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: www.rfsolutions.co.uk IT - Il fabbricante, RF Solutions Limited , dichiara che il tipo di apparecchiatura radio definito all'interno di questo documento è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: www.rfsoluti ons.co.uk LT - Aš, RF Solutions Limited , patvirtinu, kad radijo įrenginių tipas apibrėžta šiame dokumente atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: www.rfsolutions.co.uk LV - Ar šo RF Solutions Limited deklarē, ka radioiekārta kas definēts šajā dokumentā atbilst Direktīvai 2014/53/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: www.rfsolutions.co.uk MT - B'dan, RF Solutions Limited , niddikjara li dan it-tip ta' tagħmir tar-radju definit f'dan id-dokument huwa konformi mad-Direttiva 2014/53/UE. Ittest kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej: www.rfsolutions.co.uk NL - Hierbij verklaar ik, RF Solutions Limited , dat het type radioapparatuur gedefinieerd in dit document conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: www.rfsolutions.co.uk PL - RF Solutions Limited niniejszym oświadcza, że typ urządzenia radiowego zdefiniowane w tym dokumencie jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: www.rfsolutions.co.uk PT - O(a) abaixo assinado(a) RF Solutions Limited declara que o presente tipo de equipamento de rádio definido neste documento est á em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: www.rfsolutions.co.uk RO - Prin prezenta, RF Solutions Limited declară că tipul de echipamente radio definit în acest document este în conformitate cu Directiva 2014/53/ UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: www.rfsolutions.co.uk SK - RF Solutions Limited týmto vyhlasuje, že rádiové zariadenie typu definované v tomto dokumente je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: www.rfsolutions.co.uk SL - RF Solutions Limited potrjuje, da je tip radijske opreme opredeljeno v tem dokumentu skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: www.rfsolutions.co.uk SV - Härmed försäkrar RF Solutions Limited att denna typ av radioutrustning definieras i detta dokument överensstämmer med direkti v 2014/53/EU. Den fullständiga texten till EU-försäkran om överensstämmelse finns på följande webbadress: www.rfsolutions.co.uk RF Solutions Ltd. Recycling Notice Waste Batteries and Accumulators Meets the following EC Directives: Directive 2006/66/EC DO NOT Where batteries are fitted, before recycling the product, Discard with normal waste, please recycle. the batteries must be removed and disposed of at a licensed ROHS Directive 2011/65/EU and amendment 2015/863/EU collection point. Specifies certain limits for hazardous substances. RF Solutions battery producer number: BPRN00060. WEEE Directive 2012/19/EU Waste electrical & electronic equipment. This product must be disposed of through a licensed WEEE collection point. RF Soluti ons Ltd., fulfills its WEEE obligations by membership of an approved compliance scheme. Environment Agency producer registration number: WEE/JB0104WV. Disclaimer: Whilst the information in this document is believed to be correct at the time of issue, RF Solutions Ltd does not accept any liability whatsoever for its accuracy, adequacy or completeness. No express or implied warranty or representation is given relating to the information contained in this document. RF Solutions Ltd reserves the right to make changes and improvements to the product(s) described herein without notice. Buyers and other users should determine for themselves the suitability of any such information or products for their own particular requ irements or specification(s). RF Solutions Ltd shall not be liable for any loss or damage caused as a result of user’s own determination of how t o deploy or use RF Solutions Ltd’s products. Use of RF Solutions Ltd products or components in life support and/or safety applications is not authorised except with express written approval. No licences are created, implicitly or otherwise, under any of RF Solutions Ltd’s intellectual prop erty rights. Liability for loss or damage resulting or caused by reliance on the information contained herein or from the use of the product (including liability resulting from negligence or where RF Solutions Ltd was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict RF Solutions Ltd’s liability for death or personal injury resulting from its negligence.
