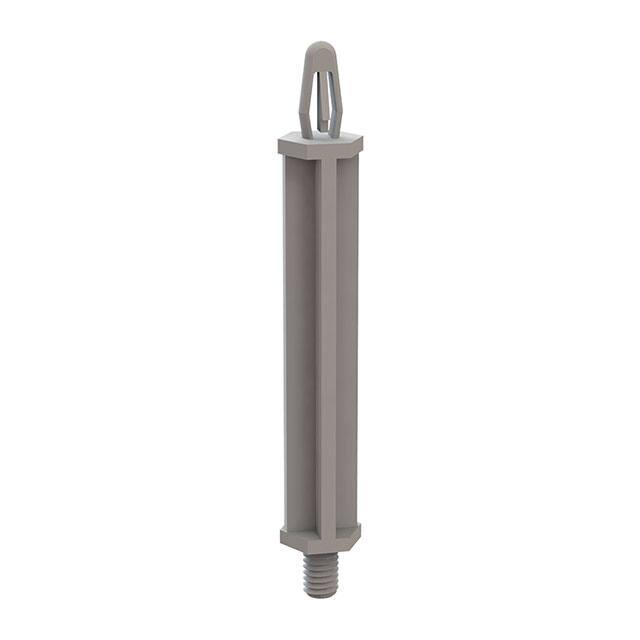

27MLMTP45

8 6 7 4 5 3 2 1 UNCONTROLLED DOCUMENT D NOTES: HOLE SIZE 4MM PANEL THICKNESS 1.8MM 8.0±0.38 D 10.2 REF C C 45.0±0.38 1.6±0.38 1.6±0.38 B B 6.4±0.38 PROPERTY OF MICRO PLASTICS INC. M4 X .7 THREADS A WE RESERVE THE RIGHT TOLERANCES UNLESS NOTED TO DISCONTINUE ITEMS, CHANGE SPECIFICATIONS .005 ON DIMENSIONS THRU .625 .008 ON DIMENSIONS .626 THRU 1.000 OR DESIGN AT ANY TIME .010 ON DIMENSIONS 1.001 THRU 1.500 WITHOUT NOTICE AND .015 ON DIMENSIONS LARGER THAN 1.500 WITHOUT INCURRING .015 ON FRACTIONAL DIMENSIONS ANY OBLIGATIONS 8 7 6 5 4 CATALOG DRAWING METRIC MALE PCB SUPPORT POST MICRO P/N 27MLMTP45 DWG. # 27MLMTP45 FILE SERVER\ENG\WEB MATERIAL: NYLON 6/6 SCALE DATE 3 2 1.5:1 TA 1 A
