RT8078A
4A, 1MHz, Synchronous Step-Down Converter
General Description
Features
The RT8078A is a high efficiency synchronous, step-down
DC/DC converter. It's input voltage range from 2.7V to 5.5V
that provides an adjustable regulated output voltage from
0.6V to VIN while delivering up to 4A of output current.
High Efficiency : Up to 95%
The internal synchronous low on-resistance power
switches increase efficiency and eliminate the need for
an external Schottky diode. The switching frequency is
fixed internally at 1MHz. The 100% duty cycle provides
low dropout operation, hence extending battery life in
portable systems. Current mode operation with internal
compensation allows the transient response to be
optimized over a wide range of loads and output capacitors.
The RT8078A is operated in PWM mode to achieve high
efficiency for a wide load range. The RT8078A is available
in WDFN-10L 3x3 and SOP-8 (Exposed Pad) packages.
Fixed Frequency : 1MHz
No Schottky Diode Required
Internal Compensation
0.6V Reference Allows Low Output Voltage
PWM Mode Operation
Low Dropout Operation : 100% Duty Cycle
OCP, UVP, OVP, OTP
RoHS Compliant and Halogen Free
Applications
Ordering Information
Portable Instruments
Battery Powered Equipment
Notebook Computers
Distributed Power Systems
IP Phones
Digital Cameras
RT8078A
Lead Plating System
G : Green (Halogen Free and Pb Free)
Z : ECO (Ecological Element with
Halogen Free and Pb free)
Pin Configurations
(TOP VIEW)
LX
LX
LX
PGOOD
EN
Note :
1
2
3
4
5
GND
Package Type
QW : WDFN-10L 3x3 (W-Type)
SP : SOP-8 (Exposed Pad-Option 2)
11
10
9
8
7
6
PVIN
PVIN
SVIN
NC
FB
WDFN-10L 3x3
Richtek products are :
RoHS compliant and compatible with the current require-
LX
ments of IPC/JEDEC J-STD-020.
LX
2
PGOOD
3
Suitable for use in SnPb or Pb-free soldering processes.
EN
8
7
GND
6
9
4
5
PVIN
PVIN
SVIN
FB
SOP-8 (Exposed Pad)
Copyright © 2019 Richtek Technology Corporation. All rights reserved.
DS8078A-02 June 2019
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
1
RT8078A
Marking Information

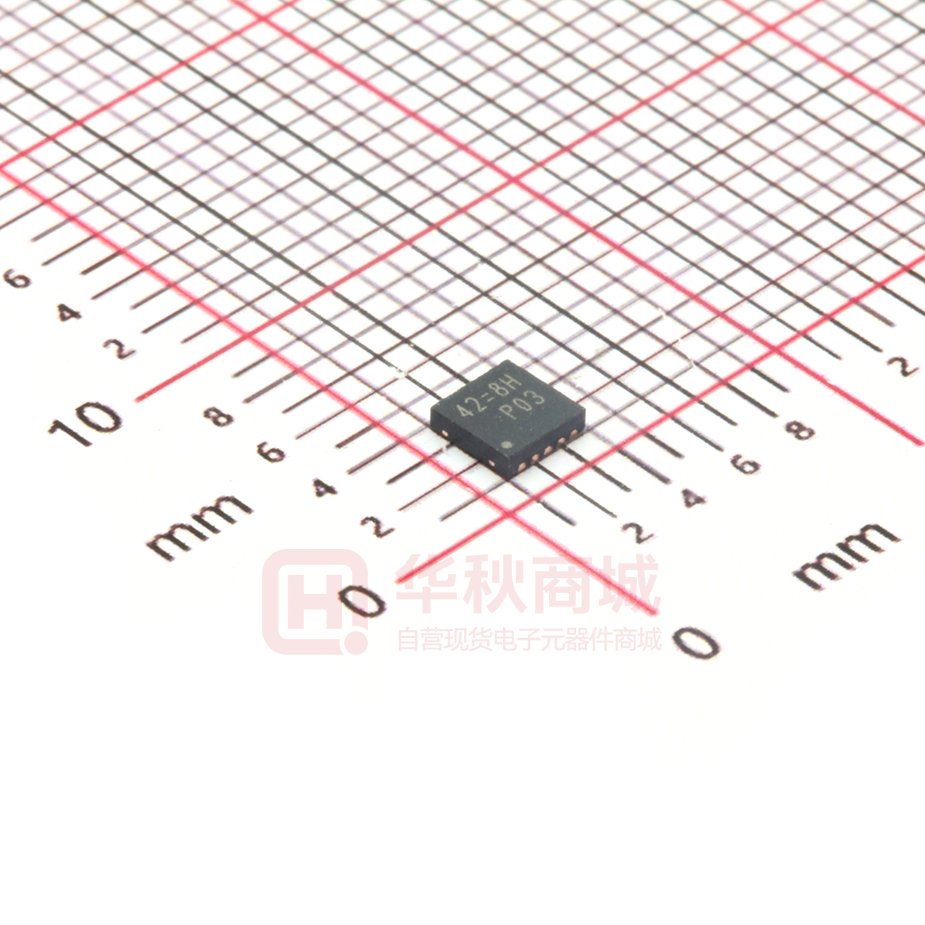

RT8078AGQW
RT8078AGSP
42= : Product Code
RT8078AGSP : Product Number
RT8078A
GSPYMDNN
YMDNN : Date Code
42=YM
DNN
RT8078AZQW
YMDNN : Date Code
RT8078AZSP
RT8078AZSP : Product Number
42 : Product Code
42 YM
DNN
RT8078A
ZSPYMDNN
YMDNN : Date Code
YMDNN : Date Code
Typical Application Circuit
LOUT
RT8078A
PGOOD
PGOOD
LX
VOUT
COUT
R1
R1
PVIN
VIN
CIN
SVIN
CFF
FB
C1
R2
Chip Enable
GND
EN
Table 1. Recommended Component Selection
VOUT (V)
R1 (k)
R2 (k)
CFF (pF)
L (H)
COUT (F)
3.3
229.5
51
22
2
22 x 2
2.5
161.5
51
22
2
22 x 2
1.8
102
51
22
1.5
22 x 2
1.5
76.5
51
22
1.5
22 x 2
1.2
51
51
22
1.5
22 x 2
1.0
34
51
22
1.5
22 x 2
Copyright © 2019 Richtek Technology Corporation. All rights reserved.
www.richtek.com
2
is a registered trademark of Richtek Technology Corporation.
DS8078A-02 June 2019
RT8078A
Functional Pin Description
Pin No.
WDFN-10L 3x3
1, 2, 3
Pin
SOP-8
Name
(Exposed Pad)
1, 2
LX
Pin Function
Switch Node. Connect this pin to the inductor.
4
3
PGOOD
Power Good Indicator. This pin is an open drain logic output that is
pulled to ground when the output voltage is less than 90% of the
target output voltage. Hysteresis = 5%.
5
4
EN
Enable Control. Pull high to turn on. Do not float.
6
5
FB
Feedback Pin. This pin receives the feedback voltage from a
resistive voltage divider connected across the output.
7
--
NC
8
6
SVIN
9,10
7,8
PVIN
No Internal Connection.
Signal Input Pin. Decouple this pin to GND with at least 1F ceramic
cap.
Power Input Pin. Decouple this pin to GND with at least 4.7F
ceramic cap.
Ground. The exposed pad must be soldered to a large PCB and
connected to GND for maximum power dissipation.
11
9
GND
(Exposed Pad) (Exposed Pad)
Function Block Diagram
EN
EN
PVIN
ISEN
PGOOD
0.6V
FB
EA
Slope
Com
OSC
PGOOD
OC
Limit
Output
Clamp
Driver
Int-SS
LX
0.72V
0.54V
POR
0.2V
Control
Logic
OV
PG
NISEN
Zero Current
UV
VREF
OTP
SVIN
Copyright © 2019 Richtek Technology Corporation. All rights reserved.
DS8078A-02 June 2019
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
3
RT8078A
Absolute Maximum Ratings
(Note 1)
Supply Input Voltage, PVIN, SVIN ------------------------------------------------------------------------------- −0.3V to 6.5V
LX Pin
DC ---------------------------------------------------------------------------------------------------------------------- −0.3V to (VIN + 0.3V)
< 100ns --------------------------------------------------------------------------------------------------------------- −2.5V to 9V
Other I/O Pin Voltage ----------------------------------------------------------------------------------------------- −0.3V to 6.5V
Power Dissipation, PD @ TA = 25°C
WDFN-10L 3x3 ------------------------------------------------------------------------------------------------------- 1.429W
SOP-8 (Exposed Pad) --------------------------------------------------------------------------------------------- 1.333W
Package Thermal Resistance (Note 2)
WDFN-10L 3x3, θJA ------------------------------------------------------------------------------------------------- 70°C/W
WDFN-10L 3x3, θJC ------------------------------------------------------------------------------------------------- 8.2°C/W
SOP-8 (Exposed Pad), θJA ---------------------------------------------------------------------------------------- 75°C/W
SOP-8 (Exposed Pad), θJC --------------------------------------------------------------------------------------- 15°C/W
Lead Temperature (Soldering, 10 sec.) ------------------------------------------------------------------------- 260°C
Junction Temperature ----------------------------------------------------------------------------------------------- 150°C
Storage Temperature Range -------------------------------------------------------------------------------------- −65°C to 150°C
ESD Susceptibility (Note 3)
HBM (Human Body Mode) ---------------------------------------------------------------------------------------- 2kV
MM (Machine Mode) ------------------------------------------------------------------------------------------------ 200V
Recommended Operating Conditions
(Note 4)
Supply Input Voltage, PVIN, SVIN ------------------------------------------------------------------------------- 2.7V to 5.5V
Junction Temperature Range -------------------------------------------------------------------------------------- −10°C to 105°C
Electrical Characteristics
(VIN = 5.5V, TA = 25°C, unless otherwise specified)
Parameter
Symbol
Feedback Reference Voltage
VREF
Feedback Leakage Current
IFB
Test Conditions
Active , VFB = 0.58V, Not
Switching
DC Bias Current
Shutdown
VIN = 2.7V to 5.5V
IOUT = 0A
(Note 5)
Output Voltage Line Regulation
Output Voltage Load Regulation
Switch Leakage Current
Switching Frequency
Min
Typ
Max
Unit
0.594
0.6
0.606
V
--
0.1
0.4
A
--
110
--
A
--
--
1
--
0.3
--
%/V
2
--
2
%
-0.8
-1
1
1.2
A
MHz
Switch On Resistance, High
RDS(ON)_P
--
69
--
m
Switch On Resistance, Low
RDS(ON)_N
--
49
--
m
P-MOSFET Current Limit
ILIM
4.4
--
--
A
Under Voltage Lockout
Threshold
VUVLO
VIN Rising
--
2.4
--
VIN Falling
--
2.2
--
Copyright © 2019 Richtek Technology Corporation. All rights reserved.
www.richtek.com
4
V
is a registered trademark of Richtek Technology Corporation.
DS8078A-02 June 2019
RT8078A
Parameter
Logic-High
EN Input
Threshold Voltage Logic-Low
Symbol
Test Conditions
Min
Typ
Max
VIH
1.6
--
--
VIL
--
--
0.4
--
500
--
k
EN Pull Low Resistance
Unit
V
Over Temperature Protection
TSD
--
150
--
C
Over Temperature Protection
Hysteresis
Soft-Start Time
VOUT Discharge Resistance
VOUT Over Voltage Protection
(Latch-Off, Delay Time = 10s)
VOUT Under Voltage Lock Out
(Latch-Off)
TSD
--
20
--
C
500
--
-100
---
s
--
120
--
%
--
33
--
%
--
90
--
%
--
5
--
%
Power Good
tSS
Measured FB, With Respect to
VREF
Power Good Hysteresis
Note 1. Stresses listed as the above "Absolute Maximum Ratings" may cause permanent damage to the device. These are for
stress ratings. Functional operation of the device at these or any other conditions beyond those indicated in the
operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended
periods may remain possibility to affect device reliability.
Note 2. θJA is measured in natural convection at TA = 25°C on a high effective thermal conductivity four-layer test board of
JEDEC 51-7 thermal measurement standard. The measurement case position of θJC is on the exposed pad of the
packages.
Note 3. Devices are ESD sensitive. Handling precaution is recommended.
Note 4. The device is not guaranteed to function outside its operating conditions.
Note 5. Guaranteed by design.
Copyright © 2019 Richtek Technology Corporation. All rights reserved.
DS8078A-02 June 2019
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
5
RT8078A
Typical Operating Characteristics
