Standard ICs
Dual comparators

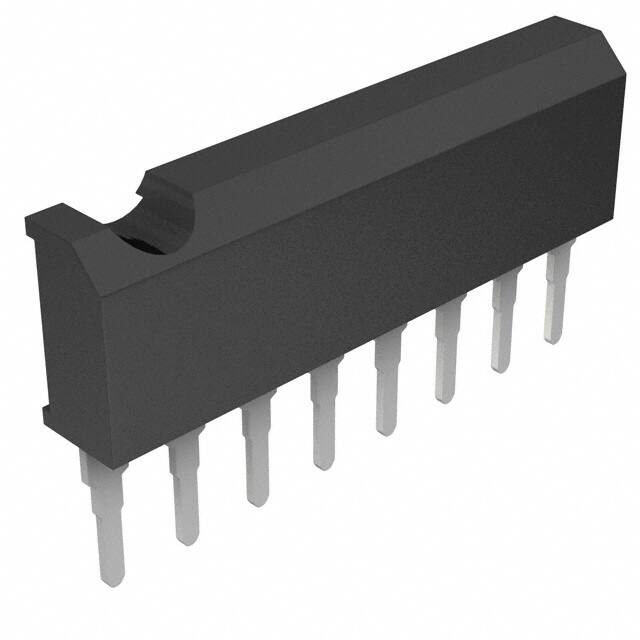

BA10393 / BA10393F / BA10393N
The BA10393, BA10393F, and BA10393N are dual comparators with open-collector output which allows wired OR
connections.
The operating power supply voltage ranges from 2 to 36V for a single power supply and ± 1 to ± 18V for a dual
power supply. The packages are as follows: DIP 8-pin (BA10393), SOP 8-pin (BA10393F), and SIP 8-pin
(BA10393N).
•1)Features
Wide operating voltage range.
(Single power supply: 2 to 36V, dual power supply: ±
1 to ± 18V)
2) Low current dissipation. (0.4mA typ. at VCC = 5V)
3) Low input offset voltage. (25nA typ. at VCC = 5V) and
low input offset voltage. (typically ±1.0mV at VCC =
5V)
4) Wide common-mode input voltage. (0 to VCC – 1.5V)
5) Open collector output.
6) Compatible with 393 comparators from other manufacturers.
•Block diagram
BA10393 / BA10393F
BA10393N
OUT1
1
8
VCC
– IN1
2
7
OUT2
6
– IN2
5
+ IN2
+
4
5
6
7
8
VEE
+ IN2
– IN2
OUT2
VCC
–
3
2ch
+ IN1
4
+
2
VEE
+
– IN1
3
2ch
–
1
+ IN1
+
OUT1
–
1ch
1ch
–
1
Standard ICs
BA10393 / BA10393F / BA10393N
•Internal circuit configuration
VCC
OUT
+ IN
– IN
GND
•Absolute maximum ratings (Ta = 25°C)
Parameter
Symbol
Limits
Unit
BA10393
BA10393F
BA10393N
VCC
36 ( ± 18)
36 ( ± 18)
36 ( ± 18)
V
Power dissipation
Pd
800∗
550∗
900∗
mW
Differential input voltage
VID
± VCC
± VCC
± VCC
Power supply voltage
V
VI
– 0.3 ~ VCC
– 0.3 ~ VCC
– 0.3 ~ VCC
V
Operating temperature
Topr
– 40 ~ + 85
– 40 ~ + 85
– 40 ~ + 85
°C
Storage temperature
Tstg
– 55 ~ + 125
– 55 ~ + 125
– 55 ~ + 125
°C
Common-mode input voltage
∗ Refer to the Pd characteristics diagram.
The values for the BA10393F are those when it is mounted on a glass epoxy PCB (50mm × 50mm × 1.6mm).
•Electrical characteristics (unless otherwise noted, Ta = 25°C, V
CC
Parameter
Symbol
Min.
Input offset voltage
VIO
—
Input offset current
IIO
—
Typ.
= + 5V)
Max.
Unit
Conditions
±1
±5
mV
VO = 1.4V
±5
± 50
nA
| IIN+ – IIN– |, VO = 1.4V
VO = 1.4V
IB
—
25
250
nA
VICM
0
—
VCC –1.5
V
Voltage gain
AV
93
106
—
dB
RL = 15kΩ, VCC = 15V
Quiescent current
IQ
—
0.4
1
mA
RL = ∞, on All Comparators
Output sink current
Isink
6
16
—
mA
VIN – = + 1V, VIN + = 0V, VO = 1.5V
Output saturation voltage
VOL
—
250
400
mV
VIN – = + 1V, VIN + = 0V, Isink = 4mA
Output leakage current
Ileak
—
0.1
—
nA
VIN + = + 1V, VIN – = 0V,VO = 5V
tr
—
1.3
µs
RL = 5.1kΩ, VRL = 5V
Input bias current
Common-mode input voltage
Response time
2
—
Standard ICs
BA10393 / BA10393F / BA10393N
•Electrical characteristic curves
800
BA10393
600 BA10393F
400
200
50
75 85 100
125
0.6
0.4
0.2
0
150
10
20
30
40
0.1
0.01
5mV = INPUT OVERDRIVE
5
4
3
20mV
2
1
100mV
1
10
Fig. 4 Output saturation voltage vs.
output current
100
0
– 50
0
30
40
5
INPUT OVERDRIVE = 100mV
4
3
20mV 5mV
2
1
0
– 100
0.1
20
Fig. 3 Input bias current vs. power
supply voltage
INPUT VOLTAGE
VIN (mV)
OUTPUT VOLTAGE
VO (V)
1
INPUT VOLTAGE
VIN (mV)
SATURATION VOLTAGE: VOL (V)
Ta = 25°C
10
POWER SUPPLY VOLTAGE: V (V)
Fig. 2 Quiescent current vs. power
supply voltage
10
0
+
POWER SUPPLY VOLTAGE: V (V)
Fig. 1 Power dissipation vs. ambient
temperature
OUTPUT SINK CURRENT: IO (mA)
20
+
AMBIENT TEMPERATURE: Ta (°C)
0.001
0.01
Ta = 25°C
0
0
OUTPUT VOLTAGE
VO (V)
25
0.8
INPUT BIAS CURRENT: IB (nA)
BA10393N
0
Ta = 25°C
RL = ∞
QUIESCENT CURRENT: IQ (mA)
POWER DISSIPATION: Pd (mW)
1000
0
40
1.0
1200
0.5
1.0
1.5
2.0
TIME (µs)
Fig. 5 Propagation characteristics (!)
0
100
50
0
0
0.5
1.0
1.5
2.0
TIME (µs)
Fig. 6 Propagation characteristics (@)
3
Standard ICs
BA10393 / BA10393F / BA10393N
notes
•(1)Operation
Handling unused circuits
If a circuit is not in use, we recommend connecting it
as shown in Figure 7, so that its input is connected to
the potential within the in-phase input voltage range
(VICM) and the output is left open.
VCC
+
To potential
in VICM
Open
(no connected)
–
VEE
Fig. 7 Example of unused circuit connection
•External dimensions (Units: mm)
BA10393
BA10393F
5.0 ± 0.2
5
1
4
0.15 ± 0.1
4
8
4.4 ± 0.2
1
6.2 ± 0.3
5
6.5 ± 0.3
8
0.51Min.
1.5 ± 0.1
7.62
0.3 ± 0.1
0.11
3.2 ± 0.2 3.4 ± 0.3
9.3 ± 0.3
1.27
0.4 ± 0.1
0.3Min.
0.5 ± 0.1 0° ~ 15°
2.54
0.15
DIP8
SOP8
BA10393N
1.2
5.8 ± 0.2
2.8 ± 0.2
8
1
3.5 ± 0.5
10.5 ± 0.5
19.3 ± 0.2
2.54
0.6
0.8
1.3
SIP8
4
0.3 ± 0.1
