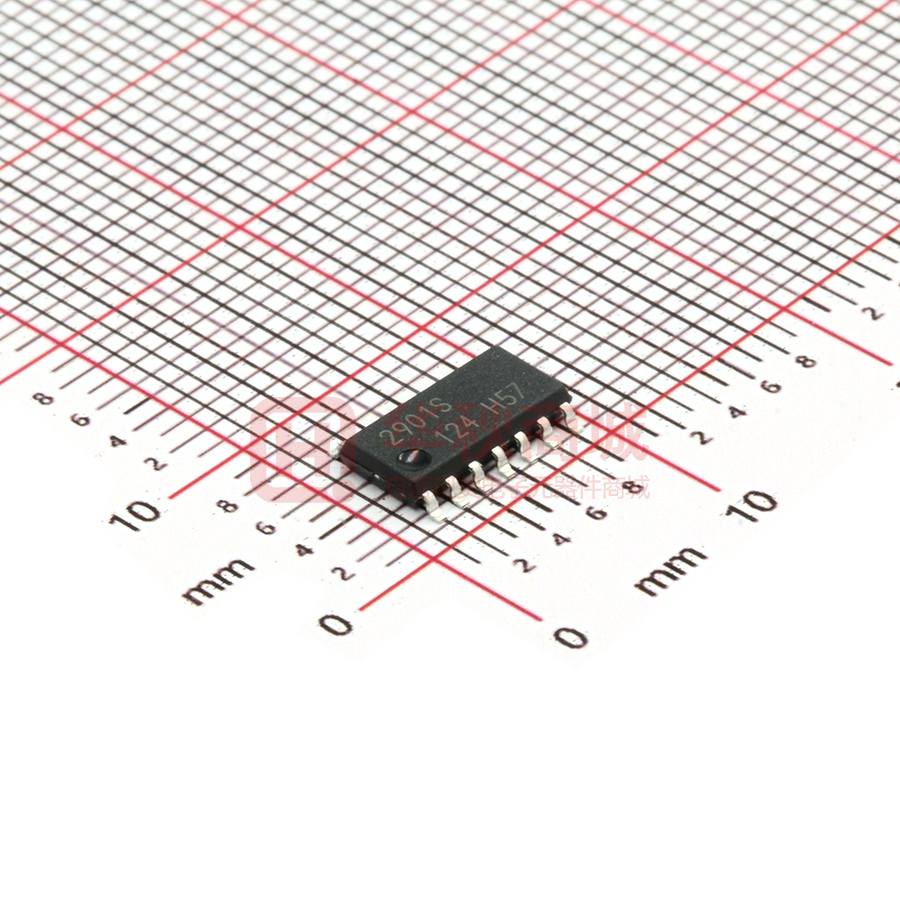

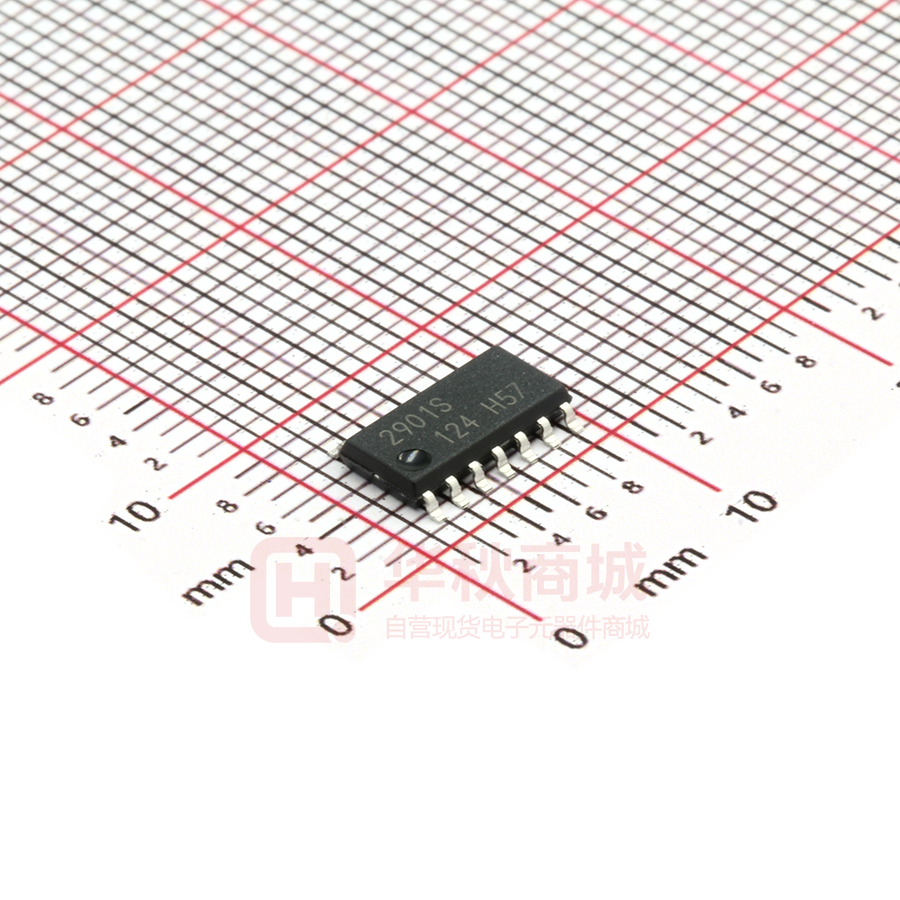

BA2901SF-E2

厂商：
ROHM(罗姆)
封装：
SOP14_8.7X4.4MM
描述：
接地感测比较器

数据手册：

下载BA2901SF-E2.pdf

立即购买

数据手册
价格&库存

BA2901SF-E2 数据手册

Datasheet Ground Sense Comparator BA8391G BA10393F BA10339 Series BA2903 Series General Description Key Specifications ◼ Operating Supply Voltage(Single Supply): BA8391G/BA10393F +2.0V to +36.0V BA2903xxxx/BA2901xxx +2.0V to +36.0V BA10339xx +3.0V to +36.0V ◼ Operating Supply Voltage(Split Supply): BA8391G/BA10393F ±1.0V to ±18.0V BA2903xxxx/BA2901xxx ±1.0V to ±18.0V BA10339xx ±1.5V to ±18.0V ◼ Temperature Range: BA8391G/BA10393F/BA10339xx -40°C to +85°C BA2903Sxxx/BA2901Sxx -40°C to +105°C BA2903xxx/BA2901xx -40°C to +125°C ◼ Input Offset Voltage: BA2903Sxxx/BA2901Sxx 7mV(Max) BA8391G/BA2903xxx/BA2901xx 7mV(Max) BA10393F/BA10339xx 5mV(Max) BA2903Wxx 2mV(Max) General purpose BA8391G/BA10393F/BA10339xx and high reliability BA2903xxxx/BA2901xxx integrate one, two or four independent high gain voltage comparator. Operating supply voltage range of BA8391G/BA1039 3F/BA2903xxxx/BA2901xxx is wide(2V to 36V). And can be used in a variety of applications because current consumption is small. BA2903Wxx is a low input offset voltage products.(2mV max) Features ◼ ◼ ◼ ◼ ◼ ◼ Operable with a Single Power Supply Wide Operating Supply Voltage Standard Pin Assignments Input and Output are Ground Sense Operated Open Collector Wide Temperature Range Packages Application ◼ ◼ ◼ ◼ BA2901 Series W(Typ) x D(Typ) x H(Max) 2.90mm x 2.80mm x 1.25mm 5.00mm x 6.20mm x 1.71mm 3.00mm x 6.40mm x 1.35mm 2.90mm x 4.00mm x 0.90mm 8.70mm x 6.20mm x 1.71mm 5.00mm x 6.40mm x 1.35mm SSOP5 SOP8 SSOP-B8 MSOP8 SOP14 SSOP-B14 General Use Current Monitor Battery Monitor Multi vibrator Selection Guide Maximum operating temperature Input Offset Voltage (Max) General Purpose High Reliability +85°C Single 7mV BA8391G Dual 5mV BA10393F Quad 5mV BA10339F BA10339FV Dual 7mＶ +105°C +125°C BA2903SF BA2903SFV BA2903SFVM BA2903F BA2903FV BA2903FVM BA2901SF BA2901SFV BA2903WF BA2903WFV BA2901F BA2901FV 2mV Quad 〇Product structure : Silicon monolithic integrated circuit www.rohm.com © 2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 14 • 001 7mV 〇This product has no designed protection against radioactive rays 1/56 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Simplified Schematic VCC OUT +IN -IN VEE Figure 1. Simplified Schematic (one channel only) Pin Configuration BA8391G : SSOP5 Pin No. -IN 1 VEE 2 +IN 3 5 VCC + 4 OUT Pin Name 1 -IN 2 VEE 3 +IN 4 OUT 5 VCC Pin No. Pin Name 1 OUT1 BA10393F, BA2903SF, BA2903F, BA2903WF : SOP8 BA2903SFV, BA2903FV, BA2903WFV : SSOP-B8 BA2903SFVM,BA2903FVM : MSOP8 8 VCC OUT1 1 -IN1 2 +IN1 3 CH1 - + CH2 7 OUT2 6 -IN2 + - VEE 4 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 5 +IN2 2/53 2 -IN1 3 +IN1 4 VEE 5 +IN2 6 -IN2 7 OUT2 8 VCC TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Pin Configuration - continued BA10339F, BA2901SF, BA2901F : SOP14 BA10339FV, BA2901SFV, BA2901FV : SSOP-B14 OUT2 1 14 OUT3 OUT1 2 13 OUT4 VCC 3 12 VEE 11 +IN4 10 -IN4 CH1 -IN1 4 +IN1 -IN2 CH4 －＋－＋ 5 6 CH3 CH2 －＋ +IN2 9 +IN3 8 -IN3 －＋ 7 Pin No. Pin Name 1 OUT2 2 OUT1 3 VCC 4 -IN1 5 +IN1 6 -IN2 7 +IN2 8 -IN3 9 +IN3 10 -IN4 11 +IN4 12 VEE 13 OUT4 14 OUT3 Package SSOP5 SOP8 BA8391G SSOP-B8 BA10393F BA2903SF BA2903F BA2903WF MSOP8 BA2903SFV BA2903FV BA2903WFV BA2903SFVM BA2903FVM SOP14 SSOP-B14 BA10339F BA2901SF BA2901F BA10339FV BA2901SFV BA2901FV Ordering Information B A x x x Part Number BA8391 BA10393xx BA10339xx BA2901xx BA2901Sxx BA2903xx BA2903Sxx BA2903Wxx www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 x x x x Package G : SSOP5 F : SOP8 SOP14 FV : SSOP-B8 SSOP-B14 FVM : MSOP8 3/53 x - xx Packaging and forming specification E2: Embossed tape and reel (SOP8/SOP14/SSOP-B8/SSOP-B14) TR: Embossed tape and reel (SSOP5/MSOP8) TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Line-up Operating Temperature Range -40°C to +85°C Input Offset Voltage (Max) Supply Current (Typ) 7mV 0.3mA SSOP5 Reel of 3000 BA8391G-TR 0.4mA SOP8 Reel of 2500 BA10393F-E2 SOP14 Reel of 2500 BA10339F-E2 SSOP-B14 Reel of 2500 BA10339FV-E2 SOP8 Reel of 2500 BA2903SF-E2 SSOP-B8 Reel of 2500 BA2903SFV-E2 MSOP8 Reel of 3000 BA2903SFVM-TR SOP14 Reel of 2500 BA2901SF-E2 SSOP-B14 Reel of 2500 BA2901SFV-E2 SOP8 Reel of 2500 BA2903F-E2 SSOP-B8 Reel of 2500 BA2903FV-E2 MSOP8 Reel of 3000 BA2903FVM-TR SOP8 Reel of 2500 BA2903WF-E2 SSOP-B8 Reel of 2500 BA2903WFV-E2 SOP14 Reel of 2500 BA2901F-E2 SSOP-B14 Reel of 2500 BA2901FV-E2 5mV 0.8mA 0.6mA -40°C to +105°C 7mV 0.8mA 0.6mA -40°C to +125°C 2mV 7mV 0.8mA Orderable Part Number Package Absolute Maximum Ratings (Ta=25°C) Rating Parameter Symbol Unit BA8391G Supply Voltage VCC-VEE Power Dissipation Differential Input Voltage PD (Note 3) +36 SSOP5 0.67 (Note1,2) V W VID +36 V VICM (VEE-0.3) to (VEE+36) V II -10 mA Operating Supply Voltage Vopr +2.0 to +36.0 (±1.0 to ±18.0) V Operating Temperature Range Topr -40 to +85 °C Storage Temperature Range Tstg -55 to +150 °C Maximum Junction Temperature Tjmax +150 °C Input Common-mode Voltage Range Input Current (Note 4) (Note 1) To use at temperature above TA＝25°C reduce 5.4mW. (Note 2) Mounted on a FR4 glass epoxy PCB(70mm×70mm×1.6mm). (Note 3) The voltage difference between inverting input and non-inverting input is the differential input voltage. Then input terminal voltage is set to more than VEE. (Note 4) Excessive input current will flow if a differential input voltage in excess of approximately 0.6V is applied between the input unless some limiting resistance is used. Caution: Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over the absolute maximum ratings. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 4/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Absolute Maximum Ratings - continued Rating Parameter Symbol Unit BA10393F Supply Voltage VCC-VEE +36 SOP8 Power Dissipation BA10339xx PD 0.62 V (Note 5,8) (Note 6,8) SOP14 - 0.49 SSOP-B14 - 0.70 (Note 7,8) W Differential Input Voltage(Note 9) VID (VEE to VCC) V Input Common-mode Voltage Range VICM (VEE-0.3) to VCC V II -10 mA Input Current(Note 10) +2.0 to +36.0 (±1.0 to ±18.0) +3.0 to +36.0 (±1.5 to ±18.0) Operating Supply Voltage Vopr V Operating Temperature Range Topr -40 to +85 °C Storage Temperature Range Tstg -55 to +125 °C Maximum Junction Temperature Tjmax +125 °C To use at temperature above TA＝25°C reduce 6.2mW. To use at temperature above TA＝25°C reduce 4.9mW. To use at temperature above TA＝25°C reduce 7.0mW. Mounted on a FR4 glass epoxy PCB(70mm×70mm×1.6mm). The voltage difference between inverting input and non-inverting input is the differential input voltage. Then input terminal voltage is set to more than VEE. (Note 10) Excessive input current will flow if a differential input voltage in excess of approximately 0.6V is applied between the input unless some limiting resistance is used. Caution: Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over the absolute maximum ratings. (Note 5) (Note 6) (Note 7) (Note 8) (Note 9) Rating Parameter Symbol Unit BA2903Sxxx Supply Voltage VCC-VEE BA2901xx +36 0.77 (Note 11,16) V 0.77 (Note 11,16) - (Note 12,16) - 0.68 (Note 12,16) - MSOP8 0.58 (Note 13,16) - 0.58 (Note 13,16) - SOP14 - 0.61 (Note 14,16) - 0.61 (Note 14,16) SSOP-B14 - 0.87 (Note 15,16) - 0.87 (Note 15,16) SSOP-B8 PD BA2903xxx - SOP8 Power Dissipation BA2901Sxx 0.68 W Differential Input Voltage (Note 17) VID 36 V Input Common-mode Voltage Range VICM (VEE-0.3) to (VEE+36) V II -10 mA Operating Supply Voltage Vopr +2.0 to +36.0 (±1.0 to ±18.0) V Operating Temperature Range Topr Storage Temperature Range Tstg -55 to +150 °C Maximum Junction Temperature Tjmax +150 °C Input Current (Note 18) -40 to +105 -40 to +125 °C (Note 11) To use at temperature above TA＝25°C reduce 6.2mW. (Note 12) To use at temperature above TA＝25°C reduce 5.5mW. (Note 13) To use at temperature above TA＝25°C reduce 4.7mW. (Note 14) To use at temperature above TA＝25°C reduce 4.9mW. (Note 15) To use at temperature above TA＝25°C reduce 7.0mW. (Note 16) Mounted on a FR4 glass epoxy PCB(70mm×70mm×1.6mm). (Note 17) The voltage difference between inverting input and non-inverting input is the differential input voltage. Then input terminal voltage is set to more than VEE. (Note 18) Excessive input current will flow if a differential input voltage in excess of approximately 0.6V is applied between the input unless some limiting resistance is used. Caution: Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over the absolute maximum ratings. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 5/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Electrical Characteristics ○BA8391G(Unless otherwise specified VCC=+5V, VEE=0V, TA=25°C) Parameter Symbol Input Offset Voltage (Note 19,20) VIO Input Offset Current (Note 19,20) IIO Input Bias Current (Note 20,21) IB Limit Temperature Range Min Typ Max 25°C - 2 7 Full range - - 15 Unit mV 25°C - 5 50 Full range - - 200 25°C - 50 250 Full range - - VICM 25°C 0 - Large Signal Voltage Gain AV 25°C 25 100 500 VCC -1.5 - V/mV 88 100 - dB Supply Current (Note 20) ICC Output Sink Current(Note 22) ISINK Output Saturation Voltage (Note 20) (Low Level Output Voltage) VOL Input Common-mode Voltage Range Output Leakage Current (Note 20) (High Level Output Current) Response Time 25°C - 0.3 0.7 Full range - - 1.3 25°C 6 16 - nA OUT=1.4V V mA mA 25°C - 150 400 - - 700 25°C - 0.1 - nA Full range - - 1 μA - 1.3 - mV μs - 0.4 - VCC=5 to 36V, OUT=1.4V OUT=1.4V Full range 25°C OUT=1.4V nA ILEAK tRE Conditions VCC=15V, OUT=1.4 to 11.4V RL=15kΩ, VRL=15V OUT=Open OUT=Open, VCC=36V +IN=0V, -IN=1V OUT=1.5V +IN= 0V, -IN=1V ISINK=4mA +IN=1V, -IN=0V OUT=5V +IN=1V, -IN=0V OUT=36V RL=5.1kΩ, VRL=5V IN=100mVP-P, Overdrive=5mV RL=5.1kΩ, VRL=5V, IN=TTL Logic Swing, VREF=1.4V (Note 19) Absolute value (Note 20) Full range TA=-40°C to +85°C (Note 21) Current Direction: Because the first stage is composed with PNP transistor, input bias current flows out of IC. (Note 22) Please determine the output current value in consideration of the power dissipation of the IC under high temperature environment. When the output terminal is continuously shorted, output current may be reduced by the temperature rise of the IC. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 6/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Electrical Characteristics - continued ○BA10393F (Unless otherwise specified VCC=+5V, VEE=0V, TA=25°C) Limit Symbol Temperature Range Min Typ Input Offset Voltage (Note 23) VIO 25°C - 1 5 mV OUT=1.4V Input Offset Current (Note 23) IIO 25°C - 5 50 nA OUT=1.4V IB 25°C - 50 nA OUT=1.4V VICM 25°C 0 - Large Signal Voltage Gain AV 25°C 50 200 250 VCC -1.5 - V/mV 94 106 - dB Supply Current ICC 25°C - 0.4 1 mA Output Sink Current (Note 25) ISINK 25°C 6 16 - mA Output Saturation Voltage (Low Level Output Voltage) VOL 25°C - 250 400 mV Output Leakage Current (High Level Output Current) 25°C - 0.1 - nA ILEAK 25°C - - 1 μA - 1.3 - - 0.4 - Parameter Current (Note 24) Input Bias Input Common-mode Voltage Range Response Time tRE Max Unit V VCC=15V, OUT=1.4 ~ 11.4V RL=15kΩ, VRL=15V RL=∞, All Comparators -IN=1V, +IN=0V OUT=1.5V -IN=1V, +IN=0V ISINK=4mA -IN=0V, +IN=1V OUT=5V -IN=0V, +IN=1V OUT=36V RL=5.1kΩ, VRL=5V IN=100mVP-P, Overdrive=5mV RL=5.1kΩ, VRL=5V, IN=TTL Logic Swing, VREF=1.4V μs 25°C Conditions (Note 23) Absolute value (Note 24) Current Direction: Because the first stage is composed with PNP transistor, input bias current flows out of IC. (Note 25) Please determine the output current value in consideration of the power dissipation of the IC under high temperature environment. When the output terminal is continuously shorted, output current may be reduced by the temperature rise of the IC. ○BA10339 xx(Unless otherwise specified VCC=+5V, VEE=0V, TA=25°C) Limit Symbol Temperature Range Min Typ Max Input Offset Voltage (Note 26) VIO 25°C - 1 5 mV OUT=1.4V Current (Note 26) IIO 25°C - 5 50 nA OUT=1.4V IB 25°C - 50 nA OUT=1.4V VICM 25°C 0 - Large Signal Voltage Gain AV 25°C 50 200 250 VCC -1.5 - V/mV 94 106 - dB Supply Current ICC 25°C - 0.8 2 mA Output Sink Current(Note 28) ISINK 25°C 6 16 - mA Output Saturation Voltage (Low Level Output Voltage) VOL 25°C - 250 400 mV Output Leakage Current (High Level Output Current) 25°C - 0.1 - nA ILEAK 25°C - - 1 μA - 1.3 - - 0.4 - Parameter Input Offset Current (Note 27) Input Bias Input Common-mode Voltage Range Response Time tRE Unit V μs 25°C Conditions VCC=15V, OUT=1.4 ~ 11.4V RL=15kΩ, VRL=15V RL=∞, All Comparators -IN=1V, +IN=0V OUT=1.5V -IN=1V, +IN=0V ISINK=4mA -IN=0V, +IN=1V OUT=5V -IN=0V, +IN=1V OUT=36V RL=5.1kΩ, VRL=5V IN=100mVP-P, Overdrive=5mV RL=5.1kΩ, VRL=5V, IN=TTL Logic Swing, VREF=1.4V (Note 26) Absolute value (Note 27) Current Direction: Because the first stage is composed with PNP transistor, input bias current flows out of IC. (Note 28) Please determine the output current value in consideration of the power dissipation of the IC under high temperature environment. When the output terminal is continuously shorted, output current may be reduced by the temperature rise of the IC. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 7/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Electrical Characteristics - continued ○BA2903xxx, BA2903S xxx(Unless otherwise specified VCC=+5V, VEE=0V, TA=25°C) Limit Temperature Range Min Typ Max 25°C - 2 7 Full range - - 15 25°C - 5 50 Full range - - 200 25°C - 50 250 Full range - - VICM 25°C 0 - Large Signal Voltage Gain AV 25°C 25 100 500 VCC -1.5 - V/mV 88 100 - dB Supply Current (Note 30) ICC Output Sink Current(Note 32) ISINK Output Saturation Voltage(Note 30) (Low Level Output Voltage) VOL Parameter Input Offset Voltage (Note 29,30) Symbol VIO Input Offset Current (Note 29,30) IIO Input Bias Current (Note 30,31) IB Input Common-mode Voltage Range Output Leakage Current (Note 30) (High Level Output Current) Response Time Unit VCC=5 to 36V, OUT=1.4V nA OUT=1.4V nA OUT=1.4V V 25°C - 0.6 1 Full range - - 2.5 25°C 6 16 - 25°C - 150 400 Full range - - 700 25°C - 0.1 - nA Full range - - 1 μA - 1.3 - - 0.4 - mA mA mV μs 25°C OUT=1.4V mV ILEAK tRE Conditions VCC=15V, OUT=1.4 to 11.4V RL=15kΩ, VRL=15V OUT=Open OUT=Open, VCC=36V +IN=0V, -IN=1V OUT=1.5V +IN=0V, -IN= 1V ISINK=4mA +IN=1V, -IN=0V OUT=5V +IN=1V, -IN=0V OUT=36V RL=5.1kΩ, VRL=5V IN=100mVP-P, Overdrive=5mV RL=5.1kΩ, VRL=5V, IN=TTL Logic Swing, VREF=1.4V (Note 29) Absolute value (Note 30) BA2903S : Full range -40°C to +105°C, BA2903: Full range -40°C to +125°C (Note 31) Current Direction: Because the first stage is composed with PNP transistor, input bias current flows out of IC. (Note 32) Please determine the output current value in consideration of the power dissipation of the IC under high temperature environment. When the output terminal is continuously shorted, output current may be reduced by the temperature rise of the IC. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 8/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Electrical Characteristics - continued ○BA2903Wxx (Unless otherwise specified VCC=+5V, VEE=0V, TA=25°C) Limit Symbol Temperature Range Min Typ Max Input Offset Voltage (Note 33) VIO 25°C - 0.5 2 mV OUT=1.4V Current (Note 33) IIO 25°C - 5 50 nA OUT=1.4V Input Bias Current (Note 34,35) IB nA OUT=1.4V Parameter Input Offset Unit Conditions 25°C - 50 250 Full range - - VICM 25°C 0 - Large Signal Voltage Gain AV 25°C 25 100 500 VCC -1.5 - V/mV 88 100 - dB Supply Current (Note 34) ICC 25°C - 0.6 1 Full range - - 2.5 Output Sink Current (Note 36) ISINK 25°C 6 16 - Output Saturation Voltage(Note 34) (Low Level Output Voltage) VOL 25°C - 150 400 Full range - - 700 25°C - 0.1 - nA Full range - - 1 μA - 1.3 - - 0.4 - Input Common-mode Voltage Range Output Leakage Current (Note 34) (High Level Output Current) Response Time V mA mA mV ILEAK tRE μs 25°C VCC=15V, OUT=1.4 to 11.4V RL=15kΩ, VRL=15V OUT=Open OUT=Open, VCC=36V +IN=0V, -IN=1V OUT=1.5V +IN=0V, -IN= 1V ISINK=4mA +IN=1V, -IN=0V OUT=5V +IN=1V, -IN=0V OUT=36V RL=5.1kΩ, VRL=5V IN=100mVP-P, Overdrive=5mV RL=5.1kΩ, VRL=5V, IN=TTL Logic Swing, VREF=1.4V (Note 33) Absolute value (Note 34) BA2903W: Full range -40°C to +125°C (Note 35) Current Direction: Because the first stage is composed with PNP transistor, input bias current flows out of IC. (Note 36) Please determine the output current value in consideration of the power dissipation of the IC under high temperature environment. When the output terminal is continuously shorted, output current may be reduced by the temperature rise of the IC. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 9/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Electrical Characteristics - continued ○BA2901xx, BA2901S xx(Unless otherwise specified VCC=+5V, VEE=0V, Ta=25°C) Parameter Input Offset Voltage (Note 37,38) Input Offset Current (Note 37,38) Input Bias Current (Note 38,39) Input Common-mode Voltage Range Large Signal Voltage Gain Supply Current (Note 38) Symbol Typ Max 25°C - 2 7 Unit Conditions OUT=1.4V mV Full range - - 15 25°C - 5 50 Full range - - 200 25°C - 50 250 Full range - - 500 VICM 25°C 0 - VCC-1.5 V 25 100 - V/mV AV 25°C 88 100 - dB - 0.8 2 IIO IB 25°C ICC ISINK Output Saturation Voltage(Note 38) (Low Level Output Voltage) VOL Response Time Min VIO Output Sink Current(Note 40) Output Leakage Current (Note 38) (High Level Output Current) Limit Temperature Range VCC=5 to 36V, OUT=1.4V nA OUT=1.4V nA OUT=1.4V VCC=15V, OUT=1.4 to 11.4V RL=15kΩ, VRL=15V OUT=Open mA Full range - - 2.5 OUT=Open, VCC=36V 25°C 6 16 - 25°C - 150 400 Full range - - 700 25°C - 0.1 - nA Full range - - 1 μA - 1.3 - - 0.4 - mA +IN=0V, VIN=1V OUT=1.5V mV +IN=0V, -IN=1V ISINK=4mA ILEAK tRE - μs 25°C +IN=1V, -IN=0V OUT=5V +IN=1V, -IN=0V OUT=36V RL=5.1kΩ, VRL=5V VIN=100mVP-P, Overdrive=5mV RL=5.1kΩ, VRL=5V, VIN=TTL Logic Swing, VREF=1.4V (Note 37) Absolute value (Note 38) BA2901S：Full range -40°C to 105°C ,BA2901：Full range -40°C to +125°C (Note 39) Current Direction : Because the first stage is composed with PNP transistor, input bias current flows out of IC. (Note 40) Please determine the output current value in consideration of the power dissipation of the IC under high temperature environment. When the output terminal is continuously shorted, output current may be reduced by the temperature rise of the IC. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 10/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series BA2901 Series Datasheet Description of electrical characteristics Described below are descriptions of the relevant electrical terms used in this datasheet. Items and symbols used are also shown. Note that item name and symbol and their meaning may differ from those on another manufacturer’s document or general document. 1. Absolute maximum ratings Absolute maximum rating items indicate the condition which must not be exceeded. Application of voltage in excess of absolute maximum rating or use out of absolute maximum rated temperature environment may cause deterioration of characteristics. (1) Power supply voltage (VCC/VEE) Indicates the maximum voltage that can be applied between the positive power supply terminal and negative power supply terminal without deterioration or destruction of characteristics of internal circuit. (2) Differential input voltage (VID) Indicates the maximum voltage that can be applied between non-inverting and inverting terminals without damaging the IC. (3) Input common-mode voltage range (VICM) Indicates the maximum voltage that can be applied to the non-inverting and inverting terminals without deterioration or destruction of electrical characteristics. Input common-mode voltage range of the maximum ratings does not assure normal operation of IC. For normal operation, use the IC within the input common-mode voltage range characteristics. (4) Power dissipation (Pd) Indicates the power that can be consumed by the IC when mounted on a specific board at the ambient temperature 25°C (normal temperature). As for package product, Pd is determined by the temperature that can be permitted by the IC in the package (maximum junction temperature) and the thermal resistance of the package. 2. Electrical characteristics (1) Input offset voltage (VIO) Indicates the voltage difference between non-inverting terminal and inverting terminals. It can be translated into the input voltage difference required for setting the output voltage at 0 V. (2) Input offset current (IIO) Indicates the difference of input bias current between the non-inverting and inverting terminals. (3) Input bias current (IB) Indicates the current that flows into or out of the input terminal. It is defined by the average of input bias currents at the non-inverting and inverting terminals. (4) Input common-mode voltage range (VICM) Indicates the input voltage range where IC normally operates. (5) Large signal voltage gain (AV) Indicates the amplifying rate (gain) of output voltage against the voltage difference between non-inverting terminal and inverting terminal. It is normally the amplifying rate (gain) with reference to DC voltage. Av = (Output voltage) / (Differential Input voltage) (6) Supply current (ICC) Indicates the current that flows within the IC under specified no-load conditions. (7) Output sink current (ISINK) Denotes the maximum current that can be output under specific output conditions. (8) Output saturation voltage, low level output voltage (VOL) Signifies the voltage range that can be output under specific output conditions. (9) Output leakage current, High level output current (ILEAK) Indicates the current that flows into the IC under specific input and output conditions. (10) Response time (tRE) Response time indicates the delay time between the input and output signal is determined by the time difference from the fifty percent of input signal swing to the fifty percent of output signal swing. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 11/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves ○BA8391G 0.8 0.8 0.7 0.6 BA8391G Supply Current [mA] Power Dissipation [W] 0.6 0.4 -40℃ 0.5 25℃ 0.4 0.3 85℃ 0.2 0.2 0.1 0.0 0 0 25 85 50 75 100 Ambient Temperature [°C] 125 0 10 Figure 2. Power Dissipation vs Ambient Temperature (Derating Curve) 20 Supply Voltage [V] 30 40 Figure 3. Supply Current vs Supply Voltage 0.8 200 Output Saturation Voltage [mV] 0.7 Supply Current [mA] 0.6 0.5 36V 0.4 5V 0.3 0.2 2V 150 85℃ 100 25℃ 50 -40℃ 0.1 0 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 0 10 20 30 Supply Voltage [V] 40 Figure 5. Output Saturation Voltage vs Supply Voltage (IOL=4mA) Figure 4. Supply Current vs Ambient Temperature (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 12/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA8391G 2.0 200 Output Saturation Voltage [V] Output Saturation Voltage [mV] . 1.8 150 2V 100 5V 36V 50 1.6 1.4 1.2 25℃ 1.0 85℃ 0.8 0.6 0.4 -40℃ 0.2 0.0 0 -50 -25 0 25 50 Ambient Temperature [°C] 75 0 100 Figure 6. Output Saturation Voltage vs Ambient Temperature ( IOL=4mA) 2 4 6 8 10 12 14 16 Output Sink Current [mA] 18 20 Figure 7. Output Saturation Voltage vs Output Sink Current (VCC=5V) 8 40 30 Input Offset Voltage [mV] Output Sink Current [mA] 6 36V 5V 20 2V 10 4 -40℃ 2 25℃ 0 85℃ -2 -4 -6 -8 0 -50 -25 0 25 50 Ambient Temperature [°C] 75 100 Figure 8. Output Sink Current vs Ambient Temperature (OUT=1.5V) 0 10 20 30 Supply Voltage [V] 40 Figure 9. Input Offset Voltage vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 13/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued 8 160 6 140 4 120 Input Bias Current [nA] Input Offset Voltage [mV] ○BA8391G 2V 2 0 5V 36V -2 100 -40℃ 60 -4 40 -6 20 -8 25℃ 80 85℃ 0 -50 -25 0 25 50 Ambient Temperature [°C] 75 100 0 Figure 10. Input Offset Voltage vs Ambient Temperature 10 20 30 Supply Voltage [V] 40 Figure 11. Input Bias Current vs Supply Voltage 160 50 40 140 30 Input Offset Current [nA] Input Bias Current [nA] 120 100 36V 80 5V 60 40 2V 20 10 -40℃ 25℃ 0 85℃ -10 -20 -30 20 -40 -50 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 12. Input Bias Current vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 13. Input Offset Current vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 14/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA8391G 50 140 40 130 Large Signal Voltage Gain [dB] Input Offset Current [nA] 30 20 2V 10 0 -10 5V 36V -20 -30 85℃ 120 110 25℃ 100 90 80 70 -40 60 -50 -50 -25 0 25 50 Ambient Temperature [°C] 75 0 100 Figure 14. Input Offset Current vs Ambient Temperature 10 20 30 Supply Voltage [V] 40 Figure 15. Large Signal Voltage Gain vs Supply Voltage 140 160 Common Mode Rejection Ratio [dB] 130 Large Signal Voltage Gain [dB] -40℃ 36V 120 110 5V 2V 100 90 80 140 120 85℃ 100 25℃ -40℃ 80 60 70 40 60 -50 -25 0 25 50 Ambient Temperature [°C] 75 100 Figure 16. Large Signal Voltage Gain vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 17. Common Mode Rejection Ratio vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 15/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA8391G 6 125 4 36V Input Offset Volatge [mV] Common Mode Rejection Ratio [dB] 150 100 2V 75 5V 50 25℃ -40℃ 2 85℃ 0 -2 -4 25 -6 0 -50 -25 0 25 50 75 Ambient Temperature [°C] -1 100 Figure 18. Common Mode Rejection Ratio vs Ambient Temperature 1 2 3 Input Voltage [V] 4 5 Figure 19. Input Offset Voltage - Input Voltage (VCC=5V) 5 200 180 Response Time (Low to High) [μs] Power Supply Rejection Ratio [dB] 0 160 140 120 100 80 60 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 20. Power Supply Rejection Ratio vs Ambient Temperature 4 3 2 85℃ 1 0 -100 -80 25℃ -40℃ -60 -40 -20 Over Drive Voltage [mV] 0 Figure 21. Response Time (Low to High) vs Over Drive Voltage (VCC=5V, VRL=5V, RL=5.1kΩ) (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 16/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA8391G 5 Response Time (High to Low) [μs] Response Time (Low to High) [μs] 5 4 3 2 5mV overdrive 20mV overdrive 1 100mV overdrive 4 3 2 85℃ 25℃ 1 -40℃ 0 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 22. Response Time (Low to High) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) 0 20 40 60 80 Output Drive Voltage [mV] 100 Figure 23. Response Time (High to Low) vs Over Drive Voltage (VCC=5V, VRL=5V, RL=5.1kΩ) Response Time (High to Low) [μs] 5 4 3 5mV overdrive 2 20mV overdrive 1 100mV overdrive 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 24. Response Time (High to Low) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 17/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued 1.0 1.0 0.8 0.8 Supply Current [mA] Power Dissipation [W] . ○BA10393F 0.6 BA10393F 0.4 -40℃ 25℃ 0.6 0.4 85℃ 0.2 0.2 0.0 0.0 0 85 25 50 75 100 Ambient Temperature [°C] . 0 125 20 30 Supply Voltage [V] 40 Figure 26. Supply Current vs Supply Voltage 1.0 500 0.8 400 Output Saturation Voltage [mV] Supply Current [mA] Figure 25. Power Dissipation vs Ambient Temperature (Derating Curve) 10 36V 0.6 5V 0.4 2V 0.2 85℃ 25℃ 300 -40℃ 200 100 0 0.0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 27. Supply Current vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 28. Output Saturation Voltage vs Supply Voltage (IOL=4mA) (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 18/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA10393F 2.0 500 400 Output Saturation Voltage [V] Output Saturation Voltage [mV] 1.8 2V 300 5V 200 36V 100 1.6 1.4 1.2 25℃ 1.0 85℃ 0.8 0.6 0.4 -40℃ 0.2 0.0 0 -50 -25 0 25 50 Ambient Temperature [°C] 75 0 100 Figure 29. Output Saturation Voltage vs Ambient Temperature ( IOL=4mA) 2 4 6 8 10 12 14 16 Output Sink Current [mA] 18 20 Figure 30. Output Saturation Voltage vs Output Sink Current (VCC=5V) 8 40 30 Input Offset Voltage [mV] Output Sink Current [mA] 6 36V 5V 20 2V 10 4 2 -40℃ 25℃ 0 85℃ -2 -4 -6 0 -8 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 31. Output Sink Current vs Ambient Temperature (OUT=1.5V) 0 10 20 30 Supply Voltage [V] 40 Figure 32. Input Offset Voltage vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 19/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued 8 160 6 140 4 120 Input Bias Current [nA] Input Offset Voltage [mV] ○BA10393F 2 2V 5V 0 36V -2 100 80 60 -4 40 -6 20 -8 25℃ -40℃ 85℃ 0 -50 -25 0 25 50 Ambient Temperature [°C] 75 100 0 Figure 33. Input Offset Voltage vs Ambient Temperature 10 20 30 Supply Voltage [V] 40 Figure 34. Input Bias Current vs Supply Voltage 160 50 40 140 30 100 Input Offset Current [nA] Input Bias Current [nA] 120 36V 80 5V 60 40 20 -40℃ 10 25℃ 0 85℃ -10 -20 2V -30 20 -40 -50 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 35. Input Bias Current vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 36. Input Offset Current vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 20/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA10393F 50 140 40 130 Large Signal Voltage Gain [dB] Input Offset Current [nA] 30 36V 20 10 5V 0 2V -10 -20 -30 25℃ 120 110 85℃ -40℃ 100 90 80 70 -40 -50 60 -50 -25 0 25 50 Ambient Temperature [°C] 75 100 0 Figure 37. Input Offset Current vs Ambient Temperature 20 30 Supply Voltage [V] 40 Figure 38. Large Signal Voltage Gain vs Supply Voltage 140 160 Common Mode Rejection Ratio [dB] 130 Large Signal Voltage Gain [dB] 10 36V 120 110 5V 2V 100 90 80 70 140 120 25℃ -40℃ 100 85℃ 80 60 40 60 -50 -25 0 25 50 Ambient Temperature [°C] 75 100 Figure 39. Large Signal Voltage Gain vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 40. Common Mode Rejection Ratio vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 21/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued 140 140 130 130 Power Supply Rejection Ratio [dB] Common Mode Rejection Ratio [dB] ○BA10393F 120 110 36V 5V 100 90 2V 80 120 110 100 90 80 70 70 60 60 -50 -25 0 25 50 75 Ambient Temperature [°C] -50 100 Figure 41. Common Mode Rejection Ratio vs Ambient Temperature 0 25 50 75 Ambient Temperature [°C] 100 Figure 42. Power Supply Rejection Ratio vs Ambient Temperature 5 Response Time (High to Low) [μs] 5 Response Time (Low to High) [μs] -25 4 3 5mV overdrive 2 20mV overdrive 1 4 3 2 5mV overdrive 20mV overdrive 1 100mV overdrive 100mV overdrive 0 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 44. Response Time (High to Low) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) Figure 43. Response Time (Low to High) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 22/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA10339xx 1.0 1.0 -40℃ 0.8 Supply Current [mA] Power Dissipation [W] . 0.8 BA10339FV 0.6 0.4 BA10339F 25℃ 0.6 0.4 85℃ 0.2 0.2 0.0 0.0 0 25 85 50 75 100 Ambient Temperature [°C] 0 125 Figure 45. Power Dissipation vs Ambient Temperature (Derating Curve) 20 30 Supply Voltage [V] 40 Figure 46. Supply Current vs Supply Voltage 1 500 Output Saturation Voltage [mV] 0.8 36V Supply Current [mA] 10 5V 0.6 0.4 2V 0.2 400 85℃ 300 25℃ 200 -40℃ 100 0 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 0 10 20 30 Supply Voltage [V] 40 Figure 48. Output Saturation Voltage vs Supply Voltage (IOL=4mA) Figure 47. Supply Current vs Ambient Temperature (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 23/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA10339xx 2.0 500 400 300 Output Saturation Voltage [V] Output Saturation Voltage [mV] 1.8 2V 200 5V 36V 100 1.6 1.4 1.2 85℃ 1.0 0.8 25℃ 0.6 -40℃ 0.4 0.2 0 0.0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 0 Figure 49. Output Saturation Voltage vs Ambient Temperature ( IOL=4mA) 2 4 6 8 10 12 14 16 Output Sink Current [mA] 18 20 Figure 50. Output Saturation Voltage vs Output Sink Current (VCC=5V) 8 40 30 20 Input Offset Voltage [mV] Output Sink Current [mA] 6 36V 5V 10 3V 4 2 0 -40℃ 25℃ -2 -4 85℃ -6 -8 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 51. Output Sink Current vs Ambient Temperature (OUT=1.5V) 0 10 20 30 Supply Voltage [V] 40 Figure 52. Input Offset Voltage vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 24/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA10339xx 8 50 6 Input Bias Current [nA] Input Offset Voltage [mV] 40 4 2 0 36V -2 5V 30 -40℃ 25℃ 20 -4 85℃ 10 3V -6 -8 0 0 10 20 30 Supply Voltage [V] 40 0 Figure 53. Input Offset Voltage vs Ambient Temperature 10 20 30 Supply Voltage [V] 40 Figure 54. Input Bias Current vs Supply Voltage 50 50 40 30 Input Offset Current [nA] Input Bias Current [nA] 40 36V 30 20 5V 20 85℃ 10 0 -40℃ -10 25℃ -20 -30 10 -40 3V -50 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] Figure 55. Input Bias Current vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 56. Input Offset Current vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 25/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA10339xx 50 140 40 130 20 Large Signal Voltage Gain [dB] Input Offset Current [nA] 30 36V 5V 10 0 -10 3V -20 -30 120 85℃ 100 -40℃ 90 80 70 -40 60 -50 -50 -25 0 25 50 Ambient Temperature [°C] 75 0 100 Figure 57. Input Offset Current vs Ambient Temperature 10 20 30 Supply Voltage [V] 40 Figure 58. Large Signal Voltage Gain vs Supply Voltage 160 140 Common Mode Rejection Ratio [dB] 130 Large Signal Voltage Gain [dB] 25℃ 110 120 36V 110 100 5V 3V 90 80 70 60 140 120 -40℃ 25℃ 100 85℃ 80 60 40 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 59. Large Signal Voltage Gain vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 60. Common Mode Rejection Ratio vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 26/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA10339xx 140 130 125 36V Power Supply Rejection Ratio [dB] Common Mode Rejection Ratio [dB] 150 5V 100 3V 75 50 25 120 110 100 90 80 70 60 0 -50 -25 0 25 50 75 Ambient Temperature [°C] -50 100 Figure 61. Common Mode Rejection Ratio vs Ambient Temperature 0 25 50 75 Ambient Temperature [°C] 100 Figure 62. Power Supply Rejection Ratio vs Ambient Temperature 5 5 Response Time (High to Low) [μs] Response Time (Low to High) [μs] -25 4 3 5mV overdrive 2 20mV overdrive 1 4 3 2 5mV overdrive 100mV overdrive 20mV overdrive 1 100mV overdrive 0 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 64. Response Time (High to Low) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) Figure 63. Response Time (Low to High) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) (*)The above characteristics are measurements of typical sample, they are not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 27/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA2903xxx, BA2903Sxxx, BA2903Wxx 1.0 1.6 1.4 0.8 Supply Current [mA] Power Dissipation [W] . 1.2 BA2903F BA2903SF 0.6 BA2903FV BA2903SFV 0.4 BA2903FVM BA2903SFVM 1.0 -40℃ 0.8 25℃ 0.6 0.4 0.2 105℃ 0.2 0.0 0.0 105 0 25 125℃ 50 75 100 125 Ambient Temperature [°C] 150 0 Figure 65. Power Dissipation vs Ambient Temperature (Derating Curve) 10 20 30 Supply Voltage [V] 40 Figure 66. Supply Current vs Supply Voltage (Refer to the following operating temperature) 1.6 200 Output Saturation Voltage [mV] 1.4 Supply Current [mA] 1.2 1.0 0.8 36V 0.6 5V 0.4 150 125℃ 105℃ 100 25℃ 50 -40℃ 2V 0.2 0 0.0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 0 10 20 30 Supply Voltage [V] 40 Figure 68. Output Saturation Voltage vs Supply Voltage (IOL=4mA) Figure 67. Supply Current vs Ambient Temperature (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2903：-40°C to ＋125°C BA2903S：-40°C to ＋105°C BA2903W：-40°C to ＋125°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 28/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA2903xxx, BA2903Sxxx, BA2903Wxx 200 2.0 Output Saturation Voltage [V] Output Saturation Voltage [mV] 1.8 150 2V 100 5V 36V 50 1.6 1.4 125℃ 1.2 25℃ 1.0 0.8 105℃ 0.6 -40℃ 0.4 0.2 0.0 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 0 150 Figure 69. Output Saturation Voltage vs Ambient Temperature ( IOL=4mA) 2 4 6 8 10 12 14 16 Output Sink Current [mA] 18 20 Figure 70. Output Saturation Voltage vs Output Sink Current (VCC=5V) 8 40 30 Input Offset Voltage [mV] Output Sink Current [mA] 6 5V 36V 20 2V 10 4 -40℃ 2 0 25℃ 105℃ 125℃ -2 -4 -6 0 -50 -8 -25 0 25 50 75 100 125 150 Ambient Temperature [°C] Figure 71. Output Sink Current vs Ambient Temperature (OUT=1.5V) 0 10 20 30 Supply Voltage [V] 40 Figure 72. Input Offset Voltage vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2903：-40°C to ＋125°C BA2903S：-40°C to ＋105°C BA2903W：-40°C to ＋125°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 29/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued 8 160 6 140 4 120 Input Bias Current [nA] Input Offset Voltage [mV] ○BA2903xxx, BA2903Sxxx, BA2903Wxx 2V 2 0 5V 36V -2 100 -4 -40℃ 80 25℃ 60 40 105℃ 125℃ -6 20 -8 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 0 Figure 73. Input Offset Voltage vs Ambient Temperature 5 10 15 20 25 Supply Voltage [V] 30 35 Figure 74. Input Bias Current vs Supply Voltage 50 160 40 140 Input Offset Current [nA] Input Bias Current [nA] 30 120 100 36V 80 60 40 5V 20 10 -40℃ 25℃ 0 105℃ -10 125℃ -20 -30 2V 20 -40 -50 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 Figure 75. Input Bias Current vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 76. Input Offset Current vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2903：-40°C to ＋125°C BA2903S：-40°C to ＋105°C BA2903W：-40°C to ＋125°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 30/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA2903xxx, BA2903Sxxx, BA2903Wxx 50 140 40 130 Large Signal Voltage Gain [dB] Input Offset Current [nA] 30 20 2V 10 0 -10 5V 36V -20 -30 125℃ 120 110 25℃ 100 -40℃ 90 80 70 -40 -50 60 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 0 Figure 77. Input Offset Current vs Ambient Temperature 10 20 30 Supply Voltage [V] 40 Figure 78. Large Signal Voltage Gain vs Supply Voltage 140 160 Common Mode Rejection Ratio [dB] 130 Large Signal Voltage Gain [dB] 105℃ 36V 120 110 15V 100 5V 90 80 140 120 105℃ 125℃ 100 -40℃ 80 25℃ 60 70 40 60 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 Figure 79. Large Signal Voltage Gain vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 80. Common Mode Rejection Ratio vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2903：-40°C to ＋125°C BA2903S：-40°C to ＋105°C BA2903W：-40°C to ＋125°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 31/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued 150 6 125 4 36V Input Offset Voltage [mV] Common Mode Rejection Ratio [dB] ○BA2903xxx, BA2903Sxxx, BA2903Wxx 100 5V 75 2V 50 125℃ 0 -2 -4 0 -6 -25 0 25 50 75 100 Ambient Temperature [°C] 125 -1 150 Figure 81. Common Mode Rejection Ratio vs Ambient Temperature 0 1 2 3 Input Voltage [V] 4 5 Figure 82. Input Offset Voltage - Input Voltage (VCC=5V) 200 5 180 Response Time (Low to High) [μs] Power Supply Rejection Ratio [dB] 105℃ -40℃ 2 25 -50 25℃ 160 140 120 100 4 3 2 125℃ 105℃ 25℃ -40℃ 1 80 60 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 0 -100 -80 -60 -40 -20 Over Drive Voltage [V] 0 Figure 84. Response Time (Low to High) vs Over Drive Voltage (VCC=5V, VRL=5V, RL=5.1kΩ) Figure 83. Power Supply Rejection Ratio vs Ambient Temperature (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2903：-40°C to ＋125°C BA2903S：-40°C to ＋105°C BA2903W：-40°C to ＋125°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 32/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA2903xxx, BA2903Sxxx, BA2903Wxx 5 Response Time (High to Low) [μs] Response Time (Low to High) [μs] 5 4 3 2 5mV overdrive 20mV overdrive 100mV overdrive 1 0 4 3 125℃ 105℃ 2 25℃ -40℃ 1 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 Figure 85. Response Time (Low to High) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) 0 20 40 60 Over Drive Voltage [V] 80 100 Figure 86. Response Time (High to Low) vs Over Drive Voltage (VCC=5V, VRL=5V, RL=5.1kΩ) Response Time (High to Low) [μs] 5 4 3 5mV overdrive 2 20mV overdrive 100mV overdrive 1 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 Figure 87. Response Time (High to Low) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2903：-40°C to ＋125°C BA2903S：-40°C to ＋105°C BA2903W：-40°C to ＋125°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 33/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA2901xx, BA2901Sxx 1.0 2.0 1.8 1.6 BA2901FV BA2901SFV 0.6 -40℃ Supply Current [mA] Power Dissipation [W] 0.8 BA2901F BA2901SF 0.4 0.2 1.4 25℃ 1.2 1.0 0.8 0.6 0.4 105℃ 125℃ 0.2 0.0 0.0 105 0 25 50 75 100 125 Ambient Temperature [°C] 150 0 Figure 88. Power Dissipation vs Ambient Temperature (Derating Curve) 10 20 30 Supply Voltage [V] 40 Figure 89. Supply Current vs Supply Voltage (Refer to the following operating temperature) 200 2.0 1.8 1.4 Output Saturation Voltage [mV] Supply Current [mA] 1.6 36V 1.2 1.0 5V 0.8 0.6 2V 0.4 150 125℃ 105℃ 100 25℃ 50 -40℃ 0.2 0 0.0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 Figure 90. Supply Current vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 91. Output Saturation Voltage vs Supply Voltage (IOL=4mA) (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2901：-40°C to ＋125°C BA2901S：-40°C to ＋105°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 34/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA2901xx, BA2901Sxx 200 2.0 Output Saturation Voltage [V] Output Saturation Voltage [mV] 1.8 150 2V 100 5V 36V 50 1.6 1.4 125℃ 1.2 25℃ 1.0 0.8 105℃ 0.6 -40℃ 0.4 0.2 0.0 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 0 150 Figure 92. Output Saturation Voltage vs Ambient Temperature ( IOL=4mA) 2 4 6 8 10 12 14 16 Output Sink Current [mA] 18 20 Figure 93. Output Saturation Voltage vs Output Sink Current (VCC=5V) 8 40 30 Input Offset Voltage [mV] Output Sink Current [mA] 6 5V 36V 20 2V 10 4 -40℃ 2 0 25℃ 105℃ 125℃ -2 -4 -6 0 -50 -8 -25 0 25 50 75 100 125 150 Ambient Temperature [°C] Figure 94. Output Sink Current vs Ambient Temperature (OUT=1.5V) 0 10 20 30 Supply Voltage [V] 40 Figure 95. Input Offset Voltage vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2901：-40°C to ＋125°C BA2901S：-40°C to ＋105°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 35/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued 8 160 6 140 4 120 Input Bias Current [nA] Input Offset Voltage [mV] ○BA2901xx, BA2901Sxx 2V 2 0 5V 36V -2 100 -4 -40℃ 80 25℃ 60 40 105℃ 125℃ -6 20 -8 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 0 Figure 96. Input Offset Voltage vs Ambient Temperature 10 20 30 Supply Voltage [V] 40 Figure 97. Input Bias Current vs Supply Voltage 50 160 40 140 Input Offset Current [nA] Input Bias Current [nA] 30 120 100 36V 80 60 40 5V 20 10 -40℃ 25℃ 0 105℃ -10 125℃ -20 -30 2V 20 -40 -50 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 Figure 98. Input Bias Current vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 99. Input Offset Current vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2901：-40°C to ＋125°C BA2901S：-40°C to ＋105°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 36/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA2901xx, BA2901Sxx 50 140 40 130 Large Signal Voltage Gain [dB] Input Offset Current [nA] 30 20 10 2V 0 5V -10 36V -20 -30 125℃ 120 110 100 25℃ -40℃ 90 80 70 -40 -50 60 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 0 Figure 100. Input Offset Current vs Ambient Temperature 10 20 30 Supply Voltage [V] 40 Figure 101. Large Signal Voltage Gain vs Supply Voltage 140 160 Common Mode Rejection Ratio [dB] 130 Large Signal Voltage Gain [dB] 105℃ 36V 120 110 15V 100 5V 90 80 140 120 105℃ 125℃ 100 -40℃ 80 25℃ 60 70 40 60 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 Figure 102. Large Signal Voltage Gain vs Ambient Temperature 0 10 20 30 Supply Voltage [V] 40 Figure 103. Common Mode Rejection Ratio vs Supply Voltage (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2901：-40°C to ＋125°C BA2901S：-40°C to ＋105°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 37/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued 150 6 125 4 36V Input Offset Voltage [mV] Common Mode Rejection Ratio [dB] ○BA2901xx, BA2901Sxx 100 75 5V 2V 50 25 25℃ 125℃ 0 -2 -4 -6 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 -1 150 Figure 104. Common Mode Rejection Ratio vs Ambient Temperature 0 1 2 3 Input Voltage [V] 4 5 Figure 105. Input Offset Voltage - Input Voltage (VCC=5V) 200 5 180 Response Time (Low to High) [μs] Power Supply Rejection Ratio [dB] 105℃ -40℃ 2 160 140 120 100 4 3 2 125℃ 105℃ 25℃ -40℃ 1 80 60 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 0 -100 -80 -60 -40 -20 Over Drive Voltage [V] 0 Figure 107. Response Time (Low to High) vs Over Drive Voltage (VCC=5V, VRL=5V, RL=5.1kΩ) Figure 106. Power Supply Rejection Ratio vs Ambient Temperature (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2901：-40°C to ＋125°C BA2901S：-40°C to ＋105°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 38/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Typical Performance Curves - continued ○BA2901xx, BA2901Sxx 5 Response Time (High to Low) [μs] Response Time (Low to High) [μs] 5 4 3 2 5mV overdrive 20mV overdrive 100mV overdrive 1 0 4 3 125℃ 105℃ 2 25℃ -40℃ 1 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 Figure 108. Response Time (Low to High) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) 0 20 40 60 Over Drive Voltage [V] 80 100 Figure 109. Response Time (High to Low) vs Over Drive Voltage (VCC=5V, VRL=5V, RL=5.1kΩ) Response Time (High to Low) [μs] 5 4 3 5mV overdrive 2 20mV overdrive 100mV overdrive 1 0 -50 -25 0 25 50 75 100 Ambient Temperature [°C] 125 150 Figure 110. Response Time (High to Low) vs Ambient Temperature (VCC=5V, VRL=5V, RL=5.1kΩ) (*)The above characteristics are measurements of typical sample, they are not guaranteed. BA2901：-40°C to ＋125°C BA2901S：-40°C to ＋105°C www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 39/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Application Information NULL method condition for Test Circuit1 Parameter VCC, VEE, EK, VICM Unit : V, VRL=VCC BA10393 / BA10339 BA8391 / BA2903 / BA2901 Calculation VCC VEE EK VICM VCC VEE EK VICM VF S1 S2 S3 Input Offset Voltage VF1 ON ON ON 5 0 -1.4 0 5 to 36 0 -1.4 0 1 Input Offset Current VF2 OFF OFF ON 5 0 -1.4 0 5 0 -1.4 0 2 VF3 VF4 VF5 VF6 OFF ON ON OFF ON ON ON ON 5 5 15 15 0 0 0 0 -1.4 -1.4 -1.4 -11.4 0 0 0 0 5 5 15 15 0 0 0 0 -1.4 -1.4 -1.4 -11.4 0 0 0 0 Input Bias Current Large Signal Voltage Gain - Calculation 1. Input Offset Voltage (VIO) VIO = 2. Input Offset Current (IIO) IIO = 3. Input Bias Current (IB) IB = 4. Large Signal Voltage Gain (AV) AV = 20Log ΔEK × (1+RF/RS) |VF5-VF6| |VF1| 3 4 [V] 1+RF/RS |VF2-VF1| RI ×(1+RF/RS) [A] |VF4-VF3| 2 × RI ×(1+RF/RS) [A] [dB] Rf=50kΩ 500kΩ VCC SW1 0.1μF EK +15V Rs=50Ω Ri=10kΩ Ri=10kΩ 500kΩ DUT NULL SW3 Rs=50Ω Vicm 1000pF V RL SW2 50kΩ VF VEE -15V Figure 111. Test Circuit1 (One Channel Only) www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 40/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Application Information - continued Switch Condition for Test Circuit 2 SW No. Supply Current SW 1 OFF SW 2 OFF SW 3 OFF SW 4 OFF SW 5 OFF SW 6 OFF SW 7 OFF OFF OFF ON Output Sink Current VOL=1.5V OFF ON ON OFF Saturation Voltage IOL=4mA OFF ON ON OFF ON ON OFF Output Leakage Current VOH=36V OFF ON ON OFF OFF OFF ON Response Time RL=5.1kΩ, VRL=5V ON OFF ON ON OFF OFF OFF VCC A －＋ SW2 SW1 SW3 SW4 SW5 SW6 SW7 VEE RL V -IN A +IN OUT Figure 112. Test Circuit 2 (One Channel Only) IN IN Input wave Input wave VREF overdrive voltage overdrive voltage VREF OUT OUT Output wave VCC Output wave VCC VCC/2 VCC/2 0V 0V tRE (Low to High) tRE (High to Low) Figure 113. Response Time www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 41/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Power Dissipation Power dissipation (total loss) indicates the power that can be consumed by IC at T A=25°C (normal temperature).IC is heated when it consumed power, and the temperature of IC chip becomes higher than ambient temperature. The temperature that can be accepted by IC chip depends on circuit configuration, manufacturing process, and consumable power is limited. Power dissipation is determined by the temperature allowed in IC chip (maximum junction temperature) and thermal resistance of package (heat dissipation capability). The maximum junction temperature is typically equal to the maximum value in the storage temperature range. Heat generated by consumed power of IC radiates from the mold resin or lead frame of the package. The parameter which indicates this heat dissipation capability (hardness of heat release)is called thermal resistance, represented by the symbol θja °C/W.The temperature of IC inside the package can be estimated by this thermal resistance. Figure 114 (a) shows the model of thermal resistance of the package. Thermal resistance θja, ambient temperature TA, maximum junction temperature Tjmax, and power dissipation PD can be calculated by the equation below: θja = (Tjmax-TA) / PD °C/W ・・・・・ (Ⅰ) Derating curve in Figure 114 (b) indicates power that can be consumed by IC with reference to ambient temperature. Power that can be consumed by IC begins to attenuate at certain ambient temperature. This gradient is determined by thermal resistance θja. Thermal resistance θja depends on chip size, power consumption, package, ambient temperature, package condition, wind velocity, etc even when the same of package is used. Thermal reduction curve indicates a reference value measured at a specified condition. Figure 115 (c) to (g) shows a derating curve for an example of BA8391, BA10393, BA10339, BA2903S, BA2903, BA2903W, BA2901S, and BA2901. θja=(Tjmax-TA)/PD PowerLSIの dissipation LSI [W] 消費電力of[W] °C/W Pd (max) 周囲温度 Ta [℃] Ambient temperature TA [℃] θja2 < θja1 P2 θ' ja2 P1 θ ja2 Tj ' (max) θ' ja1 表面温度 Tj [℃] Tj [℃] Chip チップ surface temperature 消費電力 P [W]PD [W] Power dissipation 0 25 50 Tj (max) θ ja1 75 100 125 150 囲温度 Ta [℃Ta ] [℃] Ambient 周 temperature 1.0 1.0 0.8 0.8 0.8 BA8391G (Note 41) 0.6 0.4 0.2 Power Dissipation [W] 1.0 Power Dissipation [W] Power Dissipation [W] (b) Derating curve (a) Thermal Resistance Figure 114. Thermal Resistance and Derating Curve 0.6 BA10393F (Note 42) 0.4 25 50 75 100 125 BA10339F (Note 44) 0.4 0.0 0.0 0 0.6 0.2 0.2 0.0 BA10339FV (Note 43) 0 25 Ambient Temperature [°C] 50 75 100 0 125 (c)BA8391G 25 50 75 100 125 Ambient Temperature [°C] Ambient Temperature [°C] (e)BA10339xx (d)BA10393F 1.0 1.0 BA2903F (Note 45) BA2903WF (Note 45) BA2903SF (Note 45) 0.8 BA2903FV (Note 46) BA2903WFV (Note 46) BA2903SFV (Note 46) 0.6 BA2903FVM (Note 47) BA2903SFVM (Note 47) 0.4 0.2 Power Dissipation [W] Power Dissipation [W] 0.8 BA2901FV (Note 48) BA2901SFV (Note 48) 0.6 BA2901F (Note 49) BA2901SF (Note 49) 0.4 0.2 0.0 0.0 0 25 50 75 100 125 150 0 25 Ambient Temperature [°C] (Note 41) 5.4 (f)BA2903xxx BA2903Sxxx (Note 42) (Note 43) (Note 44) (Note 45) 6.2 7.0 4.9 50 75 100 125 150 Ambient Temperature [°C] 6.2 (g)BA2901xxx BA2901Sxxx (Note 46) (Note 47) (Note 48) (Note 49) 5.5 4.7 7.0 4.9 Unit mW/℃ When using the unit above Ta=25℃, subtract the value above per degree℃. Permissible dissipation is the value when FR4 glass epoxy board 70mm ×70mm ×1.6mm (cooper foil area below 3%) is mounted. Figure 115. Derating Curve www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 42/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series BA2901 Series Datasheet Example of Circuit ○Reference voltage is VININ VCC IN Vref RL + - Reference voltage Vref VRL OUT Time VEE OUT High While input voltage is bigger than reference voltage, output voltage is high. While input voltage is smaller than reference voltage, output voltage is low. Low Time ○Reference voltage is VIN+ IN VCC Reference voltage + Vref - Vref VRL RL Time OUT VEE High While input voltage is smaller than reference voltage, output voltage is high. While input voltage is bigger than reference voltage, output voltage is low. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 43/53 Low Time TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Operational Notes 1. Reverse Connection of Power Supply Connecting the power supply in reverse polarity can damage the IC. Take precautions against reverse polarity when connecting the power supply, such as mounting an external diode between the power supply and the IC’s power supply terminals. 2. Power Supply Lines Design the PCB layout pattern to provide low impedance ground and supply lines. Separate the ground and supply lines of the digital and analog blocks to prevent noise in the ground and supply lines of the digital block from affecting the analog block. Furthermore, connect a capacitor to ground at all power supply pins. Consider the effect of temperature and aging on the capacitance value when using electrolytic capacitors. 3. Ground Voltage Ensure that no pins are at a voltage below that of the ground pin at any time, even during transient condition. 4. Ground Wiring Pattern When using both small-signal and large-current ground traces, the two ground traces should be routed separately but connected to a single ground at the reference point of the application board to avoid fluctuations in the small-signal ground caused by large currents. Also ensure that the ground traces of external components do not cause variations on the ground voltage. The ground lines must be as short and thick as possible to reduce line impedance. 5. Thermal Consideration Should by any chance the power dissipation rating be exceeded, the rise in temperature of the chip may result in deterioration of the properties of the chip. In case of exceeding this absolute maximum rating, increase the board size and copper area to prevent exceeding the Pd rating. 6. Recommended Operating Conditions These conditions represent a range within which the expected characteristics of the IC can be approximately obtained. The electrical characteristics are guaranteed under the conditions of each parameter. 7. Inrush Current When power is first supplied to the IC, it is possible that the internal logic may be unstable and inrush current may flow instantaneously due to the internal powering sequence and delays, especially if the IC has more than one power supply. Therefore, give special consideration to power coupling capacitance, power wiring, width of ground wiring, and routing of connections. 8. Operation Under Strong Electromagnetic Field Operating the IC in the presence of a strong electromagnetic field may cause the IC to malfunction. 9. Testing on Application Boards When testing the IC on an application board, connecting a capacitor directly to a low-impedance output pin may subject the IC to stress. Always discharge capacitors completely after each process or step. The IC’s power supply should always be turned off completely before connecting or removing it from the test setup during the inspection process. To prevent damage from static discharge, ground the IC during assembly and use similar precautions during transport and storage. 10. Inter-pin Short and Mounting Errors Ensure that the direction and position are correct when mounting the IC on the PCB. Incorrect mounting may result in damaging the IC. Avoid nearby pins being shorted to each other especially to ground. Inter-pin shorts could be due to many reasons such as metal particles, water droplets (in very humid environment) and unintentional solder bridge deposited in between pins during assembly to name a few. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 44/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Operational Notes – continued 11. Regarding Input Pins of the IC This monolithic IC contains P+ isolation and P substrate layers between adjacent elements in order to keep them isolated. P-N junctions are formed at the intersection of the P layers with the N layers of other elements, creating a parasitic diode or transistor. For example (refer to figure below): When GND > Pin A and GND > Pin B, the P-N junction operates as a parasitic diode. When GND > Pin B, the P-N junction operates as a parasitic transistor. Parasitic diodes inevitably occur in the structure of the IC. The operation of parasitic diodes can result in mutual interference among circuits, operational faults, or physical damage. Therefore, conditions that cause these diodes to operate, such as applying a voltage lower than the GND voltage to an input pin (and thus to the P substrate) should be avoided. Resistor Transistor (NPN) Pin A Pin B C E Pin A N P+ N P N P+ N Pin B B N Parasitic Element P+ N P N P+ B N C E Parasitic Element P Substrate P Substrate GND GND Parasitic Element GND Parasitic Element GND Parasitic element or Transistor Figure 116. Example of Monolithic IC Structure 12. Unused Circuits When there are unused circuits it is recommended that they be connected as in Figure 117, setting the non-inverting input terminal to a potential within the in-phase input voltage range (VICR). VCC Please keep this potential in VICM VICM + - OPEN VEE Figure 117. Disable Circuit Example 13. Ceramic Capacitor When using a ceramic capacitor, determine the dielectric constant considering the change of capacitance with temperature and the decrease in nominal capacitance due to DC bias and others. 14. Input Terminal Voltage (BA8391G / BA2903xxxx / BA2901xxx) Applying VEE + 36V to the input terminal is possible without causing deterioration of the electrical characteristics or destruction, irrespective of the supply voltage. However, this does not ensure normal circuit operation. Please note that the circuit operates normally only when the input voltage is within the common mode input voltage range of the electric characteristics. 15. Power Supply (single / split) The comparators when the specified voltage supplied is between VCC and VEE. Therefore, the single supply comparators can be used as a dual supply comparators as well. 16. Terminal short-circuits When the output and VCC terminals are shorted, excessive output current may flow, resulting in undue heat generation and, subsequently, destruction. 17. IC Handling Applying mechanical stress to the IC by deflecting or bending the board may cause fluctuations in the electrical characteristics due to piezo resistance effects. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 45/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series BA2901 Series Datasheet Physical Dimension Tape and Reel Information Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 SSOP5 46/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Physical Dimension Tape and Reel Information - continued Package Name SOP8 (Max 5.35 (include.BURR)) (UNIT : mm) PKG : SOP8 Drawing No. : EX112-5001-1 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 47/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series BA2901 Series Datasheet Physical Dimension Tape and Reel Information - continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 SSOP-B8 48/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series BA2901 Series Datasheet Physical Dimension Tape and Reel Information - continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 MSOP8 49/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series BA2901 Series Datasheet Physical Dimension Tape and Reel Information - continued Package Name SOP14 (Max 9.05 (include.BURR)) (UNIT : mm) PKG : SOP14 Drawing No. : EX113-5001 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 50/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series BA2901 Series Datasheet Physical Dimension Tape and Reel Information - continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 SSOP-B14 51/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Marking Diagrams SSOP5(TOP VIEW) SOP8 (TOP VIEW) Part Number Marking Part Number Marking LOT Number 1PIN MARK LOT Number SSOP-B8 (TOP VIEW) MSOP8 (TOP VIEW) Part Number Marking Part Number Marking LOT Number LOT Number 1PIN MARK 1PIN MARK SOP14 (TOP VIEW) Part Number Marking LOT Number 1PIN MARK Product Name Package Type G SSOP5 BA10393 F SOP8 10393 F SOP14 BA10339F FV F BA2903 FV FVM BA2903W F FV F BA2903S BA2901 BA2901S FV SSOP-B14 339 SOP8 SSOP-B8 MSOP8 2903 SOP8 SSOP-B8 SOP8 SSOP-B8 2903S 03S MSOP8 2903S F SOP14 BA2901F F FV 1PIN MARK D6 FVM FV LOT Number Marking BA8391 BA10339 SSOP-B14 (TOP VIEW) Part Number Marking SSOP-B14 SOP14 SSOP-B14 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 2901 2901S 52/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Land Pattern Data All dimensions in mm Land Length Land Width ≧ℓ 2 b2 PKG Land Pitch e Land Space MIE SSOP5 0.95 2.4 1.0 0.6 1.27 4.60 1.10 0.76 0.65 4.60 1.20 0.35 0.65 2.62 0.99 0.35 SOP8 SOP14 SSOP-B8 SSOP-B14 MSOP8 SOP8, SOP14, SSOP-B8 SSOP-B14, MSOP8 SSOP5 e e ℓ2 e MIE MIE b2 b2 ℓ 2 Revision History Date Revision 23.Aug.2013 27.Nov.2013 11.Dec.2013 05.Jun.2015 11.Dec.2020 001 002 003 004 005 Changes New Release Add the dB notation in Large Signal Voltage Gain Input offset voltage unit is changed from mA to mV in Page.1. Corrections. Update of Operational Notes P.53-2, 53-3, 53-4 Updated packages and part numbers. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 53/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series Datasheet BA2901 Series Ordering Information B A x x x x Part Number BA10339xx BA2901xx BA2901Sxx x x x - Package F : SOP14K FV : SSOP-B14K xx BZ: Cu wire Blank: Au wire Z Production site Z:Added E2 Packaging and forming specification E2: Embossed tape and reel Marking Diagrams SOP14K (TOP VIEW) Part Number Marking LOT Number LOT Number 1PIN MARK 1PIN MARK Product Name BA10339 BA2901 BA2901S Package Type F FV F SOP14K SSOP-B14K SOP14K Marking BA10339F 339 BA2901F FV SSOP-B14K 2901 FV SSOP-B14K 2901S www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 SSOP-B14K (TOP VIEW) Part Number Marking 53-2/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series BA2901 Series Datasheet Physical Dimension and Packing Information Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 SOP14K 53-3/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 BA8391G BA10393F BA10339 Series BA2903 Series BA2901 Series Datasheet Physical Dimension and Packing Information - continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 SSOP-B14K 53-4/53 TSZ02201-0RFR0G200200-1-2 11.Dec.2020 Rev.005 Notice Precaution on using ROHM Products 1. Our Products are designed and manufactured for application in ordinary electronic equipment (such as AV equipment, OA equipment, telecommunication equipment, home electronic appliances, amusement equipment, etc.). If you intend to use our Products in devices requiring extremely high reliability (such as medical equipment (Note 1), transport equipment, traffic equipment, aircraft/spacecraft, nuclear power controllers, fuel controllers, car equipment including car accessories, safety devices, etc.) and whose malfunction or failure may cause loss of human life, bodily injury or serious damage to property (“Specific Applications”), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific Applications. (Note1) Medical Equipment Classification of the Specific Applications JAPAN USA EU CHINA CLASSⅢ CLASSⅡb CLASSⅢ CLASSⅢ CLASSⅣ CLASSⅢ 2. ROHM designs and manufactures its Products subject to strict quality control system. However, semiconductor products can fail or malfunction at a certain rate. Please be sure to implement, at your own responsibilities, adequate safety measures including but not limited to fail-safe design against the physical injury, damage to any property, which a failure or malfunction of our Products may cause. The following are examples of safety measures: [a] Installation of protection circuits or other protective devices to improve system safety [b] Installation of redundant circuits to reduce the impact of single or multiple circuit failure 3. Our Products are designed and manufactured for use under standard conditions and not under any special or extraordinary environments or conditions, as exemplified below. Accordingly, ROHM shall not be in any way responsible or liable for any damages, expenses or losses arising from the use of any ROHM’s Products under any special or extraordinary environments or conditions. If you intend to use our Products under any special or extraordinary environments or conditions (as exemplified below), your independent verification and confirmation of product performance, reliability, etc, prior to use, must be necessary: [a] Use of our Products in any types of liquid, including water, oils, chemicals, and organic solvents [b] Use of our Products outdoors or in places where the Products are exposed to direct sunlight or dust [c] Use of our Products in places where the Products are exposed to sea wind or corrosive gases, including Cl2, H2S, NH3, SO2, and NO2 [d] Use of our Products in places where the Products are exposed to static electricity or electromagnetic waves [e] Use of our Products in proximity to heat-producing components, plastic cords, or other flammable items [f] Sealing or coating our Products with resin or other coating materials [g] Use of our Products without cleaning residue of flux (Exclude cases where no-clean type fluxes is used. However, recommend sufficiently about the residue.) ; or Washing our Products by using water or water-soluble cleaning agents for cleaning residue after soldering [h] Use of the Products in places subject to dew condensation 4. The Products are not subject to radiation-proof design. 5. Please verify and confirm characteristics of the final or mounted products in using the Products. 6. In particular, if a transient load (a large amount of load applied in a short period of time, such as pulse, is applied, confirmation of performance characteristics after on-board mounting is strongly recommended. Avoid applying power exceeding normal rated power; exceeding the power rating under steady-state loading condition may negatively affect product performance and reliability. 7. De-rate Power Dissipation depending on ambient temperature. When used in sealed area, confirm that it is the use in the range that does not exceed the maximum junction temperature. 8. Confirm that operation temperature is within the specified range described in the product specification. 9. ROHM shall not be in any way responsible or liable for failure induced under deviant condition from what is defined in this document. Precaution for Mounting / Circuit board design 1. When a highly active halogenous (chlorine, bromine, etc.) flux is used, the residue of flux may negatively affect product performance and reliability. 2. In principle, the reflow soldering method must be used on a surface-mount products, the flow soldering method must be used on a through hole mount products. If the flow soldering method is preferred on a surface-mount products, please consult with the ROHM representative in advance. For details, please refer to ROHM Mounting specification Notice-PGA-E © 2015 ROHM Co., Ltd. All rights reserved. Rev.004 Precautions Regarding Application Examples and External Circuits 1. If change is made to the constant of an external circuit, please allow a sufficient margin considering variations of the characteristics of the Products and external components, including transient characteristics, as well as static characteristics. 2. You agree that application notes, reference designs, and associated data and information contained in this document are presented only as guidance for Products use. Therefore, in case you use such information, you are solely responsible for it and you must exercise your own independent verification and judgment in the use of such information contained in this document. ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of such information. Precaution for Electrostatic This Product is electrostatic sensitive product, which may be damaged due to electrostatic discharge. Please take proper caution in your manufacturing process and storage so that voltage exceeding the Products maximum rating will not be applied to Products. Please take special care under dry condition (e.g. Grounding of human body / equipment / solder iron, isolation from charged objects, setting of Ionizer, friction prevention and temperature / humidity control). Precaution for Storage / Transportation 1. Product performance and soldered connections may deteriorate if the Products are stored in the places where: [a] the Products are exposed to sea winds or corrosive gases, including Cl 2, H2S, NH3, SO2, and NO2 [b] the temperature or humidity exceeds those recommended by ROHM [c] the Products are exposed to direct sunshine or condensation [d] the Products are exposed to high Electrostatic 2. Even under ROHM recommended storage condition, solderability of products out of recommended storage time period may be degraded. It is strongly recommended to confirm solderability before using Products of which storage time is exceeding the recommended storage time period. 3. Store / transport cartons in the correct direction, which is indicated on a carton with a symbol. Otherwise bent leads may occur due to excessive stress applied when dropping of a carton. 4. Use Products within the specified time after opening a humidity barrier bag. Baking is required before using Products of which storage time is exceeding the recommended storage time period. Precaution for Product Label A two-dimensional barcode printed on ROHM Products label is for ROHM’s internal use only. Precaution for Disposition When disposing Products please dispose them properly using an authorized industry waste company. Precaution for Foreign Exchange and Foreign Trade act Since concerned goods might be fallen under listed items of export control prescribed by Foreign exchange and Foreign trade act, please consult with ROHM in case of export. Precaution Regarding Intellectual Property Rights 1. All information and data including but not limited to application example contained in this document is for reference only. ROHM does not warrant that foregoing information or data will not infringe any intellectual property rights or any other rights of any third party regarding such information or data. 2. ROHM shall not have any obligations where the claims, actions or demands arising from the combination of the Products with other articles such as components, circuits, systems or external equipment (including software). 3. No license, expressly or implied, is granted hereby under any intellectual property rights or other rights of ROHM or any third parties with respect to the Products or the information contained in this document. Provided, however, that ROHM will not assert its intellectual property rights or other rights against you or your customers to the extent necessary to manufacture or sell products containing the Products, subject to the terms and conditions herein. Other Precaution 1. This document may not be reprinted or reproduced, in whole or in part, without prior written consent of ROHM. 2. The Products may not be disassembled, converted, modified, reproduced or otherwise changed without prior written consent of ROHM. 3. In no event shall you use in any way whatsoever the Products and the related technical information contained in the Products or this document for any military purposes, including but not limited to, the development of mass-destruction weapons. 4. The proper names of companies or products described in this document are trademarks or registered trademarks of ROHM, its affiliated companies or third parties. Notice-PGA-E © 2015 ROHM Co., Ltd. All rights reserved. Rev.004 Datasheet General Precaution 1. Before you use our Products, you are requested to carefully read this document and fully understand its contents. ROHM shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any ROHM’s Products against warning, caution or note contained in this document. 2. All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using ROHM’s Products, please confirm the latest information with a ROHM sales representative. 3. The information contained in this document is provided on an “as is” basis and ROHM does not warrant that all information contained in this document is accurate and/or error-free. ROHM shall not be in any way responsible or liable for an y damages, expenses or losses incurred b y you or third parties resulting from inaccuracy or errors of or concerning such information. Notice – WE © 2015 ROHM Co., Ltd. All rights reserved. Rev.001
