BA6845FS-E2

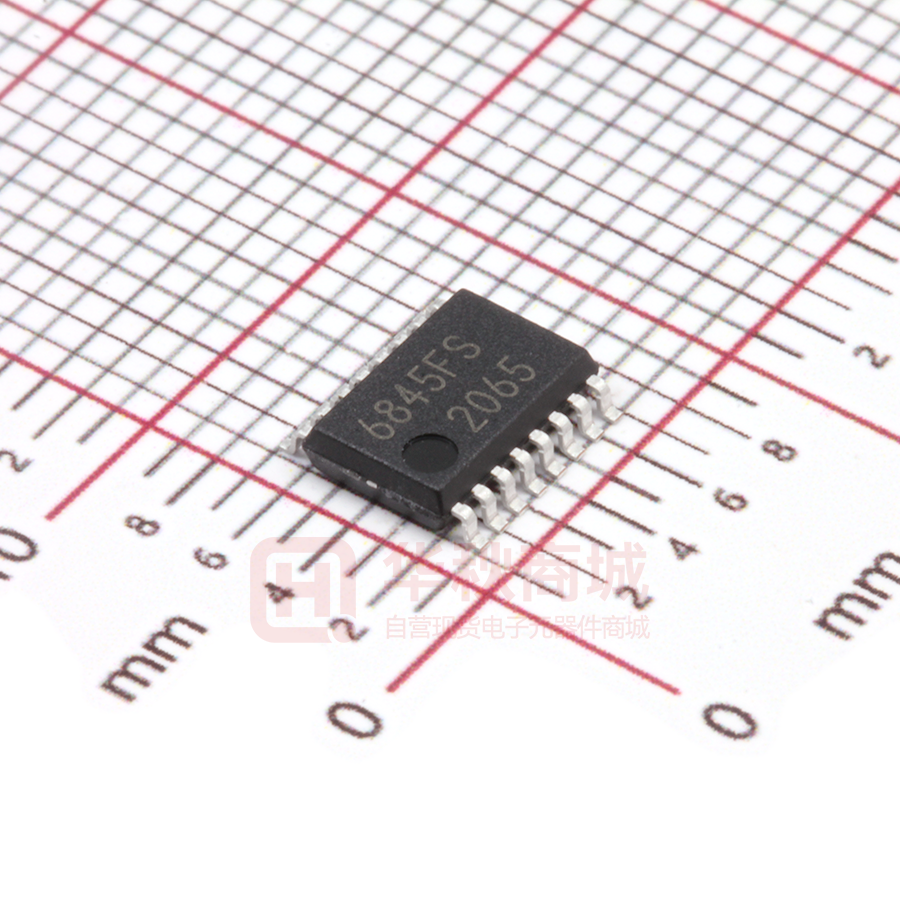

Motor driver ICs Stepping motor driver BA6845FS The BA6845FS is a stepping motor driver with a maximum output current of 1.0A. The logic input allows three output modes : forward, reverse, and power save. The IC has a low output saturation voltage and is capable of driving motors at low supply voltage.
Applications Stepping motors for floppy disk drives
Features 1) Low output saturation voltage. 2) Power save circuit. 3) Thermal shutdown circuit.
Absolute maximum ratings (Ta = 25C)
Recommended operating conditions (Ta = 25C) 735 Motor driver ICs
Block diagram 736 BA6845FS Motor driver ICs BA6845FS
Pin descriptions
Input / output circuits (all resistances are typical values) 737 Motor driver ICs
Electrical characteristics (unless otherwise noted, Ta = 25C, VCC = 5V)
Truth table 738 BA6845FS Motor driver ICs BA6845FS
Application example
Operation notes (1) Control logic pins Do not apply voltage to control logic pins (pins 4, 5, 12, and 13) when the VCC voltage is not applied to the IC. The voltage of each pin should be less than VCC, if applied, and should be more than the ground voltage. (2) PCB arrangement When changing the rotational direction of a motor, a large current of up to a few hundred milliamperes can flow between the motor power supply (pins 11 and 14) and MGND (pins 1 and 8). Depending on the application, this large output current may flow back to input pins, resulting in output oscillation or other malfunctions. Make sure that your design does not allow a common impedance between the large current output lines and the input section. Suppress the power supply impedance to low levels, otherwise output oscillation may occur. (3) Package power dissipation The power dissipated by the IC varies widely with the supply voltage and the output current. Give full consideration to the package power dissipation rating when setting the supply voltage and the output current. (4) Ground pins Pins 1, 3, 6, and 8 should have the lowest potential (ground potential) in the IC. (5) Thermal shutdown circuit This circuit shuts down all the driver outputs when the chip junction temperature is increased to about 175C (typical). The thermal shutdown circuit is deactivated when the temperature drops to about 20C (typical). (6) Input pins (pins 4, 5, 12, and 13) These pins have characteristics negatively correlated to temperature. Give full consideration to the temperature effect when using the IC. 739 Motor driver ICs BA6845FS
Electrical characteristic curves
External dimensions (Units: mm) 740 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject to change without notice. The specifications for the product described in this document are for reference only. Upon actual use, therefore, please request that specifications to be separately delivered. Application circuit diagrams and circuit constants contained herein are shown as examples of standard use and operation. Please pay careful attention to the peripheral conditions when designing circuits and deciding upon circuit constants in the set. Any data, including, but not limited to application circuit diagrams information, described herein are intended only as illustrations of such devices and not as the specifications for such devices. ROHM CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such devices. Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or otherwise dispose of the same, no express or implied right or license to practice or commercially exploit any intellectual property rights or other proprietary rights owned or controlled by ROHM CO., LTD. is granted to any such buyer. Products listed in this document use silicon as a basic material. Products listed in this document are no antiradiation design. The products listed in this document are designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys). Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. About Export Control Order in Japan Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control Order in Japan. In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause) on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction. Appendix1-Rev1.0
