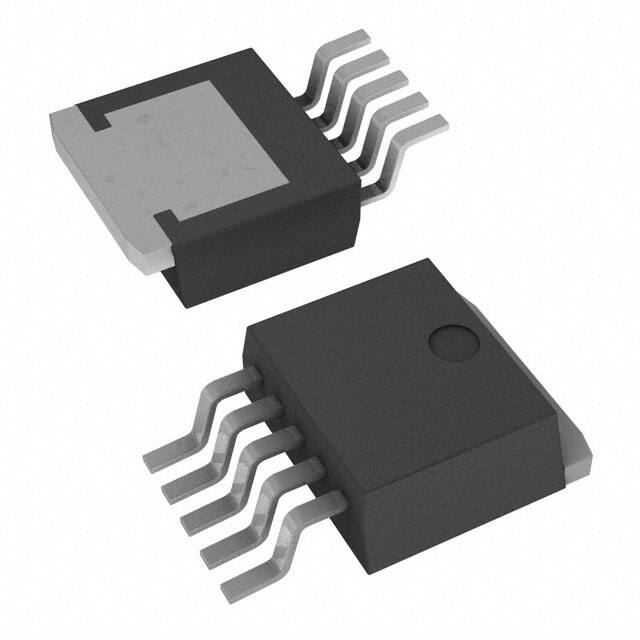

BD42754FP2-CE2

Datasheet LDO Regulators with Voltage Detector 500 mA Output LDO Regulator with Voltage Detector BD42754FP2-C BD42754FPJ-C General Description Key Specifications BD42754FP2-C, BD42754FPJ-C are voltage regulators featuring 45 V absolute maximum voltage with 1ch Reset and offers the output current of 500 mA while limiting the low quiescent current. These regulators are therefore ideal for applications requiring a direct connection to the battery and a low current consumption. A reset signal is generated for an output voltage VO of Typ 4.62 V. The reset delay time can be programmed by the external capacitor.          AEC-Q100 qualified(Note 1) Qualified for Automotive Applications Input Voltage Range: -0.3V to +45V Low Quiescent Current: 75 μA (Typ) Output Load Current: 500 mA (Max) Output Voltage: 5.0 V ±2 % Reset Detect Voltage Accuracy: 4.50 V to 4.75 V (Typ 4.62 V) Over Current Protection (OCP) Thermal Shut Down (TSD) (Note 1:Grade1) Features     Package Low ESR Ceramic Capacitors Applicable for Output. Low Drop Voltage: PDMOS Output Transistor Power On and Under-Voltage Reset Programmable Reset Time by External Capacitor. FP2: TO263-5 W (Typ) × D (Typ) × H (Max) 10.16 mm × 15.10 mm × 4.70 mm FPJ: TO252-J5 6.60 mm × 10.10 mm × 2.38 mm Applications  Onboard vehicle device (Engine ECU, Body-Control, Car Stereos, Satellite Navigation system, etc.) Figure 1. Package image Typical Application Circuit  VCC and VO pin capacitors: 0.1 μF ≤ CIN (Typ), 6 μF ≤ CO (Min) Please refer to the "Selection of Components Externally Connected" for the selection of VCC and VO capacitors. VIN VCC VO CIN 5V Output CO RO CT GND RO Reset Output CCT Figure 2. Application Circuit ○Product structure：Silicon monolithic integrated circuit www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・14・001 ○This product is not designed protection against radioactive rays 1/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Pin Configurations TO263-5 (TOP VIEW) FIN 1 2 3 4 TO252-J5 (TOP VIEW) FIN 5 1 2 3 4 5 Figure 3. Pin Configuration Pin Descriptions Pin No. Pin Name 1 VCC 2 RO 3 GND Function Supply Voltage Input Reset Output; Open-Collector output. Ground; Pin3 internally connected to FIN. 4 CT Reset Delay; connect capacitor to GND for setting delay time. 5 VO 5V Output; FIN FIN FIN; FIN internally connected to Pin3. Block Diagram Figure 4. Block Diagram www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 2/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Block Descriptions Block Name Function Reference Reference Voltage Error Amplifier Error Amplifier TSD Thermal Shutdown OCP Over Current Protection The OCP protects the device from damage caused by over current. UVLO Under Voltage Lock Out The UVLO prevents malfunction of the reset block in case of very low output voltage which is supply voltage of the reset. www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 Description of Blocks The Reference generates the Reference Voltage. The Error Amplifier amplifies the difference between the feed back voltage of the output voltage and the reference voltage. The TSD protects the device from overheating. If the chip temperature (Tj) reaches ca. 175 °C (Typ), the output is turned off. 3/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Absolute Maximum Ratings Parameter Symbol Limits Unit VCC Voltage VCC -0.3 to +45.0 V RO Voltage VRO -0.3 to +18.0 V VO Voltage VO -0.3 to +7.0 V Junction Temperature Range Tj -40 to +150 °C Storage Temperature Range Tstg -55 to +150 °C (Caution) Exceeding the absolute maximum rating for supply voltage, operating temperature or other parameters can result in damages to or destruction of the chip. In this event it also becomes impossible to determine the cause of the damage (e.g. short circuit, open circuit, etc.). Therefore, if any special mode is being considered with values expected to exceed the absolute maximum ratings, implementing physical safety measures, such as adding fuses, should be considered. Recommended Operating Conditions Parameter Symbol Min Max Unit Supply Voltage (IO ≤ 300mA) VCC 5.5 45.0 V Supply Voltage (IO ≤ 500mA) VCC 5.9 45.0 V VCC 3.0 - V Output Current IO 0 500 mA Operating Ratings Temperature Ta -40 125 °C Start-Up Voltage(Note 1) (Note 1) When IO=0mA. www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 4/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Thermal Resistance(Note 1) Parameter Symbol Thermal Resistance (Typ) Unit 1s(Note 3) 2s2p(Note 4) θJA 80.7 20.3 °C/W ΨJT 8 2 °C/W θJA 136 23 °C/W ΨJT 17 3 °C/W TO263-5 Junction to Ambient Junction to Top Characterization Parameter(Note 2) TO252-J5 Junction to Ambient Junction to Top Characterization Parameter(Note 2) (Note 1)Based on JESD51-2A(Still-Air) (Note 2)The thermal characterization parameter to report the difference between junction temperature and the temperature at the top center of the outside surface of the component package. (Note 3)Using a PCB board based on JESD51-3. Layer Number of Measurement Board Single Material Board Size FR-4 114.3mm x 76.2mm x 1.57mmt Top Copper Pattern Thickness Footprints and Traces 70μm (Note 4)Using a PCB board based on JESD51-5, 7. Layer Number of Measurement Board 4 Layers Thermal Via(Note 5) Material Board Size FR-4 114.3mm x 76.2mm x 1.6mmt Top 2 Internal Layers Pitch 1.20mm Diameter Φ0.30mm Bottom Copper Pattern Thickness Copper Pattern Thickness Copper Pattern Thickness Footprints and Traces 70μm 74.2mm x 74.2mm 35μm 74.2mm x 74.2mm 70μm (Note 5) This thermal via connects with the copper pattern of all layers. The placement and dimensions obey a land pattern. www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 5/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Electrical Characteristics (LDO) ( Unless Otherwise Specified, Tj = -40 °C to +150 °C, VCC = 13.5 V, IO = 0 mA, Typ is the value when Tj = 25 °C ) Parameter Symbol Limits Min Typ Max Unit Conditions Circuit Current ICC - 75 150 μA Output Voltage 1 VO 4.90 5.00 5.10 V Output Voltage 2 VO 4.90 5.00 5.10 V Dropout Voltage ∆Vd - 0.25 0.5 V Load Regulation Reg.L - 10 30 mV IO = 10 mA to 250 mA Line Regulation Reg.I -15 - 15 mV VCC = 8 V to 16 V, IO = 5 mA Current Limit IOCP 500 - - mA Ripple Rejection R.R. - 60 - dB Thermal Shutdown Temperature TTSD - 175 - °C IO = 0 mA 5 mA ≤ IO ≤ 400 mA 6 V ≤ VCC ≤ 28 V 5 mA ≤ IO ≤ 200 mA 6 V ≤ VCC ≤ 40 V VCC = 4.75 V, IO = 300 mA f = 120 Hz, ein = 1 Vrms, IO = 100 mA Electrical Characteristics (RESET) ( Unless Otherwise Specified, Tj = -40 °C to +150 °C, VCC = 13.5 V, IO = 0 mA, Typ is the value when Tj = 25 °C ) Parameter Symbol Limits Min Typ Max Unit Conditions Reset Detection Threshold VRT 4.50 4.62 4.75 V Reset Detection Hysteresis VRHY 20 60 100 mV CT Upper-side Threshold VCTH - 1.18 - V CT Lower-side Threshold VCTL - 0.25 - V CT Charge Current ICT - 8.8 - μA VCT = 0.5 V Delay Time L→H tPOR 10 14 18 ms CCT = 0.1 μF(Note 1) RO L Voltage VROL - - 0.4 V RO pull-up resister ≥ 4.7 kΩ VO ≥ 1V (Note 1) TPOR can be varied by changing the CT capacitance value(TPOR_ADJ). ( 0.001µF to 10 µF available ) CT capacitor : 0.1µF ≤ CCT ≤ 10 μF TPOR_ADJ (ms) ≈ TPOR ( the reset delay time at CCT = 0.1 µF ) × CCT (μF) / 0.1 example: When CCT= 1µF, 100ms ≤ TPOR ≤ 180 ms CT capacitor : 0.001µF ≤ CCT < 0.1 μF TPOR_ADJ (ms) ≈ TPOR ( the reset delay time at CCT = 0.1 µF ) × CCT (μF) / 0.1 ±0.1 example: When CCT= 0.01µF, 0.9ms ≤ TPOR ≤ 1.9 ms www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 6/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C 6 6 5 5 Output Voltage : VO [V] Output Voltage : VO [V] Typical Performance Curve (Unless Otherwise Specified, Tj = 25 °C, VCC = 13.5 V) 4 3 2 4 3 2 Tj = -40℃ 1 1 0 0 Tj = 25℃ Tj = 125℃ 0 10 20 30 40 0 2 4 6 8 10 Supply Voltage : VCC [V] Supply Voltage : VCC [V] Figure 5. Output Voltage vs Supply Voltage (RL = 25 Ω) Figure 6. Output Voltage vs Supply Voltage (at Low Supply Voltage, RL = 25 Ω) 5.2 1200 Tj = -40 °C Tj = 25 °C 1000 Circuit Current :ICC [μA] Output Voltage : VO [V] 5.1 5.0 4.9 4.8 Tj = 125 °C 800 600 400 4.7 200 4.6 0 -40 0 40 80 0 120 10 20 30 40 Supply Voltage : VCC [V] Junction Temperature : Tj [℃] Figure 7. Output Voltage vs Temperature (RL = 1 kΩ) www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 RL=No load Figure 8. Circuit Current vs Supply Voltage 7/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Typical Performance Curve - continued 120 120 Circuit Current :ICC [μA] 150 Circuit Current :ICC [μA] 150 90 60 30 90 60 30 0 0 0 100 200 300 400 500 -40 0 80 120 Junction Temperature : Tj [℃] Output Current : IO [mA] Figure 9. Circuit Current vs Output Current Figure 10. Circuit Current vs Temperature 1000 6 5 800 Tj = -40 °C 4 Output Current : IO [mA] Output Voltage: VO [V] 40 Tj = 25 °C Tj = 125 °C 3 2 600 400 200 1 0 0 0.00 0.20 0.40 0.60 0.80 1.00 -40 1.20 40 80 120 Junction Temperature : Tj [℃] Output Current : IO [mA] Figure 11. Output Voltage vs Output Current (Over Current Protection) www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 0 Figure 12. Output Current vs Temperature 8/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Typical Performance Curve - continued 600 90 Tj = -40℃ 70 Tj = 125℃ Ripple Rejection: R.R. [dB] Dropout Voltage ∆Vd[mV] [mV] Drop Voltage : △: Vd 80 Tj = 25℃ 500 400 300 200 100 60 50 40 30 Tj = -40 °C 20 Tj = 25 °C 10 0 0 100 200 300 400 Tj = 125 °C 0 500 0.01 0.10 Output Current : IO [mA] 1.00 10.00 100.00 Frequency : f [kHz] Figure 13. Dropout Voltage vs Output Current (VCC = 4.75 V) Figure 14. Ripple Rejection (ein=1Vrms, IOUT=100mA) 6 6 Tj = -40℃ 5 5 Tj = 25℃ RO Voltage : VRO [V] Output Voltage:VO [V] Tj = 125℃ 4 3 2 4 3 2 1 1 0 0 100 125 150 175 0 200 2 3 4 5 6 VO voltage Voltage :: VVOO[V] [V] Junction Temperature : Tj [℃] Figure 15. Output Voltage vs Temperature (Thermal Shutdown) www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 1 Figure 16. RO Voltage vs VO Voltage (RO: 10 kΩ pull-up to VO) 9/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Typical Performance Curve - continued Reset Detection Threshold : V [V] Output Detecting Voltage : VRTRT[V] 4.8 18 PowerOn OnReset Reset Time Time :: TtPOR [ms] Power POR [ms] 4.7 4.6 4.5 4.4 4.3 16 14 12 10 -40 0 40 80 120 -40 0 40 80 120 Junction Temperature : Tj [℃] Junction Temperature : Tj [℃] Figure 17. Reset Detection Threshold vs Temperature (RO: 10 kΩ pull-up to VO) Figure 18. Power on Reset Time vs Temperature (CCT = 0.1 µF) 10000 Power On Reset Time : tPOR [ms] Power On Reset Time : TPOR [ms] 1000 100 10 1 0.1 0.01 0.001 0.01 0.1 1 10 CT Capacitance : CCT [μF] Figure 19. Power on Reset Time vs CT Capacitance www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 10/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Measurement Circuit for Typical Performance Curve VO VCC VO VCC VCC VO A A CT RO GND RL 0.1 µF 4.7 µF CT V 10 µF 4.7 µF Measurement Circuit for Figure. 5, 6, 7, 8, 10, 15 RO GND A 0.1 µF A CT RO GND 10µF 4.7 µF Measurement Circuit for Figure.9 0.1 µF 10 µF Measurement Circuit for Figure.11, 12 V VCC VO VCC VO CT RO VCC VO CT RO A CT RO 10kΩ RL 1Vrms GND GND GND M V 4.7µF 0.1 µF 10 µF 4.7µF Measurement Circuit for Figure.13 VCC VO CT RO 0.1µF 4.7µF 10 µF 0.1 µF Measurement Circuit for Figure.16, 17 Measurement Circuit for Figure.14 10kΩ GND Monitor Monitor CCT Measurement Circuit for Figure.18, 19 Figure 20. Measurement Circuit for Typical Performance Curves Timing Chart VCC VO VCT VRO Figure 21. Timing Chart www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 11/22 (1) (2) VREC = VRT + VRHY VRU = 2V to 3.5 V TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Power Dissipation ■TO263-5 10.0 IC mounted on ROHM standard board based on JEDEC. ①: 1-layer PCB (Copper foil area on the reverse side of PCB: 0 mm × 0 mm) Board material: FR4 Board size: 114.3mm × 76.2mm × 1.57 mmt Mount condition: PCB and exposed pad are soldered. Top copper foil: ROHM recommended footprint + wiring to measure, 2 oz. copper. Power Dissipation: Pd[W] 8.0 ②6.16 W 6.0 4.0 ①1.55 W 2.0 0.0 0 25 50 75 100 125 Ambient Temperature: Ta [°C] ②: 4-layer PCB (Copper foil area on the reverse side of PCB: 74.2 mm × 74.2 mm) Board material: FR4 Board size: 114.3mm × 76.2mm × 1.60 mmt Mount condition: PCB and exposed pad are soldered. Top copper foil: ROHM recommended footprint + wiring to measure, 2 oz. copper. 2 inner layers copper foil area of PCB: 74.2 mm × 74.2 mm, 1 oz. copper. 150 Copper foil area on the reverse side of PCB: 74.2 mm × 74.2 mm, 2 oz. copper. Condition①: θJA = 80.7 °C/W, ΨJT (top center) = 8 °C/W Condition②: θJA = 20.3 °C/W, ΨJT (top center) = 2 °C/W Figure 22. TO263-5 Package Data ■TO252-J5 10.0 IC mounted on ROHM standard board based on JEDEC. ①: 1-layer PCB (Copper foil area on the reverse side of PCB: 0 mm × 0 mm) Board material: FR4 Board size: 114.3mm × 76.2mm × 1.57 mmt Mount condition: PCB and exposed pad are soldered. Top copper foil: ROHM recommended footprint + wiring to measure, 2 oz. copper. Power Dissipation: Pd[W] 8.0 6.0 ②5.43 W 4.0 2.0 ①0.92 W 0.0 0 25 50 75 100 125 Ambient Temperature: Ta [°C] ②: 4-layer PCB (Copper foil area on the reverse side of PCB: 74.2 mm × 74.2 mm) Board material: FR4 Board size: 114.3mm × 76.2mm × 1.60 mmt Mount condition: PCB and exposed pad are soldered. Top copper foil: ROHM recommended footprint + wiring to measure, 2 oz. copper. 2 inner layers copper foil area of PCB: 74.2 mm × 74.2 mm, 1 oz. copper. 150 Copper foil area on the reverse side of PCB: 74.2 mm × 74.2 mm, 2 oz. copper. Condition①: θJA = 136 °C/W, ΨJT (top center) =17 °C/W Condition②: θJA = 23 °C/W, ΨJT (top center) = 3 °C/W Figure 23. TO252-J5 Package Data www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 12/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Thermal Design This product exposes a frame on the back side of the package for thermal efficiency improvement. Within this IC, the power consumption is decided by the dropout voltage condition, the load current and the circuit current. Refer to power dissipation curves illustrated in Figure 22, 23 when using the IC in an environment of Ta ≥ 25 °C. Even if the ambient temperature Ta is at 25 °C, depending on the input voltage and the load current, chip junction temperature can be very high. Consider the design to be Tj ≤ Tjmax = 150 °C in all possible operating temperature range. Should by any condition the maximum junction temperature Tjmax = 150 °C rating be exceeded by the temperature increase of the chip, it may result in deterioration of the properties of the chip. The thermal impedance in this specification is based on recommended PCB and measurement condition by JEDEC standard. Verify the application and allow sufficient margins in the thermal design by the following method is used to calculate the junction temperature Tj. Tj can be calculated by either of the two following methods. 1. The following method is used to calculate the junction temperature Tj from ambient temperature Ta. Tj = Ta + PC × θJA Tj : Junction Temperature Ta : Ambient Temperature : Power Consumption PC θJA : Thermal Impedance (Junction to Ambient) 2. The following method is also used to calculate the junction temperature Tj from Top Center of Case’s (mold) Temperature TT. Tj = TT + PC × ΨJT Tj : Junction Temperature TT : Top Center of Case’s (mold) Temperature PC : Power consumption : Thermal Impedance ΨJT (Junction to Top Center of Case) The following method is used to calculate the power consumption Pc (W). Pc = (VCC - VO) × IO + VCC × Icc PC : Power Consumption : Input Voltage VCC VO : Output Voltage : Load Current IO Icc : Circuit Current www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 13/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C ・Calculation Example (TO263-5) If VCC = 13.5 V, VO = 5.0 V, IO = 200 mA, Icc = 75 μA, the power consumption Pc can be calculated as follows: PC = (VCC - VO) × IO + VCC × Icc = (13.5 V - 5.0 V) × 200 mA + 13.5 V × 75 μA = 1.7 W At the ambient temperature Tamax = 85°C, the thermal impedance (Junction to Ambient)θJA = 20.3 °C / W(4-layer PCB), Tj = Tamax + PC × θJA = 85 °C + 1.7 W × 20.3 °C / W = 119.5 °C When operating the IC, the top center of case’s (mold) temperature TT = 100 °C, ΨJT = 8 °C / W( 1-layer PCB ), Tj = TT + PC × ΨJT = 100 °C + 1.7 W × 8 °C / W = 113.6 °C For optimum thermal performance, it is recommended to expand the copper foil area of the board, increasing the layer and thermal via between thermal land pad. ・Calculation Example (TO252-J5) If VCC = 13.5 V, VO = 5.0 V, IO = 200 mA, Icc = 75 μA, the power consumption Pc can be calculated as follows: PC = (VCC - VO) × IO + VCC × Icc = (13.5 V - 5.0 V) × 200 mA + 13.5 V × 75 μA = 1.7 W At the ambient temperature Tamax = 85°C, the thermal impedance (Junction to Ambient)θJA = 23 °C / W(4-layer PCB), Tj = Tamax + PC × θJA = 85 °C + 1.7 W × 23 °C / W = 124.1°C When operating the IC, the top center of case’s (mold) temperature TT = 100 °C, ΨJT = 17 °C / W(1-layer PCB), Tj = TT + PC × ΨJT = 100 °C + 1.7 W × 17°C / W = 128.9 °C For optimum thermal performance, it is recommended to expand the copper foil area of the board, increasing the layer and thermal via between thermal land pads. www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 14/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Selection of Components Externally Connected ・VCC Pin Capacitor Insert capacitors with a capacitance of 0.1 μF or higher between the VCC and GND pin. We recommend using ceramic capacitor generally featuring good high frequency characteristic. When selecting a ceramic capacitor, please consider about temperature and DC - biasing characteristics. And please place capacitors near VCC – GND pin as close as possible. When input impedance is high, e.g. in case there is distance from battery, line voltage drop needs to be prevented by large capacitor. Select the capacitance according to the line impedance between the power smoothing circuit and the VCC pin. Selection of the capacitance also depends on the applications. Verify the application and allow sufficient margins in the design. We recommend using a capacitor with excellent voltage and temperature characteristics. ・Output Pin Capacitor In order to prevent oscillation, a capacitor needs to be placed between the output pin and GND pin. We recommend using a ceramic capacitor with a capacitance of 6 μF or higher. In selecting the capacitor, ensure that the capacitance of 6 μF or higher is maintained at the intended applied voltage and temperature range. Due to changes in temperature the capacitor's capacitance can fluctuate possibly resulting in oscillation. In actual applications the stable operating range is influenced by the PCB impedance, input supply impedance and load impedance. Therefore sufficient verification of the final operating environment is needed. When selecting a ceramic capacitor, we recommend using X7R or better components with excellent temperature and DC - biasing characteristics and high voltage tolerance. In case of the transient input voltage and the load current fluctuation, output voltage may fluctuate. In case this fluctuation can be problematic for the application, connect low ESR capacitor (capacitance > 6 μF, ESR < 1 Ω) in paralleled to large capacitor with a capacitance of 13 μF or higher and ESR of 5 Ω or lower. Electrolytic and tantalum and conductive polymer capacitors can be used as large capacitor. When selecting an electrolytic capacitor, please consider about increasing ESR and decreasing capacitance at cold temperature. We recommend placing the capacitor near output pin as close as possible. I/O Equivalence Circuits 1 VCC 2 RO VCC 100 Ω (Typ) IC 4 CT 5 VO 20 kΩ (Typ) 1500 kΩ (Typ) 6 Ω (Typ) 500 kΩ (Typ) Figure 24. I / O equivalence circuits www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 15/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Application Examples ・Applying positive surge to the VCC If the possibility exists that surges higher than 45 V will be applied to the VCC, a Zener Diode should be placed between the VCC and GND as shown in the figure below. VCC VO GND Figure 25. Application Example 1 ・Applying negative surge to the VCC If the possibility exists that negative surges lower than the GND are applied to the VCC, a Shottky Diode should be place between the VCC and GND as shown in the figure below. Figure 26. Application Example 2 ・Implementing a Protection Diode If the possibility exists that a large inductive load is connected to the output pin resulting in back-EMF at time of startup and shutdown, a protection diode should be placed as shown in the figure below. Figure 27. Application Example 3 ・Reverse Polarity Diode In some applications, the VCC and pin potential might be reversed, possibly resulting in circuit internal damage or damage to the elements. For example, while the external capacitor is charged, the A point shorts to the GND. Use a capacitor with a capacitance with 1000 μF or less. We also recommend using reverse polarity diodes in series or a bypass between VO pins and the VCC. Reverse Polarity Diode Bypass Diode A Figure 28. Application Example 4 www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 16/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Operational Notes 1. Reverse Connection of Power Supply Connecting the power supply in reverse polarity can damage the IC. Take precautions against reverse polarity when connecting the power supply, such as mounting an external diode between the power supply and the IC’s power supply pins. 2. Power Supply Lines Design the PCB layout pattern to provide low impedance supply lines. Separate the ground and supply lines of the digital and analog blocks to prevent noise in the ground and supply lines of the digital block from affecting the analog block. Furthermore, connect a capacitor to ground at all power supply pins. Consider the effect of temperature and aging on the capacitance value when using electrolytic capacitors. 3. Ground Voltage Ensure that no pins are at a voltage below that of the ground pin at any time, even during transient condition. 4. Ground Wiring Pattern When using both small-signal and large-current ground traces, the two ground traces should be routed separately but connected to a single ground at the reference point of the application board to avoid fluctuations in the small-signal ground caused by large currents. Also ensure that the ground traces of external components do not cause variations on the ground voltage. The ground lines must be as short and thick as possible to reduce line impedance. 5. Thermal Consideration Should by any chance the power dissipation rating be exceeded the rise in temperature of the chip may result in deterioration of the properties of the chip. Power dissipation is the value when the IC is mounted on a 114.3mm x 76.2mm x 1.57mm/1.6mm glass epoxy board. And in case this exceeds, take the measures like enlarge the size of board; make copper foil area for heat dissipation big; and do not exceed the power dissipation. 6. Inrush Current When power is first supplied to the IC, it is possible that the internal logic may be unstable and inrush current may flow instantaneously due to the internal powering sequence and delays, especially if the IC has more than one power supply. Therefore, give special consideration to power coupling capacitance, power wiring, width of ground wiring, and routing of connections. 7. Testing on Application Boards When testing the IC on an application board, connecting a capacitor directly to a low-impedance output pin may subject the IC to stress. Always discharge capacitors completely after each process or step. The IC’s power supply should always be turned off completely before connecting or removing it from the test setup during the inspection process. To prevent damage from static discharge, ground the IC during assembly and use similar precautions during transport and storage. 8. Inter-pin Short and Mounting Errors Ensure that the direction and position are correct when mounting the IC on the PCB. Incorrect mounting may result in damaging the IC. Avoid nearby pins being shorted to each other especially to ground, power supply and output pin. Inter-pin shorts could be due to many reasons such as metal particles, water droplets (in very humid environment) and unintentional solder bridge deposited in between pins during assembly to name a few. www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 17/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Operational Notes – Continued 9. Unused Input Pins Input pins of an IC are often connected to the gate of a MOS transistor. The gate has extremely high impedance and extremely low capacitance. If left unconnected, the electric field from the outside can easily charge it. The small charge acquired in this way is enough to produce a significant effect on the conduction through the transistor and cause unexpected operation of the IC. So unless otherwise specified, unused input pins should be connected to the power supply or ground line. 10. Regarding the Input Pin of the IC This monolithic IC contains P+ isolation and P substrate layers between adjacent elements in order to keep them isolated. P-N junctions are formed at the intersection of the P layers with the N layers of other elements, creating a parasitic diode or transistor. For example (refer to figure below): When GND > Pin A and GND > Pin B, the P-N junction operates as a parasitic diode. When GND > Pin B, the P-N junction operates as a parasitic transistor. Parasitic diodes inevitably occur in the structure of the IC. The operation of parasitic diodes can result in mutual interference among circuits, operational faults, or physical damage. Therefore, conditions that cause these diodes to operate, such as applying a voltage lower than the GND voltage to an input pin (and thus to the P substrate) should be avoided. 11. Ceramic Capacitor When using a ceramic capacitor, determine the dielectric constant considering the change of capacitance with temperature and the decrease in nominal capacitance due to DC bias and others. 12. Thermal Shutdown Circuit(TSD) This IC has a built-in thermal shutdown circuit that prevents heat damage to the IC. Normal operation should always be within the IC’s power dissipation rating. If however the rating is exceeded for a continued period, the junction temperature (Tj) will rise which will activate the TSD circuit that will turn OFF all output pins. When the Tj falls below the TSD threshold, the circuits are automatically restored to normal operation. Note that the TSD circuit operates in a situation that exceeds the absolute maximum ratings and therefore, under no circumstances, should the TSD circuit be used in a set design or for any purpose other than protecting the IC from heat damage. 13. Over Current Protection Circuit (OCP) This IC incorporates an integrated overcurrent protection circuit that is activated when the load is shorted. This protection circuit is effective in preventing damage due to sudden and unexpected incidents. However, the IC should not be used in applications characterized by continuous operation or transitioning of the protection circuit. www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 18/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Ordering Information B D 4 2 7 Part Number 5 4 x x Package FP2: TO263-5 FPJ: TO252-J5 x - C E2 Packaging and forming specification E2: Embossed tape and reel Marking Diagram TO263-5 (TOP VIEW) Part Number Marking B D 4 2 7 5 4 LOT Number 1Pin TO252-J5 (TOP VIEW) Part Number Marking B D 4 2 7 5 4 LOT Number 1Pin www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 19/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Physical Dimension Tape and Reel Information Package Name www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 TO263-5 20/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Package Name www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 TO252-J5 21/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 BD42754FP2-C Datasheet BD42754FPJ-C Revision History Date Revision Changes 19.Dec.2016 001 New Release 07.Mar.2017 002 TO252-J5 PKG was added www.rohm.com .© 2016 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 22/22 TSZ02201-0GAG0AN00650-1-2 07.Mar.2017 Rev.002 Notice Precaution on using ROHM Products 1. (Note 1) If you intend to use our Products in devices requiring extremely high reliability (such as medical equipment , aircraft/spacecraft, nuclear power controllers, etc.) and whose malfunction or failure may cause loss of human life, bodily injury or serious damage to property (“Specific Applications”), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific Applications. (Note1) Medical Equipment Classification of the Specific Applications JAPAN USA EU CHINA CLASSⅢ CLASSⅡb CLASSⅢ CLASSⅢ CLASSⅣ CLASSⅢ 2. ROHM designs and manufactures its Products subject to strict quality control system. However, semiconductor products can fail or malfunction at a certain rate. Please be sure to implement, at your own responsibilities, adequate safety measures including but not limited to fail-safe design against the physical injury, damage to any property, which a failure or malfunction of our Products may cause. The following are examples of safety measures: [a] Installation of protection circuits or other protective devices to improve system safety [b] Installation of redundant circuits to reduce the impact of single or multiple circuit failure 3. Our Products are not designed under any special or extraordinary environments or conditions, as exemplified below. Accordingly, ROHM shall not be in any way responsible or liable for any damages, expenses or losses arising from the use of any ROHM’s Products under any special or extraordinary environments or conditions. If you intend to use our Products under any special or extraordinary environments or conditions (as exemplified below), your independent verification and confirmation of product performance, reliability, etc, prior to use, must be necessary: [a] Use of our Products in any types of liquid, including water, oils, chemicals, and organic solvents [b] Use of our Products outdoors or in places where the Products are exposed to direct sunlight or dust [c] Use of our Products in places where the Products are exposed to sea wind or corrosive gases, including Cl2, H2S, NH3, SO2, and NO2 [d] Use of our Products in places where the Products are exposed to static electricity or electromagnetic waves [e] Use of our Products in proximity to heat-producing components, plastic cords, or other flammable items [f] Sealing or coating our Products with resin or other coating materials [g] Use of our Products without cleaning residue of flux (even if you use no-clean type fluxes, cleaning residue of flux is recommended); or Washing our Products by using water or water-soluble cleaning agents for cleaning residue after soldering [h] Use of the Products in places subject to dew condensation 4. The Products are not subject to radiation-proof design. 5. Please verify and confirm characteristics of the final or mounted products in using the Products. 6. In particular, if a transient load (a large amount of load applied in a short period of time, such as pulse. is applied, confirmation of performance characteristics after on-board mounting is strongly recommended. Avoid applying power exceeding normal rated power; exceeding the power rating under steady-state loading condition may negatively affect product performance and reliability. 7. De-rate Power Dissipation depending on ambient temperature. When used in sealed area, confirm that it is the use in the range that does not exceed the maximum junction temperature. 8. Confirm that operation temperature is within the specified range described in the product specification. 9. ROHM shall not be in any way responsible or liable for failure induced under deviant condition from what is defined in this document. Precaution for Mounting / Circuit board design 1. When a highly active halogenous (chlorine, bromine, etc.) flux is used, the residue of flux may negatively affect product performance and reliability. 2. In principle, the reflow soldering method must be used on a surface-mount products, the flow soldering method must be used on a through hole mount products. If the flow soldering method is preferred on a surface-mount products, please consult with the ROHM representative in advance. For details, please refer to ROHM Mounting specification Notice-PAA-E © 2015 ROHM Co., Ltd. All rights reserved. Rev.003 Precautions Regarding Application Examples and External Circuits 1. If change is made to the constant of an external circuit, please allow a sufficient margin considering variations of the characteristics of the Products and external components, including transient characteristics, as well as static characteristics. 2. You agree that application notes, reference designs, and associated data and information contained in this document are presented only as guidance for Products use. Therefore, in case you use such information, you are solely responsible for it and you must exercise your own independent verification and judgment in the use of such information contained in this document. ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of such information. Precaution for Electrostatic This Product is electrostatic sensitive product, which may be damaged due to electrostatic discharge. Please take proper caution in your manufacturing process and storage so that voltage exceeding the Products maximum rating will not be applied to Products. Please take special care under dry condition (e.g. Grounding of human body / equipment / solder iron, isolation from charged objects, setting of Ionizer, friction prevention and temperature / humidity control). Precaution for Storage / Transportation 1. Product performance and soldered connections may deteriorate if the Products are stored in the places where: [a] the Products are exposed to sea winds or corrosive gases, including Cl2, H2S, NH3, SO2, and NO2 [b] the temperature or humidity exceeds those recommended by ROHM [c] the Products are exposed to direct sunshine or condensation [d] the Products are exposed to high Electrostatic 2. Even under ROHM recommended storage condition, solderability of products out of recommended storage time period may be degraded. It is strongly recommended to confirm solderability before using Products of which storage time is exceeding the recommended storage time period. 3. Store / transport cartons in the correct direction, which is indicated on a carton with a symbol. Otherwise bent leads may occur due to excessive stress applied when dropping of a carton. 4. Use Products within the specified time after opening a humidity barrier bag. Baking is required before using Products of which storage time is exceeding the recommended storage time period. Precaution for Product Label A two-dimensional barcode printed on ROHM Products label is for ROHM’s internal use only. Precaution for Disposition When disposing Products please dispose them properly using an authorized industry waste company. Precaution for Foreign Exchange and Foreign Trade act Since concerned goods might be fallen under listed items of export control prescribed by Foreign exchange and Foreign trade act, please consult with ROHM in case of export. Precaution Regarding Intellectual Property Rights 1. All information and data including but not limited to application example contained in this document is for reference only. ROHM does not warrant that foregoing information or data will not infringe any intellectual property rights or any other rights of any third party regarding such information or data. 2. ROHM shall not have any obligations where the claims, actions or demands arising from the combination of the Products with other articles such as components, circuits, systems or external equipment (including software). 3. No license, expressly or implied, is granted hereby under any intellectual property rights or other rights of ROHM or any third parties with respect to the Products or the information contained in this document. Provided, however, that ROHM will not assert its intellectual property rights or other rights against you or your customers to the extent necessary to manufacture or sell products containing the Products, subject to the terms and conditions herein. Other Precaution 1. This document may not be reprinted or reproduced, in whole or in part, without prior written consent of ROHM. 2. The Products may not be disassembled, converted, modified, reproduced or otherwise changed without prior written consent of ROHM. 3. In no event shall you use in any way whatsoever the Products and the related technical information contained in the Products or this document for any military purposes, including but not limited to, the development of mass-destruction weapons. 4. The proper names of companies or products described in this document are trademarks or registered trademarks of ROHM, its affiliated companies or third parties. Notice-PAA-E © 2015 ROHM Co., Ltd. All rights reserved. Rev.003 Datasheet General Precaution 1. Before you use our Pro ducts, you are requested to care fully read this document and fully understand its contents. ROHM shall n ot be in an y way responsible or liabl e for fa ilure, malfunction or acci dent arising from the use of a ny ROHM’s Products against warning, caution or note contained in this document. 2. All information contained in this docume nt is current as of the issuing date and subj ect to change without any prior notice. Before purchasing or using ROHM’s Products, please confirm the la test information with a ROHM sale s representative. 3. The information contained in this doc ument is provi ded on an “as is” basis and ROHM does not warrant that all information contained in this document is accurate an d/or error-free. ROHM shall not be in an y way responsible or liable for an y damages, expenses or losses incurred b y you or third parties resulting from inaccur acy or errors of or concerning such information. Notice – WE © 2015 ROHM Co., Ltd. All rights reserved. Rev.001 Datasheet BD42754FP2-C - Web Page Buy Distribution Inventory Part Number Package Unit Quantity Minimum Package Quantity Packing Type Constitution Materials List RoHS BD42754FP2-C TO263-5F 500 500 Taping inquiry Yes
