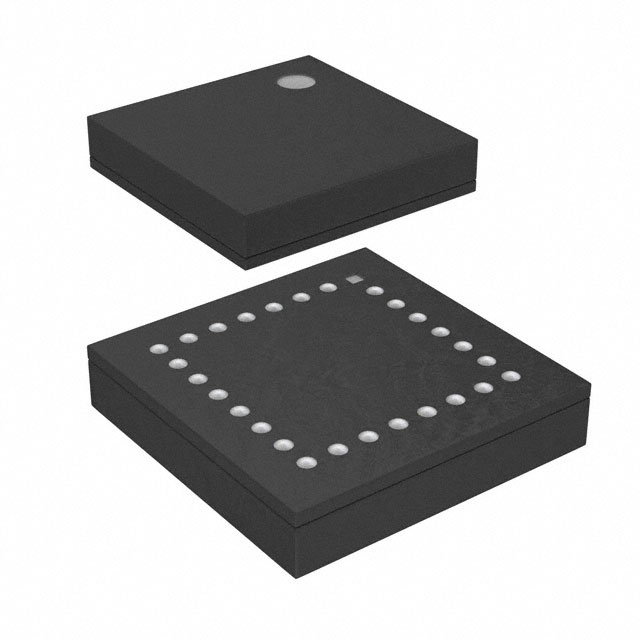

BH2223GLU-E2

BH2223FV/GLU Standard IC 8bit 10ch D/A converter BH2223FV/GLU BH2223FV/GLU is an 8bit D/A converter for electronic adjustment. The 10-channel DC output voltage can be independently controlled by three-wire serial interface from micro-controller. The D/A converter can generate without loss by Rail-to-Rail output within the setting voltage. The built-in power on reset circuit keeps the output state Low after the power is on and prevents the unstable output state. zApplications The voltage adjustment for DVC, DSC etc. zExternal dimensions (Unit : mm) 5.0±0.2 9 1 8 6.4±0.3 4.4±0.2 0.3Min. 16 1.15±0.1 0.1 zFeatures 1) 8bit 10-channel D/A converters adopting R-2R system. 2) 3-wire 12-bit serial interface. 3) POWER ON RESET circuit. 4) The full scale output voltage range : 2.7V to 5.5V. 5) SSOPB16/VFLGA28 package. 0.65 0.15±0.1 0.1 0.22±0.1 SSOP-B16 0.275 5.0±0.1 P=0.5X7 0.75±0.1 5.0±0.1 1.0MAX 1PINMARK 7 6 5 4 3 2 1 A B C D E F G H B 8 0.5 P=0.5X7 A 0.275 1PIN MARK 27-φ0.275±0.05 0.05 M S A B 0.75±0.1 S 0.08 S VFLGA28 zAbsolute maximum ratings (Ta=25°C) Parameter Power supply voltage Maximum output voltage Storage temperature Power dissipation(SSOPB16/VFLGA28) Symbol Limits Unit VCC −0.3 to +7.0 V VIN −0.3 to VCC V Tstg −55 to +125 400/300 ∗ °C Pd mW ∗Reduced by 4mW/3mW for each increase in Ta of 1°C over 25°C. This product is not designed for protection against radioactive rays. zRecommended operating conditions (Ta=25°C) Parameter Symbol Min. Typ. Max. Unit VCC supply voltage VCC 2.7 − 5.5 V Analog output source current IOL − − 1.0 mA Analog output sink current IOH − − 1.0 mA Topr −20 − 85 °C FSCLK − 1.0 − MHz CL − − 0.1 µF Operating temperature range Clock frequency Limit load capacitance Rev.A 1/2 BH2223FV/GLU Standard IC zBlock diagram SSOPB16 R-2R DAC 8bitREG + DEC AO8 7 R-2R DAC 8bitREG + DEC AO9 8 R-2R DAC 8bitREG + DEC VCC VCC 11 NC 8bitREG + DEC R-2R DAC 9 VCC zPin descriptions Pin No. SSOPB16 VFLGA28 Pin name In / Out Functions Analog output pins 1 A3 AO2 OUT 2 A2 A1 AO3 NC OUT - 3 B1 AO4 OUT 4 C1 AO5 OUT - 10 AO10 NC Analog output pins - D1 NC - NC 5 E1 AO6 OUT Analog output pins 6 F1 AO7 OUT 7 G1 H1 AO8 NC OUT - - NC 8 H2 AO9 OUT Analog output pins - H3 NC - - H4 NC - 9 H5 VCC - - H6 NC - NC 10 H7 AO10 OUT Analog output pins 11 H8 NC - NC 12 G8 LD IN - F8 NC - Serial Load input pin NC - E8 NC - - D8 NC - 13 C8 CLK IN Serial Clock input pin 14 B8 DI Serial Data input pin - A8 NC IN - 15 A7 AO1 OUT Analog output pins 16 A6 GND - - A5 NC - Common GND pin NC - A4 NC - Power supply pin AO1 6 12 LD A2 A3 A4 A5 A6 A7 A8 NC NC A1 AO4 B1 B8 DI AO5 C1 C8 CLK NC D1 D8 NC VFLGA28 AO6 E1 E8 NC AO7 F1 F8 NC AO8 G G8 LD NC H1 H2 H3 H4 H5 H6 H7 AO10 AO7 POWER_ON RESET GND 8bitREG + DEC NC R-2R DAC NC 5 VCC AO6 13 CLK NC 8bitREG + DEC 14 DI NC R-2R DAC VCC 4 Serial interface VCC AO5 8bitREG + DEC AO2 R-2R DAC 15 AO1 NC 3 R-2R DAC AO3 AO4 8bitREG + DEC AO9 8bitREG + DEC VCC R-2R DAC VCC 2 VCC AO3 16 GND VCC 8bitREG + DEC VCC R-2R DAC VCC 1 VCC AO2 H8 NC NC Rev.A 2/2 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject to change without notice. The specifications for the product described in this document are for reference only. Upon actual use, therefore, please request that specifications to be separately delivered. Application circuit diagrams and circuit constants contained herein are shown as examples of standard use and operation. Please pay careful attention to the peripheral conditions when designing circuits and deciding upon circuit constants in the set. Any data, including, but not limited to application circuit diagrams information, described herein are intended only as illustrations of such devices and not as the specifications for such devices. ROHM CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such devices. Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or otherwise dispose of the same, no express or implied right or license to practice or commercially exploit any intellectual property rights or other proprietary rights owned or controlled by ROHM CO., LTD. is granted to any such buyer. Products listed in this document are no antiradiation design. The products listed in this document are designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys). Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. About Export Control Order in Japan Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control Order in Japan. In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause) on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction. Appendix1-Rev1.1
