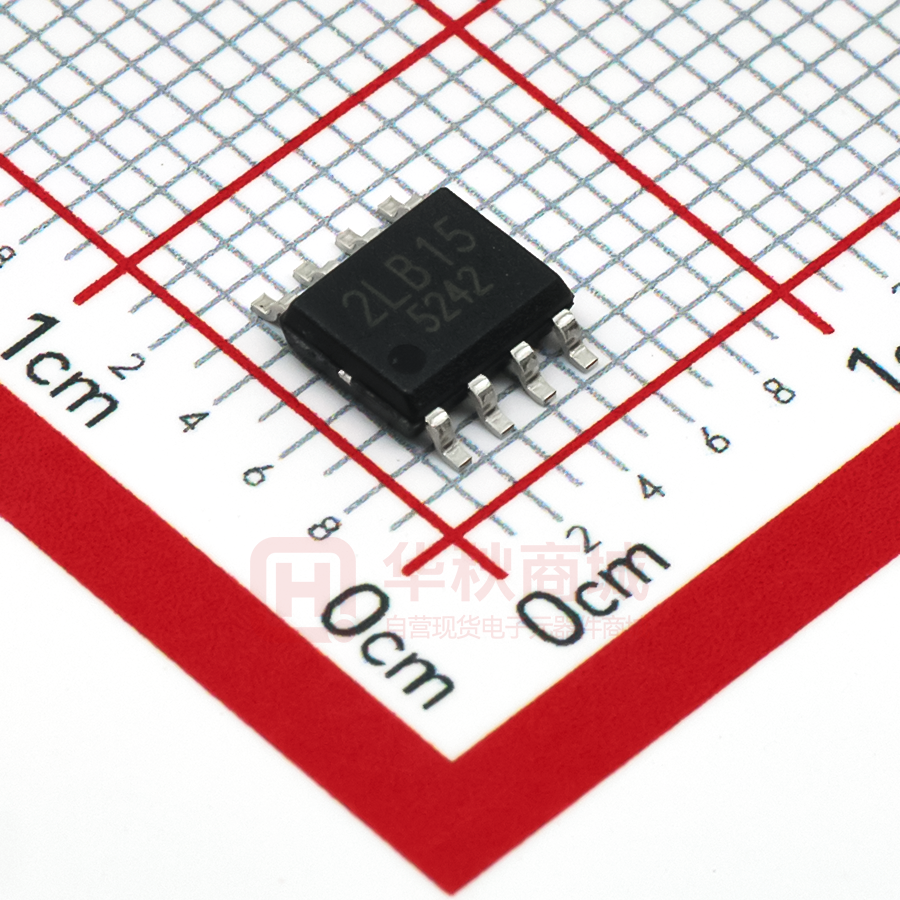

BM2LB150FJ-CE2

Datasheet Automotive IPD Series 2ch Low Side Switch IC BM2LB150FJ-C Features Product Summary Built-in overcurrent limiting circuit(OCP) Built-in thermal shutdown circuit (TSD) Direct control enabled from CMOS logic IC, etc. Low On resistance RDS(ON) up to 150 m (when VIN=5V, ID=0.5A, Tj=25°C) ■ Monolithic power management IC with the control block (CMOS) and power MOS FET mounted on a single chip ■ Surface mount package SOP-J8 (Note 1) ■ AEC-Q100 Qualified ■ ■ ■ ■ (Note 1) On-state resistance (Tj =25°C, Typ) Overcurrent limit (Tj =25°C, Typ) Output clamp voltage (Min) Active clamp energy (Tj =25°C) Package Grade1 SOP-J8 150mΩ 10A 42V 165mJ W(Typ) x D(Typ) x H(Max) 4.90mm x 6.00mm x 1.65mm General Description The BM2LB150FJ-C is an automotive 2ch low side switch IC, which has built-in overcurrent limiting circuit, thermal shutdown circuit, and overvoltage (active clamp) protection circuit. Applications 2ch low side switch for driving resistive, inductive load, Capacitive load Block Diagram Active Clamp Circuit Thermal Shutdown Circuit Overcurrent Limiting Circuit Active Clamp Circuit Thermal Shutdown Circuit Product structure: Silicon monolithic integrated circuit www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・14・001 Overcurrent Limiting Circuit This product is not designed to protect it from radiation 1/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Pin Descriptions Pin No. Symbol Function 1 GND1 2 IN1 3 GND2 GND pin2 4 IN2 Input pin2 5 OUT2 Output pin2 6 OUT2 Output pin2 7 OUT1 Output pin1 8 OUT1 Output pin1 GND pin1 Input pin1 (Note1) (Note1) (Note1) Input pin is used to internally connect a pull-down resistor. Pin Configurations BM2LB150FJ www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 2/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Absolute Maximum Ratings (Tj =25°C) Parameter Symbol Rating Unit Drain-Source voltage in output block V DS -0.3 to +42 (Note1) V Input voltage V IN -0.3 to +7 V Output current (DC) ID 6.5(internally limited) (Note2) A Active clamp energy (Single pulse) Tj(start) = 25°C (Note3) E AS(25°C) Active clamp energy (Single pulse) Tj(start) = 150°C (Note3) (Note4) E AS(150°C) 60 Tj -40 to +150 °C Storage temperature range T stg -55 to +150 °C Maximum junction temperature T jmax 150 °C 165 mJ Operating temperature range (Note1) Please refer to P.12 “Operation Notes”, when is used at less than -0.3V. (Note2) Internally limited by the overcurrent limiting circuit. (Note3) Min Active clamp energy, using single non-repetitive pulse of 1.0A. (Note4) Not 100% tested. Thermal resistance Parameter Symbol Rating Unit (1ch ON) P D(1) 1.47 W (2ch ON at once) P D(2) 2.00 W Power dissipation (Note5) (Note5) When mounted on a PCB (two-layer glass epoxy board measuring 76.2  114.3 [mm], 1.6 [mm] thick, with a copper foil area of 74.2  74.2 [mm]) Heat Dissipation Characteristic 3.00 (1) (2) 1ch ON 2ch ON at once 2.50 (2)2.00 W Pd [W] 2.00 (1)1.47 W 1.50 1.00 0.50 0.00 0 25 50 75 100 125 150 Tj [°C] www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 3/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Electrical Characteristics (Unless otherwise specified, 40CTj150C and VIN3.0V to 5.5V) Parameter Symbol Limit Min Typ Max Unit Conditions Output clamp voltage VCL 42 48 54 V On-state resistance 1 (at 25C) RON1 - 150 190 mΩ VIN=5V,ID=0.5A,Tj=25°C On-state resistance 1 (at 150C) RON2 - 260 320 mΩ VIN=5V,ID=0.5A,Tj=150°C On-state resistance 2 (at 25C) RON3 - 200 250 mΩ VIN=3V,ID=0.5A, Tj=25°C On-state resistance 2 (at 150C) RON4 - 340 420 mΩ VIN=3V,ID=0.5A,Tj=150°C Leakage current (at 25C) VIL1 - 0 4 μA VIN=0V,VDS=18V,Tj=25°C Leakage current (at 150C) VIL２ - 2 25 μA VIN=0V,VDS=18V,Tj=150°C Turn-ON time tON - - 80 μs Turn-OFF time tOFF - - 80 μs Slew rate on SRON - 0.5 1.0 V/μs Slew rate off SROFF - 1.0 2.0 V/μs Input threshold voltage VTH 1.1 - 2.7 V ID=1mA High-level input current IINH1 - 150 300 μA VIN=5V High-level input current (in abnormal operation) IINH2 - 250 450 μA VIN=5V Low-level input current IINL -10 0 10 μA VIN=0V Overcurrent detection current IOCP 6.5 10.0 13.5 A VIN=5V, Tj=25°C TSD detection temperature(Note1) Tjd 150 175 - °C VIN=5V TSD release temperature(Note1) Tjr 130 - - °C VIN=5V ⊿Tjd - 15 - °C VIN=5V TSD hysteresis(Note1) VIN=0V,ID=1mA VIN=0V/5V, Tj=25°C VIN=0V/5V, Tj=25°C VIN=0V/5V, Tj=25°C VIN=0V/5V, Tj=25°C RL=15Ω, VB=12V, RL=15Ω, VB=12V, RL=15Ω, VB=12V, RL=15Ω, VB=12V, (Note1) Not 100% tested. Terms Figure 1. Terms www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 4/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Measuring circuit I D=1.0mA I D =0 .5 A OUT OUT VCL RON = VDS / ID V IN V IN VIN GND GND Figure 3. On-state resistance measuring circuit Figure 2. Output clamp voltage measuring circuit VB =12V RL = 15Ω OUT V IN VIN =0V/ 5V GND Figure 4. tON・tOFF measuring circuit I/O Pin Truth Table Operating Status Normal Overcurrent Overheat www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 Input Signal H L H L H L Output Level L H Clamp H H H 5/13 Output Status ON OFF Current Limiting OFF OFF OFF TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Typical Performance Curves (Unless otherwise specified, Tj=25°C, VIN=5.0V) 300 Drain-Source On Resistance[mΩ] Drain-Source On Resistance[mΩ] 250 200 150 100 50 0 250 200 150 100 50 0 0 1 2 3 4 5 Input Voltage VIN [V] 6 7 -40 20 50 80 110 140 Channel Temperature Tj [℃] 170 Figure 6. On-state Resistance Characteristics [Temperature Characteristics] Figure 5. On-state Resistance Characteristics [Input Voltage Characteristics] 250 250 200 200 Input Current IIN [µA] Input Current IIN [µA] -10 150 100 50 150 100 50 0 0 0 1 2 3 4 5 Input Voltage VIN [V] 6 7 -40 20 50 80 110 140 Channel Temperature Tj [℃] 170 Figure 8. Input Current Characteristics [Temperature Characteristics] Figure 7. Input Current Characteristics [Input Voltage Characteristics] www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 -10 6/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C 12 VIN =7V 10 Overcurrent Protection Current [A] Overcurrent Protection Current [A] 12 6V 5V 4V 8 6 3V 4 2 0 8 6 4 2 0 0 1 2 3 4 Output Voltage VDS [V] 5 6 -40 70 150 60 Turn-ON/Turn-OFF Time[µｓ] 175 125 100 tON 75 -10 20 50 80 110 140 Channel Temperature Tj [℃] 170 Figure 10. Overcurrent Detection Current Characteristics [Temperature Characteristics] Figure 9. Overcurrent Detection Current Characteristics [Input Voltage Characteristics] Turn-ON/Turn-OFF Time [µｓ] 10 50 tOFF 25 50 tOFF 40 tON 30 20 10 0 0 0 1 2 3 4 5 Input Voltage VIN　[V] 6 7 -40 Figure 11. Turn-ON/Turn-OFF Time Characteristics [Input Voltage Characteristics] www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 -10 20 50 80 110 140 Channel Temperature Tj [℃] 170 Figure 12. Turn-ON/Turn-OFF Time Characteristics [Temperature Characteristics] 7/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C 2.8 Input Threshold Voltage [V] 2.4 2.0 1.6 1.2 0.8 0.4 0.0 -40 -10 20 50 80 110 140 Channel Temperature Tj [℃] 170 Figure 13. Input Threshold Voltage Characteristics [Temperature Characteristics] Timing Chart Figure 14. Behavior Sequence Figure 15. Inductive Load Operation www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 Figure 16. Switching Time 8/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Ordering Information B M 2 L B 1 5 0 F J Package FJ：SOP-J8 - CE2 Packaging and forming specification C: High-reliability product E2: Embossed tape and reel Marking Diagram SOP-J8(TOP VIEW) Part Number Marking 2 L B 1 5 LOT Number 1PIN MARK www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 9/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Physical Dimension Tape and Reel Information Package Name SOP-J8 Packaging style Embossed carrier tape Quantity packaged Direction of feed Pin 1 should come to the top left when you hold the reel with your left hand and feed the tape with your right hand. Direction of feed Pin 1 Reel www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 Note: An order should be placed in multiples of the quantity packaged. 10/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Operational Notes 1. 2. Grounding Interconnection Pattern When a small-signal ground and a high-current ground are used, it is recommended to isolate the high-current grounding interconnection pattern and the small-signal grounding interconnection pattern and establish a single ground at the reference point of a set so that voltage changes due to the resistance and high current of patterned interconnects will not cause any changes in the small-signal ground voltage. Pay careful attention to prevent changes in the interconnection pattern of ground for external components. The ground lines must be as short and thick as possible to reduce line impedance. Thermal Design Use a thermal design that allows for a sufficient margin by taking into account the permissible power dissipation (Pd) in actual operating conditions. 3. Absolute Maximum Ratings Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over the absolute maximum ratings. 4. Inspections on Set Board If a capacitor is connected to a low-impedance pin in order to conduct inspections of the IC on a set board, stress may apply to the IC. To avoid that, be sure to discharge the capacitor in each process. In addition, to connect or disconnect the IC to or from a jig in the testing process, be sure to turn OFF the power supply prior to connecting the IC, and disconnect it from the jig only after turning OFF the power supply. Furthermore, in order to protect the IC from static electricity, establish a ground for the IC assembly process and pay utmost attention to transport and store the IC. 5. Inter-pin Short and Mounting Errors Ensure that the direction and position are correct when mounting the IC on the PCB. Incorrect mounting may result in damaging the IC. Avoid nearby pins being shorted to each other especially to ground, power supply and output pin. Inter-pin shorts could be due to many reasons such as metal particles, water droplets (in very humid environment) and unintentional solder bridge deposited in between pins during assembly to name a few. 6. Ceramic Capacitor When using a ceramic capacitor, determine the dielectric constant considering the change of capacitance with temperature and the decrease in nominal capacitance due to DC bias and others. 7. Thermal Shutdown Circuit This IC has a built-in thermal shutdown circuit as an overheat-protection measure. The circuit is designed to turn OFF output when the temperature of the IC chip exceeds 175C (Typ) and return the IC to the normal operation when the temperature falls below 150C (Typ). The thermal shutdown circuit is a circuit absolutely intended to protect the IC from thermal runaway, not intended to protect or guarantee the IC. Consequently, do not operate the IC based on the subsequent continuous use or operation of the circuit. 8. Overcurrent Limiting Circuit This IC incorporates an integrated overcurrent protection circuit that is activated when the load is shorted. This protection circuit is effective in preventing damage due to sudden and unexpected incidents. However, the IC should not be used in applications characterized by continuous operation or transitioning of the protection circuit. 9. Overvoltage (Active Clamp) Protection Function This IC has a built-in overvoltage protection function in order for the IC to absorb counter-electromotive force energy generated when inductive load is turned OFF. Since the input voltage is clamped at 0V when the active clamp circuit is activated, the thermal shutdown circuit is disabled. Design a thermal solution so that the chip temperature will definitely come to less than 150C. 10. Counter-electromotive Force Fully ensure that the counter-electromotive force presents no problems in the operation or the IC. www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 11/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Operational Notes – continued 11. Negative Current of Output When supply a negative current from DRAIN terminal in the state that supplied the voltage to IN terminal. The current pass from IN terminal to DRAIN terminal through a parasitic transistor and voltage of IN terminal descend as shown in figure.17 and figure.18. As shown in figure.17 power MOS is turned on, set the DRAIN terminal is more than -0.3V. Because a negative current may be passed to DRAIN terminal from a power supply of the connection of the IN terminal (MCU, and so on). As shown in figure.18 power MOS is turned off, add a restriction resistance higher than 330 Ω to IN terminal. Because a negative current may be passed to DRAIN terminal from GND of the connection of the IN terminal. The restriction resistance value, set up in consideration of the voltage descent caused by the IN terminal current. MCU SOURCE 330Ω N+ IN N+ N+ N+ P－ Parasitic Element P+ P－ N+ N+ N-epi N+sub DRAIN Figure 17. Negative current pass(when power MOS is turned on) MCU SOURCE 330Ω N+ IN N+ N+ N+ P－ Parasitic Element P+ P－ N+ N+ N-epi N+sub DRAIN Figure 18. Negative current pass(when power MOS is turned off) www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 12/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Datasheet BM2LB150FJ-C Revision History Date Revision 09.Jan.2014 001 25.Dec.2015 002 Changes New Release ・General Description “BM2LB180” → “BM2LB150” ・Ordering Information is change. “BM2LB180” → “BM2LB150” 01.Aug.2016 003 P.1 “Features” Add “AECQ100-012 Grade” P.1 “Applications” Add “Capacitive load” P.1 “Package” Add “W(Typ) x D(Typ) x H(Max)” P.4 ”Electrical Characteristics” Turn-ON(OFF) time UNIT change P.12 “Operational Notes” Modify some sentence. www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 13/13 TSZ02201-0G2G0BD00150-1-2 01.Aug.2016 Rev.003 Notice Precaution on using ROHM Products 1. (Note 1) If you intend to use our Products in devices requiring extremely high reliability (such as medical equipment , aircraft/spacecraft, nuclear power controllers, etc.) and whose malfunction or failure may cause loss of human life, bodily injury or serious damage to property (“Specific Applications”), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific Applications. (Note1) Medical Equipment Classification of the Specific Applications JAPAN USA EU CHINA CLASSⅢ CLASSⅡb CLASSⅢ CLASSⅢ CLASSⅣ CLASSⅢ 2. ROHM designs and manufactures its Products subject to strict quality control system. However, semiconductor products can fail or malfunction at a certain rate. Please be sure to implement, at your own responsibilities, adequate safety measures including but not limited to fail-safe design against the physical injury, damage to any property, which a failure or malfunction of our Products may cause. The following are examples of safety measures: [a] Installation of protection circuits or other protective devices to improve system safety [b] Installation of redundant circuits to reduce the impact of single or multiple circuit failure 3. Our Products are not designed under any special or extraordinary environments or conditions, as exemplified below. Accordingly, ROHM shall not be in any way responsible or liable for any damages, expenses or losses arising from the use of any ROHM’s Products under any special or extraordinary environments or conditions. If you intend to use our Products under any special or extraordinary environments or conditions (as exemplified below), your independent verification and confirmation of product performance, reliability, etc, prior to use, must be necessary: [a] Use of our Products in any types of liquid, including water, oils, chemicals, and organic solvents [b] Use of our Products outdoors or in places where the Products are exposed to direct sunlight or dust [c] Use of our Products in places where the Products are exposed to sea wind or corrosive gases, including Cl2, H2S, NH3, SO2, and NO2 [d] Use of our Products in places where the Products are exposed to static electricity or electromagnetic waves [e] Use of our Products in proximity to heat-producing components, plastic cords, or other flammable items [f] Sealing or coating our Products with resin or other coating materials [g] Use of our Products without cleaning residue of flux (even if you use no-clean type fluxes, cleaning residue of flux is recommended); or Washing our Products by using water or water-soluble cleaning agents for cleaning residue after soldering [h] Use of the Products in places subject to dew condensation 4. The Products are not subject to radiation-proof design. 5. Please verify and confirm characteristics of the final or mounted products in using the Products. 6. In particular, if a transient load (a large amount of load applied in a short period of time, such as pulse. is applied, confirmation of performance characteristics after on-board mounting is strongly recommended. Avoid applying power exceeding normal rated power; exceeding the power rating under steady-state loading condition may negatively affect product performance and reliability. 7. De-rate Power Dissipation depending on ambient temperature. When used in sealed area, confirm that it is the use in the range that does not exceed the maximum junction temperature. 8. Confirm that operation temperature is within the specified range described in the product specification. 9. ROHM shall not be in any way responsible or liable for failure induced under deviant condition from what is defined in this document. Precaution for Mounting / Circuit board design 1. When a highly active halogenous (chlorine, bromine, etc.) flux is used, the residue of flux may negatively affect product performance and reliability. 2. In principle, the reflow soldering method must be used on a surface-mount products, the flow soldering method must be used on a through hole mount products. If the flow soldering method is preferred on a surface-mount products, please consult with the ROHM representative in advance. For details, please refer to ROHM Mounting specification Notice-PAA-E © 2015 ROHM Co., Ltd. All rights reserved. Rev.003 Precautions Regarding Application Examples and External Circuits 1. If change is made to the constant of an external circuit, please allow a sufficient margin considering variations of the characteristics of the Products and external components, including transient characteristics, as well as static characteristics. 2. You agree that application notes, reference designs, and associated data and information contained in this document are presented only as guidance for Products use. Therefore, in case you use such information, you are solely responsible for it and you must exercise your own independent verification and judgment in the use of such information contained in this document. ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of such information. Precaution for Electrostatic This Product is electrostatic sensitive product, which may be damaged due to electrostatic discharge. Please take proper caution in your manufacturing process and storage so that voltage exceeding the Products maximum rating will not be applied to Products. Please take special care under dry condition (e.g. Grounding of human body / equipment / solder iron, isolation from charged objects, setting of Ionizer, friction prevention and temperature / humidity control). Precaution for Storage / Transportation 1. Product performance and soldered connections may deteriorate if the Products are stored in the places where: [a] the Products are exposed to sea winds or corrosive gases, including Cl2, H2S, NH3, SO2, and NO2 [b] the temperature or humidity exceeds those recommended by ROHM [c] the Products are exposed to direct sunshine or condensation [d] the Products are exposed to high Electrostatic 2. Even under ROHM recommended storage condition, solderability of products out of recommended storage time period may be degraded. It is strongly recommended to confirm solderability before using Products of which storage time is exceeding the recommended storage time period. 3. Store / transport cartons in the correct direction, which is indicated on a carton with a symbol. Otherwise bent leads may occur due to excessive stress applied when dropping of a carton. 4. Use Products within the specified time after opening a humidity barrier bag. Baking is required before using Products of which storage time is exceeding the recommended storage time period. Precaution for Product Label A two-dimensional barcode printed on ROHM Products label is for ROHM’s internal use only. Precaution for Disposition When disposing Products please dispose them properly using an authorized industry waste company. Precaution for Foreign Exchange and Foreign Trade act Since concerned goods might be fallen under listed items of export control prescribed by Foreign exchange and Foreign trade act, please consult with ROHM in case of export. Precaution Regarding Intellectual Property Rights 1. All information and data including but not limited to application example contained in this document is for reference only. ROHM does not warrant that foregoing information or data will not infringe any intellectual property rights or any other rights of any third party regarding such information or data. 2. ROHM shall not have any obligations where the claims, actions or demands arising from the combination of the Products with other articles such as components, circuits, systems or external equipment (including software). 3. No license, expressly or implied, is granted hereby under any intellectual property rights or other rights of ROHM or any third parties with respect to the Products or the information contained in this document. Provided, however, that ROHM will not assert its intellectual property rights or other rights against you or your customers to the extent necessary to manufacture or sell products containing the Products, subject to the terms and conditions herein. Other Precaution 1. This document may not be reprinted or reproduced, in whole or in part, without prior written consent of ROHM. 2. The Products may not be disassembled, converted, modified, reproduced or otherwise changed without prior written consent of ROHM. 3. In no event shall you use in any way whatsoever the Products and the related technical information contained in the Products or this document for any military purposes, including but not limited to, the development of mass-destruction weapons. 4. The proper names of companies or products described in this document are trademarks or registered trademarks of ROHM, its affiliated companies or third parties. Notice-PAA-E © 2015 ROHM Co., Ltd. All rights reserved. Rev.003 Datasheet General Precaution 1. Before you use our Pro ducts, you are requested to care fully read this document and fully understand its contents. ROHM shall n ot be in an y way responsible or liabl e for fa ilure, malfunction or acci dent arising from the use of a ny ROHM’s Products against warning, caution or note contained in this document. 2. All information contained in this docume nt is current as of the issuing date and subj ect to change without any prior notice. Before purchasing or using ROHM’s Products, please confirm the la test information with a ROHM sale s representative. 3. The information contained in this doc ument is provi ded on an “as is” basis and ROHM does not warrant that all information contained in this document is accurate an d/or error-free. ROHM shall not be in an y way responsible or liable for an y damages, expenses or losses incurred b y you or third parties resulting from inaccur acy or errors of or concerning such information. Notice – WE © 2015 ROHM Co., Ltd. All rights reserved. Rev.001
