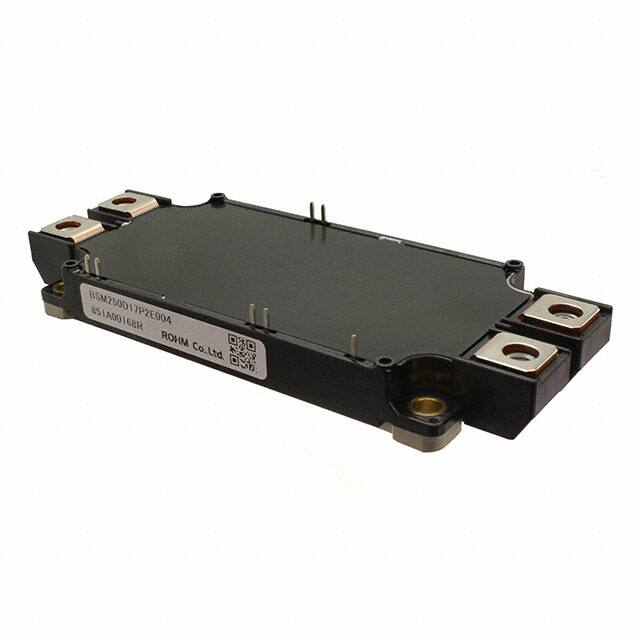

BSM250D17P2E004

SiC Power Module BSM250D17P2E004 Datasheet Application Circuit diagram Motor drive 1 7 Inverter, Converter Photovoltaics, wind power generation. 9 8 Induction heating equipment. 3,4 Features 6 5 1) Low surge, low switching loss. 2 2) High-speed switching possible. 10 3) Reduced temperature dependence. 11 NTC Construction This product is a half bridge module consisting of SiC-DMOSFET and SiC-SBD from ROHM. Dimensions & Pin layout (Unit : mm) www.rohm.com © 2018 ROHM Co., Ltd. All rights reserved. 1/10 19.Oct.2018 - Rev.001 BSM250D17P2E004 Datasheet Absolute maximum ratings (Tj = 25°C) Symbol Conditions Ratings Drain - Source Voltage VDSS G-S short 1700 Gate - Source Voltage (+) VGSS D-S short 22 Gate - Source Voltage (-) VGSS D-S short -6 VGSSsurge D-S short -10 to 26 ID DC(Tc=60°C) VGS=18V 250 Parameter G - S Voltage (tsurge
