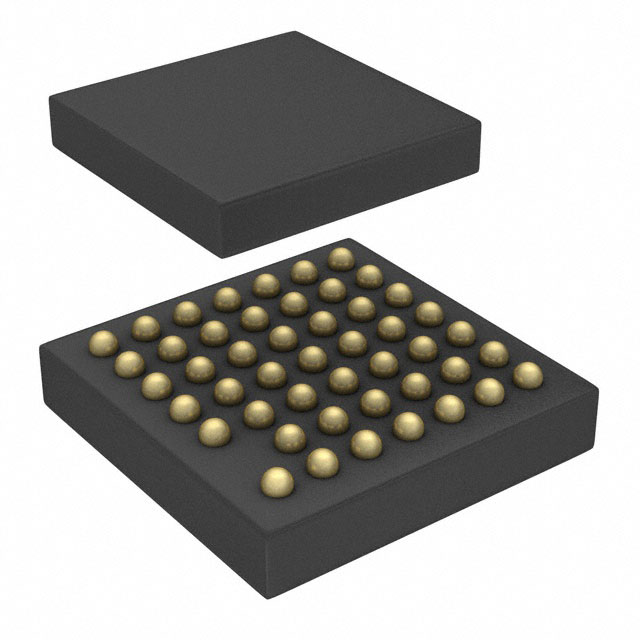

BU90T81-E2

LVDS Interface ICs 27bit LVDS Transmitter BU90T81 ●General Description The BU90T81 transmitter operates from 20MHz to 112MHz wide clock range, and 27bits data of parallel LVCMOS level inputs(R/G/B24bits and VSYNC,HSYNC,DE) are converted to four channels of LVDS data stream. Data is transmitted seven times (7X) stream and reduce cable number by 3(1/3) or less. The BU90T81 operates from a single 1.8V supply for low power. And the BU90T81 has low swing mode to be able to expect further low power and low EMI . ●Key Specifications ▆Supply Voltage range ▆Operating frequency ▆Operating Temperature Range ▆Power Consumption ●Features ▆24bits data of parallel LVCMOS level inputs are converted to four channels of LVDS data stream. ▆Support clock frequency from 20MHz up to 112MHz. ▆Low power 1.8V CMOS design ▆Power down mode ▆Clock edge selectable ▆Support 6bit/8bit mode selectable ▆Support reduced swing LVDS for low EMI. ▆Support LVDS Outputs pin reverse function ▆Support spread spectrum clock generator input ●Applications ▆Tablet ▆Netbook PC ▆Digital Picture Frame ●Packages VBGA048W040 1.65 to 1.95 V 20 to 112MHz –20 to 85℃ 50mW(Typ) 4.00 ㎜×4.00 ㎜×0.90 ㎜ ●Block Diagram LVCMOS Input LVDS CLKIIN (20-112MHz) PLL Output TCLK +/(20-112MHz) 8 R[7:0] TA +/8 G[7:0] TB +/- 8 B[7:0] Parallel to Serial HSYNC TC +/- VSYNC DE TD +/FLIP 6B8B RS[1:0] RF XRST Figure-1 Block Diagram ○Product structure：Silicon monolithic integrated circuit ○This product is not designed protection against radioactive rays www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・14・001 1/11 TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet BU90T81 ●Pin Configuration Top view 1 2 3 4 5 6 7 A G[5] G[7] R[1] R[3] R[5] R[6] R[7] B - G[6] R[0] R[2] R[4] TA- TA+ C G[3] G[4] GND RS[1] RS[0] TB- TB+ D G[1] G[2] RF VDD VDD TC- TC+ E G[0] B[7] FLIP 6B8B GND TCLK- TCLK+ F B[6] B[5] B[2] B[0] G B[4] B[3] B[1] HSYNC VSYNC CLKIN XRST DE TD- TD+ 48pin VBGA Figure-2 Pin Diagram (Top View) ●Pin Description Pin Name TA+/-, TB+/-, TC+/-,TD+/TCLK+/- Pin No. Type B7,B6,C7,C6,D7,D6,F7,F6 LVDS OUT E7,6 R[7:0] A7,A6,A5,B5,A4,B4,A3,B3 G[7:0] A2,B2,A1,C2,C1,D2,D1,E1 B[7:0] HSYNC,VSYNC, DE CLKIN E2,F1,F2,G1,G2,F3,G3,F4 XRST G7 RF D3 CMOS IN Descriptions LVDS Data out LVDS Clock out Pixel and control data inputs G4,G5,F5 G6 Clock input Power Down H：Normal operation L：Power down ( all LVDS output signal are Hi-z) Input CLK Triggering Edge Select. H：Rising edge L：Falling edge LVDS swing mode select RS[1:0] C3,C5 CMOS IN RS0 L H L H LVDS swing TYP=160ｍV TYP=200ｍV TYP=350ｍV Reserved 6bit/8bit mode select H : 6bit mode(FLIP=L TD+/- is Hiz) (FLIP=H TA+/- is Hiz) L : 8bit mode LVDS output pin reverse select. H : Reverse L : Normal 6B8B E4 FLIP E3 VDD D4,D5 POWER GND C3,E5 GND www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 RS1 L L H H 2/11 1.8V Power supply Ground Pins TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet BU90T81 ●Absolute Maximum Ratings Rating Parameter Symbol Units Min Max Supply Voltage VDD -0.3 2.5 V Input Voltage VIN -0.3 VDD+0.3 V Output Voltage VOUT -0.3 VDD+0.3 V Storage Temperature Range Tstg -55 125 ℃ ●Operating Ratings Rating Units Symbol Parameter Min Typ Max Supply Voltage VDD 1.65 1.8 1.95 V Operating Temperature Range Topr -20 - 85 ℃ Operating frequency Fmax 20 - 112 MHz Conditions ●Package Power Package Power Dissipation (mW) De-rating (mW/℃)＊１ VBGA048W040 800＊１ 8.0＊１ *１:Package power when mounting on the PCB board. The size of PCB board The material of PCB board : 114.3×76.2×1.6（mm3） : The FR4 glass epoxy board. ●DC characteristics Table 1 : LVCMOS DC Specifications（VDD=1.65V～1.95V, Ta=-20℃～+85℃） Rating Symbol Parameter Units Min Typ Max VIH High Level Input Voltage VDD×0.7 - VDD V VIL Low Level Input Voltage GND - VDD×0.3 V IINC Input Current -10 - +10 μA Conditions 0V≤VIN≤VDD Table2: LVDS Transmitter DC Specifications（VDD=1.65V～1.95V, Ta=-20℃～+85℃） Rating Symbol VOD Parameter Differential Output Voltage Units Min Typ Max 250 350 450 mV 130 200 270 mV 110 160 210 mV Conditions RS[1:0]= HL RL=100Ω RS[1:0]= LH RS[1:0]= LL ΔVOD Change in VOD between complementary output states - - 35 mV VOC Common Mode Voltage 1.125 1.25 1.375 V ΔVOC Change in VOC between complementary output states - - 35 mV IOS Output Short Circuit Current -90 - - mA VOUT=0V IOZ Output TRI-STATE Current -10 - +10 μA XRST=0V, VOUT=0V to VDD www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 3/11 RL=100Ω TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet BU90T81 ●AC characteristics Table 3 : Switching Characteristics（VDD=1.8V, Ta=25℃ RL=100Ω CL=5ｐF RS[1:0]=HL） Parameter Symbol Min Typ Max Units tTCP CLK OUT Period 8.93 - 50 ns tTCIT CLK IN Transition time - - 5.0 ns tTCH CLK IN High Time 0.35tTCP 0.5tTCP 0.65tTCP ns tTCL CLK IN Low Time 0.35tTCP 0.5tTCP 0.65tTCP ns tTS LVSMOS Data Set up to CLK IN 2.5 - - ns tTH LVCMOS Data Hold from CLK IN 0 - - ns LVDS Transition Time - 0.6 1.5 ns CLKOUT=112MHz - - 200 ｐs CLKOUT=112MHz - - 200 ｐs tLVT Differential Output Set up Time Differential Output Hold time TTSUP TTHLD tTOP6 Output Data Position 6 tTOP5 Output Data Position 5 tTOP4 Output Data Position 4 tTOP3 Output Data Position 3 tTOP2 Output Data Position 2 tTOP1 Output Data Position 1 tTOP0 Output Data Position 0 tTPLL Phase Locked Loop Set Time tTCP - TTHLD 7 tTCP - TTHLD 3 7 tTCP - TTHLD 4 7 tTCP 5 - TTHLD 7 tTCP - TTHLD 6 7 tTCP - TTHLD 7 7 tTCP 8 - TTHLD 7 2 tTCP 7 tTCP 3 7 tTCP 4 7 tTCP 5 7 tTCP 6 7 tTCP 7 7 tTCP 8 7 tTCP + TTSUP 7 tTCP 3 + TTSUP 7 tTCP 4 + TTSUP 7 tTCP 5 + TTSUP 7 tTCP 6 + TTSUP 7 tTCP 7 + TTSUP 7 tTCP 8 + TTSUP 7 2 - 2 - 10 ns ns ns ns ns ns ns ｍs ●AC Timing Diagrams LVCMOS Input tTCP CLKIN LVCMOS Input 90% t TCH 90% RF=L 10% CLKIN 10% V DD /2 V DD/2 tTCL tTCIT tTCIT V DD/2 tTS RF=H tTH LVDS Output Vdiff=(Tx+)-(Tx-) DATA_IN Tx+ Vdiff CL RL 80% V DD/2 80% 20% V DD/2 tTCD TCLK+ 20% V OC Tx- TCLK- LVDS Output Load tLVT t LVT x=A,B,C.D,CLK DATA_IN= R[7:0], G[7:0], B[7:0], VSYNC, HSYNC, DE Figure-3 LVCMOS Input AC Timing Diagrams www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 4/11 TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet BU90T81 TCLK OUT (Differential) TA+/- G[2] R[7] R[6] R[5] R[4] R[3] R[2] TB+/- B[3] B[2] G[7] G[6] G[5] G[4] G[3] TC+/- DE VSY NC HSY NC B[7] B[6] B[5] B[4] TD+/- L B[1] B[0] G[1] G[0] R[1] R[0] Previous Cycle tTOP1 tTOP0 tTOP6 tTOP5 tTOP4 tTOP3 tTOP2 Next Cycle Figure-4 LVDS Output AC Timing Diagrams ●Phase Locked Loop Set Time 1.65 V DD V DD V DD×0.7 XRST tTPLL CLKIN V diff=0V TCLK+/- Figure-5 Phase Locked Loop Set Time www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 5/11 TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet BU90T81 ●Supply Current Table 4: Supply Current (6B8B = L) Symbol ITCCG ITCCW ITCCS Parameter Min Rating Typ Max - 30.4 - mA RL=100Ω,CL=5pF VDD=1.8V,RS[1:0]=HL Gray Scale Pattern f=85MHz - 22.5 - mA RL=100Ω,CL=5pF VDD=1.8V,RS[1:0]=LH Gray Scale Pattern f=85MHz - 20.4 - mA RL=100Ω,CL=5pF VDD=1.8V, RS[1:0]=LL Gray Scale Pattern f=85MHz - 32.4 - mA RL=100Ω,CL=5pF VDD=1.8V, RS[1:0]=HL Worst case Pattern f=85MHz - 24.5 - mA RL=100Ω,CL=5pF VDD=1.8V, RS[1:0]=LH Worst case Pattern f=85MHz - 22.4 - mA RL=100Ω,CL=5pF VDD=1.8V, RS[1:0]=LL Worst case Pattern f=85MHz - - 10 μA Transmitter Supply Current Transmitter Supply Current Transmitter Power Down Supply Current Units Conditions XRST=L Gray Scale Pattern CLKIN D[0] D[1] D[2] D[3] D[4] D[5] D[6] D[7] D=R,G,B Figure -6 Gray Scale Pattern Worst Case Pattern (Maximum Power condition) CLKIN D[0] D[1] D[2] D[3] D[4] [ D[5] D[6] D[7] D=R,G,B Figure -7 Worst Case Pattern www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 6/11 TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet BU90T81 ●LVDS Data Output Table for Function of FLIP pin Table 5: LVDS Data Output Pin Name Output Pin Names Pin No FLIP=L FLIP=H B7 TA+ TD- B6 TA- TD+ C7 TB+ TCLK- C6 TB- TCLK+ D7 D6 E7 TC+ TCTCLK+ TCTC+ TB- E6 TCLK- TB+ F7 F6 TD+ TD- TATA+ TA- TA+ TD+ TD- TB- TB+ TCLK+ TCLK- TC- TC+ TCLK- TCLK+ TD- TD+ FLIP=L TC+ TC- TB+ TB- TA+ TA- FLIP=H ●LVCMOS Data Inputs Pixel Map Table Table 6: LVCMOS Data Inputs Pixel Map Table TFT Panel Data LSB 24Bit 18Bit R0 - BU90T81 Input R0 R1 - R0 R2 R0 R1 R3 R1 R2 R4 R2 R3 R5 R3 R4 R6 R4 R5 MSB R7 R5 R6 LSB G0 - R7 G1 - G0 G2 G0 G1 G3 G1 G2 G4 G2 G3 G5 G3 G4 G6 G4 G5 MSB G7 G5 G6 LSB B0 - G7 MSB B1 - B0 B2 B0 B1 B3 B1 B2 B4 B2 B3 B5 B3 B4 B6 B4 B5 B7 B5 B6 VSYNC VSYNC B7 HSYNC HSYNC HSYNC DE DE DE www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 7/11 TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet BU90T81 ●LVDS Output Data Mapping TCLK OUT (Differential) TA+/- G[2] R[7] R[6] R[5] R[4] R[3] R[2] TB+/- B[3] B[2] G[7] G[6] G[5] G[4] G[3] TC+/- DE VSY NC HSY NC B[7] B[6] B[5] B[4] TD+/- L B[1] B[0] G[1] G[0] R[1] R[0] Figure-8 LVDS output mapping (6B8B=L, FLIP=L) TCLK OUT (Differential) TA+/- G[2] R[7] R[6] TB+/- B[3] B[2] G[7] G[6] G[5] G[4] G[3] TC+/- DE VSY NC HSY NC TD+/- R[5] B[7] R[4] B[6] R[3] B[5] R[2] B[4] Hiz Figure-9 LVDS output mapping (6B8B=H, FLIP=L) www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 8/11 TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet BU90T81 ●Typical Application Circuit ( 24bit mode) Example BU90T81: LVCMOS Data Input /rising edge/200mV swing output/normal output mapping Figure-10 Application Circuit (24bit mode) www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 9/11 TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet BU90T81 ●Typical Application Circuit ( 18bit mode) Example BU90T81: LVCMOS Data Input /rising edge/200mV swing output/normal output mapping Figure-11 Application Circuit (18bit mode) ●Status of this document The Japanese version of this document is formal specification. A customer may use this translation version only for a reference to help reading the formal version. If there are any differences in translation version of this document formal version takes priority www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. TSZ22111・15・001 10/11 TSZ02201-0L2L0V100010-1-2 23.JAN.2012 Rev.001 Datasheet Notice Precaution on using ROHM Products 1. Our Products are designed and manufactured for application in ordinary electronic equipments (such as AV equipment, OA equipment, telecommunication equipment, home electronic appliances, amusement equipment, etc.). If you (Note 1) , transport intend to use our Products in devices requiring extremely high reliability (such as medical equipment equipment, traffic equipment, aircraft/spacecraft, nuclear power controllers, fuel controllers, car equipment including car accessories, safety devices, etc.) and whose malfunction or failure may cause loss of human life, bodily injury or serious damage to property (“Specific Applications”), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific Applications. (Note1) Medical Equipment Classification of the Specific Applications JAPAN USA EU CHINA CLASSⅢ CLASSⅡb CLASSⅢ CLASSⅢ CLASSⅣ CLASSⅢ 2. ROHM designs and manufactures its Products subject to strict quality control system. However, semiconductor products can fail or malfunction at a certain rate. Please be sure to implement, at your own responsibilities, adequate safety measures including but not limited to fail-safe design against the physical injury, damage to any property, which a failure or malfunction of our Products may cause. The following are examples of safety measures: [a] Installation of protection circuits or other protective devices to improve system safety [b] Installation of redundant circuits to reduce the impact of single or multiple circuit failure 3. Our Products are designed and manufactured for use under standard conditions and not under any special or extraordinary environments or conditions, as exemplified below. Accordingly, ROHM shall not be in any way responsible or liable for any damages, expenses or losses arising from the use of any ROHM’s Products under any special or extraordinary environments or conditions. If you intend to use our Products under any special or extraordinary environments or conditions (as exemplified below), your independent verification and confirmation of product performance, reliability, etc, prior to use, must be necessary: [a] Use of our Products in any types of liquid, including water, oils, chemicals, and organic solvents [b] Use of our Products outdoors or in places where the Products are exposed to direct sunlight or dust [c] Use of our Products in places where the Products are exposed to sea wind or corrosive gases, including Cl2, H2S, NH3, SO2, and NO2 [d] Use of our Products in places where the Products are exposed to static electricity or electromagnetic waves [e] Use of our Products in proximity to heat-producing components, plastic cords, or other flammable items [f] Sealing or coating our Products with resin or other coating materials [g] Use of our Products without cleaning residue of flux (even if you use no-clean type fluxes, cleaning residue of flux is recommended); or Washing our Products by using water or water-soluble cleaning agents for cleaning residue after soldering [h] Use of the Products in places subject to dew condensation 4. The Products are not subject to radiation-proof design. 5. Please verify and confirm characteristics of the final or mounted products in using the Products. 6. In particular, if a transient load (a large amount of load applied in a short period of time, such as pulse. is applied, confirmation of performance characteristics after on-board mounting is strongly recommended. Avoid applying power exceeding normal rated power; exceeding the power rating under steady-state loading condition may negatively affect product performance and reliability. 7. De-rate Power Dissipation (Pd) depending on Ambient temperature (Ta). When used in sealed area, confirm the actual ambient temperature. 8. Confirm that operation temperature is within the specified range described in the product specification. 9. ROHM shall not be in any way responsible or liable for failure induced under deviant condition from what is defined in this document. Precaution for Mounting / Circuit board design 1. When a highly active halogenous (chlorine, bromine, etc.) flux is used, the residue of flux may negatively affect product performance and reliability. 2. In principle, the reflow soldering method must be used; if flow soldering method is preferred, please consult with the ROHM representative in advance. For details, please refer to ROHM Mounting specification Notice - GE © 2014 ROHM Co., Ltd. All rights reserved. Rev.002 Datasheet Precautions Regarding Application Examples and External Circuits 1. If change is made to the constant of an external circuit, please allow a sufficient margin considering variations of the characteristics of the Products and external components, including transient characteristics, as well as static characteristics. 2. You agree that application notes, reference designs, and associated data and information contained in this document are presented only as guidance for Products use. Therefore, in case you use such information, you are solely responsible for it and you must exercise your own independent verification and judgment in the use of such information contained in this document. ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of such information. Precaution for Electrostatic This Product is electrostatic sensitive product, which may be damaged due to electrostatic discharge. Please take proper caution in your manufacturing process and storage so that voltage exceeding the Products maximum rating will not be applied to Products. Please take special care under dry condition (e.g. Grounding of human body / equipment / solder iron, isolation from charged objects, setting of Ionizer, friction prevention and temperature / humidity control). Precaution for Storage / Transportation 1. Product performance and soldered connections may deteriorate if the Products are stored in the places where: [a] the Products are exposed to sea winds or corrosive gases, including Cl2, H2S, NH3, SO2, and NO2 [b] the temperature or humidity exceeds those recommended by ROHM [c] the Products are exposed to direct sunshine or condensation [d] the Products are exposed to high Electrostatic 2. Even under ROHM recommended storage condition, solderability of products out of recommended storage time period may be degraded. It is strongly recommended to confirm solderability before using Products of which storage time is exceeding the recommended storage time period. 3. Store / transport cartons in the correct direction, which is indicated on a carton with a symbol. Otherwise bent leads may occur due to excessive stress applied when dropping of a carton. 4. Use Products within the specified time after opening a humidity barrier bag. Baking is required before using Products of which storage time is exceeding the recommended storage time period. Precaution for Product Label QR code printed on ROHM Products label is for ROHM’s internal use only. Precaution for Disposition When disposing Products please dispose them properly using an authorized industry waste company. Precaution for Foreign Exchange and Foreign Trade act Since our Products might fall under controlled goods prescribed by the applicable foreign exchange and foreign trade act, please consult with ROHM representative in case of export. Precaution Regarding Intellectual Property Rights 1. All information and data including but not limited to application example contained in this document is for reference only. ROHM does not warrant that foregoing information or data will not infringe any intellectual property rights or any other rights of any third party regarding such information or data. ROHM shall not be in any way responsible or liable for infringement of any intellectual property rights or other damages arising from use of such information or data.: 2. No license, expressly or implied, is granted hereby under any intellectual property rights or other rights of ROHM or any third parties with respect to the information contained in this document. Other Precaution 1. This document may not be reprinted or reproduced, in whole or in part, without prior written consent of ROHM. 2. The Products may not be disassembled, converted, modified, reproduced or otherwise changed without prior written consent of ROHM. 3. In no event shall you use in any way whatsoever the Products and the related technical information contained in the Products or this document for any military purposes, including but not limited to, the development of mass-destruction weapons. 4. The proper names of companies or products described in this document are trademarks or registered trademarks of ROHM, its affiliated companies or third parties. Notice - GE © 2014 ROHM Co., Ltd. All rights reserved. Rev.002 Datasheet General Precaution 1. Before you use our Pro ducts, you are requested to care fully read this document and fully understand its contents. ROHM shall n ot be in an y way responsible or liabl e for fa ilure, malfunction or acci dent arising from the use of a ny ROHM’s Products against warning, caution or note contained in this document. 2. All information contained in this docume nt is current as of the issuing date and subj ect to change without any prior notice. Before purchasing or using ROHM’s Products, please confirm the la test information with a ROHM sale s representative. 3. The information contained in this doc ument is provi ded on an “as is” basis and ROHM does not warrant that all information contained in this document is accurate an d/or error-free. ROHM shall not be in an y way responsible or liable for an y damages, expenses or losses incurred b y you or third parties resulting from inaccur acy or errors of or concerning such information. Notice – WE © 2014 ROHM Co., Ltd. All rights reserved. Rev.001
