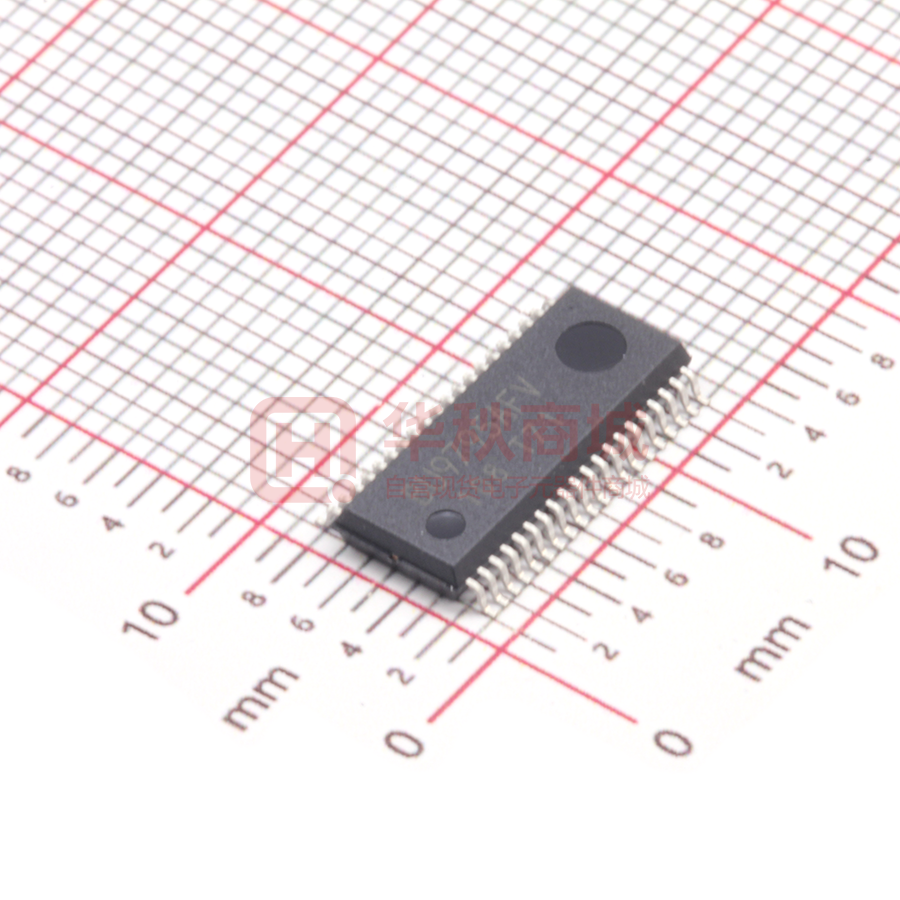

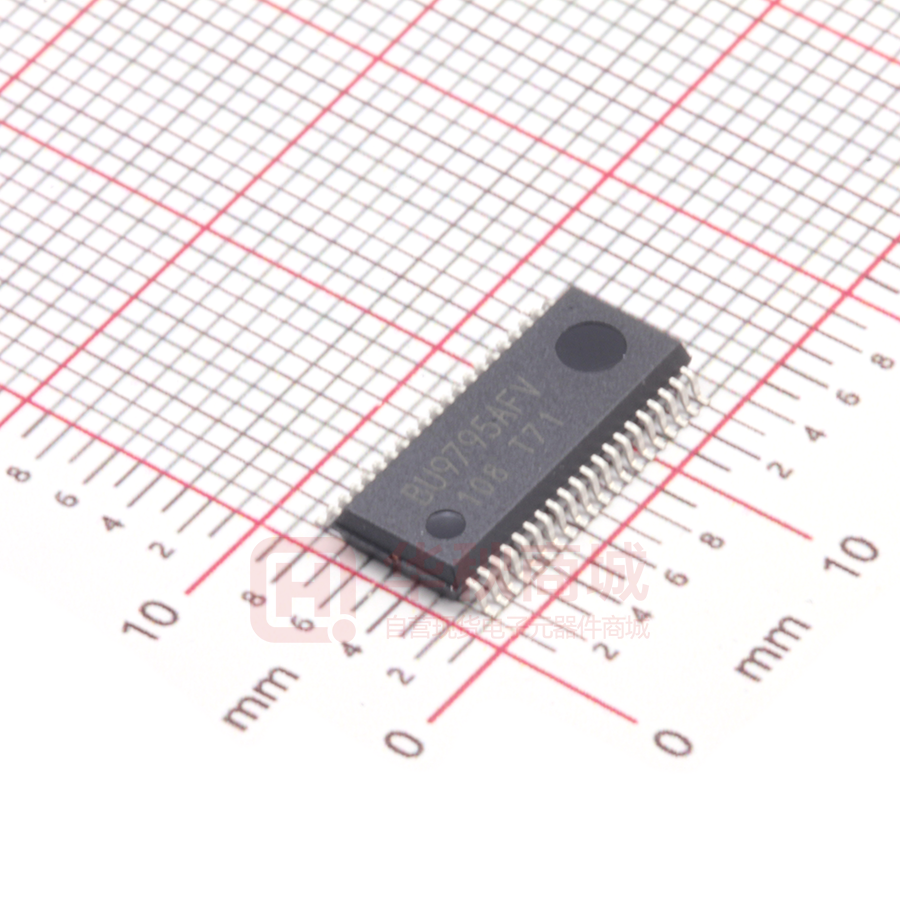

BU9795AFV-E2

LCD Segment Drivers Standard Segment Drivers BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV No.10044EAT06 ●Description ROHM standard function segment driver series achieve “Ultra-Low power consumption”. Also these drivers need not external components. And this driver series is very simple that only has segment driver function. So, these driver series are very suitable to add in LCD display function for various applications. ●Features (BU9795AKV/FV/GUW, BU9794AKV) 1) 3wire serial interface 2) Integrated RAM for display data (DDRAM) 3) Power supply circuit for LCD driving 1/2, 1/3Bias selectable 1/4Duty Integrated Buffer AMP 4) Integrated Oscillation circuit 5) Integrated Power-on Reset circuit 6) No external components 7) Support blink function 8) Support standby mode 9) Low voltage / Ultra low power consumption design 10) Support unity voltage supply (BU9795AKV/FV/GUW) 11) Support Independent power supply circuit for LCD driving (BU9794AKV) ●Features (BU97950FUV) 1) 2wire serial interface 2) Integrated RAM for display data (DDRAM) 3) Integrated Power supply circuit for LCD driving 1/4 Bias 1/8 Duty Integrated Buffer AMP 4) Integrated Oscillation circuit 5) Integrated Power-on Reset circuit 6) No external components 7) Support standby mode 8) Low voltage / Ultra low power consumption design 9) Integrated Electrical volume register (EVR) function 10) Support Register Read function 11) Support Independent power supply circuit for LCD driving ●Applications Telephone, FAX, Portable equipment (POS, ECR, PDA etc.), DSC, DVC, Car Audio, Home electrical appliance, Meter equipment, Healthcare equipment etc. www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 1/14 2011.03 - Rev.A BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV ●Line up matrix Parameter Segment output Common output Total display dot number Adjustable contrast function Support split voltage supply Interface Package BU9795A KV 35 4 140 3wire VQFP48C FV 27 4 108 3wire SSOP-B40 GUW 31 4 124 3wire VBGA48W040 BU9794AKV 50 4 200 Yes 3wire VQFP64 Technical Note BU97950FUV 35 8 280 Yes Yes 2wire TSSOP-C48V ●Absolute maximum ratings (VSS=0V) Parameter Power Supply Voltage 1 (VDD) Power Supply Voltage 2 (VLCD) Allowable Loss (Pd) Input Voltage Range (VIN) Operational Temperature Range (Topr) Storage Temperature Range (Tstg) *1 *2 *3 *4 BU9795AKV /FV/GUW BU9794AKV -0.5～+7.0 BU97950FUV Unit V Remarks Power supply LCD drive Voltage Allowable loss at package only -0.5～VDD 0.6*1 0.7*2 3 0.27* -0.5～+7.0 0.75*4 -0.5～VDD+0.5 -40～+85 -55～+125 -0.5～+7.0 0.75*4 V W V ℃ ℃ When use more than Ta=25℃, subtract 6.0mW per degree (BU9795AKV) When use more than Ta=25℃, subtract 7.0mW per degree (BU9795AFV) When use more than Ta=25℃, subtract 2.7mW per degree (BU9795AGUW) When use more than Ta=25℃, subtract 7.5mW per degree (BU9794AKV, BU97950FUV) ●Recommend operating conditions (Ta=-40~85℃, VSS=0V) Parameter Power Supply Voltage 1 (VDD) Power Supply Voltage 2 (VLCD) *1 Please use VDD-VLCD  2.4V condition. BU9795AKV /FV/GUW*1 BU9794AKV BU97950KV Typ. Max. 5.5 5.5 Unit Remarks Min. Typ. Max. Min. 2.5 0 5.5 VDD -2.4 2.5 2.5 Typ. Max. Min. 5.5 5.5 2.5 2.5 V V Power supply LCD drive Voltage www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 2/14 2011.03 - Rev.A BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV ●Electrical characteristics DC Characteristics (VDD=2.5~5.5V, VSS=0V, Ta=-40~85℃, unless otherwise specified) Limits Parameter Symbol Unit Min. Typ. Max. “H” level input voltage “L” level input voltage “H” level input current “L” level input current LCD Driver on resistance Standby current Power consumption 1 SEG COM VIH VIL IIH IIL RON RON VLCD Ist IDD1 0.7VDD VSS -1 0 3.5 3.5 12.5 VDD 0.3VDD 1 VDD -2.4 5 30 V V µA µA kΩ kΩ V µA µA Technical Note Condition SD, SCL, CSB SD, SCL, CSB SD, SCL, CSB SD, SCL, CSB Iload=±10µA VDD-VLCD  2.4V Display off, Oscillator off VDD=3.3[V], Ta=25℃, Power save mode1, FR=70Hz 1/3 bias, Frame inverse VDD=3.3[V], Ta=25℃, Normal mode, FR=80Hz 1/3 bias, Line inverse VLCD supply voltage Power consumption 2 IDD2 - 20 40 µA Oscillation Characteristics (VDD=2.5~5.5V,VSS=0V, Ta=-40~85℃) Limits Parameter Symbol Min. Typ. Max. Frame frequency Frame frequency1 fCLK fCLK1 56 70 80 80 104 90 Unit Hz Hz Condition FR = 80Hz setting VDD=3.5V, 25℃ MPU interface Characteristics(VDD=2.5V~5.5V,VSS=0V, Ta=-40~85℃) Limits Parameter Symbol Min. Typ. Max. Input rise time Input fall time SCL cycle time “H” SCL pulse width “L” SCL pulse width SD setup time SD hold time CSB setup time CSB hold time “H” CSB pulse width tr tf tSCYC tSHW tSLW tSDS tSDH tCSS tCSH tCHW 400 100 100 20 50 50 50 50 80 80 - Unit ns ns ns ns ns ns ns ns ns ns Condition tCHW CSB tCSS tf tSLW tSCYC tSHW tSDS tSDH tr tCSH SCL SD Fig.1 Interface Timing (BU9795AKV/FV/GUW) www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 3/14 2011.03 - Rev.A BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV Technical Note DC Characteristics (VDD=2.5~5.5V, VLCD=2.5~5.5V, VSS=0V, Ta=-40~85℃, unless otherwise specified) Limits Parameter Symbol Unit Condition Min. Typ. Max. “H” level input voltage “L” level input voltage “H” level input current “L” level input current LCD Driver on resistance Standby current Power consumption 1 SEG COM VIH VIL IIH IIL RON RON Ist IDD 0.8VDD VSS -1 3.5 3.5 5 VDD 0.2VDD 1 5 15 V V µA µA kΩ kΩ µA µA SD,SCL,CSB SD,SCL,CSB SD,SCL,CSB SD,SCL,CSB Iload=±10µA Display off, Oscillation off VDD=3.3V, VLCD=5V, Ta=25℃ Power save mode1, FR=70Hz 1/3 bias, Frame inverse VDD=3.3V, VLCD=5V, Ta=25℃ Power save mode1, FR=70Hz 1/3 bias, Frame inverse Power consumption 2 ILCD - 10 20 µA Oscillation Characteristics (VDD=2.5~5.5V, VLCD=2.5~5.5V, VSS=0V, Ta=-40~85℃, unless otherwise specified) Limits Parameter Symbol Unit Condition Min. Typ. Max. Frame frequency fCLK 68 80 92 Hz FR = 80Hz setting, VDD=3.3V MPU interface Characteristics (VDD=2.5~5.5V, VLCD=2.5~5.5V, VSS=0V, Ta=-40~85℃, unless otherwise specified) Limits Unit Condition Parameter Symbol Min. Typ. Max. Input rise time Input fall time SCL cycle time “H” SCL pulse width “L” SCL pulse width SD setup time SD hold time CSB setup time CSB hold time “H” CSB pulse time tr tf tSCYC tSHW tSLW tSDS tSDH tCSS tCSH tCHW 400 100 100 20 50 50 50 50 80 80 ns ns ns ns ns ns ns ns ns ns tCHW CSB tCSS tr tf tSLW tSCYC tCSH SCL tSDS tSHW tSDH SD Fig.2 Interface Timing (BU9794AKV) www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 4/14 2011.03 - Rev.A BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV Technical Note DC Characteristics (VDD=2.5~5.5V, VLCD=2.5~5.5V, VSS=0V, Ta=-40~85℃, unless otherwise specified) Limits Parameter Symbol Unit Conditions Min. Typ. Max. “H” level input voltage “L” level input voltage “H” level input current “L” level input current LCD Driver on resistance Standby current Power consumption 1 Power consumption 2 SEG COM VIH VIL IIH IIL RON RON Ist IDD ILCD 0.7VDD VSS -1 3.5 3.5 2.5 10 VDD 0.3VDD 1 5 15 20 V V µA µA kΩ kΩ µA µA µA SDA,SCL SDA,SCL SDA,SCL SDA,SCL Iload=±10µA Display off, Oscillation off VDD=3.3V, VLCD=5V, Ta=25℃ Power save mode1, FR=80Hz 1/4 bias, Frame inverse VDD=3.3V, VLCD=5V, Ta=25℃ Power save mode1, FR=80Hz 1/4 bias, Frame inverse Oscillation Characteristics (VDD=2.5~5.5V, VSS=0V, Ta=-40~85℃, unless otherwise specified) Limits Parameter Symbol Unit Min. Typ. Max. Frame frequency fCLK 56 80 104 Hz Condition Power save mode FR = Normal mode MPU interface Characteristics (VDD=2.5~5.5V, VLCD=0V, VSS=0V, Ta=-40~85℃, unless otherwise specified) Limits Parameter Symbol Unit Condition Min. Typ. Max. Input rise time Input fall time SCL cycle time “H” SCL pulse width “L” SCL pulse width SDA setup time SDA hold time Bus free time START condition hold time START condition setup time STOP condition setup time tr tf tSCYC tSHW tSLW tSDS tSDH tBUF tHD;STA tSU;STA tSU;STO 2.5 0.6 1.3 200 0 1.3 0.6 0.6 0.6 0.3 0.3 µs µs µs µs µs ns ns µs µs µs µs SDA tBUF S CL tSLW tf tSCYC tHD;STA SDA tr tSDH tSHW tSDS tSU;STA Fig.3 interface timing (BU97950FUV) www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. tSU;STO 5/14 2011.03 - Rev.A BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV ●Block Diagram / Pin Arrangement / Terminal Description ●Block Diagram COM0……COM3 VDD LCD voltage generator common driver Segment driver SEG0……SEG34 Technical Note ●Pin Arrangement SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG24 25 36 COM0 37 ＋ － COM1 LCD BIAS SELECTOR common counter blink timing generator DDRAM 24 SEG23 SEG22 SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 COM2 COM3 VLCD VDD VSS ＋ － VLCD INHb OSCIN OSCILLATOR Power On Reset Command register Command Data Decoder OSCIN CSB SCL SD TEST serial inter face INHb 48 SEG12 13 TEST CSB SD SCL Fig.4 Block Diagram (BU9795AKV) Fig.5 Pin Arrangement (BU9795AKV) ●Terminal Description Terminal INHb TEST OSCIN SD SCL CSB VSS VDD VLCD SEG0-34 COM0-3 Terminal No. 48 47 43 46 45 44 42 41 40 1-35 36-39 I/O I I I I I I O O Function Input terminal for turn off display H: turn on display L: turn off display Test input (ROHM use only) Must be connect to VSS External clock input Ext clock and Int clock can be changed by command. Must be connect to VSS when use internal oscillation circuit. serial data input serial data transfer clock Chip select : GND Power supply Power supply for LCD driving SEGMENT output for LCD driving COMMON output for LCD driving “L” active www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 6/14 2011.03 - Rev.A SEG11 12 SEG10 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 VSS IF FILTER 1 BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV Technical Note ●Block Diagram COM0……COM3 VDD LCD voltage generator common driver Segment driver SEG4……SEG30 ●Pin Arrangement OSCIN SEG30 SEG29 ＋ － LCD BIAS SELECTOR common counter blink timing generator DDRAM 40 SEG28 21 20 SEG27 COM3 COM2 ＋ － VLCD INHb OSCIN OSCILLATOR Power On Reset Command register Command Data Decoder 1 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 SEG25 SEG26 SEG8 SEG9 serial inter face IF FILTER VSS TEST CSB SD SCL Fig.6 Block Diagram (BU9795AFV) Fig.7 Pin Arrangement (BU9795AFV) ●Terminal Description Terminal INHb TEST OSCIN SD SCL CSB VSS VDD VLCD SEG4-30 COM0-3 Terminal No. 36 35 31 34 33 32 30 29 28 1-23, 37-40 24-27 I/O I I I I I I O O Function Input terminal for turn off display H: turn on display L: turn off display Test input (ROHM use only) Must be connect to VSS External clock input Ex clock and Int clock can be changed by command. Must be connect to VSS when use internal oscillation circuit. serial data input serial data transfer clock Chip select : “L” active GND Power supply Power supply for LCD driving SEGMENT output for LCD driving COMMON output for LCD driving www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 7/14 2011.03 - Rev.A COM1 COM0 SEG6 SEG7 SEG5 SEG4 TEST SDA CSB SCL VSS VLCD INHb VDD BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV Technical Note ●Block Diagram COM0……COM3 VDD LCD voltage generator common driver Segment driver SEG2……SEG32 ●Pin Arrangement 1 G (NC) 2 SEG13 3 SEG15 4 SEG18 5 SEG20 6 SEG22 7 (NC) F ＋ － SEG11 SEG12 SEG16 SEG17 SEG21 SEG23 SEG24 LCD BIAS SELECTOR common counter blink timing generator DDRAM E SEG9 SEG10 SEG14 SEG19 SEG25 SEG27 SEG26 ＋ － D VLCD INHb OSCIN OSCILLATOR Power On Reset Command register Command Data Decoder SEG7 SEG6 SEG8 SEG5 SEG30 SEG28 SEG29 C SEG4 SEG3 SEG2 CSB COM3 SEG32 SEG31 serial inter face B INHb SD VSS VDD COM1 COM0 VSS IF FILTER A (NC) TEST2 SCL OSCIN VLCD COM2 (NC) TEST CSB SD SCL Fig.8 Block Diagram (BU9795AGUW) Fig.9 Pin Arrangement (BU9795AGUW) ●Terminal Description Terminal INHb TEST OSCIN SD SCL CSB VSS VDD VLCD SEG2-32 COM0-3 I/O I I I I I I O O Input terminal for turn off display H: turn on display L: turn off display Test input (ROHM use only) Must be connect to VSS External clock input Ex clock and Int clock can be changed by command. Must be connect to VSS when use internal oscillation circuit. serial data input serial data transfer clock Chip select : GND Power supply Power supply for LCD driving SEGMENT output for LCD driving COMMON output for LCD driving “L” active Function (Caution) About terminal number, please refer to above pin arrangement www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 8/14 2011.03 - Rev.A BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV Technical Note ●Block Diagram COM0……COM3 VLCD LCD voltage generator common driver Segment driver SEG0……SEG49 ●Pin Arrangement 48 SEG37 SEG36 SEG35 SEG34 SEG33 SEG32 SEG31 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG24 SEG23 SEG38 ＋ － 49 SEG22 33 32 SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG10 SEG9 SEG8 SEG7 SEG39 LCD BIAS SELECTOR common counter blink timing generator DDRAM SEG40 SEG41 SEG42 SEG43 SEG44 SEG45 SEG46 ＋ － VSS INHb OSCIN OSCILLATOR Power On Reset Command register Command Data Decoder SEG47 SEG48 SEG49 COM0 COM1 COM2 serial inter face COM3 64 SEG6 17 VDD 1 VSS OSCIN TEST1 TEST2 SEG0 SEG1 SEG2 SEG3 VLCD VSS TEST2 TEST1 CSB SD SCL Fig.10 Block Diagram (BU9794AKV) Fig.11 Pin Arrangement (BU9794AKV) ●Terminal Description Terminal INHb TEST1 TEST2 OSCIN SD SCL CSB VSS VDD VLCD SEG0-49 COM0-3 Terminal No. 8 9 10 4 7 6 5 3 2 1 11-60 61-64 I/O I I I I I I I O O Function Input terminal for turn off display H: turn on display, L: turn off display Test input (ROHM use only) Must be connect to VSS Test input (ROHM use only) Must be connect to VSS External clock input Ex clock and Int clock can be changed by command. Must be connect to VSS when use internal oscillation circuit. serial data input serial data transfer clock Chip select : GND Power supply Power supply for LCD driving SEGMENT output for LCD driving COMMON output for LCD driving “L” active www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 9/14 2011.03 - Rev.A SEG4 CSB INHb VDD SCL SD IF FILTER SEG5 16 BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV Technical Note ●Block Diagram C OM0……COM7 VLCD SEG0……SEG34 ●Pin Arrangement LCD voltage generator common driver ＋ － Segment driver SEG21 SEG22 SEG23 SEG24 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33 SEG34 COM0 COM1 COM2 COM3 COM4 COM5 COM6 SEG1 ＋ － LCD BIAS SELECTOR common counter D DRAM ＋ － ＋ － VSS SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 OSCILLATOR Power On Reset serial inter face VDD IF FILTER SDA SCL Fig.12 Block Diagram (BU97950FUV) Fig.13 Pin Arrangement (BU97950FUV) ●Terminal Description Terminal SDA SCL VSS VDD VLCD SEG0-35 COM0-7 Terminal No. 48 47 3 1 2 4-24 33-46 25-32 I/O I/O I O O serial data input register read data output port serial data transfer clock GND Power supply Power supply for LCD driving SEGMENT output for LCD driving COMMON output for LCD driving Function www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. SEG10 VLCD 10/14 2011.03 - Rev.A SEG0 Command register C ommand Data Decoder VDD VSS COM7 SDA SCL BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV ●IO Equivalent Circuit VDD VLCD VSS VDD OSCIN VSS Technical Note VDD CSB, SD, SCL VSS VSS VLCD VDD INHb VSS SEG/COM VDD VLCD VDD TEST VSS Fig.14 I/O equivalent circuit (BU9795AKV/FV/GUW) VDD VLCD VSS VSS VDD CSB, SD, SCL INHb,TEST1,TEST2 VSS VLCD SEG/COM VLCD VDD OSCIN VSS Fig.15 I/O equivalent circuit (BU9794AKV) www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 11/14 2011.03 - Rev.A BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV Technical Note VDD VLCD VSS VSS SDA SCL VSS VSS VLCD SEG/COM VSS Fig.16 I/O equivalent circuit (BU97950FUV) www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 12/14 2011.03 - Rev.A BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV ●Ordering part number Technical Note B U 9 7 9 5 A G U W - E 2 Part No. Part No. BU9795A BU9794A BU97950 Package FV : SSOP-B40 GUW : VBGA048W040 KV : VQFP48C KV : VQFP64 FUV : TSSOP-C48V Packaging and forming specification E2: Embossed tape and reel SSOP-B40 13.6 ± 0.2 (MAX 13.95 include BURR) Tape Quantity 21 Embossed carrier tape 2000pcs E2 The direction is the 1pin of product is at the upper left when you hold 40 7.8 ± 0.3 5.4 ± 0.2 1 20 1.8 ± 0.1 0.15 ± 0.1 0.1 0.1 0.65 0.22 ± 0.1 0.08 M S 0.5 ± 0.2 Direction of feed ( reel on the left hand and you pull out the tape on the right hand ) 1pin (Unit : mm) Direction of feed Reel ∗ Order quantity needs to be multiple of the minimum quantity. VBGA048W040 4.0 ± 0.1 Tape 4.0 ± 0.1 Embossed carrier tape (with dry pack) 2500pcs E2 The direction is the 1pin of product is at the upper left when you hold Quantity Direction of feed S 1PIN MARK 48- φ 0.295± 0.05 φ 0.05 M S AB P=0.5 × 6 A 0.5 B G F E D C B A 1234 567 0.5 P=0.5 × 6 0.5 ± 0.1 0.08 S 0.5 ± 0.1 0.10 0.9MAX ( reel on the left hand and you pull out the tape on the right hand ) 1pin Direction of feed (Unit : mm) Reel ∗ Order quantity needs to be multiple of the minimum quantity. TSSOP-C48V 12.5±0.1 (MAX 12.85 include BURR) 48 25 +6 4 −4 Tape Quantity Embossed carrier tape (with dry pack) 2000pcs E2 The direction is the 1pin of product is at the upper left when you hold 8.1±0.2 6.1±0.1 0.5±0.15 1.0±0.2 Direction of feed ( reel on the left hand and you pull out the tape on the right hand ) 0.5 1 1PIN MARK 24 +0.05 0.17 −0.03 S 1.0MAX 0.85±0.05 0.08±0.08 0.5 0.08 S +0.05 0.22 −0.04 0.08 M 1pin (Unit : mm) Direction of feed Reel ∗ Order quantity needs to be multiple of the minimum quantity. www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 13/14 2011.03 - Rev.A BU9795AKV,BU9795AFV,BU9795AGUW,BU9794AKV,BU97950FUV Technical Note VQFP48C 9.0 ± 0.2 7.0 ± 0.1 36 37 25 24 Tape Quantity Embossed carrier tape 1500pcs E2 direction the at left when you ( The on the leftishand1pin of product is thethe upperthe right hand hold ) reel and you pull out tape on 9.0 ± 0.2 7.0 ± 0.1 48 1 12 13 0.75 1PIN MARK +0.05 0.145 -0.03 1.6MAX 4 +6 -4 1.4 ± 0.05 0.1 ± 0.05 0.5 ± 0.1 0.08 S +0.05 0.22 -0.04 0.08 0.5±0.15 1.0±0.2 0.75 Direction of feed M 1pin (Unit : mm) Reel Direction of feed ∗ Order quantity needs to be multiple of the minimum quantity. VQFP64 12.0±0.2 10.0±0.1 48 49 33 32 Tape Quantity Direction of feed Embossed carrier tape (with dry pack) 1000pcs E2 direction the at left when you ( The on the leftishand1pin of product is thethe upperthe right hand hold ) reel and you pull out tape on 12.0±0.2 10.0±0.1 0.5±0.15 4 +6 -4 0.08 M 64 1 16 17 1.25 1PIN MARK 1.6MAX +0.05 0.145 -0.03 1.4±0.05 0.1±0.05 0.08 S +0.05 0.2 -0.04 0.5±0.1 1.0±0.2 1.25 1pin (Unit : mm) Reel Direction of feed ∗ Order quantity needs to be multiple of the minimum quantity. www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 14/14 2011.03 - Rev.A Notice Notes No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without notice. The content specified herein is for the purpose of introducing ROHM's products (hereinafter "Products"). If you wish to use any such Product, please be sure to refer to the specifications, which can be obtained from ROHM upon request. Examples of application circuits, circuit constants and any other information contained herein illustrate the standard usage and operations of the Products. The peripheral conditions must be taken into account when designing circuits for mass production. Great care was taken in ensuring the accuracy of the information specified in this document. However, should you incur any damage arising from any inaccuracy or misprint of such information, ROHM shall bear no responsibility for such damage. The technical information specified herein is intended only to show the typical functions of and examples of application circuits for the Products. ROHM does not grant you, explicitly or implicitly, any license to use or exercise intellectual property or other rights held by ROHM and other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the use of such technical information. The Products specified in this document are intended to be used with general-use electronic equipment or devices (such as audio visual equipment, office-automation equipment, communication devices, electronic appliances and amusement devices). The Products specified in this document are not designed to be radiation tolerant. While ROHM always makes efforts to enhance the quality and reliability of its Products, a Product may fail or malfunction for a variety of reasons. Please be sure to implement in your equipment using the Products safety measures to guard against the possibility of physical injury, fire or any other damage caused in the event of the failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM shall bear no responsibility whatsoever for your use of any Product outside of the prescribed scope or not in accordance with the instruction manual. The Products are not designed or manufactured to be used with any equipment, device or system which requires an extremely high level of reliability the failure or malfunction of which may result in a direct threat to human life or create a risk of human injury (such as a medical instrument, transportation equipment, aerospace machinery, nuclear-reactor controller, fuelcontroller or other safety device). ROHM shall bear no responsibility in any way for use of any of the Products for the above special purposes. If a Product is intended to be used for any such special purpose, please contact a ROHM sales representative before purchasing. If you intend to export or ship overseas any Product or technology specified herein that may be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to obtain a license or permit under the Law. Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/contact/ www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. R1120A
