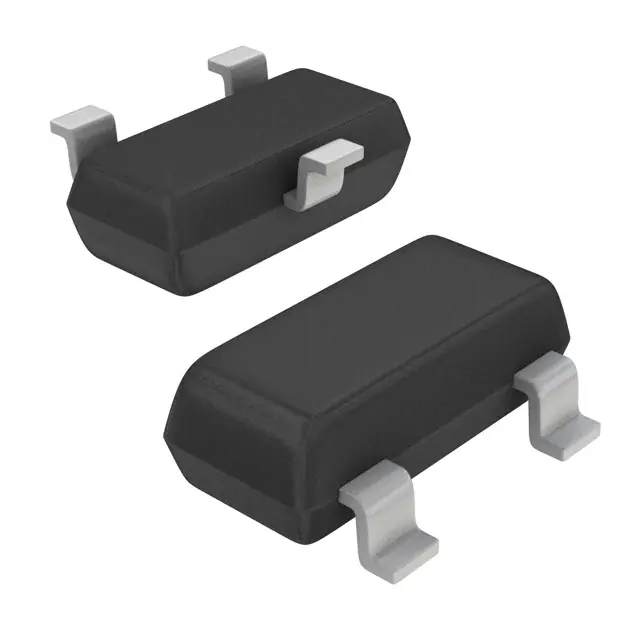

DTB143EK / DTB143EC / DTB143ES Transistors -500mA / -50V Digital transistors (with built-in resistors) DTB143EK / DTB143EC / DTB143ES zExternal dimensions (Unit : mm) zApplications Inverter, Interface, Driver DTB143EK 2.9 1.1 0.4 zFeatures 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on / off conditions need to be set for operation, making the device design easy. 0.8 1.6 2.8 (3) (2) 0.3Min. (1) 0.95 0.95 0.15 1.9 ROHM : SMT3 EIAJ : SC-59 (1) GND (2) IN (3) OUT Each lead has same dimension Abbreviated symbol : F13 2.9 0.4 0.2Min. DTB143EC 0.95 0.45 1.3 2.4 (3) (2) zStructure PNP epitaxial planar silicon transistor (Resistor built-in type) (1) 0.95 0.95 0.15 (1) GND (2) IN (3) OUT Each lead has same dimension 1.9 ROHM : SST3 Abbreviated symbol : R13 DTB143ES Part No. SST3 SPT Package type Taping Taping Taping Code T146 T116 TP Basic ordering unit (pieces) 3000 3000 5000 − − 2.0 0.45 2.5 DTB143EK DTB143EC − DTB143ES − 0.5 0.45 5.0 (1) (2) (3) ROHM : SPT EIAJ : SC-72 − − (1) GND (2) OUT (3) IN Taping specifications Abbreviated symbol : B143ES zAbsolute maximum ratings (Ta=25°C) Parameter 4.0 3Min. SMT3 (15Min.) Package 3.0 zPackaging specifications zEquivalent circuit Limits Symbol Unit DTB143EK DTB143EC DTB143ES Supply voltage VCC −50 Input voltage VIN −30 to +10 V Output current IC −500 mA Power dissipation Pd 200 V 300 OUT R1 IN R2 GND(+) mW Junction temperature Tj 150 C Storage temperature Tstg −55 to +150 C OUT IN GND(+) R1=R2=4.7kΩ Rev.B 1/2 DTB143EK / DTB143EC / DTB143ES Transistors zElectrical characteristics (Ta=25°C) Parameter Input voltage Output voltage Symbol Min. Typ. Max. VI(off) − − −0.5 VI(on) −3 − − VO(on) − −0.1 −0.3 V Unit Conditions VCC= −5V, IO= −100µA V VO= −0.3V, IO= −20mA IO/II= −50mA/−2.5mA II − − −1.8 mA VI= −5V IO(off) − − −0.5 µA VCC= −50V, VI=0V DC current gain GI 47 − − − Input resistance R1 3.29 4.7 6.11 kΩ Resistance ratio R2/R1 0.8 1 1.2 − − 200 − MHz Input current Output current fT ∗ Transition frequency VO= −5V, IO= −50mA − − VCE= −10V, IE=50mA, f=100MHz ∗ Characteristics of built-in tranasistor zElectrical characteristic curves -10m -5m VO= −0.3V OUTPUT CURRENT : Io (A) INPUT VOLTAGE : VI (on) (V) -50 -20 -10 Ta= −40 C 25 C 100 C -5 -2 -1 -500m -200m -100m -0.5m -1m -2m -5m -10m -20m -50m -100m -200m -500m OUTPUT CURRENT : IO (A) Fig.1 Input voltage vs. output current (ON characteristics) -1 -2m -1m -500µ VO= −5V 500 -200µ -100µ -50µ -20µ -10µ -5µ -2µ -1µ 0 1k VCC= −5V Ta=100 C 25 C −40 C DC CURRENT GAIN : GI -100 200 100 Ta=100 C 25 C −40 C 50 20 10 5 2 -0.5 -1.0 -1.5 -2.0 -2.5 -3.0 INPUT VOLTAGE : VI (off) (V) Fig.2 Output current vs. input voltage (OFF characteristics) 1 -0.5m -1m -2m -5m -10m -20m -50m -100m -200m -500m OUTPUT CURRENT : IO (A) Fig.3 DC current gain vs. output current lO/lI=20 OUTPUT VOLTAGE : VO (on) (V) -500m Ta=100 C 25 C −40 C -200m -100m -50m -20m -10m -5m -2m -1m -0.5m -1m -2m -5m -10m -20m -50m -100m -200m -500m OUTPUT CURRENT : IO (A) Fig.4 Output voltage vs. output current Rev.B 2/2 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject to change without notice. The specifications for the product described in this document are for reference only. Upon actual use, therefore, please request that specifications to be separately delivered. Application circuit diagrams and circuit constants contained herein are shown as examples of standard use and operation. Please pay careful attention to the peripheral conditions when designing circuits and deciding upon circuit constants in the set. Any data, including, but not limited to application circuit diagrams information, described herein are intended only as illustrations of such devices and not as the specifications for such devices. ROHM CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such devices. Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or otherwise dispose of the same, no express or implied right or license to practice or commercially exploit any intellectual property rights or other proprietary rights owned or controlled by ROHM CO., LTD. is granted to any such buyer. Products listed in this document are no antiradiation design. The products listed in this document are designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys). Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. About Export Control Order in Japan Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control Order in Japan. In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause) on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction. Appendix1-Rev1.1
