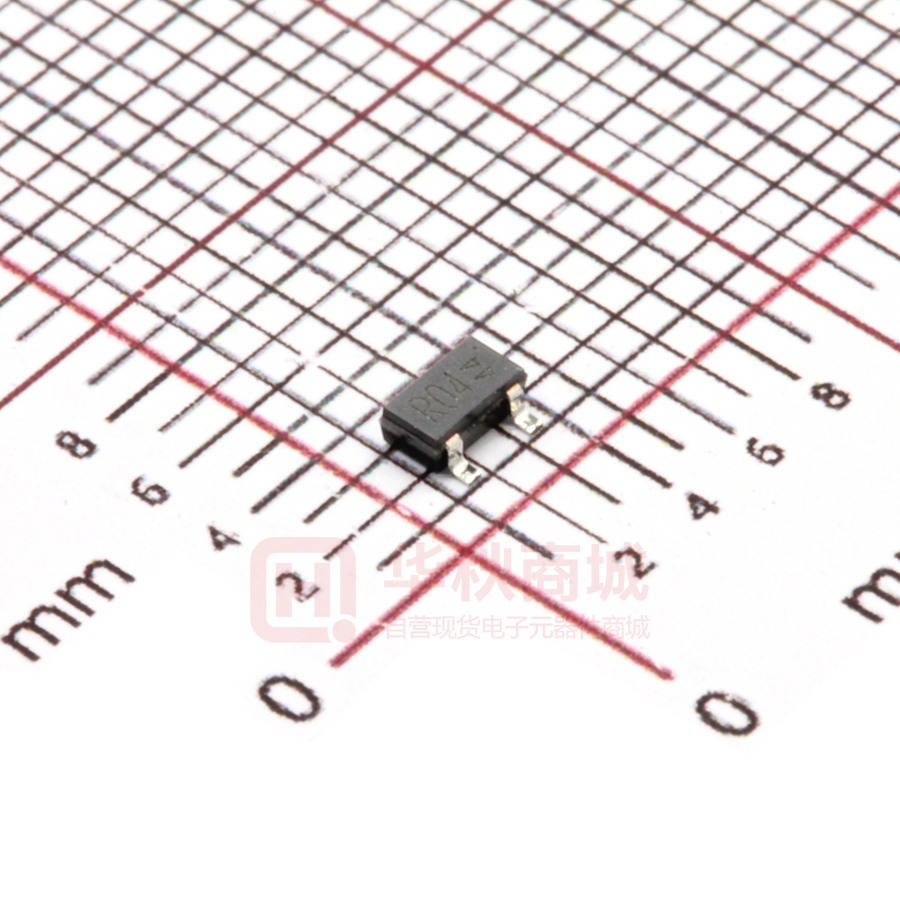

DTC614TKT146

DTC614TU / DTC614TK Transistors Digital transistors (built-in resistor) DTC614TU / DTC614TK zExternal dimensions (Unit : mm) 2.0±0.2 1.3±0.1 SOT-323 0.65 0.65 (1) 0.9±0.1 0.2 0.7±0.1 (2) 2.1±0.1 UMT3 1.25±0.1 0−0.1 (3) 0.3 +0.1 −0 Abbreviated symbol : R04 2.9±0.2 SMT3 zEquivalent circuit 0.15±0.05 Each lead has same dimensions 1.9±0.2 SOT-346 0.95 0.95 0.8±0.1 (2) 1.6 +0.2 −0.1 (1) 1.1 +0.2 −0.1 2.8±0.2 zStructure NPN digital transistor (Built-in resistor type) (1) Emitter (2) Base (3) Collector 0.1Min. zFeatures In addition to the features of regular digital transistors. 1) Low saturation voltage, typically VCE (sat) =40mV at IC / IB=50mA / 2.5mA, makes these transistors ideal for muting circuits. 2) These transistors can be used at high current levels, IC=600mA. B 0.4 +0.1 −0.05 R R=10kΩ E (1) Emitter (2) Base (3) Collector 0.15 +0.1 −0.06 0.3Min. (3) C Each lead has same dimensions Abbreviated symbol : R04 B : Base C : Collector E : Emitter zAbsolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Limits 20 20 12 600 200 150 −55 to +150 Unit V V V mA mW °C °C Rev.A 1/2 DTC614TU / DTC614TK Transistor zElectrical characteristics (Ta=25°C) Parameter Symbol Min. Typ. Max. Unit Conditions BVCBO 20 Collector-base breakdown voltage − − V IC=50µA 20 Collector-emitter breakdown voltage BVCEO − − V IC=1mA BVEBO 12 − Emitter-base breakdown voltage − V IE=50µA ICBO − − Collector cutoff current 0.5 µA VCB=20V IEBO − − Emitter cutoff current 0.5 µA VEB=12V 40 − Collector-emitter saturation voltage VCE (sat) 150 mV IC / IB=50mA / 2.5mA hFE VCE=5V, IC=50mA 820 − DC current transfer ratio 2700 − R1 7 10 − Input resistance 13 kΩ fT 150 − Transition frequency − MHz VCE=10V, IE= −50mA, f=100MHz ∗ Ron 0.9 − − Ω VI=5V, RL=1kΩ, f=1KHz Output "ON" resistance ∗Transition frequency of the device. zPackaging specifications and hFE Type Package UMT3 SMT3 Packaging type Taping Taping Code T106 T146 Basic ordering unit (pieces) 3000 3000 − DTC614TU − DTC614TK zElectrical characteristic curves 10000 Ta=100°C Ta=25°C Ta= −40°C 1000 100 0.1 1 10 100 IC / IB=20 1000 100 Ta=100°C Ta=25°C Ta= −40°C 10 1 0.1 1000 1 10 100 1000 COLLECTOR CURRENT : IC (mA) COLLECTOR CURRENT : IC (mA) Fig.2 Collector-Emitter Saturation Voltage vs. Collector Current Fig.1 DC Current Gain vs. Collector Current 1000 ON RESISTANCE : Ron (Ω) VCE=5V COLLECTOR SATURATION VOLTAGE : VCE (sat) (mV) DC CURRENT GAIN : hFE 10000 Ta=25°C f=1kHz RL=1kΩ hFE=250 (5V / 50mA) 100 10 1 0.1 0.1 1 10 100 INPUT VOLTAGE : VI (V) Fig.3 "ON" resistance vs. Input Voltage zRon measurement circuit RL=1kΩ Input vi 100mV (rms) f=1kHz Ron= v0 ×RL vi−v0 V vOutput 0 vI Fig.4 Output "ON" resistance (Ron) measurement circuit Rev.A 2/2 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject to change without notice. The specifications for the product described in this document are for reference only. Upon actual use, therefore, please request that specifications to be separately delivered. Application circuit diagrams and circuit constants contained herein are shown as examples of standard use and operation. Please pay careful attention to the peripheral conditions when designing circuits and deciding upon circuit constants in the set. Any data, including, but not limited to application circuit diagrams information, described herein are intended only as illustrations of such devices and not as the specifications for such devices. ROHM CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such devices. Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or otherwise dispose of the same, no express or implied right or license to practice or commercially exploit any intellectual property rights or other proprietary rights owned or controlled by ROHM CO., LTD. is granted to any such buyer. Products listed in this document are no antiradiation design. The products listed in this document are designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys). Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. About Export Control Order in Japan Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control Order in Japan. In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause) on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction. Appendix1-Rev1.1
