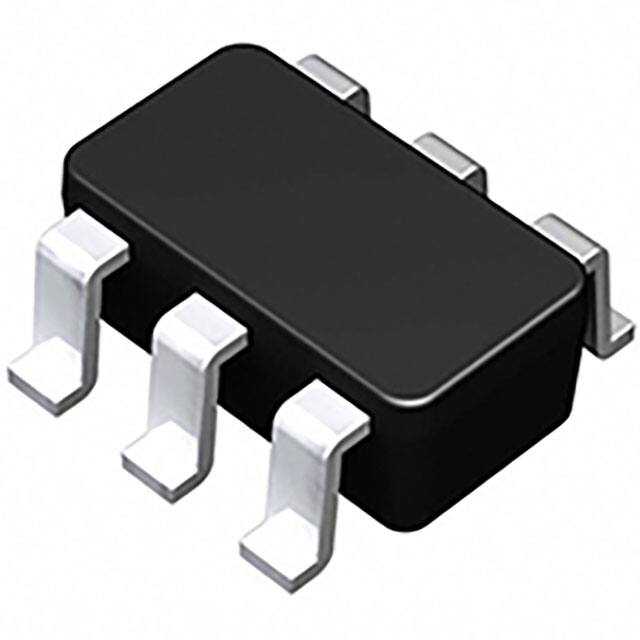

LMR981G-GTR

Datasheet Operational Amplifiers Input/Output Full Swing Low Power Operational Amplifiers LMR981G LMR982FVM LMR931G LMR932xxx LMR934xxx Key Specifications ◼ Operating Supply Voltage (Single Supply): +1.8V to +5.0V ◼ Voltage Gain (VDD=5V, RL=600Ω): 101dB(Typ) ◼ Operating Temperature Range: -40°C to +85°C ◼ Turn on Time from Shutdown(VDD=1.8V): j19μs (Typ) ◼ Input Offset Voltage(TA=25°C): LMR981G(Single) 4mV(Max) LMR931G(Single) 4mV(Max) LMR982FVM(Dual) 5.5mV(Max) LMR932xxx(Dual) 5.5mV(Max) LMR934xxx(Quad) 5.5mV(Max) ◼ Input Bias Current: 5nA (Typ) General Description LMR981G/LMR982FVM/LMR931G/LMR932xxx/LMR934 xxx are input/output full swing operational amplifiers. LMR981G/LMR982FVM have the shutdown function. They have the features of low operating supply voltage, low supply current and low input bias current. These are suitable for portable equipment and battery monitoring. Features ◼ Low Operating Supply Voltage ◼ Input/Output Full Swing ◼ High Large Signal Voltage Gain ◼ Low Input Bias Current ◼ Low Supply Current ◼ Low Input Offset Voltage Package SSOP5 SSOP6 MSOP8 MSOP10 TSSOP-B8J TSSOP-B8 SSOP-B8 SOP-J8 SOP8 TSSOP-B14J SSOP-B14 SOP-J14 SOP14 Applications ◼ Portable Equipment ◼ Low Voltage Application ◼ Active Filter ◼ Supply-Current Monitoring ◼ Battery Monitoring W(Typ) xD(Typ) xH(Max) 2.90mm x 2.80mm x 1.25mm 2.90mm x 2.80mm x 1.25mm 2.90mm x 4.00mm x 0.90mm 2.90mm x 4.00mm x 0.90mm 3.00mm x 4.90mm x 1.10mm 3.00mm x 6.40mm x 1.20mm 3.00mm x 6.40mm x 1.35mm 4.90mm x 6.00mm x 1.65mm 5.00mm x 6.20mm x 1.71mm 5.00mm x 6.40mm x 1.20mm 5.00mm x 6.40mm x 1.35mm 8.65mm x 6.00mm x 1.65mm 8.70mm x 6.20mm x 1.71mm Simplified Schematic VDD -IN +IN Class AB Control SHDN (LMR981G, LMR982FVM) OUT VSS Figure 1. Simplified Schematic (1 Channel Only) 〇Product structure：Silicon integrated circuit www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･14･001 〇This product has no designed protection against radioactive rays. 1/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Pin Configuration LMR931G : SSOP5 +IN VSS -IN 1 VDD 5 Pin No. 1 +IN 2 VSS 3 -IN 4 OUT 5 VDD Pin No. Pin Name 1 +IN 2 VSS 2 3 4 Pin Name OUT LMR981G : SSOP6 +IN VSS -IN 1 6 2 VDD —————— 5 3 SHDN 4 OUT 3 -IN 4 OUT 5 LMR932F LMR932FJ LMR932FV LMR932FVT LMR932FVM LMR932FVJ -IN1 +IN1 3 VSS 4 6 SHDN VDD Pin No. Pin Name 1 OUT1 2 -IN1 3 +IN1 : SOP8 : SOP-J8 : SSOP-B8 : TSSOP-B8 : MSOP8 : TSSOP-B8J OUT1 1 2 —————— 8 CH1 - + + CH2 + - VDD 7 OUT2 6 -IN2 5 +IN2 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 2/59 4 VSS 5 +IN2 6 -IN2 7 OUT2 8 VDD TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR934F LMR934FJ LMR934FV LMR934FVJ Pin No. Pin Name 1 OUT1 14 OUT4 OUT4 CH1 - + 13 -IN4 -IN4 CH4 + - +IN1 +IN1 3 12 +IN4 +IN4 2 -IN1 3 +IN1 4 VDD 5 +IN2 6 -IN2 VCC 4 VDD 11 VSS VEE 7 OUT2 +IN2 +IN2 5 10 +IN3 +IN3 8 OUT3 9 -IN3 -IN3 9 -IN3 10 +IN3 -IN2 6 -IN2 Datasheet LMR934xxx : SOP14 : SOP-J14 : SSOP-B14 : TSSOP-B14J OUT1 OUT1 1 -IN1 2 -IN1 LMR932xxx + CH3 - + CH2 OUT2 OUT2 7 8 OUT3 OUT3 11 VSS 12 +IN4 13 -IN4 14 OUT4 Pin No. Pin Name 1 OUT1 LMR982FVM : MSOP10 OUT1 1 -IN1 2 10 VDD CH1 9 CH2 +IN1 3 VSS 4 ————————— SHDN_1 8 7 OUT2 6 -IN1 3 +IN1 4 5 -IN2 6 +IN2 7 ————————— 5 2 SHDN_2 VSS ————————— SHDN_1 ————————— SHDN_2 +IN2 8 -IN2 9 OUT2 10 VDD Package SSOP5 SSOP6 SOP8 SOP-J8 SSOP-B8 TSSOP-B8 MSOP8 LMR931G LMR981G LMR932F LMR932FJ LMR932FV LMR932FVT LMR932FVM Package TSSOP-B8J MSOP10 SOP14 SOP-J14 SSOP-B14 TSSOP-B14J - LMR932FVJ LMR982FVM LMR934F LMR934FJ LMR934FV LMR934FVJ - Shutdown (LMR981G, LMR982FVM) Pin —————— SHDN Input Condition Shutdown Function VSS ON VDD OFF Note: Please refer to Electrical Characteristics regarding the turn on and off voltage. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 3/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Ordering Information L M R 9 x x Part Number LMR931G LMR981G LMR932F LMR932FJ LMR932FV LMR932FVT LMR932FVM LMR932FVJ LMR982FVM LMR934F LMR934FJ LMR934FV LMR934FVJ x x x - Package G : SSOP5 G : SSOP6 F : SOP8 FJ : SOP-J8 FV : SSOP-B8 FVT : TSSOP-B8 FVM : MSOP8 FVJ : TSSOP-B8J FVM : MSOP10 F : SOP14 FJ : SOP-J14 FV : SSOP-B14 FVJ : TSSOP-B14J xx Packaging and forming specification TR: Embossed tape and reel (SSOP5/SSOP6/MSOP8/MSOP10) E2: Embossed tape and reel (SOP8/SOP14/SOP-J8/SOP-J14 SSOP-B8/SSOP-B14/TSSOP-B8/ TSSOP-B8J/TSSOP-B14J) Lineup Topr -40°C to +85°C Package Operable Part Number SSOP5 Reel of 3000 LMR931G-TR SSOP6 Reel of 3000 LMR981G-TR MSOP10 Reel of 3000 LMR982FVM-TR SOP8 Reel of 2500 LMR932F-E2 SOP-J8 Reel of 2500 LMR932FJ-E2 SSOP-B8 Reel of 2500 LMR932FV-E2 TSSOP-B8 Reel of 3000 LMR932FVT-E2 MSOP8 Reel of 3000 LMR932FVM-TR TSSOP-B8J Reel of 2500 LMR932FVJ-E2 SOP14 Reel of 2500 LMR934F-E2 SOP-J14 Reel of 2500 LMR934FJ-E2 SSOP-B14 Reel of 2500 LMR934FV-E2 TSSOP-B14J Reel of 2500 LMR934FVJ-E2 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 4/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Absolute Maximum Ratings (TA=25°C) Parameter Supply Voltage Rating Symbol LMR981G LMR931G SSOP5 - 0.67(Note 1,9) SSOP6 0.67(Note 1,9) - LMR932xxx VDD-VSS SOP8 +7 V - - - - - - - - 0.68(Note 2,9) - - SOP-J8 - - - - SSOP-B8 - - 0.62(Note 5,9) - - - 0.62(Note 5,9) - - - 0.58(Note 4,9) - - - 0.58(Note 4,9) - - PD MSOP8 TSSOP-B8J - MSOP10 - - - - 0.58(Note 4,9) SOP14 - - - 0.56(Note 3,9) - SOP-J14 - - - 1.02(Note 8,9) SSOP-B14 - - - 0.87(Note 7,9) - - 0.85(Note 6,9) - TSSOP-B14J Voltage(Note 10) LMR982FVM 0.67(Note 1,9) TSSOP-B8 Power Dissipation Unit LMR934xxx - - W Differential Input Input Common-mode Voltage Range Input Current(Note 11) VID VDD to VSS V VICM (VSS-0.3) to (VDD+0.3) V II ±10 mA Operating Voltage Vopr +1.8 to +5.0 V Operating Temperature Topr - 40 to +85 °C Storage Temperature Maximum Junction Temperature Tstg - 55 to +150 °C TJmax +150 °C (Note 1) To use at temperature above TA=25°C reduce 5.4mW/°C. (Note 2) To use at temperature above TA=25°C reduce 5.5mW/°C. (Note 3) To use at temperature above TA=25°C reduce 4.5mW/°C. (Note 4) To use at temperature above TA=25°C reduce 4.7mW/°C. (Note 5) To use at temperature above TA=25°C reduce 5.0mW/°C. (Note 6) To use at temperature above TA=25°C reduce 6.8mW/°C. (Note 7) To use at temperature above TA=25°C reduce 7.0mW/°C. (Note 8) To use at temperature above TA=25°C reduce 8.2mW/°C. (Note 9) Mounted on a FR4 glass epoxy PCB 70mm×70mm×1.6mm (Copper foil area less than 3%). (Note 10) The voltage difference between inverting input and non-inverting input is the differential input voltage. Then input terminal voltage is set to more than VSS. (Note 11) An excessive input current will flow when input voltages of more than VDD+0.6V or less than VSS-0.6V are applied. The input current can be set to less than the rated current by adding a limiting resistor. Caution: Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over the absolute maximum ratings. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 5/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Electrical Characteristics: —————— 〇LMR981G, LMR931G (Unless otherwise specified VDD=+1.8V, VSS=0V, SHDN =VDD) Parameter Symbol Temperature Range VIO Limit Unit Conditions mV VDD=1.8V to 5.0V 25°C Full Range Min - Typ 1 - Max 4 6 ΔVIO/ΔT 25°C - 5.5 - µV/°C - Input Offset Current (Note 12) IIO 25°C - 5 30 nA - Input Bias Current (Note 12) IB 25°C - 5 35 nA - Supply Current(Note 13) IDD Input Offset Voltage (Note 12) Input Offset Voltage Drift Shutdown Current(Note 14) IDD_SD Maximum Output Voltage(High) VOH Maximum Output Voltage(Low) VOL Large Signal Voltage Gain AV Input Common-mode Voltage Range VICM 25°C - 75 180 Full range - - 205 25°C - 0.15 1 1.65 1.72 25°C 1.75 1.77 77 105 25°C 24 35 96 25°C 80 100 25°C VSS VDD Full range VSS+0.2 VDD-0.2 μA μA V mV dB AV=0dB, +IN=0.9V —————— SHDN =0V RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 V VSS to VDD Common-mode Rejection Ratio CMRR 25°C 60 94 - dB VICM=0.5V Power Supply Rejection Ratio PSRR 25°C 75 85 - dB VDD=1.8V to 5.0V VICM =0.5V Output Source Current (Note 15) ISOURCE 25°C 4 8 - mA OUT=0V, Short Current Output Sink Current (Note 15) ISINK 25°C 7 9 - mA OUT=1.8V Short Current Slew Rate SR 25°C - 0.35 - V/μs CL=25pF GBW 25°C - 1.4 - MHz CL=25pF, AV=40dB f=100kHz Unity Gain Frequency fT 25°C - 1.4 - MHz CL=25pF, AV=40dB Phase Margin θ 25°C - 50 - deg CL=25pF, AV=40dB Gain Margin GM 25°C - 7 - dB CL=25pF, AV=40dB Input Referred Noise Voltage VN 25°C - 6.5 - μVrms AV=40dB, DIN-AUDIO - 50 - nV/ Hz f=10kHz THD+N 25°C - 0.023 - % Gain Bandwidth Total Harmonic Distortion + Noise OUT=1VP-P, f=1kHz RL=600Ω, AV=0dB (Note 12) Absolute value. (Note 13) Full range: TA=-40°C to +85°C (Note 14) Only LMR981G have shutdown. (Note 15) Under the high temperature environment, consider the power dissipation of IC when selecting the output current. When the terminal short circuits are continuously output, the output current is reduced to climb to the temperature inside IC. 〇LMR981G (Unless otherwise specified VDD=+1.8V, VSS=0V) Parameter Symbol Temperature Range Min Limit Typ Max Turn On Time From Shutdown tON 25°C - 19 - - 1.32 - Turn On Voltage High VSHDN_H 25°C Turn On Voltage Low www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 VSHDN_L Unit μs Conditions VICM = VDD/2 - V - 6/59 0.72 - - TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Electrical Characteristics - continued —————— 〇LMR981G, LMR931G (Unless otherwise specified VDD=+2.7V, VSS=0V, SHDN =VDD) Parameter Symbol Temperature Range VIO Limit Unit Conditions mV VDD=1.8V to 5.0V 25°C Full Range Min - Typ 1 - Max 4 6 ΔVIO/ΔT 25°C - 5.5 - µV/°C - Input Offset Current(Note 16) IIO 25°C - 5 30 nA - Input Bias Current (Note 16) IB 25°C - 5 35 nA - Supply Current(Note 17) IDD Input Offset Voltage (Note 16) Input Offset Voltage Drift Shutdown Current(Note 18) IDD_SD Maximum Output Voltage(High) VOH Maximum Output Voltage(Low) VOL Large Signal Voltage Gain AV Input Common-mode Voltage Range VICM 25°C - 80 190 Full range - - 210 25°C - 0.061 1 2.55 25°C 2.65 25°C 25°C 92 25°C VSS Full range VSS+0.2 2.62 2.67 83 110 25 40 98 100 VDD VDD-0.2 μA μA V mV dB AV=0dB, +IN=1.35V —————— SHDN =0V RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 V VSS to VDD Common-mode Rejection Ratio CMRR 25°C 60 94 - dB VICM=0.5V Power Supply Rejection Ratio PSRR 25°C 75 85 - dB VDD=1.8V to 5.0V VICM=0.5V Output Source Current (Note 19) ISOURCE 25°C 20 28 - mA OUT=0V, Short Current Output Sink Current (Note 19) ISINK 25°C 18 28 - mA OUT=2.7V Short Current Slew Rate SR 25°C - 0.4 - V/μs CL=25pF GBW 25°C - 1.4 - MHz CL=25pF, AV=40dB f=100kHz Unity Gain Frequency fT 25°C - 1.4 - MHz CL=25pF, AV=40dB Phase Margin θ 25°C - 50 - deg CL=25pF, AV=40dB Gain Margin GM 25°C - 7 - dB CL=25pF, AV=40dB Input Referred Noise Voltage VN 25°C - 6.5 - μVrms AV=40dB, DIN-AUDIO - 50 - nV/ Hz f=10kHz THD+N 25°C - 0.022 - % Gain Bandwidth Total Harmonic Distortion + Noise OUT=1VP-P, f=1kHz RL=600Ω, AV=0dB (Note 16) Absolute value. (Note 17) Full range: TA=-40°C to +85°C (Note 18) Only LMR981G have shutdown. (Note 19) Under the high temperature environment, consider the power dissipation of IC when selecting the output current. When the terminal short circuits are continuously output, the output current is reduced to climb to the temperature inside IC. 〇LMR981G (Unless otherwise specified VDD=+2.7V, VSS=0V) Parameter Symbol Temperature Range Min Limit Typ Max Turn On Time From Shutdown tON 25°C - 12.5 - - 1.63 - Turn On Voltage High VSHDN_H 25°C Turn On Voltage Low www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 VSHDN_L Unit μs Conditions VICM= VDD/2 - V - 7/59 1.35 - - TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Electrical Characteristics - continued —————— 〇LMR981G, LMR931G (Unless otherwise specified VDD=+5.0V, VSS=0V, SHDN =VDD) Parameter Symbol Temperature Range VIO Limit Unit Conditions mV VDD=1.8V to 5.0V 25°C Full Range Min - Typ 1 - Max 4 6 ΔVIO/ΔT 25°C - 5.5 - µV/°C - Input Offset Current(Note 20) IIO 25°C - 5 30 nA - Input Bias Current (Note 20) IB 25°C - 5 35 nA - Supply Current(Note 21) IDD Input Offset Voltage (Note 20) Input Offset Voltage Drift Shutdown Current(Note 22) IDD_SD Maximum Output Voltage(High) VOH Maximum Output Voltage(Low) VOL Large Signal Voltage Gain AV Input Common-mode Voltage Range VICM 25°C - 85 200 Full range - - 230 25°C - 0.2 1 4.85 25°C 4.94 25°C 25°C 94 25°C VSS Full range VSS+0.2 4.89 4.96 120 160 37 65 101 105 VDD VDD-0.2 μA μA V mV dB AV=0dB, +IN=2.5V —————— SHDN =0V RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 V VSS to VDD Common-mode Rejection Ratio CMRR 25°C 60 94 - dB VICM=0.5V Power Supply Rejection Ratio PSRR 25°C 75 85 - dB VDD=1.8V to 5.0V VICM=0.5V Output Source Current (Note 23) ISOURCE 25°C 80 90 - mA OUT=0V, Short Current Output Sink Current (Note 23) ISINK 25°C 58 80 - mA OUT=5V Short Current Slew Rate SR 25°C - 0.42 - V/μs CL=25pF GBW 25°C - 1.5 - MHz CL=25pF, AV=40dB f=100kHz Unity Gain Frequency fT 25°C - 1.5 - MHz CL=25pF, AV=40dB Phase Margin θ 25°C - 50 - deg CL=25pF, AV=40dB Gain Margin GM 25°C - 7 - dB CL=25pF, AV=40dB Input Referred Noise Voltage VN 25°C - 6.5 - μVrms Av=40dB, DIN-AUDIO - 50 - nV/ Hz f=10kHz THD+N 25°C - 0.022 - % Gain Bandwidth Total Harmonic Distortion + Noise OUT=1VP-P, f=1kHz RL=600Ω, AV=0dB (Note 20) Absolute value (Note 21) Full range: TA=-40°C to +85°C (Note 22) Only LMR981G have shutdown. (Note 23) Under the high temperature environment, consider the power dissipation of IC when selecting the output current. When the terminal short circuits are continuously output, the output current is reduced to climb to the temperature inside IC. 〇LMR981G (Unless otherwise specified VDD=+5.0V, VSS=0V) Parameter Symbol Temperature Range Min Limit Typ Max Turn On Time From Shutdown tON 25°C - 8.4 - - 2.98 - Turn On Voltage High VSHDN_H 25°C Turn On Voltage Low www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 VSHDN_L Unit μs Conditions VICM= VDD/2 - V - 8/59 2.70 - - TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Electrical Characteristics - continued —————— 〇LMR982FVM, LMR932xxx (Unless otherwise specified VDD=+1.8V, VSS=0V, SHDN =VDD *LMR982FVM only) Parameter Symbol Temperature Range VIO Limit Unit Conditions mV VDD=1.8V to 5.0V 25°C Full Range Min - Typ 1 - Max 5.5 7.5 ΔVIO/ΔT 25°C - 5.5 - µV/°C - Input Offset Current(Note 24) IIO 25°C - 5 30 nA - Input Bias Current (Note 24) IB 25°C - 5 35 nA - Supply Current(Note 25) IDD Input Offset Voltage (Note 24) Input Offset Voltage Drift Shutdown Current(Note 26) IDD_SD Maximum Output Voltage(High) VOH Maximum Output Voltage(Low) VOL Large Signal Voltage Gain AV Input Common-mode Voltage Range VICM 25°C - 135 290 Full range - - 410 25°C - 0.15 1 1.65 1.72 25°C 1.75 1.77 77 105 25°C 24 35 94 25°C 80 100 25°C VSS VDD Full range VSS+0.2 VDD-0.2 μA μA V mV dB AV=0dB, +IN=0.9V —————— SHDN =0V RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 V VSS to VDD Common-mode Rejection Ratio CMRR 25°C 60 94 - dB VICM=0.5V Power Supply Rejection Ratio PSRR 25°C 75 85 - dB VDD=1.8V to 5.0V VICM=0.5V Output Source Current (Note 27) ISOURCE 25°C 4 8 - mA OUT=0V, Short Current Output Sink Current (Note 27) ISINK 25°C 7 9 - mA OUT=1.8V Short Current Slew Rate SR 25°C - 0.35 - V/μs CL=25pF GBW 25°C - 1.4 - MHz CL=25pF, AV=40dB f=100kHz Unity Gain Frequency fT 25°C - 1.4 - MHz CL=25pF, AV=40dB Phase Margin θ 25°C - 50 - deg CL=25pF, AV=40dB Gain Margin GM 25°C - 7 - dB CL=25pF, AV=40dB Input Referred Noise Voltage VN 25°C - 6.5 - μVrms AV=40dB, DIN-AUDIO - 50 - nV/ Hz f=10kHz THD+N 25°C - 0.023 - % OUT=1VP-P, f=1kHz RL=600Ω, AV=0dB CS 25°C - 110 - dB AV=40dB, OUT=1Vrms Gain Bandwidth Total Harmonic Distortion + Noise Channel Separation (Note 24) Absolute value. (Note 25) Full range: TA=-40°C to +85°C (Note 26) Only LMR982FVM have shutdown. (Note 27) Under the high temperature environment, consider the power dissipation of IC when selecting the output current. When the terminal short circuits are continuously output, the output current is reduced to climb to the temperature inside IC. 〇LMR982FVM (Unless otherwise specified VDD=+1.8V, VSS=0V) Parameter Symbol Temperature Range Min Limit Typ Max Turn On Time From Shutdown tON 25°C - 19 - - 1.32 - Turn On Voltage High VSHDN_H 25°C Turn On Voltage Low www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 VSHDN_L Unit μs Conditions VICM= VDD/2 - V - 9/59 0.72 - - TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Electrical Characteristics - continued —————— 〇LMR982FVM, LMR932xxx (Unless otherwise specified VDD=+2.7V, VSS=0V, SHDN =VDD) Parameter Symbol Temperature Range VIO Limit Unit Conditions mV VDD=1.8V to 5.0V 25°C Full Range Min - Typ 1 - Max 5.5 7.5 ΔVIO/ΔT 25°C - 5.5 - µV/°C - Input Offset Current(Note 28) IIO 25°C - 5 30 nA - Input Bias Current (Note 28) IB 25°C - 5 35 nA - Supply Current(Note 29) IDD Input Offset Voltage (Note 28) Input Offset Voltage Drift Shutdown Current(Note 30) IDD_SD Maximum Output Voltage(High) VOH Maximum Output Voltage(Low) VOL Large Signal Voltage Gain AV Input Common-mode Voltage Range VICM 25°C - 135 300 Full range - - 420 25°C - 0.061 1 2.55 25°C 2.65 25°C 25°C 92 25°C VSS Full range VSS+0.2 2.62 2.67 83 110 25 40 98 100 VDD VDD-0.2 μA μA V mV dB AV=0dB, +IN=1.35V —————— SHDN =0V RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 V VSS to VDD Common-mode Rejection Ratio CMRR 25°C 60 94 - dB VICM=0.5V Power Supply Rejection Ratio PSRR 25°C 75 85 - dB VDD=1.8V to 5.0V VICM=0.5V Output Source Current (Note 31) ISOURCE 25°C 20 28 - mA OUT=0V, Short Current Output Sink Current (Note 31) ISINK 25°C 18 28 - mA OUT=2.7V Short Current Slew Rate SR 25°C - 0.4 - V/μs CL=25pF GBW 25°C - 1.4 - MHz CL=25pF, AV=40dB f=100kHz Unity Gain Frequency fT 25°C - 1.4 - MHz CL=25pF, AV=40dB Phase Margin θ 25°C - 50 - deg CL=25pF, AV=40dB Gain Margin GM 25°C - 7 - dB CL=25pF, AV=40dB Input Referred Noise Voltage VN 25°C - 6.5 - μVrms AV=40dB, DIN-AUDIO - 50 - nV/ Hz f=10kHz THD+N 25°C - 0.022 - % OUT=1VP-P, f=1kHz RL=600Ω, AV=0dB CS 25°C - 110 - dB AV=40dB, OUT=1Vrms Gain Bandwidth Total Harmonic Distortion + Noise Channel Separation (Note 28) Absolute value. (Note 29) Full range: TA=-40°C to +85°C (Note 30) Only LMR982FVM have shutdown. (Note 31) Under the high temperature environment, consider the power dissipation of IC when selecting the output current. When the terminal short circuits are continuously output, the output current is reduced to climb to the temperature inside IC. 〇LMR982FVM (Unless otherwise specified VDD=+2.7V, VSS=0V) Parameter Symbol Temperature Range Min Limit Typ Max Turn On Time From Shutdown tON 25°C - 12.5 - - 1.63 - Turn On Voltage High VSHDN_H 25°C Turn On Voltage Low www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 VSHDN_L Unit μs Conditions VICM= VDD/2 - V - 10/59 1.35 - - TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Electrical Characteristics - continued —————— 〇LMR982FVM, LMR932xxx (Unless otherwise specified VDD=+5.0V, VSS=0V, SHDN =VDD) Parameter Symbol Temperature Range VIO Limit Unit Conditions mV VDD=1.8V to 5.0V 25°C Full Range Min - Typ 1 - Max 5.5 7.5 ΔVIO/ΔT 25°C - 5.5 - µV/°C - Input Offset Current(Note 32) IIO 25°C - 5 30 nA - Input Bias Current (Note 32) IB 25°C - 5 35 nA - Supply Current(Note 33) IDD Input Offset Voltage (Note 32) Input Offset Voltage Drift Shutdown Current(Note 34) IDD_SD Maximum Output Voltage(High) VOH Maximum Output Voltage(Low) VOL Large Signal Voltage Gain AV Input Common-mode Voltage Range VICM 25°C - 140 300 Full range - - 460 25°C - 0.2 1 4.85 25°C 4.94 25°C 25°C 94 25°C VSS Full range VSS+0.2 4.89 4.96 120 160 37 65 101 105 VDD VDD-0.2 μA μA V mV dB AV=0dB, +IN=2.5V —————— SHDN =0V RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 V VSS to VDD Common-mode Rejection Ratio CMRR 25°C 60 94 - dB VICM=0.5V Power Supply Rejection Ratio PSRR 25°C 75 85 - dB VDD=1.8V to 5.0V VICM=0.5V Output Source Current (Note 35) ISOURCE 25°C 80 90 - mA OUT=0V, Short Current Output Sink Current (Note 35) ISINK 25°C 58 80 - mA OUT=5V Short Current Slew Rate SR 25°C - 0.42 - V/μs CL=25pF GBW 25°C - 1.5 - MHz CL=25pF, AV=40dB f=100kHz Unity Gain Frequency fT 25°C - 1.5 - MHz CL=25pF, AV=40dB Phase Margin θ 25°C - 50 - deg CL=25pF, AV=40dB Gain Margin GM 25°C - 7 - dB CL=25pF, AV=40dB Input Referred Noise Voltage VN 25°C - 6.5 - μVrms AV=40dB, DIN-AUDIO - 50 - nV/ Hz f=10kHz THD+N 25°C - 0.022 - % OUT=1VP-P, f=1kHz RL=600Ω, AV=0dB CS 25°C - 110 - dB AV=40dB, OUT=1Vrms Gain Bandwidth Total Harmonic Distortion + Noise Channel Separation (Note 32) Absolute value (Note 33) Full range: TA=-40°C to +85°C (Note 34) Only LMR982FVM have shutdown. (Note 35) Under the high temperature environment, consider the power dissipation of IC when selecting the output current. When the terminal short circuits are continuously output, the output current is reduced to climb to the temperature inside IC. 〇LMR982FVM (Unless otherwise specified VDD=+5.0V, VSS=0V) Parameter Symbol Temperature Range Min Limit Typ Max Turn On Time From Shutdown tON 25°C - 8.4 - - 2.98 - Turn On Voltage High VSHDN_H 25°C Turn On Voltage Low www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 VSHDN_L Unit μs Conditions VICM= VDD/2 - V - 11/59 2.70 - - TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Electrical Characteristics - continued 〇LMR934xxx (Unless otherwise specified VDD=+1.8V, VSS=0V) Parameter Symbol Temperature Range VIO Limits Unit Condition 25°C Full Range Min - Typ 1 - Max 5.5 7.5 ΔVIO/ΔT 25°C - 5.5 - µV/°C - Input Offset Current(Note 36) IIO 25°C - 5 30 nA - Input Bias Current (Note 36) IB 25°C - 5 35 nA - Supply Current(Note 37) IDD 25°C - 280 550 Maximum Output Voltage(High) VOH Maximum Output Voltage(Low) VOL Large Signal Voltage Gain AV Input Offset Voltage (Note 36) Input Offset Voltage Drift Input Common-mode Voltage Range VICM Full range 820 1.65 1.72 25°C 1.75 1.77 77 105 25°C 24 35 96 25°C 80 100 25°C VSS VDD Full range VSS+0.2 VDD-0.2 mV μA V mV dB VDD=1.8V to 5.0V AV=0dB, +IN=0.9V RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 V VSS to VDD Common-mode Rejection Ratio CMRR 25°C 60 94 - dB VICM=0.5V Power Supply Rejection Ratio PSRR 25°C 75 85 - dB VDD=1.8V to 5.0V VICM=0.5V Output Source Current (Note 38) ISOURCE 25°C 4 8 - mA OUT=0V, Short Current Output Sink Current (Note 38) ISINK 25°C 7 9 - mA OUT=1.8V Short Current Slew Rate SR 25°C - 0.35 - V/μs CL=25pF GBW 25°C - 1.4 - MHz CL=25pF, AV=40dB f=100kHz Unity Gain Frequency fT 25°C - 1.4 - MHz CL=25pF, AV=40dB Phase Margin θ 25°C - 50 - deg CL=25pF, AV=40dB Gain Margin GM 25°C - 7 - dB CL=25pF, AV=40dB Input Referred Noise Voltage VN 25°C - 6.5 - μVrms AV=40dB, DIN-AUDIO - 50 - nV/ Hz f=10kHz THD+N 25°C - 0.023 - % OUT=1VP-P, f=1kHz RL=600Ω, AV=0dB CS 25°C - 110 - dB AV=40dB, OUT=1Vrms Gain Bandwidth Total Harmonic Distortion + Noise Channel Separation (Note 36) Absolute value. (Note 37) Full range: TA=-40°C to +85°C (Note 38) Under the high temperature environment, consider the power dissipation of IC when selecting the output current. When the terminal short circuits are continuously output, the output current is reduced to climb to the temperature inside IC. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 12/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Electrical Characteristics - continued 〇LMR934xxx (Unless otherwise specified VDD=+2.7V, VSS=0V) Parameter Symbol Temperature Range VIO Limit Unit Conditions mV VDD=1.8V to 5.0V 25°C Full Range Min - Typ 1 - Max 5.5 7.5 ΔVIO/ΔT 25°C - 5.5 - µV/°C - Input Offset Current(Note 39) IIO 25°C - 5 30 nA - Input Bias Current (Note 39) IB 25°C - 5 35 nA - Supply Current(Note 40) IDD 25°C - 250 600 Maximum Output Voltage(High) VOH Maximum Output Voltage(Low) VOL Large Signal Voltage Gain AV Input Offset Voltage (Note 39) Input Offset Voltage Drift Input Common-mode Voltage Range VICM Full range 2.55 25°C 2.65 25°C 25°C 92 25°C VSS Full range VSS+0.2 840 2.62 2.67 83 110 25 40 98 100 VDD VDD-0.2 μA V mV dB AV=0dB,+IN=1.35V RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 V VSS to VDD Common-mode Rejection Ratio CMRR 25°C 60 94 - dB VICM=0.5V Power Supply Rejection Ratio PSRR 25°C 75 85 - dB VDD=1.8V to 5.0V VICM=0.5V Output Source Current (Note 41) ISOURCE 25°C 20 28 - mA OUT=0V, Short Current Output Sink Current (Note 41) ISINK 25°C 18 28 - mA OUT=2.7V Short Current Slew Rate SR 25°C - 0.4 - V/μs CL=25pF GBW 25°C - 1.4 - MHz CL=25pF, AV=40dB f=100kHz Unity Gain Frequency fT 25°C - 1.4 - MHz CL=25pF, AV=40dB Phase Margin θ 25°C - 50 - deg CL=25pF, AV=40dB Gain Margin GM 25°C - 7 - dB CL=25pF, AV=40dB Input Referred Noise Voltage VN 25°C - 6.5 - μVrms AV=40dB, DIN-AUDIO - 50 - nV/ Hz f=10kHz THD+N 25°C - 0.022 - % OUT=1VP-P, f=1kHz RL=600Ω, AV=0dB CS 25°C - 110 - dB AV=40dB, OUT=1Vrms Gain Bandwidth Total Harmonic Distortion + Noise Channel Separation (Note 39) Absolute value. (Note 40) Full range: TA=-40°C to +85°C (Note 41) Under the high temperature environment, consider the power dissipation of IC when selecting the output current. When the terminal short circuits are continuously output, the output current is reduced to climb to the temperature inside IC. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 13/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Electrical Characteristics - continued 〇LMR934xxx (Unless otherwise specified VDD=+5.0V, VSS=0V) Parameter Symbol Temperature Range VIO Limit Unit Conditions mV VDD=1.8V to 5.0V 25°C Full Range Min - Typ 1 - Max 5.5 7.5 ΔVIO/ΔT 25°C - 5.5 - µV/°C - Input Offset Current(Note 42) IIO 25°C - 5 30 nA - Input Bias Current (Note 42) IB 25°C - 5 35 nA - Supply Current(Note 43) IDD 25°C - 290 600 Maximum Output Voltage(High) VOH Maximum Output Voltage(Low) VOL Large Signal Voltage Gain AV Input Offset Voltage (Note 42) Input Offset Voltage Drift Input Common-mode Voltage Range VICM Full range 4.85 25°C 4.94 25°C 25°C 94 25°C VSS Full range VSS+0.2 920 4.89 4.96 120 160 37 65 101 105 VDD VDD-0.2 μA V mV dB AV=0dB, +IN=2.5V RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 RL=600Ω, VRL=VDD/2 RL=2kΩ, VRL=VDD/2 V VSS to VDD Common-mode Rejection Ratio CMRR 25°C 60 94 - dB VICM=0.5V Power Supply Rejection Ratio PSRR 25°C 75 85 - dB VDD=1.8V to 5.0V VICM=0.5V Output Source Current (Note 44) ISOURCE 25°C 80 90 - mA OUT=0V, Short Current Output Sink Current (Note 44) ISINK 25°C 58 80 - mA OUT=5V Short Current Slew Rate SR 25°C - 0.42 - V/μs CL=25pF GBW 25°C - 1.5 - MHz CL=25pF, AV=40dB f=100kHz Unity Gain Frequency fT 25°C - 1.5 - MHz CL=25pF, AV=40dB Phase Margin θ 25°C - 50 - deg CL=25pF, AV=40dB Gain Margin GM 25°C - 7 - dB CL=25pF, AV=40dB Input Referred Noise Voltage VN 25°C - 6.5 - μVrms AV=40dB, DIN-AUDIO - 50 - nV/ Hz f=10kHz THD+N 25°C - 0.022 - % OUT=1VP-P, f=1kHz RL=600Ω, AV=0dB CS 25°C - 110 - dB AV=40dB, OUT=1Vrms Gain Bandwidth Total Harmonic Distortion + Noise Channel Separation (Note 42) Absolute value (Note 43) Full range: TA=-40°C to +85°C (Note 44) Under the high temperature environment, consider the power dissipation of IC when selecting the output current. When the terminal short circuits are continuously output, the output current is reduced to climb to the temperature inside IC. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 14/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Description of Electrical Characteristics Described below are descriptions of the relevant electrical terms used in this datasheet. Items and symbols used are also shown. Note that item name and symbol and their meaning may differ from those on another manufacturer’s document or general document. 1. Absolute maximum ratings Absolute maximum rating items indicate the condition which must not be exceeded. Application of voltage in excess of absolute maximum rating or use out of absolute maximum rated temperature environment may cause deterioration of characteristics. (1) Supply Voltage (VDD/VSS) Indicates the maximum voltage that can be applied between the positive power supply terminal and negative power supply terminal without deterioration or destruction of characteristics of internal circuit. (2) Differential Input Voltage (VID) Indicates the maximum voltage that can be applied between non-inverting and inverting terminals without damaging the IC. (3) Input Common-mode Voltage Range (VICM) Indicates the maximum voltage that can be applied to the non-inverting and inverting terminals without deterioration or destruction of electrical characteristics. Input common-mode voltage range of the maximum ratings does not assure normal operation of IC. For normal operation, use the IC within the input common-mode voltage range characteristics. (4) Power dissipation (PD) Indicates the power that can be consumed by the IC when mounted on a specific board at the ambient temperature 25℃ (normal temperature). As for package product, PD is determined by the temperature that can be permitted by the IC in the package (maximum junction temperature) and the thermal resistance of the package. 2. Electrical characteristics (1) Input Offset Voltage (VIO) Indicates the voltage difference between non-inverting terminal and inverting terminals. It can be translated into the input voltage difference required for setting the output voltage at 0 V. (2) Input Offset Voltage Drift (ΔVIO /ΔT) Denotes the ratio of the input offset voltage fluctuation to the ambient temperature fluctuation. (3) Input Offset Current (IIO) Indicates the difference of input bias current between the non-inverting and inverting terminals. (4) Input Bias Current (IB) Indicates the current that flows into or out of the input terminal. It is defined by the average of input bias currents at the non-inverting and inverting terminals. (5) Supply Current (IDD) Indicates the current that flows within the IC under specified no-load conditions. (6) Maximum Output Voltage (High) / Maximum Output Voltage (Low) (VOH/VOL) Indicates the voltage range of the output under specified load condition. It is typically divided into maximum output voltage High and low. Maximum output voltage high indicates the upper limit of output voltage. Maximum output voltage low indicates the lower limit. (7) Large Signal Voltage Gain (AV) Indicates the amplifying rate (gain) of output voltage against the voltage difference between non-inverting terminal and inverting terminal. It is normally the amplifying rate (gain) with reference to DC voltage. Av = (Output voltage) / (Differential Input voltage) (8) Input Common-mode Voltage Range (VICM) Indicates the input voltage range where IC normally operates. (9) Common-mode Rejection Ratio (CMRR) Indicates the ratio of fluctuation of input offset voltage when the input common mode voltage is changed. It is normally the fluctuation of DC. CMRR = (Change of Input common-mode voltage)/(Input offset fluctuation) (10) Power Supply Rejection Ratio (PSRR) Indicates the ratio of fluctuation of input offset voltage when supply voltage is changed. It is normally the fluctuation of DC. PSRR= (Change of power supply voltage)/(Input offset fluctuation) (11) Output Source Current / Output Sink Current (Isource / Isink) The maximum current that can be output from the IC under specific output conditions. The output source current indicates the current flowing out from the IC, and the output sink current indicates the current flowing into the IC. (12) Channel Separation (CS) Indicates the fluctuation in the output voltage of the driven channel with reference to the change of output voltage of the channel which is not driven. (13) Slew Rate (SR) Indicates the ratio of the change in output voltage with time when a step input signal is applied. (14) Gain Bandwidth (GBW) The product of the open-loop voltage gain and the frequency at which the voltage gain decreases 6dB/octave. (15) Unity Gain Frequency (fT) Indicates a frequency where the voltage gain of operational amplifier is 1. (16) Phase Margin (θ) Indicates the margin of phase from 180 degree phase lag at unity gain frequency. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 15/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet (17) Gain Margin (GM) Indicates the difference between 0dB and the gain where operational amplifier has 180 degree phase delay. (18) Total Harmonic Distortion+Noise (THD+N) Indicates the fluctuation of input offset voltage or that of output voltage with reference to the change of output voltage of driven channel. (19) Input Referred Noise Voltage (VN) Indicates a noise voltage generated inside the operational amplifier equivalent by ideal voltage source connected in series with input terminal. (20) Turn on Time from Shutdown (tON) Indicates the time from applying the voltage to shutdown terminal until the IC is active. (21) Turn on Voltage / Turn off Voltage (VSHDN_H/ VSHDN_L) The IC is active if the shutdown terminal is applied more than Turn On Voltage (VSHDN_H). The IC is shutdown if the shutdown terminal is applied less than Turn Off Voltage (VSHDN_L). www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 16/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves 〇LMR981G, LMR931G 120 0.8 110 100 LMR981G LMR931G Supply Current [μA] Power Dissipation [W] 0.6 0.4 85℃ 90 80 25℃ 70 -40℃ 60 0.2 50 0.0 0 25 40 85 50 75 100 125 Ambient Temperature [°C] 1 150 2 3 4 5 6 Supply Voltage [V] Figure 3. Supply Current vs Supply Voltage Figure 2. Power Dissipation vs Ambient Temperature (Derating Curve) 120 6 Maximum Output Voltage (High) [V] 110 Supply Current [μA] 100 5.0V 90 80 1.8V 2.7V 70 60 50 40 -50 5 25℃ 4 85℃ -40℃ 3 2 1 0 -25 0 25 50 75 100 125 1 Ambient Temperature [°C] Figure 4. Supply Current vs Ambient Temperature 2 3 4 Supply Voltage [V] 5 6 Figure 5. Maximum Output Voltage (High) vs Supply Voltage (RL=2kΩ) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 17/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) – continued 〇LMR981G, LMR931G 6 30 Maximum Output Voltage (Low) [mV] Maximum Output Voltage (High) [V] 85℃ 5 5.0V 4 3 2.7V 2 1.8V 1 0 25 20 15 25℃ -40℃ 10 5 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 125 1 Figure 6. Maximum Output Voltage (High) vs Ambient Temperature (RL=2kΩ) 3 4 Supply Voltage [V] 5 6 Figure 7. Maximum Output Voltage (Low) vs Supply Voltage (RL=2kΩ) 30 40 35 5.0V 25 Output Source Current [mA] Maximum Output Voltage (Low) [mV] 2 1.8V 20 15 2.7V 10 25℃ -40℃ 30 25 20 85℃ 15 10 5 5 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 0 0.0 125 Figure 8. Maximum Output Voltage (Low) vs Ambient Temperature (RL=2kΩ) 0.5 1.0 1.5 2.0 Output Voltage [V] 2.5 3.0 Figure 9. Output Source Current vs Output Voltage (VDD=2.7V) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 18/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) – continued 〇LMR981G, LMR931G 60 120 5.0V 50 Output Sink Current [mA] Output Source Current [mA] 100 80 60 2.7V 40 20 25℃ 30 20 85℃ 10 1.8V 0 -50 -40℃ 40 0 -25 0 25 50 75 Ambient Temperature [°C] 100 0.0 125 0.5 1.0 1.5 2.0 Output Voltage [V] 2.5 3.0 Figure 11. Output Sink Current vs Output Voltage (VDD=2.7V) Figure 10. Output Source Current vs Ambient Temperature (OUT=VSS) 4.0 120 3.0 Input Offset Voltage [mV] Output Sink Current [mA] 100 5.0V 80 60 2.7V 40 -40℃ 1.0 25℃ 0.0 85℃ -1.0 -2.0 1.8V 20 0 -50 2.0 -3.0 -4.0 -25 0 25 50 75 Ambient Temperature [°C] 100 1 125 2 3 4 Supply Voltage [V] 5 6 Figure 13. Input Offset Voltage vs Supply Voltage Figure 12. Output Sink Current vs Ambient Temperature (OUT=VDD) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 19/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx 4.0 4.0 3.0 3.0 2.0 2.0 Input Offset Voltage [mV] Input Offset Voltage [mV] Typical Performance Curves (Reference data) - continued 〇LMR981G, LMR931G 5.0V 1.0 0.0 1.8V 2.7V -1.0 -2.0 -3.0 25℃ 0.0 85℃ -1.0 -2.0 -3.0 -4.0 -4.0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 125 -1 Figure 14. Input Offset Voltage vs Ambient Temperature 160 160 140 140 85℃ 120 100 -40℃ 0 1 2 Input Voltage [V] 3 4 Figure 15. Input Offset Voltage vs Input Voltage (VDD=2.7V) Large Signal Voltage Gain [dB] Large Signal Voltage Gain [dB] -40℃ 1.0 25℃ 80 2.7V 120 100 1.8V 5.0V 80 60 60 1 2 3 4 Supply Voltage [V] 5 -50 6 Figure 16. Large Signal Voltage Gain vs Supply Voltage -25 0 25 50 75 Ambient Temperature [°C] 100 125 Figure 17. Large Signal Voltage Gain vs Ambient Temperature (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 20/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) - continued 〇LMR981G, LMR931G 120 Common Mode Rejection Ratio [dB] Common Mode Rejection Ratio [dB] 120 110 100 90 -40℃ 25℃ 85℃ 80 70 110 5.0V 100 2.7V 90 1.8V 80 70 60 60 1 2 3 4 Supply Voltage [V] 5 -50 6 -25 0 25 50 75 Ambient Temperature [°C] 100 125 Figure 19. Common Mode Rejection Ratio vs Ambient Temperature Figure 18. Common Mode Rejection Ratio vs Supply Voltage (VDD=2.7V) 120 1.0 110 0.8 Slew Rate L-H [V/μs] Power Supply Rejection Ratio [dB] 0.9 100 90 80 0.7 2.7V 0.6 5.0V 0.5 0.4 1.8V 0.3 0.2 70 0.1 60 -50 0.0 -25 0 25 50 75 Ambient Temperature [°C] 100 -50 125 Figure 20. Power Supply Rejection Ratio vs Ambient Temperature (VDD=1.8V to 5.0V) -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 21. Slew Rate L-H – Ambient Temperature (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 21/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) - continued 〇LMR981G, LMR931G 1.0 100 200 Phase 0.9 80 0.7 0.6 0.5 1.8V 2.7V 0.4 60 100 Gain 40 0.3 50 0.2 20 0.1 0.0 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 125 2 10 0.1 3 10 1 10 10 4 5 10 100 6 10 1000 7 10 10000 8 0 10 100000 Frequency [Hz] Figure 23. Voltage Gain, Phase vs Frequency Figure 22. Slew Rate H-L vs Ambient Temperature (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 22/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 Phase [deg] 150 5.0V Voltage Gain [dB] Slew Rate H-L [V/μs] 0.8 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx 1.8 1.8 1.6 1.6 1.4 1.4 1.2 1.2 Output Voltage [V] Output Voltage [V] Typical Performance Curves (Reference data) - continued 〇LMR981G 1 0.8 0.6 VSHDN_L 1 0.8 VSHDN_H 0.6 VSHDN_H 0.4 0.4 0.2 0.2 0 0 0 VSHDN_L 0.5 1 1.5 Shutdown Voltage [V] 0 2 Figure 24. Turn On/Off Voltage – Supply Voltage (VDD=1.8V, AV=0dB, IN=0.9V) 1 2 Shutdown Voltage [V] 3 Figure 25. Turn On/Off Voltage – Supply Voltage (VDD=2.7V, AV=0dB, IN=1.35V) 4 Output Voltage [V] 3 2 VSHDN_L VSHDN_H 1 0 0 1 2 3 4 Shutdown Voltage [V] 5 6 Figure 26. Turn On/Off Voltage vs Supply Voltage (VDD=5V, AV=0dB, IN=2.5V) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 23/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves 〇LMR982FVM, LMR932xxx 240 1.0 220 200 LMR932F Supply Current [μA] Power Dissipation [W] 0.8 LMR932FJ 0.6 LMR932FV LMR932FVT 0.4 LMR982FVM LMR932FVM LMR932FVJ 0.2 180 160 85℃ 140 25℃ 120 -40℃ 100 0.0 80 85 0 25 50 75 100 125 Ambient Temperature [°C] 1 150 2 3 4 5 6 Supply Voltage [V] Figure 28. Supply Current vs Supply Voltage Figure 27. Power Dissipation vs Ambient Temperature (Derating Curve) 240 6 Maximum Output Voltage (High) [V] 220 Supply Current [μA] 200 180 160 140 5.0V 1.8V 2.7V 120 100 80 -50 5 25℃ 4 85℃ -40℃ 3 2 1 0 -25 0 25 50 75 100 125 1 Ambient Temperature [°C] Figure 29. Supply Current vs Ambient Temperature 2 3 4 Supply Voltage [V] 5 6 Figure 30. Maximum Output Voltage (High) vs Supply Voltage (RL=2kΩ) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 24/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) – continued 〇LMR982FVM, LMR932xxx 30 Maximum Output Voltage (Low) [mV] Maximum Output Voltage (High) [V] 6 5 5.0V 4 3 2.7V 2 1.8V 1 0 85℃ 25 20 15 25℃ -40℃ 10 5 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 125 1 Figure 31. Maximum Output Voltage (High) vs Ambient Temperature (RL=2kΩ) 5 6 40 5.0V 35 25 -40℃ Output Source Current [mA] 25℃ 1.8V 20 15 2.7V 10 5 0 -50 3 4 Supply Voltage [V] Figure 32. Maximum Output Voltage (Low) vs Supply Voltage (RL=2kΩ) 30 Maximum Output Voltage (Low) [mV] 2 30 25 85℃ 20 15 10 5 -25 0 25 50 75 Ambient Temperature [°C] 100 0 0.0 125 Figure 33. Maximum Output Voltage (Low) vs Ambient Temperature (RL=2kΩ) 0.5 1.0 1.5 2.0 Output Voltage [V] 2.5 3.0 Figure 34. Output Source Current vs Output Voltage (VDD=2.7V) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 25/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) – continued 〇LMR982FVM, LMR932xxx 140 60 50 5.0V Output Sink Current [mA] Output Source Current [mA] 120 100 80 60 2.7V 40 0 -50 40 25℃ 30 20 85℃ 10 1.8V 20 -40℃ 0 -25 0 25 50 75 Ambient Temperature [°C] 100 0.0 125 0.5 1.0 1.5 2.0 Output Voltage [V] 2.5 3.0 Figure 36. Output Sink Current vs Output Voltage (VDD=2.7V) Figure 35. Output Source Current vs Ambient Temperature (OUT=VSS) 4.0 120 3.0 Input Offset Voltage [mV] Output Sink Current [mA] 100 80 5.0V 60 2.7V 40 1.0 -40℃ 25℃ 0.0 -1.0 85℃ -2.0 1.8V 20 0 -50 2.0 -3.0 -4.0 -25 0 25 50 75 Ambient Temperature [°C] 100 1 125 2 3 4 Supply Voltage [V] 5 6 Figure 38. Input Offset Voltage vs Supply Voltage Figure 37. Output Sink Current vs Ambient Temperature (OUT=VDD) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 26/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx 4.0 4.0 3.0 3.0 2.0 2.0 1.0 Input Offset Voltage [mV] Input Offset Voltage [mV] Typical Performance Curves (Reference data) - continued 〇LMR982FVM, LMR932xxx 5.0V 0.0 1.8V -1.0 2.7V -2.0 -3.0 1.0 0.0 -1.0 85℃ -2.0 -3.0 -4.0 -4.0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 125 -1 Figure 39. Input Offset Voltage vs Ambient Temperature 160 160 140 140 120 85℃ 100 -40℃ 25℃ 80 0 1 2 Input Voltage [V] 3 4 Figure 40. Input Offset Voltage vs Input Voltage (VDD=2.7V) Large Signal Voltage Gain [dB] Large Signal Voltage Gain [dB] -40℃ 25℃ 120 2.7V 100 5.0V 1.8V 80 60 60 1 2 3 4 Supply Voltage [V] 5 -50 6 Figure 41. Large Signal Voltage Gain vs Supply Voltage -25 0 25 50 75 Ambient Temperature [°C] 100 125 Figure 42. Large Signal Voltage Gain vs Ambient Temperature (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 27/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) - continued 〇LMR982FVM, LMR932xxx 120 Common Mode Rejection Ratio [dB] Common Mode Rejection Ratio [dB] 120 110 25℃ 100 90 85℃ -40℃ 80 70 110 5.0V 100 2.7V 90 1.8V 80 70 60 60 1 2 3 4 Supply Voltage [V] 5 -50 6 -25 0 25 50 75 Ambient Temperature [°C] 100 125 Figure 44. Common Mode Rejection Ratio vs Ambient Temperature Figure 43. Common Mode Rejection Ratio vs Supply Voltage (VDD=2.7V) 120 1.0 110 0.8 Slew Rate L-H [V/μs] Power Supply Rejection Ratio [dB] 0.9 100 90 80 0.7 2.7V 0.6 5.0V 0.5 0.4 1.8V 0.3 0.2 70 0.1 60 -50 0.0 -25 0 25 50 75 Ambient Temperature [°C] 100 -50 125 Figure 45. Power Supply Rejection Ratio vs Ambient Temperature (VDD=1.8V to 5.0V) -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 46. Slew Rate L-H – Ambient Temperature (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 28/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) - continued 〇LMR982FVM, LMR932xxx 1.0 100 200 Phase 0.9 0.8 80 0.6 0.5 0.4 1.8V 2.7V 60 100 Gain 40 0.3 50 0.2 20 0.1 0.0 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 125 0 2 10 0.1 3 10 1 4 10 10 5 10 100 6 10 1000 7 10 10000 8 10 100000 Frequency [Hz] Figure 48. Voltage Gain, Phase vs Frequency Figure 47. Slew Rate H-L vs Ambient Temperature (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 29/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 Phase [deg] 5.0V Voltage Gain [dB] Slew Rate H-L [V/μs] 150 0.7 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx 1.8 1.8 1.6 1.6 1.4 1.4 1.2 1.2 Output Voltage [V] Output Voltage [V] Typical Performance Curves (Reference data) - continued 〇LMR982FVM 1 0.8 0.6 VSHDN_L VSHDN_H 0.4 1 0.8 VSHDN_L VSHDN_H 0.6 0.4 0.2 0.2 0 0 0 0.5 1 1.5 Shutdown Voltage [V] 0 2 Figure 49. Turn On/Off Voltage – Supply Voltage (VDD=1.8V, AV=0dB, IN=0.9V) 1 2 Shutdown Voltage [V] 3 Figure 50. Turn On/Off Voltage – Supply Voltage (VDD=2.7V, AV=0dB, IN=1.35V) 4 Output Voltage [V] 3 2 VSHDN_L VSHDN_H 1 0 0 1 2 3 4 Shutdown Voltage [V] 5 6 Figure 51. Turn On/Off Voltage vs Supply Voltage (VDD=5V, AV=0dB, IN=2.5V) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 30/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves 〇LMR934xxx 400 1.5 350 1.2 Supply Current [μA] Power Dissipation [W] 85℃ LMR934FJ 0.9 LMR934FV LMR934FVJ 0.6 300 25℃ 250 -40℃ 200 LMR934F 0.3 150 0.0 100 85 0 25 50 75 100 125 Ambient Temperature [°C] 1 150 350 5 Maximum Output Voltage (High) [V] Supply Current [μA] 6 5.0V 1.8V 2.7V 200 150 100 -50 4 5 6 Figure 53. Supply Current vs Supply Voltage 400 250 3 Supply Voltage [V] Figure 52. Power Dissipation vs Ambient Temperature (Derating Curve) 300 2 25℃ 4 85℃ -40℃ 3 2 1 0 -25 0 25 50 75 100 125 1 Ambient Temperature [°C] Figure 54. Supply Current vs Ambient Temperature 2 3 4 Supply Voltage [V] 5 6 Figure 55. Maximum Output Voltage (High) vs Supply Voltage (RL=2kΩ) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 31/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) – continued 〇LMR934xxx 6 30 Maximum Output Voltage (Low) [mV] Maximum Output Voltage (High) [V] 85℃ 5 5.0V 4 3 2.7V 2 1.8V 1 0 25 20 15 -40℃ 10 5 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 125 1 Figure 56. Maximum Output Voltage (High) vs Ambient Temperature (RL=2kΩ) 2 3 4 Supply Voltage [V] 5 6 Figure 57. Maximum Output Voltage (Low) vs Supply Voltage (RL=2kΩ) 30 40 5.0V 35 25 -40℃ 20 Output Source Current [mA] Maximum Output Voltage (Low) [mV] 25℃ 1.8V 15 2.7V 10 25℃ 30 25 85℃ 20 15 10 5 5 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 0 0.0 125 Figure 58. Maximum Output Voltage (Low) vs Ambient Temperature (RL=2kΩ) 0.5 1.0 1.5 2.0 Output Voltage [V] 2.5 3.0 Figure 59. Output Source Current vs Output Voltage (VDD=2.7V) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 32/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) – continued 〇LMR934xxx 60 140 120 50 Output Sink Current [mA] Output Source Current [mA] 5.0V 100 80 60 2.7V 40 0 -50 40 25℃ 30 20 85℃ 10 1.8V 20 -40℃ 0 -25 0 25 50 75 Ambient Temperature [°C] 100 0.0 125 0.5 1.0 1.5 2.0 Output Voltage [V] 2.5 3.0 Figure 61. Output Sink Current vs Output Voltage (VDD=2.7V) Figure 60. Output Source Current vs Ambient Temperature (OUT=VSS) 4.0 120 3.0 Input Offset Voltage [mV] Output Sink Current [mA] 100 80 5.0V 60 40 2.7V 20 1.8V 2.0 -40℃ 25℃ 1.0 0.0 85℃ -1.0 -2.0 -3.0 0 -50 -4.0 -25 0 25 50 75 Ambient Temperature [°C] 100 125 1 2 3 4 Supply Voltage [V] 5 6 Figure 63. Input Offset Voltage vs Supply Voltage Figure 62. Output Sink Current vs Ambient Temperature (OUT=VDD) (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 33/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx 4.0 4.0 3.0 3.0 2.0 Input Offset Voltage [mV] Input Offset Voltage [mV] Typical Performance Curves (Reference data) - continued 〇LMR934xxx 5.0V 1.0 1.8V 0.0 2.7V -1.0 -2.0 -3.0 2.0 25℃ 1.0 0.0 85℃ -1.0 -2.0 -3.0 -4.0 -4.0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 125 -1 0 Figure 64. Input Offset Voltage vs Ambient Temperature 160 160 140 140 120 85℃ 100 -40℃ 1 2 Input Voltage [V] 3 4 Figure 65. Input Offset Voltage vs Input Voltage (VDD=2.7V) Large Signal Voltage Gain [dB] Large Signal Voltage Gain [dB] -40℃ 25℃ 80 120 5.0V 100 1.8V 2.7V 80 60 60 1 2 3 4 Supply Voltage [V] 5 -50 6 Figure 66. Large Signal Voltage Gain vs Supply Voltage -25 0 25 50 75 Ambient Temperature [°C] 100 125 Figure 67. Large Signal Voltage Gain vs Ambient Temperature (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 34/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) - continued 〇LMR934xxx 120 Common Mode Rejection Ratio [dB] Common Mode Rejection Ratio [dB] 120 110 100 25℃ 90 85℃ -40℃ 80 70 110 5.0V 2.7V 100 90 1.8V 80 70 60 60 1 2 3 4 Supply Voltage [V] 5 -50 6 -25 0 25 50 75 Ambient Temperature [°C] 100 125 Figure 69. Common Mode Rejection Ratio vs Ambient Temperature Figure 68. Common Mode Rejection Ratio vs Supply Voltage (VDD=2.7V) 120 1.0 110 0.8 Slew Rate L-H [V/μs] Power Supply Rejection Ratio [dB] 0.9 100 90 80 0.7 2.7V 0.6 5.0V 0.5 0.4 1.8V 0.3 0.2 70 0.1 60 -50 0.0 -25 0 25 50 75 Ambient Temperature [°C] 100 -50 125 Figure 70. Power Supply Rejection Ratio vs Ambient Temperature (VDD=1.8V to 5.0V) -25 0 25 50 75 Ambient Temperature [°C] 100 Figure 71. Slew Rate L-H – Ambient Temperature (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 35/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Typical Performance Curves (Reference data) - continued 〇LMR934xxx 1.0 100 200 Phase 0.9 0.8 80 0.6 0.5 2.7V 0.4 1.8V 60 100 Gain 40 0.3 50 0.2 20 0.1 0.0 0 -50 -25 0 25 50 75 Ambient Temperature [°C] 100 125 2 10 0.1 3 10 1 4 10 10 5 10 100 6 10 1000 7 10 10000 8 0 10 100000 Frequency [Hz] Figure 73. Voltage Gain, Phase vs Frequency Figure 72. Slew Rate H-L vs Ambient Temperature (Note )The data above is measurement value of typical sample, it is not guaranteed. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 36/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 Phase [deg] 5.0V Voltage Gain [dB] Slew Rate H-L [V/μs] 150 0.7 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Application Information NULL method condition for Test circuit1 VDD, VSS, EK, VICM Unit:V Parameter Input Offset Voltage VF S1 S2 S3 VDD VSS EK VF1 ON ON OFF 3 0 -1.5 ON ON ON 3 0 VF2 Large Signal Voltage Gain 1.5 2 0 ON ON OFF 3 0 -1.5 VF5 VF6 1 -2.5 VF4 Power Supply Rejection Ratio 3 -0.5 VF3 Common-mode Rejection Ratio (Input Common-mode Voltage Range) VICM Calculation 3 3 ON ON OFF VF7 1.8 0 -1.2 0 4 5.0 － Calculation－ 1. Input Offset Voltage (VIO) |VF1| VIO = 1 + RF/RS 2. Large Signal Voltage Gain (AV) Av = 20Log 3. Common-mode Rejection Ratio (CMRR) CMRR = 20Log VICM × (1+RF/RS) |VF4 - VF5| [dB] 4. Power Supply Rejection Ratio (PSRR) PSRR = 20Log VCC × (1+ RF/RS) |VF6 - VF7| [dB] [V] EK × (1+RF/RS) |VF2 - VF3| [dB] 0.1µF RF=50kΩ 0.1µF 500kΩ SW1 VDD EK RS=50Ω RI=10kΩ 15V VO 500kΩ 0.1µF 0.1µF DUT NULL SW3 RS=50Ω 1000pF RI=10kΩ VICM 50kΩ VF RL VSS VRL -15V Figure 74. Test Circuit 1 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 37/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Switch Condition for Test Circuit 2 SW No. SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 SW9 SW10 SW11 SW12 Supply Current OFF OFF ON OFF ON OFF OFF OFF OFF OFF OFF OFF Maximum Output Voltage RL=10kΩ OFF ON OFF OFF ON OFF OFF Output Current OFF ON OFF OFF ON OFF OFF OFF OFF Slew Rate OFF OFF Unity Gain Frequency ON ON OFF OFF OFF OFF OFF ON ON ON ON OFF OFF ON ON OFF OFF OFF OFF ON OFF OFF ON OFF OFF OFF ON OFF OFF ON SW3 R2 100kΩ SW4 ● VDD=3V － SW1 SW2 ＋ SW5 SW6 SW7 SW8 SW9 RL CL SW10 SW11 SW12 R1 1kΩ VSS IN- IN+ VO VRL Figure 75. Test Circuit2 Input Voltage Output Voltage 1.8 V 1.8 V SR = Δ V / Δ t 90% ΔV 1.8 V P- P 10% 0V 0V t t Δt Input Wave Output Wave Figure 76. Slew Rate Input Output Wave R2=100kΩ R2=100kΩ VDD R1=1kΩ R1//R2 IN VSS VDD R1=1kΩ OUT1 =1Vrms OUT2 R1//R2 VSS CS=20Log 100×OUT1 OUT2 Figure 77. Test Circuit 3 (Channel Separation) www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 38/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Application Example ○Voltage Follower Voltage gain is 0dB. This circuit controls output voltage (OUT) equal input voltage (IN), and keeps OUT with stable because of high input impedance and low output impedance. OUT is shown next expression. OUT=IN VDD OUT IN VSS Figure 78. Voltage Follower ○Inverting Amplifier R2 For inverting amplifier, IN is amplified by voltagegain decided R1 and R2, and phase reversed voltage is output. OUT is shown next expression. OUT=-(R2/R1) x IN Input impedance is R1. VDD R1 IN OUT VSS Figure 79. Inverting Amplifier Circuit ○Non-inverting amplifier R1 R2 For non-inverting amplifier, IN is amplified by voltage gain decided R1 and R2, and phase is same with IN. OUT is shown next expression. OUT=(1+R2/R1) x IN This circuit performs high input impedance because Input impedance is operational amplifier’s input Impedance. VDD OUT IN VSS Figure 80. Non-inverting Amplifier Circuit www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 39/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Power Dissipation Power dissipation (total loss) indicates the power that the IC can consume at TA=25°C (normal temperature). As the IC consumes power, it heats up, causing its temperature to be higher than the ambient temperature. The allowable temperature that the IC can accept is limited. This depends on the circuit configuration, manufacturing process, and consumable power. Power dissipation is determined by the allowable temperature within the IC (maximum junction temperature) and the thermal resistance of the package used (heat dissipation capability). Maximum junction temperature is typically equal to the maximum storage temperature. The heat generated through the consumption of power by the IC radiates from the mold resin or lead frame of the package. Thermal resistance, represented by the symbol θJA°C/W, indicates this heat dissipation capability. Similarly, the temperature of an IC inside its package can be estimated by thermal resistance. Figure 81(a) shows the model of the thermal resistance of a package. The equation below shows how to compute for the Thermal resistance (θJA), given the ambient temperature (TA), maximum junction temperature (TJmax), and power dissipation (PD). θJA = (TJmax－TA) / PD °C/W The derating curve in Figure 81(b) indicates the power that the IC can consume with reference to ambient temperature. Power consumption of the IC begins to attenuate at certain temperatures. This gradient is determined by Thermal resistance (θJA), which depends on the chip size, power consumption, package, ambient temperature, package condition, wind velocity, etc. This may also vary even when the same of package is used. Thermal reduction curve indicates a reference value measured at a specified condition. Figure 81(c) to (e) shows an example of the derating curve for LMR981G, LMR931G, LMR982FVM, LMR932xxx and LMR934xxx. Power Dissipation of LSI [W] PD(max) θJA=(TJmax-TA)/ PD °C/W P2 θJA2 < θJA1 Ambient Temperature TA [ °C ] θ’JA2 θJA2 P1 θ’JA1 0 Chip Surface Temperature TJ [ °C ] 25 50 TJ’max θJA1 75 100 125 TJmax 150 Ambient Temperature TA [ °C ] (b) Derating Curve (a) Thermal Resistance 0.8 Power Dissipation [W] 0.6 LMR931G LMR981G (Note 45) 0.4 0.2 0.0 85 0 25 50 75 100 125 Ambient Temperature [°C] 150 (c) LMR931G, LMR981G www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 40/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR931G LMR982FVM LMR932xxx 1.0 1.5 0.8 1.2 Power Dissipation [W] Power Dissipation [W] LMR981G LMR932F (Note 46) 0.6 LMR932FJ (Note 45) LMR932FV (Note 49) LMR932FVT (Note 49) 0.4 LMR982FVM (Note 47) LMR932FVM (Note 47) LMR932FVJ (Note 47) Datasheet LMR934xxx LMR934FJ (Note 52) 0.9 LMR934FV (Note 51) LMR934FVJ (Note 50) 0.6 0.3 0.2 LMR934F (Note 48) 0.0 0 25 0.0 85 50 75 100 125 Ambient Temperature [°C] 0 150 25 85 50 75 100 125 Ambient Temperature [°C] 150 (e)LMR934xxx (d)LMR932xxx, LMR982FVM Figure 81. Thermal Resistance and Derating Curve (Note 45) (Note 46) (Note 47) (Note 48) (Note 49) (Note 50) (Note 51) (Note 52) Unit 5.4 5.5 4.7 4.5 5.0 6.8 7.0 8.2 mW/°C When using the unit above TA=25°C, subtract the value above per Celsius degree. Permissible dissipation is the value when FR4 glass epoxy board 70mm×70mm×1.6mm (copper foil area less than 3%) is mounted www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 41/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Operational Notes 1. Reverse Connection of Power Supply Connecting the power supply in reverse polarity can damage the IC. Take precautions against reverse polarity when connecting the power supply, such as mounting an external diode between the power supply and the IC’s power supply pins. 2. Power Supply Lines Design the PCB layout pattern to provide low impedance supply lines. Separate the ground and supply lines of the digital and analog blocks to prevent noise in the ground and supply lines of the digital block from affecting the analog block. Furthermore, connect a capacitor to ground at all power supply pins. Consider the effect of temperature and aging on the capacitance value when using electrolytic capacitors. 3. Ground Voltage Ensure that no pins are at a voltage below that of the ground pin at any time, even during transient condition. 4. Ground Wiring Pattern When using both small-signal and large-current ground traces, the two ground traces should be routed separately but connected to a single ground at the reference point of the application board to avoid fluctuations in the small-signal ground caused by large currents. Also ensure that the ground traces of external components do not cause variations on the ground voltage. The ground lines must be as short and thick as possible to reduce line impedance. 5. Thermal Consideration Should by any chance the power dissipation rating be exceeded the rise in temperature of the chip may result in deterioration of the properties of the chip. The absolute maximum rating of the PD stated in this specification is when the IC is mounted on a 70mm x 70mm x 1.6mm glass epoxy board. In case of exceeding this absolute maximum rating, increase the board size and copper area to prevent exceeding the P D rating. 6. Recommended Operating Conditions These conditions represent a range within which the expected characteristics of the IC can be approximately obtained. The electrical characteristics are guaranteed under the conditions of each parameter. 7. Inrush Current When power is first supplied to the IC, it is possible that the internal logic may be unstable and inrush current may flow instantaneously due to the internal powering sequence and delays, especially if the IC has more than one power supply. Therefore, give special consideration to power coupling capacitance, power wiring, width of ground wiring, and routing of connections. 8. Operation Under Strong Electromagnetic Field Operating the IC in the presence of a strong electromagnetic field may cause the IC to malfunction. 9. Testing on Application Boards When testing the IC on an application board, connecting a capacitor directly to a low-impedance output pin may subject the IC to stress. Always discharge capacitors completely after each process or step. The IC’s power supply should always be turned off completely before connecting or removing it from the test setup during the inspection process. To prevent damage from static discharge, ground the IC during assembly and use similar precautions during transport and storage. 10. Inter-pin Short and Mounting Errors Ensure that the direction and position are correct when mounting the IC on the PCB. Incorrect mounting may result in damaging the IC. Avoid nearby pins being shorted to each other especially to ground, power supply and output pin. Inter-pin shorts could be due to many reasons such as metal particles, water droplets (in very humid environment) and unintentional solder bridge deposited in between pins during assembly to name a few. 11. Regarding the Input Pin of the IC This monolithic IC contains P+ isolation and P substrate layers between adjacent elements in order to keep them isolated. P-N junctions are formed at the intersection of the P layers with the N layers of other elements, creating a parasitic diode or transistor. For example (refer to Figure 82): When GND > Pin A and GND > Pin B, the P-N junction operates as a parasitic diode. When GND > Pin B, the P-N junction operates as a parasitic transistor. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 42/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Operational Notes – continued Parasitic diodes inevitably occur in the structure of the IC. The operation of parasitic diodes can result in mutual interference among circuits, operational faults, or physical damage. Therefore, conditions that cause these diodes to operate, such as applying a voltage lower than the GND voltage to an input pin (and thus to the P substrate) should be avoided. Resistor Transistor (NPN) Pin A Pin B C E Pin A N P+ P N N P+ N Pin B B Parasitic Elements N P+ N P N P+ B N C E Parasitic Elements P Substrate P Substrate GND GND Parasitic Elements GND Parasitic Elements GND N Region close-by Figure 82. Example of Monolithic IC Structure 12. Unused Circuits When there are unused op-amps, it is recommended that they are connected as in Figure 83, setting the non-inverting input terminal to a potential within the in-phase input voltage range (VICM). 13. Input Voltage Applying VSS+0.3V to the input terminal is possible without causing deterioration of the electrical characteristics or destruction, regardless of the supply voltage. However, this does not ensure normal circuit operation. Please note that the circuit operates normally only when the input voltage is within the common mode input voltage range of the electric characteristics. VDD Keep this potential in VICM V ICM VSS Figure 83. Example of Application Circuit for Unused Op-Amp 14. Power Supply(single/dual) The operational amplifiers operate when the voltage supplied is between VDD and VSS. Therefore, the single supply operational amplifiers can be used as dual supply operational amplifiers as well. 15. Output Capacitor If a large capacitor is connected between the output pin and VSS pin, current from the charged capacitor will flow into the output pin and may destroy the IC when the VDD pin is shorted to ground or pulled down to 0V. Use a capacitor smaller than 0.1µF between output pin and VSS pin. 16. Oscillation by Output Capacitor Please pay attention to the oscillation by output capacitor and in designing an application of negative feedback loop circuit with these ICs. 17. Latch up Be careful of input voltage that exceed the VDD and VSS. When CMOS device have sometimes occur latch up and protect the IC from abnormaly noise. 18. Decupling Capacitor Insert the decupling capacitance between VDD and VSS, for stable operation of operational amplifier. 19. Shutdown Terminal The shutdown terminal can’t be left unconnected. In case shutdown operation is not needed, the shutdown pin should be connected to VDD when the IC is used. Leaving the shutdown pin floating will result in an undefined operation mode, either shutdown or active, or even oscillating between the two modes. www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 43/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension, Tape and Reel Information Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 SSOP5 44/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 SSOP6 45/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 MSOP8 46/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 MSOP10 47/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 TSSOP-B8J 48/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 TSSOP-B8 49/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 SSOP-B8 50/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 SOP-J8 51/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Physical Dimension Tape and Reel Information – continued Package Name SOP8 (Max 5.35 (include.BURR)) (UNIT : mm) PKG : SOP8 Drawing No. : EX112-5001-1 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 52/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 TSSOP-B14J 53/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 SSOP-B14 54/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name SOP14 (Max 9.05 (include.BURR)) (UNIT : mm) PKG : SOP14 Drawing No. : EX113-5001 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 55/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx LMR934xxx Datasheet Physical Dimension Tape and Reel Information – continued Package Name www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 SOP-J14 56/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Marking Diagram SSOP5(TOP VIEW) SSOP6(TOP VIEW) Part Number Marking Part Number Marking 1PIN MARK LOT Number LOT Number MSOP10(TOP VIEW) MSOP8(TOP VIEW) Part Number Marking Part Number Marking LOT Number LOT Number 1PIN MARK 1PIN MARK TSSOP-B8J(TOP VIEW) TSSOP-B8(TOP VIEW) Part Number Marking Part Number Marking LOT Number LOT Number 1PIN MARK 1PIN MARK SSOP-B8(TOP VIEW) SOP-J8(TOP VIEW) Part Number Marking Part Number Marking LOT Number LOT Number 1PIN MARK 1PIN MARK www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 57/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx SOP8(TOP VIEW) Datasheet LMR934xxx TSSOP-B14J (TOP VIEW) Part Number Marking Part Number Marking LOT Number LOT Number 1PIN MARK 1PIN MARK SSOP-B14(TOP VIEW) Part Number Marking SOP14(TOP VIEW) Part Number Marking LOT Number LOT Number 1PIN MARK 1PIN MARK SOP-J14(TOP VIEW) Part Number Marking LOT Number 1PIN MARK Product Name Package Type Marking BE LMR981 G SSOP6 LMR931 G SSOP5 L4 F SOP8 L932 LMR932 LMR982 LMR934 FJ SOP-J8 R932 FV SSOP-B8 R932 FVT TSSOP-B8 R932 FVM MSOP8 R932 FVJ TSSOP-B8J R932 FVM MSOP10 L982 F SOP14 R934 FJ SOP-J14 R934 FV SSOP-B14 R934 FVJ TSSOP-B14J R934 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 58/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 LMR981G LMR931G LMR982FVM LMR932xxx Datasheet LMR934xxx Land Pattern Data All dimensions in mm Land length Land width ≧ℓ 2 b2 Land pitch e Land space MIE 0.95 2.4 1.0 0.6 1.27 4.60 1.10 0.76 0.50 2.62 0.99 0.25 1.27 3.90 1.35 0.76 0.65 4.60 1.20 0.35 MSOP8 0.65 2.62 0.99 0.35 TSSOP-B8J TSSOP-B14J 0.65 3.20 1.15 0.35 PKG SSOP5 SSOP6 SOP8 SOP14 MSOP10 SOP-J8 SOP-J14 SSOP-B8 TSSOP-B8 SSOP-B14 SOP8, SOP-J8, SOP14, SOP-J14, SSOP-B8, SSOP-B14, MSOP8, MSOP10, TSSOP-B8, TSSOP-B8J, TSSOP-B14J SSOP6 SSOP5 e e e e e MI E MI E MIE ? ℓ 2 ℓ 2 ? b2 b2 b2 ℓ2 Revision History Date Revision 28.Dec.2012 25.Jan.2013 17.Jun.2013 30.Sep.2013 20.Feb.2014 24.Mar.2021 001 002 003 004 005 006 www.rohm.com ©2013 ROHM Co., Ltd. All rights reserved. TSZ22111･15･001 Changes New Release LMR982FVM inserted. Marking Diagram SSOP6 1PIN MARK added. Added LMR932xxx and LMR934xxx Correction of description gap of calculation(Page.37) Correction of the comparison table of Product Name and Marking.(Page.58) 59/59 TSZ02201-0RAR0G200570-1-2 24.Mar.2021.Rev.006 Notice Precaution on using ROHM Products 1. Our Products are designed and manufactured for application in ordinary electronic equipment (such as AV equipment, OA equipment, telecommunication equipment, home electronic appliances, amusement equipment, etc.). If you intend to use our Products in devices requiring extremely high reliability (such as medical equipment (Note 1), transport equipment, traffic equipment, aircraft/spacecraft, nuclear power controllers, fuel controllers, car equipment including car accessories, safety devices, etc.) and whose malfunction or failure may cause loss of human life, bodily injury or serious damage to property (“Specific Applications”), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific Applications. (Note1) Medical Equipment Classification of the Specific Applications JAPAN USA EU CHINA CLASSⅢ CLASSⅡb CLASSⅢ CLASSⅢ CLASSⅣ CLASSⅢ 2. ROHM designs and manufactures its Products subject to strict quality control system. However, semiconductor products can fail or malfunction at a certain rate. Please be sure to implement, at your own responsibilities, adequate safety measures including but not limited to fail-safe design against the physical injury, damage to any property, which a failure or malfunction of our Products may cause. The following are examples of safety measures: [a] Installation of protection circuits or other protective devices to improve system safety [b] Installation of redundant circuits to reduce the impact of single or multiple circuit failure 3. Our Products are designed and manufactured for use under standard conditions and not under any special or extraordinary environments or conditions, as exemplified below. Accordingly, ROHM shall not be in any way responsible or liable for any damages, expenses or losses arising from the use of any ROHM’s Products under any special or extraordinary environments or conditions. If you intend to use our Products under any special or extraordinary environments or conditions (as exemplified below), your independent verification and confirmation of product performance, reliability, etc, prior to use, must be necessary: [a] Use of our Products in any types of liquid, including water, oils, chemicals, and organic solvents [b] Use of our Products outdoors or in places where the Products are exposed to direct sunlight or dust [c] Use of our Products in places where the Products are exposed to sea wind or corrosive gases, including Cl2, H2S, NH3, SO2, and NO2 [d] Use of our Products in places where the Products are exposed to static electricity or electromagnetic waves [e] Use of our Products in proximity to heat-producing components, plastic cords, or other flammable items [f] Sealing or coating our Products with resin or other coating materials [g] Use of our Products without cleaning residue of flux (Exclude cases where no-clean type fluxes is used. However, recommend sufficiently about the residue.) ; or Washing our Products by using water or water-soluble cleaning agents for cleaning residue after soldering [h] Use of the Products in places subject to dew condensation 4. The Products are not subject to radiation-proof design. 5. Please verify and confirm characteristics of the final or mounted products in using the Products. 6. In particular, if a transient load (a large amount of load applied in a short period of time, such as pulse, is applied, confirmation of performance characteristics after on-board mounting is strongly recommended. Avoid applying power exceeding normal rated power; exceeding the power rating under steady-state loading condition may negatively affect product performance and reliability. 7. De-rate Power Dissipation depending on ambient temperature. When used in sealed area, confirm that it is the use in the range that does not exceed the maximum junction temperature. 8. Confirm that operation temperature is within the specified range described in the product specification. 9. ROHM shall not be in any way responsible or liable for failure induced under deviant condition from what is defined in this document. Precaution for Mounting / Circuit board design 1. When a highly active halogenous (chlorine, bromine, etc.) flux is used, the residue of flux may negatively affect product performance and reliability. 2. In principle, the reflow soldering method must be used on a surface-mount products, the flow soldering method must be used on a through hole mount products. If the flow soldering method is preferred on a surface-mount products, please consult with the ROHM representative in advance. For details, please refer to ROHM Mounting specification Notice-PGA-E © 2015 ROHM Co., Ltd. All rights reserved. Rev.004 Precautions Regarding Application Examples and External Circuits 1. If change is made to the constant of an external circuit, please allow a sufficient margin considering variations of the characteristics of the Products and external components, including transient characteristics, as well as static characteristics. 2. You agree that application notes, reference designs, and associated data and information contained in this document are presented only as guidance for Products use. Therefore, in case you use such information, you are solely responsible for it and you must exercise your own independent verification and judgment in the use of such information contained in this document. ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of such information. Precaution for Electrostatic This Product is electrostatic sensitive product, which may be damaged due to electrostatic discharge. Please take proper caution in your manufacturing process and storage so that voltage exceeding the Products maximum rating will not be applied to Products. Please take special care under dry condition (e.g. Grounding of human body / equipment / solder iron, isolation from charged objects, setting of Ionizer, friction prevention and temperature / humidity control). Precaution for Storage / Transportation 1. Product performance and soldered connections may deteriorate if the Products are stored in the places where: [a] the Products are exposed to sea winds or corrosive gases, including Cl 2, H2S, NH3, SO2, and NO2 [b] the temperature or humidity exceeds those recommended by ROHM [c] the Products are exposed to direct sunshine or condensation [d] the Products are exposed to high Electrostatic 2. Even under ROHM recommended storage condition, solderability of products out of recommended storage time period may be degraded. It is strongly recommended to confirm solderability before using Products of which storage time is exceeding the recommended storage time period. 3. Store / transport cartons in the correct direction, which is indicated on a carton with a symbol. Otherwise bent leads may occur due to excessive stress applied when dropping of a carton. 4. Use Products within the specified time after opening a humidity barrier bag. Baking is required before using Products of which storage time is exceeding the recommended storage time period. Precaution for Product Label A two-dimensional barcode printed on ROHM Products label is for ROHM’s internal use only. Precaution for Disposition When disposing Products please dispose them properly using an authorized industry waste company. Precaution for Foreign Exchange and Foreign Trade act Since concerned goods might be fallen under listed items of export control prescribed by Foreign exchange and Foreign trade act, please consult with ROHM in case of export. Precaution Regarding Intellectual Property Rights 1. All information and data including but not limited to application example contained in this document is for reference only. ROHM does not warrant that foregoing information or data will not infringe any intellectual property rights or any other rights of any third party regarding such information or data. 2. ROHM shall not have any obligations where the claims, actions or demands arising from the combination of the Products with other articles such as components, circuits, systems or external equipment (including software). 3. No license, expressly or implied, is granted hereby under any intellectual property rights or other rights of ROHM or any third parties with respect to the Products or the information contained in this document. Provided, however, that ROHM will not assert its intellectual property rights or other rights against you or your customers to the extent necessary to manufacture or sell products containing the Products, subject to the terms and conditions herein. Other Precaution 1. This document may not be reprinted or reproduced, in whole or in part, without prior written consent of ROHM. 2. The Products may not be disassembled, converted, modified, reproduced or otherwise changed without prior written consent of ROHM. 3. In no event shall you use in any way whatsoever the Products and the related technical information contained in the Products or this document for any military purposes, including but not limited to, the development of mass-destruction weapons. 4. The proper names of companies or products described in this document are trademarks or registered trademarks of ROHM, its affiliated companies or third parties. Notice-PGA-E © 2015 ROHM Co., Ltd. All rights reserved. Rev.004 Datasheet General Precaution 1. Before you use our Products, you are requested to carefully read this document and fully understand its contents. ROHM shall not be in any way responsible or liable for failure, malfunction or accident arising from the use of any ROHM’s Products against warning, caution or note contained in this document. 2. All information contained in this document is current as of the issuing date and subject to change without any prior notice. Before purchasing or using ROHM’s Products, please confirm the latest information with a ROHM sales representative. 3. The information contained in this document is provided on an “as is” basis and ROHM does not warrant that all information contained in this document is accurate and/or error-free. ROHM shall not be in any way responsible or liable for an y damages, expenses or losses incurred b y you or third parties resulting from inaccuracy or errors of or concerning such information. Notice – WE © 2015 ROHM Co., Ltd. All rights reserved. Rev.001
