MNR04

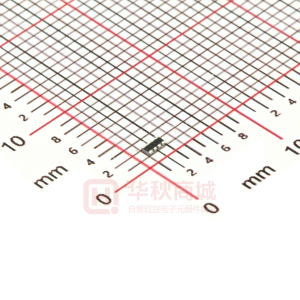

MNR04 Resistors Chip resistor networks MNR04 (1005 × 4 size) Features 1) Extremely small and light Area ratio is 60% smaller than that of chip 3216 (MNR14), while weight ratio has been cut 75%. 2) High-density mounting Can be mounted even more densely than four 1005 chips (MCR01), and mounting costs are lower. 3) Can be mounted on a wide variety of devices Squared corners make it excellent for mounting on image recognition devices. 4) Convex electrodes Easy to check the fillet after soldering is finished. 5) ROHM resistors comply with the international standard ISO-9001. Furthermore, changes to the design and specifications of products may occur without notice. Therefore, before ordering or using this product, please make sure to reconfirm the specification sheet before ordering or using this product. Ratings Item Rated power Conditions Power must be derated according to the power derating curve in Figure 1 when ambient temperature exceeds 70°C. 100 Specifications 0.063W (1 / 16W) at 70°C POWER LOAD (%) 80 60 40 20 0 Ð 55 0 70 100 125 AMBIENT TEMPERATURE (°C) Fig.1 Rated voltage The voltage rating is calculated by the following equation. If the value obtained exceeds the limiting element voltage, the voltage rating is equal to maximum operating voltage. E : Voltage rating (V) P : Power rating (W) R : Nominal resistance (Ω) E = P×R Limiting element voltage 25V Nominal resistance Operating temperature See Table 1. −55°C to +125°C Rev.B 1/4 MNR04 Resistors Jumper type Resistance Rated current Operating temperature Max.50mΩ 1A −55°C to +125°C Table 1 Resistance tolerance J (±5%) Resistance range (Ω) 10≤R≤1M (E24) Resistance temperature coefficient (ppm / °C) ±200 •Before using components in circuits where they will be exposed to transients such as pulse loads (short-duration, high-level loads), be certain to evaluate the component in the mounted state. In addition, the reliability and performance of this component cannot be guaranteed if it is used with a steady state voltage that is greater than its rated voltage. Characteristics Item Resistance Variation of resistance with temperature Overload ± (2.0%+0.1Ω) Guaranteed value Resistor type Jumper type J : ±5% Max. 50mΩ See Table.1 Max. 50mΩ Test conditions (JIS C 5201-1) JIS C 5201-1 4.5 JIS C 5201-1 4.8 Measurement : −55 / +25 / +125°C JIS C 5201-1 4.13 Rated voltage (current) ×2.5, 2s. Limiting Element Voltage×2 : 50V JIS C 5201-1 4.17 Rosin·Ethanol (25%WT) Soldering condition : 235±5°C Duration of immersion : 2.0±0.5s. JIS C 5201-1 4.18 Soldering condition : 260±5°C Duration of immersion : 10±1s. JIS C 5201-1 4.19 Test temp. : −55°C to +125°C 5cyc JIS C 5201-1 4.24 40°C, 93%RH Test time : 1,000h to 1,048h JIS C 5201-1 4.25.1 Rated voltage (current), 70°C 1.5h : ON − 0.5h : OFF Test time : 1,000h to 1,048h JIS C 5201-1 4.25.3 125°C Test time : 1,000h to 1,048h JIS C 5201-1 4.29 23±5°C, Immersion cleaning, 5±0.5min. Solvent : 2-propanol JIS C 5201-1 4.33 Solderability A new uniform coating of minimum of 95% of the surface being immersed and no soldering damage. ± (1.0%+0.05Ω) Max. 50mΩ No remarkable abnormality on the appearance. ± (1.0%+0.05Ω) ± (3.0%+0.1Ω) Max. 50mΩ Max. 50mΩ Resistance to soldering heat Rapid change of temperature Damp heat, steady state ± (3.0%+0.1Ω) Endurance at 70°C ± (3.0%+0.1Ω) Endurance ± (1.0%+0.05Ω) Resistance to solvent Max. 50mΩ Max. 50mΩ Max. 50mΩ Bend strength of the end face plating Max. 50mΩ ± (1.0%+0.05Ω) Without mechanical damage such as breaks. Rev.B 2/4 MNR04 Resistors External dimensions (Unit : mm) 2.0±0.2 a b B a : 0.4±0.15 b : 0.3±0.15 No. Material Thick dielectric glaze of oxide metal 0.2±0.15 1.0±0.1 A A' 0.2±0.15 Thick film of silver for electrode Nickel-coated electrode Sn electrode ∗ 0.5 ∗ 0.5 ∗ 0.5 B' Alumina substrate Overcoating Cross section A - A' Cross section B - B' ∗ The pitch between electrodes. Equivalent circuit R1 R2 R3 0.45±0.1 R4 R1 = R2 = R3 = R4 Rev.B 3/4 MNR04 Resistors Packaging Reel Taping P0 P2 φD0 E A0 F W 08 06 04 A B D 02 P1 Thick paper mount Heat crimp cover / Tape Chip network resistors Square punchout hole (Underside paper tape) T2 C Label EIAJ ET-7200B compliant B0 02 04 06 08 (Unit : mm) W 8.0±0.3 D0 F 3.5±0.05 P0 4.0±0.1 E 1.75±0.1 P1 4.0±0.1 A0 1.2±0.1 P2 2.0±0.05 B0 2.2±0.1 T2 Max. 1.1 (Unit : mm) A 0 φ180 −1.5 B +1 φ60 0 C +1.0 9 0 D φ13±0.2 φ1.5 +0.1 0 Product designation 4 Part No. P Resistance tolerance Nominal resistance J ±5% J is also used for jumper. Resistance code, 3 digits, 000 denotes Jumper type. Packaging Specifications Code Part No. MNR04 Code M0AP Resistance tolerance J(±5%) Packaging specifications Paper tape (2mmPitch) Reel φ 180mm (7in). Basic ordering unit (pcs) 10,000 Reel ( φ 180mm) : Compatible with JEITA standard "EIAJ ET-7200B" : S tandard product Rev.B 4/4 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject to change without notice. The specifications for the product described in this document are for reference only. Upon actual use, therefore, please request that specifications to be separately delivered. Application circuit diagrams and circuit constants contained herein are shown as examples of standard use and operation. Please pay careful attention to the peripheral conditions when designing circuits and deciding upon circuit constants in the set. Any data, including, but not limited to application circuit diagrams information, described herein are intended only as illustrations of such devices and not as the specifications for such devices. ROHM CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such devices. Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or otherwise dispose of the same, no express or implied right or license to practice or commercially exploit any intellectual property rights or other proprietary rights owned or controlled by ROHM CO., LTD. is granted to any such buyer. Products listed in this document are no antiradiation design. The products listed in this document are designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys). Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. About Export Control Order in Japan Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control Order in Japan. In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause) on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction. Appendix1-Rev1.1
