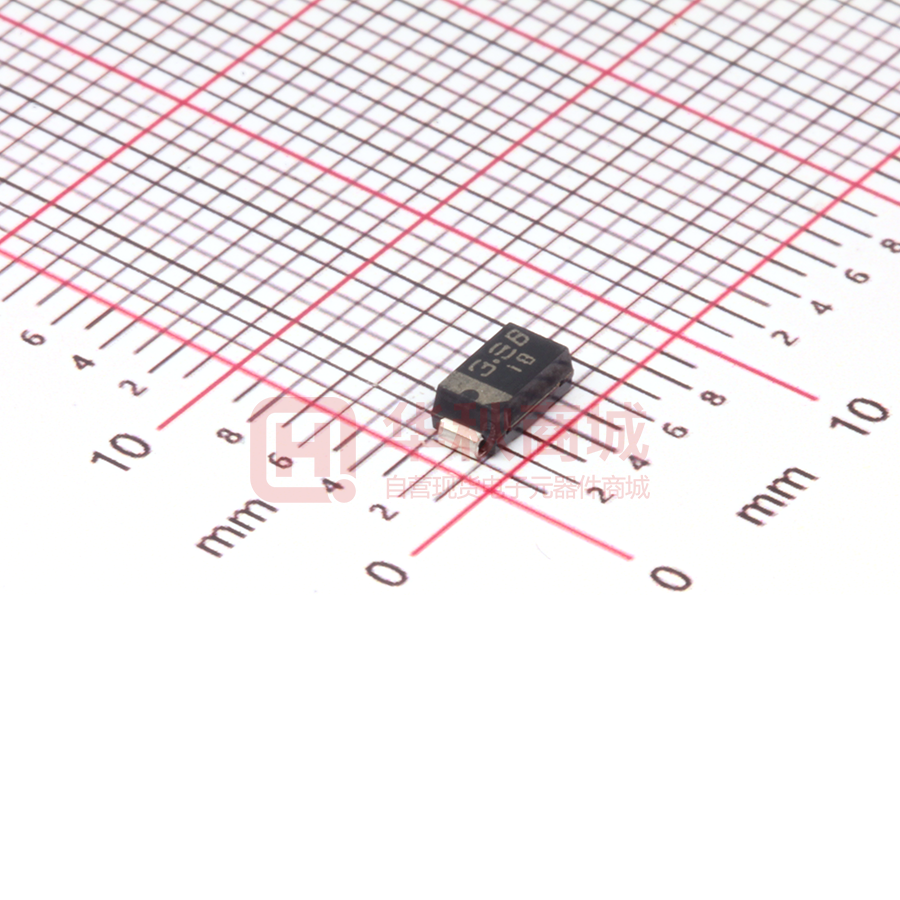

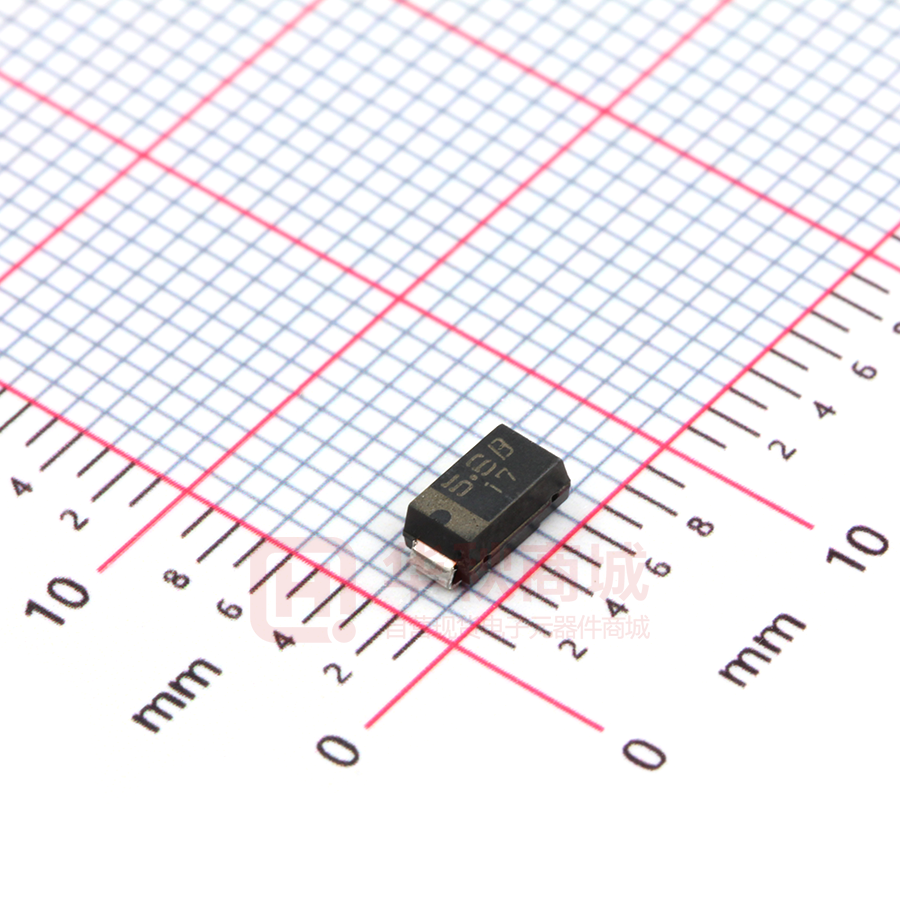

PTZTE253.9B

PTZ Series Diodes Zener diode PTZ Series zExternal dimensions (Unit : mm) zApplications 1) Voltage regulation and voltage limiting. 2) Voltage surge absorption. 4.5±0.2 zFeatures 1) Small surface mounting type. (PMDS) 2) 1W of power can be obtained despite compact size. 3) High surge withstand level. 0.1 +0.02 −0.1 5.0±0.3 1.2±0.3 1.5±0.2 CATHODE MARK 0∼0.1 2.0±0.2 2.6±0.2 ROHM : PMDS EIAJ : − JEDEC : SOD-106 Model name (voltage rank) Date of manufacture Ex. 1999.12→9.C zConstruction Silicon epitaxial planar zAbsolute maximum ratings (Ta=25°C) Parameter Symbol Limits Unit Power dissipation ∗ P 1 W Junction temperature Tj 150 °C Storage temperature Tstg −55 to +150 °C ∗ Mounting density of other power components should be taken into consideration when laying out the pattern. zMarking (Voltage rank) Type No. Type No. Type No. PTZ3.6B 3.6 B PTZ8.2B 8.2 B PTZ20B 20 B PTZ3.9B 3.9 B PTZ9.1B 9.1 B PTZ22B 22 B PTZ4.3B 4.3 B PTZ10B 10 B PTZ24B 24 B PTZ4.7B 4.7 B PTZ11B 11 B PTZ27B 27 B PTZ5.1B 5.1 B PTZ12B 12 B PTZ30B 30 B PTZ5.6B 5.6 B PTZ13B 13 B PTZ33B 33 B PTZ6.2B 6.2 B PTZ15B 15 B PTZ36B PTZ6.8B 6.8 B PTZ16B 16 B − − PTZ7.5B 7.5 B PTZ18B 18 B − − 36 B (Ex.) PTZ3.6B 3.6B 9 C Zener voltage category Year of manufacture: last digit of Western calendar Ex.) PTZ3.6B 1999 Dec. Month Jan. Feb. Mar. Apr. May Jun. Jul. Aug. Sep. Oct. Nov. Dec. Symbol 1 2 3 4 5 6 7 8 9 O A C Month of manufacture Rev.A 1/4 PTZ Series Diodes zElectrical characteristics (Ta=25°C) Operating resistance Zener voltage subdivision Type VZ (V) Reverse current ZZ (Ω) IR (µA) Max. IZ (mA) Max. VR (V) Min. Max. IZ (mA) PTZ 3.6B 3.600 4.000 40 15 40 20 1.0 PTZ 3.9B 3.900 4.400 40 15 40 20 1.0 PTZ 4.3B 4.300 4.800 40 15 40 20 1.0 PTZ 4.7B 4.700 5.200 40 10 40 20 1.0 PTZ 5.1B 5.100 5.700 40 8 40 20 1.0 PTZ 5.6B 5.600 6.300 40 8 40 20 1.5 PTZ 6.2B 6.200 7.000 40 6 40 20 3.0 PTZ 6.8B 6.800 7.700 40 6 40 20 3.5 PTZ 7.5B 7.500 8.400 40 4 40 20 4.0 PTZ 8.2B 8.200 9.300 40 4 40 20 5.0 PTZ 9.1B 9.100 10.200 40 6 40 20 6.0 PTZ 10B 10.000 11.200 40 6 40 10 7.0 PTZ 11B 11.000 12.300 20 8 20 10 8.0 PTZ 12B 12.000 13.500 20 8 20 10 9.0 PTZ 13B 13.300 15.000 20 10 20 10 10.0 PTZ 15B 14.700 16.500 20 10 20 10 11.0 PTZ 16B 16.200 18.300 20 12 20 10 12.0 PTZ 18B 18.000 20.300 20 12 20 10 13.0 PTZ 20B 20.000 22.400 20 14 20 10 15.0 PTZ 22B 22.000 24.500 10 14 10 10 17.0 PTZ 24B 24.000 27.600 10 16 10 10 19.0 PTZ 27B 27.000 30.800 10 16 10 10 21.0 PTZ 30B 30.000 34.000 10 18 10 10 23.0 PTZ 33B 33.000 37.000 10 18 10 10 25.0 PTZ 36B 36.000 40.000 10 20 10 10 27.0 Notes) 1. The Zener voltage is measured 40ms after power is supplied. 2. The operating resistances (Zz, Zzk) are measured by superimposing a minute alternating current on the regulated current (Iz). Rev.A 2/4 PTZ Series Diodes zElectrical characteristic curves (Ta=25°C) Ceramic substrate 82×30×1.0 (mm) 800 600 400 Individual part (not mounted) 200 0 0 25 50 87.5 100 150 200 AMBIENT TEMPERATURE : Ta (°C) Fig.1 Derating curve Mounting position 15mm 1.5W A 1.0W 100 0.5W Alumina substrate 114×124×1.6 (Units : mm) 0 1 10 100 MOUNTING QUANTITY (pcs/substrate) 200 Mounting position 15mm 1.5W 10mm 1000 200 RISE IN DIODE A SURFACE TEMPERATURE (°C) POWER DISSIPATION : Pd (mn) Glass epoxy substrate 32×30×1.6 (mm) 10mm RISE IN DIODE A SURFACE TEMPERATURE (°C) 1200 A 1.0W 0.5W 100 0 Glass epoxy substrate 144×220×1.6 (Units : mm) 1 10 100 MOUNTING QUANTITY (pcs/substrate) Fig.3 Rise in surface temperature Fig.2 Rise in surface temperature ZENER CURRENT : IZ (A) 36 33 30 27 24 22 20 18 16 15 13 11 12 10 9.1 8.2 6.8 7.5 5.6 6.2 4.3 4.7 5.1 3.9 3.6 100m 10m 1m 100µ 10µ 1µ 5 0 10 15 20 25 30 35 40 ZENER VOLTAGE : VZ (V) 200 Mounting position 15mm 1.5W 10mm RISE IN DIODE A SURFACE TEMPERATURE (°C) Fig.4 Zener voltage characteristics A 1.0W 0.5W 100 0 Glass epoxy substrate 144×220×1.6 (Units : mm) 1 10 100 MOUNTING QUANTITY (pcs/substrate) Fig.3 Rise in surface temperature Rev.A 3/4 PTZ Series Diodes zMakeup of the part number • Please follow the part number designation when the order is placed. • Fill in from the left, leaving any extra boxes empty on the right. • Please refer packing specification about packing form. zZener diodes Example) U D Z T E − 1 7 2 . Part number Packaging configuration 0 B Zener voltage Subdivision Rev.A 4/4 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject to change without notice. The specifications for the product described in this document are for reference only. Upon actual use, therefore, please request that specifications to be separately delivered. Application circuit diagrams and circuit constants contained herein are shown as examples of standard use and operation. Please pay careful attention to the peripheral conditions when designing circuits and deciding upon circuit constants in the set. Any data, including, but not limited to application circuit diagrams information, described herein are intended only as illustrations of such devices and not as the specifications for such devices. ROHM CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such devices. Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or otherwise dispose of the same, no express or implied right or license to practice or commercially exploit any intellectual property rights or other proprietary rights owned or controlled by ROHM CO., LTD. is granted to any such buyer. Products listed in this document are no antiradiation design. The products listed in this document are designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys). Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. About Export Control Order in Japan Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control Order in Japan. In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause) on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction. Appendix1-Rev1.1
