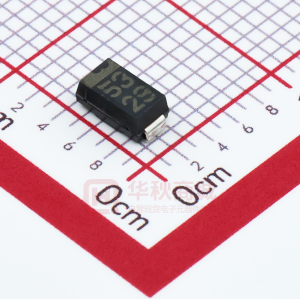

RB056L-40

Schottky Barrier Diode RB056L-40 Applications General rectification Dimensions(Unit : mm)  Land size figure(Unit : mm) 2.0 2.0 Features 1)Small power mold type.(PMDS) 2)Low IR 3)High reliability PMDS Construction Silicon epitaxial planer Structure  Taping specifications(Unit : mm) 4.0±0.1 2.0±0.05 φ1.55±0.05 1.75±0.1 0.3 5.5±0.05 φ1.55 2.9±0.1 4.0±0.1 2.8MAX Absolute maximum ratings (Ta=25C) Parameter Reverse voltage (repetitive) Reverse voltage (DC) Average rectified forward current (*1) Forward current surge peak (60Hz / 1cyc) Junction temperature Storage temperature (*1)Mounting on epoxi board. (Tc=63CMAX.) Electrical characteristics (Ta=25℃) Parameter Forward voltage Reverse current Symbol VRM VR Io IFSM Tj Tstg Limits 40 40 3 70 150 -40to+150 5.3±0.1 　 0.05 9.5±0.1 Unit V V A A C C 12±0.2 Symbol VF1 VF2 IR Min. - Typ. - Max. 0.67 0.58 50 Unit V V A Conditions IF=3.0A IF=2.0A VR=40V www.rohm.com ©2010 ROHM Co., Ltd. All rights reserved. 1/3 2010.02 - Rev.A 4.2 RB056L-40 　 Data Sheet Electrical characteristics curves 1000 10000 Ta=75 C Ta=125 C Ta=-25 C 1000 Ta=150 C 1000 Ta=125 C CAPACIT ANCE BETWEEN TERMINALS : Ct(pF) f=1MHz FORWARD CURRENT : IF(mA) REVERSE CURRENT : IR(A) 100 Ta=150 C Ta=25 C 100 10 Ta=75 C 100 Ta=25 C 1 Ta=-25 C 0.1 0.01 10 10 1 0 100 200 300 400 500 600 1 0 5 10 15 20 25 30 35 40 0 5 10 15 20 25 30 REVERSE VOLTAGE : V R(V) VR-Ct CHARACTERISTICS FORWARD VOLTAGE : V F(mV) VF-IF CHARACTERISTICS REVERSE VOLTAGE : V R(V) VR-IR CHARACTERISTICS 480 FORWARD VOLTAGE : VF(mV) Ta=25 C IF=1A n=30pcs 20 Ta=25 C VR=40V n=30pcs 0.3 Ta=25 C f=1MHz VR=0V n=30pcs REVERSE CURRENT : IR(uA) 470 CAPACITANCE BETWEEN TERMINAL : Ct(nF) 0.29 460 0.28 10 450 AVE:454.3mV 440 0.27 AVE : 0.281nF 0.26 AVE : 4.08 A 430 0 0.25 Ct DISPERSION MAP VF DISPERSION MAP IR DISPERSION MAP 200 Ifsm 30 1cyc 8.3m RESERVE RECOVERY TIME : trr(ns) 25 20 15 10 5 0 IFSM DISRESION MAP trr DISPERSION MAP AVE : 10.4ns Ta=25 C IF=0.5A IR=1A Irr=0.25*IR n=10pcs 100 PEAK SURGE FORWARD CURRENT : IFSM(A) PEAK SURGE FORWARD CURRENT : IFSM(A) 150 80 60 100 40 Ifsm 50 AVE : 83.0A 20 8.3ms 8.3m 1cyc 0 1 10 NUMBER OF CYCLES IFSM-CYCLE CHARACTERISTICS 100 0 300 TRANSIENT  THAERMAL IMPEDANCE : Rth ( C/W) PEAK SURGE FORWARD CURRENT : IFSM(A) 250 200 150 100 50 0 0.1 1 10 100 TIME : t(ms) IFSM-t CHARACTERISTICS 1000 On glass-epoxy board 100 Rth(j-a) FORWARD POWER DISSIPATION : Pf(W) 3 Ifsm t 2 Sin(=180) D=1/2 DC 10 IM=100mA Rth(j-c) IF=1A 1 1 1ms time 0 300s 0.1 0.001 0.01 0.1 1 10 TIME : t(s) Rth-t CHARACTERISTICS 100 1000 0 1 2 3 AVERAGE RECTIFIED FORWARD CURRENT : Io(A) Io-Pf CHARACTERISTICS www.rohm.com ©2010 ROHM Co., Ltd. All rights reserved. 2/3 2010.02 - Rev.A RB056L-40 　 Data Sheet 0.6 0.5 REVERSE POWER DISSIPATION : PR (W) 0.4 0.3 0.2 0.1 0 0 Sin(=180) 10 20 30 REVERSE VOLTAGE : VR(V) VR-PR CHARACTERISTICS 40 DC 5 4.5 AVERAGE RECTIFIED FORWARD CURRENT : Io(A) 4 3.5 3 D=1/2 2.5 2 1.5 1 0.5 0 0 25 50 75 100 125 150 AMBIENT TEMPERATURE : Ta( C) Derating Curve"(Io-Ta) Sin(=180) DC T Io AVERAGE RECTIFIED FORWARD CURRENT : Io(A) 0A 0V t 7 0A 6 DC 5 T 4 3 2 Sin(=180) 1 0 0 25 50 75 100 125 CASE TEMPARATURE : Tc( C) Derating Curve"(Io-Tc) D=1/2 0V t Io VR D=t/T VR=20V Tj=150 C VR D/t/T VR=200V Tj=150 C D=1/2 30 No break at 30kV ELECTROSTATIC DISCHARGE TEST ESD(KV) 25 20 15 AVE : 7.3kV 10 5 0 C=200pF R=0 C=100pF R=1.5k ESD DISPERSION MAP www.rohm.com ©2010 ROHM Co., Ltd. All rights reserved. 3/3 2010.02 - Rev.A Notice Notes No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without notice. The content specified herein is for the purpose of introducing ROHM's products (hereinafter "Products"). If you wish to use any such Product, please be sure to refer to the specifications, which can be obtained from ROHM upon request. Examples of application circuits, circuit constants and any other information contained herein illustrate the standard usage and operations of the Products. The peripheral conditions must be taken into account when designing circuits for mass production. Great care was taken in ensuring the accuracy of the information specified in this document. However, should you incur any damage arising from any inaccuracy or misprint of such information, ROHM shall bear no responsibility for such damage. The technical information specified herein is intended only to show the typical functions of and examples of application circuits for the Products. ROHM does not grant you, explicitly or implicitly, any license to use or exercise intellectual property or other rights held by ROHM and other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the use of such technical information. The Products specified in this document are intended to be used with general-use electronic equipment or devices (such as audio visual equipment, office-automation equipment, communication devices, electronic appliances and amusement devices). The Products specified in this document are not designed to be radiation tolerant. While ROHM always makes efforts to enhance the quality and reliability of its Products, a Product may fail or malfunction for a variety of reasons. Please be sure to implement in your equipment using the Products safety measures to guard against the possibility of physical injury, fire or any other damage caused in the event of the failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM shall bear no responsibility whatsoever for your use of any Product outside of the prescribed scope or not in accordance with the instruction manual. The Products are not designed or manufactured to be used with any equipment, device or system which requires an extremely high level of reliability the failure or malfunction of which may result in a direct threat to human life or create a risk of human injury (such as a medical instrument, transportation equipment, aerospace machinery, nuclear-reactor controller, fuelcontroller or other safety device). ROHM shall bear no responsibility in any way for use of any of the Products for the above special purposes. If a Product is intended to be used for any such special purpose, please contact a ROHM sales representative before purchasing. If you intend to export or ship overseas any Product or technology specified herein that may be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to obtain a license or permit under the Law. Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/contact/ www.rohm.com © 2010 ROHM Co., Ltd. All rights reserved. R1010A
